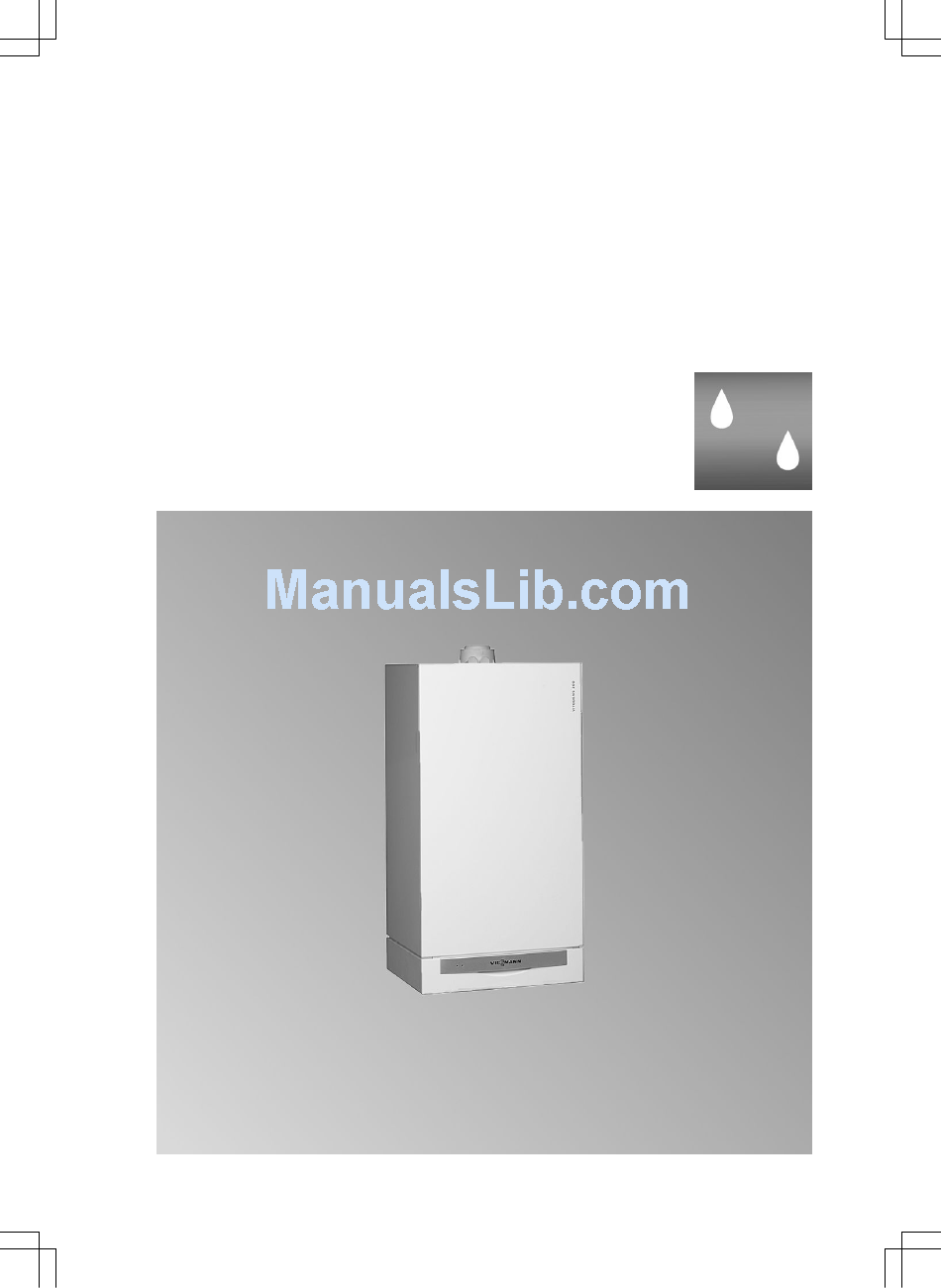

VIESMANN
Service instructions
for contractors
Vitodens 200-W
Type WB2B, 4.8 to 35.0 kW
Wall mounted gas condensing boiler
Natural gas and LPG version
For applicability, see the last page
VITODENS 200-W
Please keep safe.
5692 812 GB
10/2009
