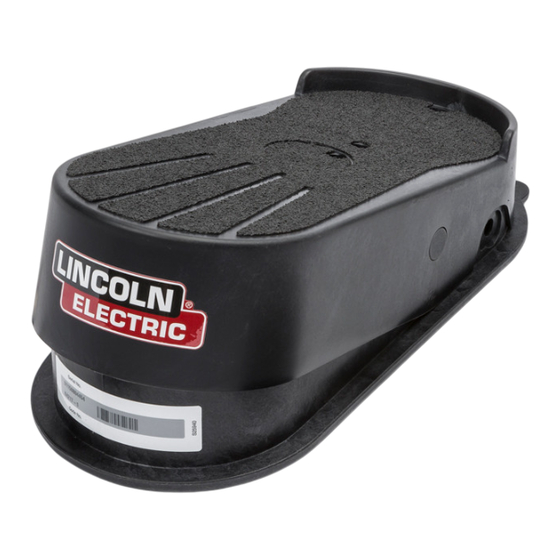

Wireless tig foot pedal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's Manual
WIRELESS TIG FOOT PEDAL
Register your machine:
www.lincolnelectric.com/registration
Authorized Service and Distributor Locator:
www.lincolnelectric.com/locator
Save for future reference
Date Purchased
Code: (ex: 10859)
Serial: (ex: U1060512345)
IM10263-A
| Issue D ate Mar-16
© Lincoln Global, Inc. All Rights Reserved.
For use with machines having Code Numbers:
12381, 12382, 12383

Advertisement

Table of Contents
loading

Related Manuals for Lincoln Electric IM10263

Summary of Contents for Lincoln Electric IM10263

  • Page 1 For use with machines having Code Numbers: 12381, 12382, 12383 Register your machine: www.lincolnelectric.com/registration Authorized Service and Distributor Locator: www.lincolnelectric.com/locator Save for future reference Date Purchased Code: (ex: 10859) Serial: (ex: U1060512345) IM10263-A | Issue D ate Mar-16 © Lincoln Global, Inc. All Rights Reserved.
  • Page 2 THANK YOU FOR SELECTING A QUALITY PRODUCT BY KEEP YOUR HEAD OUT OF THE FUMES. DON’T get too close to the arc. LINCOLN ELEC TRIC. Use corrective lenses if necessary to stay a reasonable distance away from the arc. READ and obey the Safety Data PLEASE EXAMINE CARTON AND EQUIPMENT FOR Sheet (SDS) and the warning label DAMAGE IMMEDIATELY...
  • Page 3 MAGNETIC FIELDS MAY W117.2-1974. A Free copy of “Arc Welding Safety” booklet BE DANGEROUS E205 is available from the Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199. 2.a. Electric current flowing through any conductor BE SURE THAT ALL INSTALLATION, OPERATION, causes localized Electric and Magnetic Fields (EMF).

  • Page 4: Electric Shock Can Kill

    S FETY ELECTRIC SHOCK ARC RAYS CAN BURN. CAN KILL. 3.a. The electrode and work (or ground) circuits are 4.a. Use a shield with the proper filter and cover plates to protect your electrically “hot” when the welder is on. Do eyes from sparks and the rays of the arc when welding or not touch these “hot”...
  • Page 5 S FETY WELDING AND CUTTING CYLINDER MAY EXPLODE IF SPARKS CAN CAUSE DAMAGED. FIRE OR EXPLOSION. 7.a. Use only compressed gas cylinders containing the correct shielding gas for the process used 6.a. Remove fire hazards from the welding area. If and properly operating regulators designed for this is not possible, cover them to prevent the welding sparks the gas and pressure used.
  • Page 6 WIRELESS TIG FOOT PEDAL TABLE OF CONTENTS...

  • Page 7: Individual Components

    WIRELESS TIG FOOT PEDAL GENERAL DESCRIPTION GENERAL DESCRIPTION The Wireless TIG Foot pedal provides precision arc control along with the freedom and flexibility of a wireless device. With a range of approximately 100 ft., the system is extremely easy-to-use and can be set up and configured within seconds.

  • Page 8: Operation

    WIRELESS TIG FOOT PEDAL OPERATION Receiver: assembly and oPeration Pedal: Connect one end of the 15VDC power supply to the receiver cable assembly; and the other end into a 115 VAC receptacle. The ‘ON’ Out of the box, remove the panel on the bottom side of the pedal LED will illuminate.

  • Page 9: Channel Selection

    WIRELESS TIG FOOT PEDAL OPERATION Selecting Channel (Receiver): Channel seleCtion In addition to being properly paired, the pedal and receiver must (See figure A.5) be set to the same channel in order for communication to take 1. Remove the 4 screws on the back of the receiver and remove place.
  • Page 10 WIRELESS TIG FOOT PEDAL OPERATION Pairing the Pedal/reCeiVer dual Power mode™ The pairing procedure establishes a communication link between Dual power mode optimizes communication performance when the pedal and receiver which is maintained until this procedure is welding in challenging RF environments. Note that the system repeated (systems remained paired even if power is removed).
  • Page 11 WIRELESS TIG FOOT PEDAL OPERATION MAX Pedal Stroke Calibration: There are two parameters that can be calibrated: the Trigger Extreme impact and/or part replacement procedures can affect Trigger Release Screw Release Screw and MAX Pedal Stroke. the optimal position of the pot and thus the ability to reach the maximum welding set point.

  • Page 12: Diagnostic Mode

    WIRELESS TIG FOOT PEDAL OPERATION Entering Diagnostic Mode: diagnostiC mode The system’s range is maximized with a clear line of sight to the (See figure A.11) power source. Other factors such as heavy RF activity within the 1. Remove the 4 screws on the back of the receiver and remove pedal’s vicinity can also affect performance.

  • Page 13: Troubleshooting

    WIRELESS TIG FOOT PEDAL TROUBLE SHOOTING Observe all Safety Guidelines detailed throughout this manual PROBLEM POSSIBLE CAUSE RECOMMENDED COURSE OF ACTION The machine does not 1. The battery power is too low. 1. Replace the batteries in the pedal. respond when the pedal is 2.
  • Page 14 WIRELESS TIG FOOT PEDAL DIAGRAMS...
  • Page 15 Wireless TIG Foot Pedal (Complete) - 12381...

  • Page 16: Miscellaneous Items

    Miscellaneous Items PART NUMBER DESCRIPTION 9SM24889 SWITCHING POWER SUPPLY 9SS29511 LEVELING FOOT 9SM22906-1 FOOT PEDAL SPRING (HEAVY) Wireless TIG Foot Pedal (Complete) - 12381...

  • Page 17: Foot Pedal Assembly

    Foot Pedal Assembly PART NUMBER DESCRIPTION 9SG7380-1 FOOT PEDAL ASSEMBLY 9SG7328 PEDAL BOTTOM 9SM22906 FOOT PEDAL SPRING 9SS29290-1 FOOT BRACKET TOE 9SS24820-1 EJECTOR SPRING 9SS9225-8 THREAD FORMING SCREW (ROLLING) 9SG8349-1 TRANSMITTER CONTROL PC BD ASBLY 9SS8025-124 SELF TAPPING SCREW 9SM24145 HARNESS ASBLY 9SM24145-A2 ACCELERATION MODULE...
  • Page 18 Foot Pedal Assembly PART NUMBER DESCRIPTION 9SS27368-8 DECAL 9SM24890-1 DECAL Wireless TIG Foot Pedal (Complete) - 12381...
  • Page 19 Foot Pedal Assembly P-749-C.jpg Wireless TIG Foot Pedal (Complete) - 12381...

  • Page 20: Receiver Assembly

    Receiver Assembly PART NUMBER DESCRIPTION 9SL16342-1 RECEIVER ASSEMBLY 9SM24779 RECEIVER ENCLOSURE 9SG8351-1 RECEIVER PC BD ASBLY 9SS8025-121 SELF TAPPING SCREW 9SS18081-10 CABLE ASBLY 9ST9274-3 GROMMET 9SM24887 ENCLOSURE COVER & MAGNET ASBLY 9SS8025-124 SELF TAPPING SCREW 9SM24890-3 RECEIVER NAMEPLATE 9SM24890-3 RECEIVER NAMEPLATE Wireless TIG Foot Pedal (Complete) - 12381...
  • Page 21 Receiver Assembly P-749-D.jpg Wireless TIG Foot Pedal (Complete) - 12381...
  • Page 22 Do not touch electrically live parts or Keep flammable materials away. Wear eye, ear and body protection. WARNING electrode with skin or wet clothing. Insulate yourself from work and ground. Spanish AVISO DE No toque las partes o los electrodos Mantenga el material combustible Protéjase los ojos, los oídos y el bajo carga con la piel o ropa moja-...
  • Page 23 Keep your head out of fumes. Turn power off before servicing. Do not operate with panel open or WARNING Use ventilation or exhaust to guards off. remove fumes from breathing zone. Spanish Los humos fuera de la zona de res- AVISO DE Desconectar el cable de ali- No operar con panel abierto o...
  • Page 24 We respond to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such information or advice.
