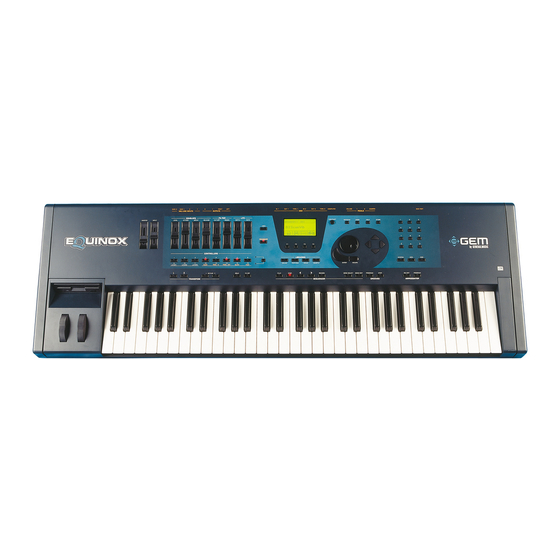

- Page 1 Vocal Processor Operating instructions English...
-
Page 2: Table Of Contents
Contents VOCAL PROCESSOR About the Vocal Processor The new features offered by the Vocal Processor Loading the Operating System Connections Activate the Mic interface and the Vocal Processor Adjust the Gain Understanding the Vocal Processor Example The Vocal Processor settings Setting the Voices Setting the Harmony Master Volume Lock (F1) -
Page 3: About The Vocal Processor
You can easily upgrade your Equinox with the Mic/Line and Vocal Processor features by installing the optional Vo- cal Processor card and loading the new Operating System software from disk. -
Page 4: Loading The Operating System
DIAL until the following message appears in your dis- play screen: !!WARNING!! Dial on Power-Up Requests Memory Clear!! <Enter to clear/Escape to abort> Press ENTER. You have now completed the update proc- ess, and your Equinox has been permanently upgraded. -
Page 5: Connections
Vocal Processor fea- tures. You can sing (or play an instrument) through the Mic/Line 2 input, process the signals with Equinox’s inter- nal Digital Effects Processors and direct the processed sig- nals to the outputs. -
