Audiovox VOD806 Operation Manual

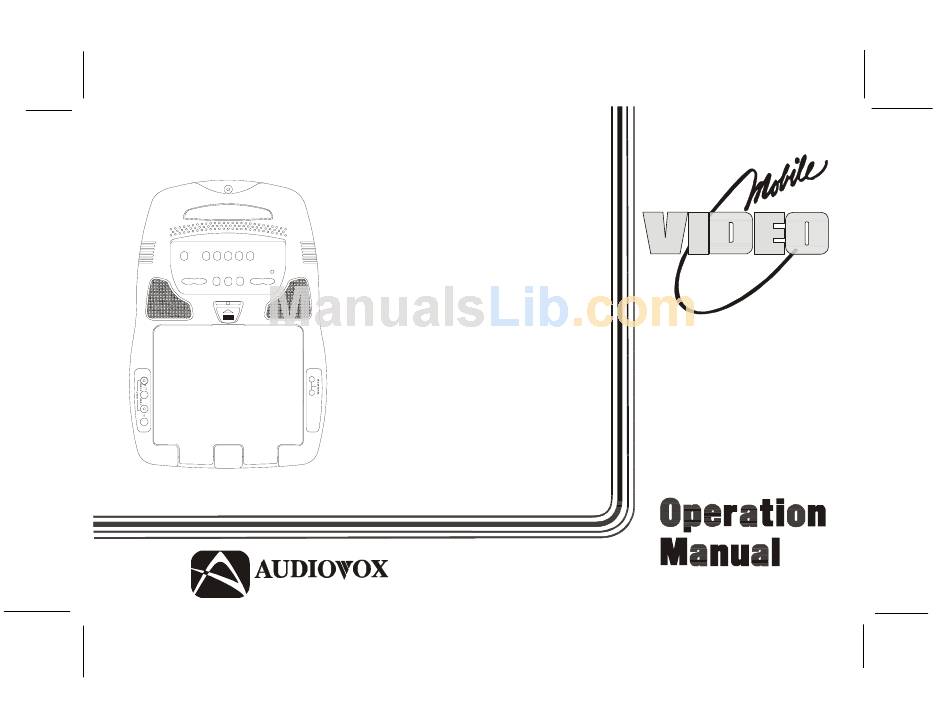

Audiovox electronics 8" lcd overhead tv/monitor with dvd player opeartion manual vod806
Hide thumbs Also See for VOD806:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
PO WE R
EJE CT
R EW
PL AY
F.F
STO P
A U TO
SO U RC E
PIC TU RE
PR O GR A M
SEL EC T
SEL EC T
C H A NN EL
VO LU ME
O N
O F F A U TO
ELECTRONICS CORP .
Released 03-08-02.
VOD806
8" LCD OVERHEAD
TV/MONITOR WITH

DVD PLAYER

®
128-6258
128-6258
1 of 28

Advertisement

Table of Contents
loading

Related Manuals for Audiovox VOD806

Summary of Contents for Audiovox VOD806

  • Page 1: Dvd Player

    VOD806 PO WE R EJE CT R EW PL AY STO P A U TO SO U RC E PIC TU RE PR O GR A M SEL EC T SEL EC T C H A NN EL VO LU ME O F F A U TO 8”...

  • Page 2: Important Notice

    In the interest of safety, the VOD806 should never be installed where it will be visible, directly or indirectly, by the operator of the motor vehicle.

  • Page 3: Safety Precaution

    Congratulations on your purchase of the Audiovox VOD806 Overhead TV/Monitor with DVD Player. The VOD806 has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment.

  • Page 4: Controls And Indicators Diagram

    Controls and Indicators Diagram P O W E R E J E C T R E W P L A Y F. F S T O P A U T O P I C T U R E S O U R C E P R O G R A M S E L E C T S E L E C T...

  • Page 5: Main Function Descriptions

    1. DVD Disc Insertion Slot 2. Infrared Transmitter and Sensor Use to transmit audio to wireless headphones. Also allows the remote control to operate the VOD806 and to control other accessories in the system 3. PLAY (K) Button This button is used to enter the play mode.
  • Page 6 21. Auxiliary Audio Input (Left). 22. Auxiliary Video Input. 23. Side Remote Sensor Eye Allows the remote control to operate the VOD806 and control the other accessories. 24. Headphone Jacks Allows the use of wired headphones with a 1/8” plug for listening to video program audio.

  • Page 7: Remote Control Operation

    3) Align the cover tabs with the remote control and press down until the cover clicks. The remote control will operate the VOD806 and Audiovox VCP’s. It is not a universal remote control and will not control equipment from other manufacturers.

  • Page 8: Auto Memory

    DVD Remote Function Descriptions 1. DVD POWER ON/OFF Button* Press this button to turn the VOD806 on. The DVD or selected video source will be displayed on screen and the picture will appear in a few seconds. Press the button again to turn the VOD806 off.
  • Page 9 9. LEFT (J) Button Allows the user to shift left in the menu options. 10. MENU Button Allows the user to access the main menu. 11. RETURN Button Allows the user to exit the set up menu. 12. TV Mode Select Switches certain function keys on the remote control for TV functions.
  • Page 10 23. PICTURE SELECT Button Each time this button is pressed, the on screen picture adjustment display cycles through “adjustment bars” for BRIGHTNESS, CONTRAST, COLOR and TINT. Once the desired adjustment bar is displayed, use the VOLUME UP/DOWN buttons to adjust the setting. The display will automatically turn off if no adjustments are made within 6 seconds, or if any other button is depressed.

  • Page 11: Channel Tuning Set Up

    Turning the VOD806 On or Off 1. Sliding the screen release lock forward will unlock the LCD screen and it will drop down slightly. Pivot the screen downward until a comfortable viewing angle is reached. The internal friction will hold the screen in position while the system is in use.

  • Page 12: Overhead Dome Lights

    MANUAL MEMORY XX ADD is displayed on screen. Overhead Dome Lights Operation The Dome lights integrated into the VOD806 are controlled by a three position slide switch. Sliding the switch to the on position will turn the lights on. The off...

  • Page 13: Remote Sensor

    Remote Sensor The VOD806 incorporates Infrared sensors which relay signals from the remote control to allow the unit to be controlled simply by pointing its remote control at the remote sensor eye. The repeater function allows control of auxiliary equipment such as an Audiovox Video Cassette Player.
  • Page 14 Turn the video source component on with its power button or remote control. The VOD806 is now ready to play the audio and video signals from the source connected to the AV1 input. A video game system, Camcorder or other audio / video device may be connected to the AUX Input jacks (see Figure 1.
  • Page 15 When the disc is half way in it will be automatically pulled in and play will begin. NOTE: If the VOD806 is not in DVD mode, it will not accept the disc. Do Not Force the disc into the slot as this could damage the mechanism.
  • Page 16 Settings and Adjustments This chapter describes how to set and how to adjust using the on-screen SETUP menu. Using the Setup Display Using the setup display, you can do the initial setup, adjust the picture and sound quality, and set the various outputs.
  • Page 17 OSD (On-Screen Display) Language Menu The OSD Language Menu allows the user to select the language for the on-screen display. Press ENTER and then use the ( ) buttons to select the desired language. The user can select either English, Frençais, Italiano, Español or Deutsch for the OSD language.
  • Page 18 System Settings Aspect This menu allows the user to select the aspect ratio of the monitor. Press ENTER and then use the ( buttons to select the appropriate setting. 4:3 LB (LETTER BOX) : This displays a wide picture with black bands on the upper and lower portions of the screen.
  • Page 19 Limiting Playback by Children (Parental Control) The Parental Control function allows you to limit viewing to your preference. 1. Use the ( ) buttons to select RATING, then press ENTER. 2. Enter a password in 4 digits using the number buttons, then press the ENTER button.
  • Page 20 Playing DVD Disc --/-- O F F EN 2CH 00:00:00 O F F A -B 1 2 3 4 5 Title Displays current title. Use the (J to move the cursor to the icon, use the (JI) buttons to select required title, press ENTER to confirm the selection.
  • Page 21 Repeat Repeat play function. Use the (J buttons to move the cursor to the icon, use the (JI) buttons or REPEAT button to select required repeat play function. Repeat Chapter Repeat Title Repeat Disc Repeat A-B Repeat play from A to B selected. Use the (J button to move the cursor to the icon, use the A-B button or ENTER...
  • Page 22 Play mode Play mode selection. Use the (J buttons to move the cursor to the icon, use the (JI) buttons to select any of the three play modes: Sequential (Off), Programmed and Random play modes. Repeat Repeat play function. Use the (J buttons to move the cursor to the icon, use the (JI) buttons or REPEAT button to select required repeat play function.
  • Page 23 Playback begins automatically when you insert an MP3 disc into the player. The VOD806 begins playing the songs in the order they were burned onto the disc. Selecting a directory Because MP3 discs contain a large number of songs, these songs are divided into directories. To select a directory: 1.
  • Page 24 Directory Display This feature displays the directory that you have selected. File Display This feature displays the selected track number which contains in the selected directory. Time Display This feature displays the audio time for the length of the song. Each time you make a song, the time restarts from the beginning.

  • Page 25: Troubleshooting

    To Use Repeat Feature: 1. While a disc is playing, press Repeat button or right arrow button (K) on the remote to bring up the Repeat icon. 2. Press the up/down arrow buttons ( the Repeat option (Repeat Off, Repeat One, Repeat Disk, Repeat Dir).
  • Page 26 PROBLEM SOLUTION • Make sure your DVD is connected No sound or properly. Make sure all cables are distorted sound securely inserted into the appropriate jacks. • If you are using the IR headphones, make sure you turn on the IR power. •...

  • Page 27: Replacement Parts

    Remote Control 136B2154 Left Protective Cover for IR Sensor 102B3689 Right Protective Cover for HeadphonesJacks 102B3690 © Copyright 2002 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788 Specifications LCD Backlighting Edge Light Tube Resolution 1440 x 234 Pixels 336,960 Operation Temperature 32 -140º...

  • Page 28: Month Limited Warranty

    36 MONTH LIMITED WARRANTY AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
