Summary of Contents for Paxar 656 / 636

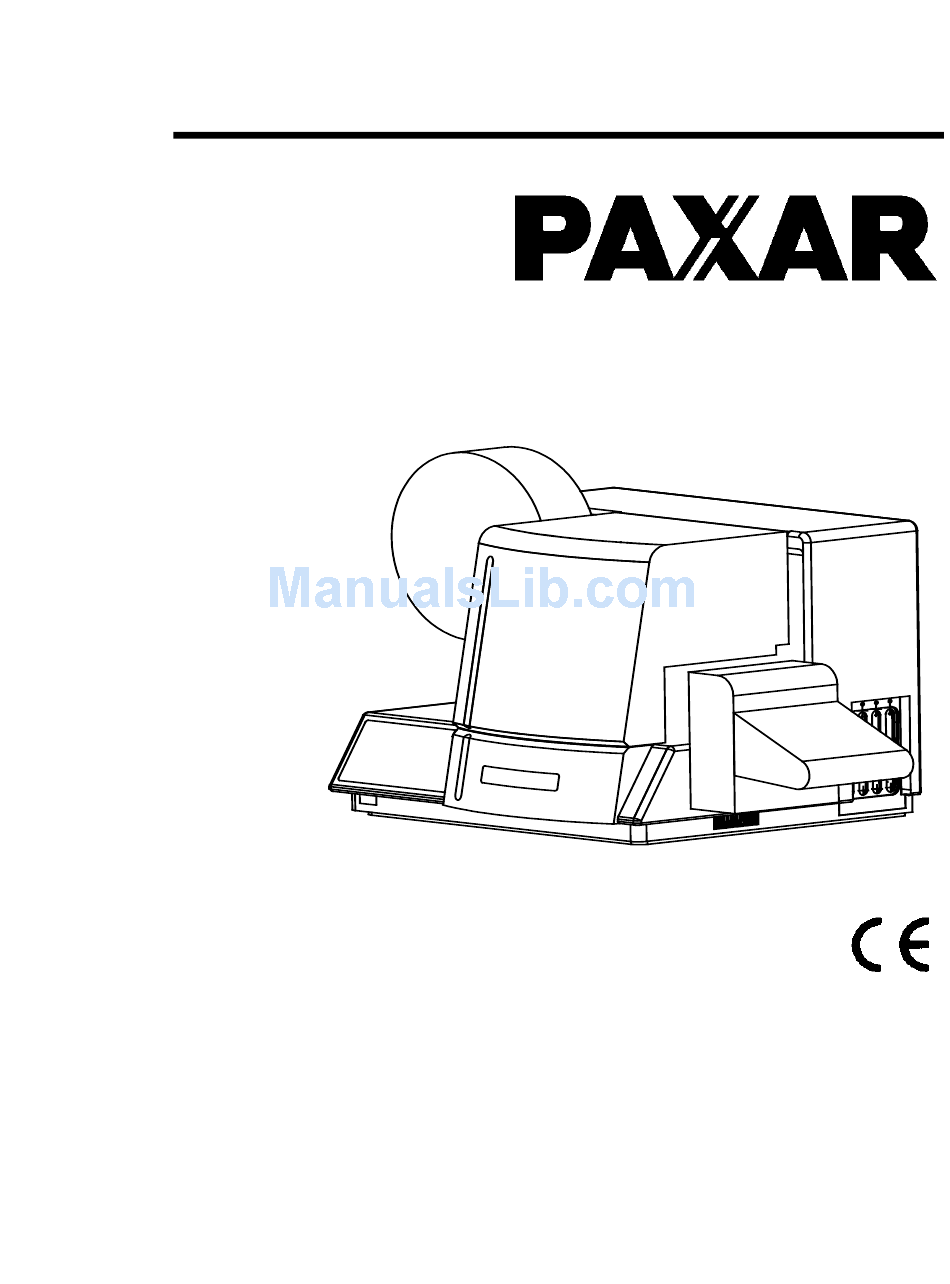

- Page 1 Users Manual Model 656 / 636 PAXAR Systems Group Manual Edition 3.0 18 February 2002 Manual Part Number 351398...
- Page 2 This page intentionally blank ii • Users Manual Model 656/636...
-
Page 3: Table Of Contents
Scope Introduction ... 1 Safety Issues / Warnings Caution ... 1 Warranty Information Customer Responsibility Location of Printer... 3 AC Power Line ... 4 Unpacking... 4 Inventory of Components ... 5 Printer Setup Installing the Stacker ... 6 Fuse Configuration ... 7 P.C. - Page 4 LCD Display...21 Display Modes ...23 Maintenance / Adjustments Print Head Handling ...29 Print Head Cleaning...30 Print Head Replacement ...31 Print Head Adjustment...32 Registration Sensor Adjustment ...33 Stock out Adjustment...37 Knife Square Adjustment...37 Stacker Adjustments ...38 Stock Feed Adjustment...38 Mechanical Adjustment Of Feed Roller Pressure (Blue Roller)...39 Mechanical Adjustment of Stock Sense - Mark Light Receiver...39 Electrical Connections Machine Wiring ...41...
- Page 5 Assembly Drawings Unwind Assembly Drawing ... 72 Unwind Parts List ... 73 Web Guide / Light Bar Assembly Drawing... 74 Web Guide / Light Bar Parts List ... 75 Drive Assembly Drawing ... 76 Drive Parts List... 77 Printhead Assembly Drawing ... 78 Printhead Parts List...
-
Page 7: Scope
We at PAXAR hope that you will come to appreciate the efforts and quality which have gone into producing your PAXAR 656 / 636 Printer and wish to remind you that you are our number one priority. We welcome any constructive comments or criticisms so that we may continue to offer you the best printer in the industry for years to come. -
Page 8: Warranty Information
Warranty Information Limited Warranty PAXAR Systems Group, Division of PAXAR Corporation, extends the following warranties to the original purchaser of a PAXAR 656 / 636 which has been installed and operated using recommended procedures and operating conditions. Parts Parts found defective in material or workmanship will be replaced at no charge for a period of six months following the machine's shipment date. -
Page 9: Customer Responsibility
30" deep to 32" high. Refer to Figure 1a. The location of the PAXAR 656 / 636 printer should be based on human factors. The printer should be located in an area which maintains optimum flow of your product while providing for the operator’s comfort. -
Page 10: Ac Power Line
AC Power Line PAXAR requires that the electric service be 10 Amps @ 110VAC or 10 Amps @ 220VAC. This will allow the computer and any additional support or service equipment to be plugged into the same service. Any electrical service which is supplying a PAXAR printer or peripheral equipment connected to a PAXAR printer should follow standard electrical code practices including proper grounding and neutral requirements. -
Page 11: Inventory Of Components
Inventory of Components The following list shows the additional parts (pieces) which should be included in your PAXAR 656 / 636 shipping container. If anything is missing, notify PAXAR immediately - in the U.S.A. at 570-888-9116. In other countries please contact your local PAXAR supplier. -
Page 12: Printer Setup
Swing open the top cover to the printer. Locate the large knob and two round pins on the right hand side of the printer. Loosen the knob enough to allow the stacker to slide between the printer housing and the knob. The stacker will rest on the two pins. -
Page 13: Fuse Configuration
Fuse Configuration The main fuse(s) on the Paxar 656 / 636 are located inside the AC power entry receptacle. The entry has a fuse drawer that holds the fuse(s) and selects the appropriate line voltage. If the number in the window DOES NOT match the AC line intended to be supplied to the printer, DO NOT plug the power cord in. -
Page 14: Tcb Dip Switch S2 Settings
It is the customers responsibility to have the plug and alteration work done by a certified electrician. Paxar supplies printers to many countries with many variations. Therefore we leave this to the customer to make the proper selection for their country. -
Page 15: Installing The Pc Interface Cable
Installing the PC Interface Cable The 656 / 636 requires a 9-pin RS232 cable. This cable is provided with the printer. If the cable was not found it can be order from PAXAR (Part no. 351124). The male end of the cable should be connected to the 9-pin D-shell female connector that is located on the right side of the printer. -
Page 16: Product Description
Product Description Printer Description The PAXAR MODEL 656 / 636 THERMAL PRINTER (Figure 2) is an electronic printer that can print on Fabric Tapes, Card Stock, Heat Seal Stock and Pressure Sensitive roll stocks. This printer interfaces to a computer or a main frame system that allows the customer to print computer input or even design a label with PAXAR’S PCMate Plus's "FORMATTER"... -
Page 17: Personal Computer Specifications
Personal Computer that is connected to the PAXAR 656 / 636 Printer. The PAXAR 656 / 636 Printer uses a DOS Version of PCMate or a Windows version of “PcMate Plus / Formatter ”. These applications create the tag or label formats (layouts) then fill and transfer data to the printer through the serial port of the computer. - Page 18 Control Push-button printer function with 2 Line x 24 Character International LCD Backlit Display Panel 16.0" (406.4 mm) high x 27" (685.8 mm) wide Dimensions including stacker x 18.5" (469.9mm) deep Weight 57 Lbs. ( 26Kg.) Electrical 90-132 / 180-265 VAC 50-60Hz 10Amp Switch selectable Temperature 41°F (5°C) to 104°F (40°C)
-
Page 19: Printer Operation
The ink ribbon comes pre-packaged in a plastic bag. For best results, leave the ink ribbon wrapped in this bag until you are ready to use it in the printer. Use the procedure and diagram below for loading the ink. -
Page 20: Loading Stock
Set the stock roll core over the outboard guide and slide the roll to the back guide. Move the outboard stock guide in until it contacts the stock roll. stock. Pull off about 2 feet (.5 m) of stock to thread it through the printer. any surface. -
Page 21: Butt Splice
This has been located to control the edge of the stock to the first dot on the print head. This location is critical to Paxar's Formatter software. Do not adjust this guide with out consulting a Paxar service engineer. -
Page 22: Print Head Open / Close
Later in the manual, under separate heading, cleaning and replacement will be covered. The print head has an interlock switch that prevents the printer from running with the head in the open position. If the head is open the display will read GUARD OPEN. -
Page 23: Control Panel Operation
- Stock moves through in one continuos strip - Stock moves through without printing - Ink will not advance, ink save on the 656 / 636 will automatically be activated. - The print head must latched in the down position. - Page 24 - The ink will advance with the stock. - The print head must be latched in the down position. - The stop button will stop the printer at the end of the current label being printed. Users Manual Model 656/636...
-
Page 25: Indicator Lights
Indicator Lights The Paxar 656 / 636 has three Indicator lights. These lights are used along with the LCD display to tell the operator the current status of the printer. On Line Sensor Error Users Manual Model 656/636 - Has not been powered on. -
Page 26: Front Panel Menu Functions
Front Panel Menu Functions Ready For Batches Print Reports Setup Life Counts Protected Features Last Verifier Scan Print Position Label Counter Set Date / Time Verifier History Cut Position Total Labels Change Password Verifier Setup Cutter Enable / Total Inches Change Language Disable Clear Verifier Scan... -
Page 27: Lcd Display
LCD Display The LCD display is a 2 line, 24 character, with back lighting feature for easy readability. The first line of the display in most cases will be a prompt or question. the second line is the response. Diagnostic Tests During power up the following tests and screens will be displayed. -
Page 28: Home Screen
PCL001 000000010 When the printer is powered up and all initializations are complete, and if there are no Batches to print, the HOME screen will be “READY FOR BATCHES" and the A.T. code version number (IMAGER VXX.XX) will be displayed. -
Page 29: Display Modes
PRINT LAST VERIFIER SCAN This is the first screen under Reporting features. This screen will appear if a verifier is connected to the printer. This screen allows the user to print the last scan report. Prints the failure cause for the last bad barcode scan. -
Page 30: Setup Mode
PRINT VERIFIER SETUP This screen follows the PRINT VERIFIER HISTORY REPORT screen if a verifier is connected to the printer. This screen allows the user to print a verifier report containing verifier setup information. Prints a report of all verifier current settings. - Page 31 Formats designed for the 656 / 636 can not be printed on the older printers, but formats designed for the older printers emulated by the 656 / 636 can be printed on the 656 / 636 printer.
- Page 32 • The 650 printer is center justified, meaning the web is centered under the printhead. The 656 / 636 is a back justified printer, meaning the web is to the back of the printer. This will not cause a discrepancy unless the web of the stock does not match the web defined in the format.
- Page 33 Use the Enter ↵ key to enter this mode. Protected Mode Use the Mode ↓ key to move to the following screen. Use the Enter ↵ key to enter this mode. The Protected Feature screen will appear as shown. Use the <YES key to decrease the number and the > NO key to increase the number.
- Page 34 28 • Control Panel Operation If password is correct, the Mode ↓ key will go to the next screen. CHANGE DATE/TIME 01/04/95 08:55 AM Use the < YES / >NO buttons to increment through numbers. All 10 digits can be changed and also the A will toggle between A and P. The date is always in the MONTH / DAY / YEAR format and the time is always in the 12 hr AM / PM format.
-
Page 35: Maintenance / Adjustments
- All print heads should be kept in original anti-static bags until they are placed in the machine. - The 656 / 636 printer is supplied with an anti-static wrist strap. Locate the strap - it must be worn at all times when handling the print heads. -
Page 36: Print Head Cleaning
RECOMMEND PAXAR "MASTER CLEANING KIT" # 921338 good cleaning of the print head after eight to twelve hours of continuous usage should be done. This cleaning must be done with the print head in the printer. and card dust build-up. -
Page 37: Print Head Replacement
9) Replace the two print head lock screws. Be sure that the head is resting flat on 10) Replace the print head assembly in the printer, making sure that the pin at the 11) Reconnect the print head cable, making sure that the connector is seated tightly. -
Page 38: Print Head Adjustment
If readjustment is required, proceed as follows: Power on the printer. Remove the ink and card stock from the printer. With the print head open, turn the pressure screw counterclockwise until it does not contact the printhead mount plate, it should slide freely back and forth. -
Page 39: Registration Sensor Adjustment
To adjust the tangent point loosen the two print head lock screws one half turn with a 2.5mm ball driver provided in your spare parts kit. Do not remove the print head from the printer. Once the screws have been loosened, use the adjustment thumb screw to move the head forward and backwards. - Page 40 Sensor Trim Pots Your 656 / 636 printer is equipped with several sensors used to detect the status of the printer and its supplies. While these sensors are calibrated at the time your printer is manufactured, there may be times when re-calibration is required. Re calibration times are indicated in the troubleshooting section.
- Page 41 There are two areas that can be adjusted to correct the voltage readings. The upper sensor square bar may be loosened from the back of the printer and rotated. The second adjustment is to loosen the light bar mount screws and move the bar in the web direction. When the light bar screws are retightened be careful not to over tighten and brake the light bar PC board.
- Page 42 Film Out Sensor / Top Ink Sensor The Film Out Sensor allows the printer to monitor the availability of ink. Begin by blocking the sensor with the ink intended for use and adjust the pot until the high value is achieved. Then remove the ink from the sensor and adjust until the low level is met.
-
Page 43: Stock Out Adjustment
With a full roll of stock loaded in the machine, run the printer and observe how far behind the stock (to the left of the stock) the stock out wire rod is located. This should be between 1/4 and 1/2 inch (6 to 12mm) behind the running stock. -
Page 44: Stacker Adjustments
Re tighten. Stacker Full Adjustment The sensor on the inboard stack up right is used to stop the printer when the stack is full. A thumb screw adjustment is provided to set the stack height. Warning, some stock materials can not be stacked to the full height of the stacker because of excessive weight. -
Page 45: Mechanical Adjustment Of Feed Roller Pressure (Blue Roller)
1/2 - 3/4 of a turn. Close pressure lever. stock to run 31/32" (24.6mm) from upright frame. touch outer edge of stock. adjustment forward and back can be accomplished when printer is electrically activated.) Maintenance / Adjustments • 39... -
Page 47: Electrical Connections
Electrical Connections Machine Wiring Orange Orange Orange Black Orange Gray Orange Orange THERMAL CONTROL BOARD Brown Brown Gray Brown HEAD DRIVER BOARD Power REAR VIEW OF 656 Electrical Connections • 41 Users Manual Model 656/636... -
Page 48: Relay Assembly
Relay Assembly Part # 351136 42 • Electrical Connections Users Manual Model 656/636... -
Page 49: Electrical System Schematic
Electrical System Schematic Electrical Connections • 43 Users Manual Model 656/636... -
Page 50: Motherboard Power Connectors
Motherboard Power Connectors The power supply connector on any PC / XT or PC / AT compatible motherboard is made up of dual six-pin male connectors. Two female connectors from the power supply plug directly onto these male connectors. The following diagrams illustrates the proper method of attaching the connectors. -
Page 51: Electrical Trouble Shooting
Electrical Trouble Shooting Power Up / Sign On / Communications Problem Machine fails to power up with no light present in the AC power switch. Machine fails to power up with light present in the AC power switch. Front panel displays no text or nothing at all. -
Page 52: Corrective Action
"Ready for batches". Re download data. 3) In PCMate change to the printer the data is intended to be sent. 4) Re configure PCMate for Paxar PCL printer as per your PCMate manual. 5) Replace Thermal Control Board. -
Page 53: Stock / Ink Advance
"Mechanical Adjustment Of Feed Roller Pressure". 6) With power off check that all rollers turn freely. 7) With the print head and feed open check that the stock will pull through the printer with little to no resistance. Electrical Trouble Shooting • 47... - Page 54 Thermal Control Board. 5) With power off check that all rollers and arbors turn freely. 6) With the print head open check that the ink will pull through the printer with little to no resistance. Users Manual Model 656/636...
-
Page 55: Print
Print Problem Machine advances stock but does not print. Machine stops after ever third label. Print registration is off in the feed direction. Users Manual Model 656/636 Probable Cause 1) Stock registration sensor miss aligned. 2) Miss adjusted print head position. 3) Miss adjusted print head pressure. - Page 56 Problem Print registration is off in the web direction. Print contrast is too light or dark. Voids in print image in the feed direction. Machine continually stops with an erroneous interlock condition. 50 • Electrical Trouble Shooting Probable Cause 1) Machine incorrectly threaded. 2) Web guides incorrectly adjusted.
-
Page 57: Cut / Stack
Cut / Stack Problem Machine fails to cut labels (the rotary knife does not rotate). The stacker fails to run. Users Manual Model 656/636 Probable Cause 1) The cut is disabled in the setup menu. 2) Knife cable unconnected. 3) Knife jammed causing auto resetting fuse to trip on the Thermal Control Board. -
Page 58: Electrical Trouble Shooting / Machine Set Up Sequence
If the printer is mechanically operable, proceed as follows: 1) Power off the printer, remove the media and ink and thoroughly clean it from the 2) Load a full roll of an average width media and ink on the printer. -
Page 59: Mechanical Trouble Shooting
Mechanical Trouble Shooting Stock Problem Stock will not roll or jumps Machine fails to stop at end of roll. Stock does not pull smoothly through printhead module. Users Manual Model 656/636 Probable Cause 1) Incorrect adjustment of unwind web guides 1) Incorrect adjustment of stock-out switch trigger arm. - Page 60 Problem Cracks or craze marks appear on face of finished labels. Stock jams in bridge blade rollers or knife area. Will not stack. Knife will not cut or partial cut 54 • Mechanical Trouble Shooting Probable Cause 1) Incorrect adjustment of decurler. 1) Knife mounted bridge blade too close to stationary bridge blade.
-
Page 61: Ink
Lock slide rewind core toward rear of printer until it just contacts plate. 3) Clean with alcohol. 4) Use an ink width no wider than stock being printed. -
Page 62: Print
Print Problem Poor print - uneven or no print (mechanical). Also see electrical trouble shooting. 56 • Mechanical Trouble Shooting Probable Cause 1) Incorrect printhead pressure adjustment. 2) Broken ink. 3) Ink not rewinding. Corrective Action 1) Remove stock and ink. Close printhead. -
Page 63: Knife
Knife Problem Double Cuts, extra knife cycle Skips cut, double length label Noisy Rattle when not cutting but motor turning Users Manual Model 656/636 Probable Cause 1) Solenoid sticking in 2) Worn Trip Arm on Clutch actuator. 3) Worn Stop roll pin on clutch 1) Solenoid did not pull in 2) Trip arm sticking on clutch roll pin. - Page 64 Problem Knife stops during cut in stock Slight Long and Short Tags Stock popping in front of knife Knife does not cycle Continuous Knife cycling 58 • Mechanical Trouble Shooting Probable Cause 1) Check life of blades 2) Clean cams and lubricate 3) Clutch worn out and can’t stay engaged 1) Sticking Solenoid...
-
Page 65: Mechanical Trouble Shooting Sequence
The one exception is the rub cams on either end of the rotary knife. Periodic cleaning of the printer and removal of dust will greatly enhance the length of the time the printer will function. -
Page 66: Appendix A
Appendix A Error Messages On the Machine's detection of errors/error, the displays will show the first error encountered and allow the displaying of any other errors with the "<" and ">" keys, which "Scroll" through additional errors if any. ERROR SCREENS: The screen advances to next error with each depression of the ">"... -
Page 67: Appendix B
Appendix B Software Upgrade Chip Placement Positions Thermal Control Board P/N 351105 (Use chip removal tool p/n. 351156 for square I.C.'s) THERMAL CONTROL BOARD, Upgradeable software I.C.'s include U16 and U53. Align angled corners of chip with socket and arrow denotes pin #1 or dimple on chip. Users Manual Model 656/636 Appendix B •... - Page 68 Diskless Rom Board P/N 281164 DISKLESS ROM BOARD, Upgradeable software I.C.'s include U12, U16, and U20. Position new I.C.'s in same orientation as pictured above. SWITCH POSITIONS, Head Driver Board P/N 351106 (Use chip removal tool p/n. 351156 for square I.C.'s) HEAD DRIVER BOARD, Upgradeable software I.C.'s include U1, U2, U8, and U18.
- Page 69 Align angled corners of chip with socket and arrow denotes pin #1 or dimple on chip. Front Panel Board P/N 351108 (Use chip removal tool p/n. 351156 for square I.C.'s) FRONT PANEL BOARD, Upgradeable software for FPNL x.x Align angled corners of chip with socket and arrow denotes pin #1 or dimple on chip. Appendix B •...
-
Page 70: Appendix C
Appendix C Ink and Stock Transfer Types Value Transfer Type Heat Seal & SD-1111 Ink Topcoated card stock & TT-3111 Ink Topcoated card stock & TT-1111 Ink Topcoated card stock & HR-3111 Ink Topcoated card stock & HR-1111 Ink Topcoated Card Stock & TW-1111 Ink Topcoated card stock &... - Page 71 Value Transfer Type Fabric 2795 & TT-1111 Ink Fabric 2795 & HR-3111 Ink Fabric 2795 & TT-3111 Ink Fabric 2795 & HC-3111 Ink Fabric 2795 & HR-1111 Ink Fabric 2395 & CL-1111 Ink Fabric 2495 & CL-1111 Ink Fabric 4000 & CL-1111 Ink Coated Tag Stock &...
- Page 72 Value Transfer Type 591SST/601SST Fabrics & CT-1114 Ink 601SST Fabric & CT-1111 Ink 591SST/601SST Fabrics & CT-1115 Ink 591SST/601SST Fabrics & CT-1117 Ink 591SST Fabric & CT-1112 Ink 601SST Fabric & CT-1112 Ink 66 • Appendix C Users Manual Model 656/636...
-
Page 73: Appendix D
Appendix D Knife MFG Guideline Solenoid Trigger Setting +.000 -.020 1. After the clutch and actuator is mounted to the knife, attach the solenoid assembly to the inside support using two 6-32 x 3/8 cap screws, flat washers, and lock washers. Make sure the plunger moves freely and does not bind. - Page 74 • Torsion Spring should be at an angle of 60±2°. Lay the spring over the drawing below to see if the spring is made properly. • Plunger pins should be centered on shaft. If either pin is loose DO NOT use the plunger. The pins should be checked before installing.
- Page 75 • There should be a .010-.020 gap (for roller clutch only) between the two clutch pieces. • (Test on the solenoid test box.) The knife must cut both fabric and card stock. The solenoid should operate on both the high and low settings. •...
-
Page 77: Assembly Drawings
Assembly Drawings Assembly Drawings • 71 Users Manual Model 656/636... -
Page 78: Unwind Assembly Drawing
Unwind Assembly Drawing 72 • Assembly Drawings Users Manual Model 656/636... -
Page 79: Unwind Parts List
Unwind Parts List Item Users Manual Model 656/636 Part # Description 353001 Guide, Unwind Rear 353005 Optional Unwind backer plate (not shown) 353002 Bracket, Unwind 353003 Guide, Unwind Front 990089 10:32 x 1/4 Button Head 990170 5/16:18 x 3/4 Cap Screw 990277 5/16”... -
Page 80: Web Guide / Light Bar Assembly Drawing
Web Guide / Light Bar Assembly Drawing 74 • Assembly Drawings Users Manual Model 656/636... -
Page 81: Web Guide / Light Bar Parts List
Web Guide / Light Bar Parts List Item Users Manual Model 656/636 Part # Description 188008 T-Nut 351120 Light Bar Harnessed 354006 Bracket, Web Guide Sensor 354003 Web Guide Outer 354001 Plate, Web Guide Mount 928012 Spring 990066 8:32 x 1/4 Button Head 990091 10:32 x 1/2 Button Head 990438 1:72 x .188 Cap Screw Assembly Drawings •... -
Page 82: Drive Assembly Drawing
Drive Assembly Drawing 76 • Assembly Drawings Users Manual Model 656/636... -
Page 83: Drive Parts List
Drive Parts List Item Users Manual Model 656/636 Part # Description 196052 Idler Pulley Bushing 244024 Feed Knob/SS 354002 Bridge Plate, Web 354004 Bridge Blade, Lower 354008A Gear, Idler 354009A Gear, Driven 354014 Driven Roller, Molded 354017 Shaft, Idler Gear 354021 Eccentric Shaft 354092 Support, Rear Drive Assembly 354093 Support, Front Drive Assembly... -
Page 84: Printhead Assembly Drawing
Printhead Assembly Drawing 78 • Assembly Drawings Users Manual Model 656/636... -
Page 85: Printhead Parts List
Printhead Parts List Item Part # Description 355004 Shaft, Eccentric (PRT) 355083 Roller, Molded Printhead 355008 Spring, Torsion Printhead 355018 Support, Drive/Knife/Print 355032 Plate, Printhead Mount 355033 Adjustment Plate, Printhead 355031 Holder, Printhead 355034 Shaft, Adjustment 355035 Pressure Adjuster 355037 Pin, Pivot 355038 Knob Clip 355039 Static Brush 355040 Block, Head Adjust... -
Page 86: Ink Unwind / Rewind Assembly
Ink Unwind / Rewind Assembly 80 • Assembly Drawings Users Manual Model 656/636... -
Page 87: Ink Unwind / Rewind Parts List
Ink Unwind / Rewind Parts List Item Part # Description 356010 Shaft Lock 990042 8-32 x 3/13" Set Screw 990490 Spring 999009 5/16" Thrust Bearing 356053 Unwind Shaft 376087 Arbor Assembly 376003 Ink Arbor Guide 516113 Ink Guide 376088 Arbor Unwind Assembly 990083 10-32 x 3/4"... -
Page 88: Ink Rewind Arbor Assembly
Ink Rewind Arbor Assembly Field Retrofit Kit 82 • Assembly Drawings Users Manual Model 656/636... -
Page 89: Ink Rewind Arbor Parts List
Ink Rewind Arbor Parts List Item Users Manual Model 656/636 Part # Description 356010 Lock Spring Pressure --------- No Longer Used 991036 Compression Spring 999009 5/16 Thrust Bearing 376087 Arbor Assembly 376048 Unwind Fiber Spacer 356191 Fixed Rewind Shaft Assembly 356192 Front Bearing Housing Assembly 991038 ¾”... -
Page 90: Feed & Ink Drive Assembly
Feed & Ink Drive Assembly 84 • Assembly Drawings Users Manual Model 656/636... -
Page 91: Feed & Ink Drive Parts List
Feed & Ink Drive Parts List Item Users Manual Model 656/636 Part # Description 990111 10-32 x ¾” Flat Head Screw 356106 Offset Plate 990451 1 9/16 Stand-Off 351141 Ink Motor 245026 Feed Motor 990081 10-32 x ½” Cap Screw 194023 1 3/8 Stand-Off 284025 14 Tooth Pulley 356109 Ink Timing Belt (85 Tooth) -
Page 92: Timing Belt Threading Diagram
Timing Belt Threading Diagram 86 • Assembly Drawings Users Manual Model 656/636... -
Page 93: Timing Belt Parts List
Timing Belt Parts List Item Part Number 356109 356111 356195 356110 356026 Users Manual Model 656/636 Description 85T Timing Belt Double Sided (First 100 units only) 65T Timing Belt Double Sided (101 +) 20T Idler Pulley w/ Bronze Bushing (First 100 units only) 60T Timing Belt (300dpi) 57T Timing Belt (240dpi) Not Shown... -
Page 94: Ink Turn Roller Assembly
Ink Turn Roller Assembly 88 • Assembly Drawings Users Manual Model 656/636... -
Page 95: Ink Turn Roller Parts List
Ink Turn Roller Parts List Item Part Number 376086 990416 356105 990121 354090 Users Manual Model 656/636 Qty Description Turn Bar Assembly ¼-20 x ¼” Flat Head Turn Bar Bracket ¼-20 x 5/8” Cap Screw 636/656 Feed Assembly (Only inner support bracket shown) Assembly Drawings •... -
Page 96: Knife Assembly Drawing
Knife Assembly Drawing 90 • Assembly Drawings Users Manual Model 656/636... -
Page 97: Knife Parts List
Knife Parts List Item Part Description Number 197003 #10 Washer 197308 Adjuster, Knife 197311 Cam, Knife Homing 197312 Spring, Cam 197313 Plate, Spring Cam 357020 Actuator, Knife 197317 Compression Spring 351123 Knife Solenoid Harness 517099 Knife Motor Assembly 354005 Upper Bridge Blade 354013 Molded Idler Roller 355018... -
Page 98: Stacker Assembly Drawing
Stacker Assembly Drawing 92 • Assembly Drawings Users Manual Model 656/636... -
Page 99: Stacker Parts List
Stacker Parts List Item Part Description Number 144034 Feed Lock Knob 184002 Thumb Screw Lock 188008 Stacker T-Nut 358023 Knob Assembly 247035 Drive Pulley 351160 Full Stacker Switch Harness 351161 Stacker Motor Harnessed 358001 Stacker Support 358091 Stacker Base Assembly 358004 Stacker Lock 358006... -
Page 100: Rewind Assembly Drawing
Rewind Assembly Drawing 94 • Assembly Drawings Users Manual Model 656/636... -
Page 101: Rewind Parts List
Rewind Parts List Item Part Description Number 112033 Shaft, 6x6 rewind 112035 Key, 1/8 x 1/8 x 3/8 923009 10" roll disc 111032 Rubber feet 990054 8:32 x 1 cap screw 111029 Base 990374 1/2" collar 112028 Driven disc 112032 Friction disc 112030 Drive disc... -
Page 102: Stock Out Sensor Assembly Drawing
Stock Out Sensor Assembly Drawing 96 • Assembly Drawings Users Manual Model 656/636... -
Page 103: Stock Out Sensor Parts List
Stock Out Sensor Parts List Item Part Qty Description Number 191120 Stock Out Micro Switch 351145 Mount Stock Out Switch 331149 Shaft Stock Out Switch 351150 Arm Stock Out Switch 351151 Rod Actuator Stock out 989973 4-40 x .50 Cap Screw 990024 6-32 x .125 Set Screw 990255... -
Page 104: Optional Stackers
Optional Stackers 98 • Optional Stackers Users Manual Model 656/636... -
Page 105: 4.25" Stacker Specifications
4.25” Stacker Specifications • 4.25” Web x 1 ¾” Feed • Will work on 636, 656 & 676 • Old machines may require the knife strut to be replaced with one that has a mount hole – Part number 355018. •... -
Page 106: Optional 4.25" Pick-Up Assembly
Optional 4.25” Pick-up Assembly 100 • Optional Stackers Users Manual Model 656/636... -
Page 107: Optional 4.25" Pick-Up Parts List
Optional 4.25” Pick-up Parts List Item Part # Description 378286 Base Plate Assy 378287 Pressure Roller Assy 378208 Roller Center Drive 378213 Pick-Up Roller 378211 Roller Idler 378204 Sensor Mount Upper 378131 Side Frame Rear Stacker 378119 Side Frame Near Stacker 378129 Support Pick-Up Roller 378207... -
Page 108: Optional 4.25" Stacker Assembly
Optional 4.25” Stacker Assembly 102 • Optional Stackers Users Manual Model 656/636... -
Page 109: Optional 4.25" Stacker Parts List
Optional 4.25” Stacker Parts List Item Part # Description 378205 Plate Stacker Support 378288 Rear Side Frame Assy 378289 Front Side Frame Assy 378212 Drive Roller 378214 Drive Shaft 378130 Rail Slide Bracket 378209 Mount Stacker Rail 378210 Base Stacker Rail 38215 Stacker Upright Front 378035... -
Page 110: Optional Down Stacker Assembly Drawing (Part 1)
Optional Down Stacker Assembly Drawing (Part 1) 104 • Optional Stackers Users Manual Model 656/636... -
Page 111: Optional Down Stacker Parts List (Part 1)
Optional Down Stacker Parts List (Part 1) Item Part # Description 168089 Rear Stacker Frame Assembly 168088 Front Stacker Frame Assembly 168026 Mounting Bracket 168002 Post Spacer 168025 Main Drive Roller 168024 Pick-Up Roller 168017 Roller Bracket Support 168087 Pressure Roller Assembly 168029 Plate Motor Mount 351161 Stacker Motor Harnessed 168021 Sensor Mount Lower... -
Page 112: Optional Down Stacker Assembly Drawing (Part 2)
Optional Down Stacker Assembly Drawing (Part 2) 106 • Optional Stackers Users Manual Model 656/636... -
Page 113: Optional Down Stacker Parts List (Part 2)
Optional Down Stacker Parts List (Part 2) Item Part # Description 168031 Rear Support Stacker 168086 Front Stacker Support Assy 168018 Guide Label 168027 Platform Slide 168033 Platform Slide Plate 168014 Post Stacker Mount 188008 “T” Nut 990103 #10 Hex Nut 990072 8-32 Flat Hd. -
Page 114: Optional Down Stacker Assembly Drawing (Part 3)
Optional Down Stacker Assembly Drawing (Part 3) 108 • Optional Stackers Users Manual Model 656/636... -
Page 115: Optional Down Stacker Parts List (Part 3)
Optional Down Stacker Parts List (Part 3) Item Part # Description 168084 Clutch Assy 168013 Tamper Slide Block 168012 Tamper Support 168034 Tamper Mount Bracket 168028 Tamper 168036 Static Brush 168008 Tamper Link 168085 Mounting Bracket Assy 168016 Solenoid Mtg. Bracket 168035 Spring Return Bracket 168038...
