Paxar Monarch Pathfinder Ultra Platinum 6039 Printer Reference

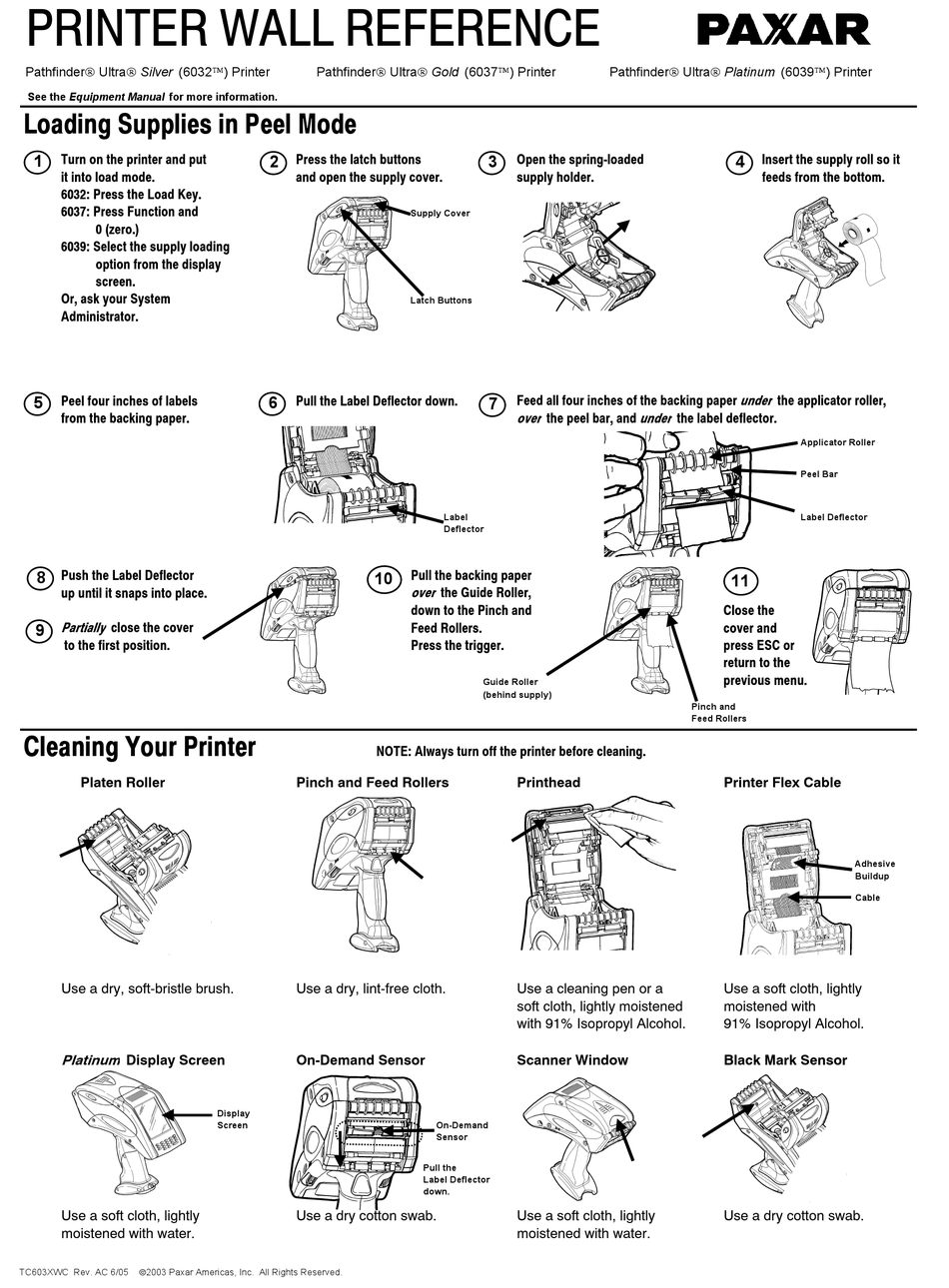

PRINTER WALL REFERENCE
Pathfinder Ultra Silver (6032) Printer
See the Equipment Manual for more information.
Loading Supplies in Peel Mode
1
Turn on the printer and put
it into load mode.
6032: Press the Load Key.
6037: Press Function and
0 (zero.)
6039: Select the supply loading
option from the display
screen.
Or, ask your System
Administrator.
5
Peel four inches of labels
from the backing paper.
8
Push the Label Deflector
up until it snaps into place.
9
Partially
close the cover
to the first position.

Cleaning Your Printer

Platen Roller
Use a dry, soft-bristle brush.
Platinum Display Screen
Use a soft cloth, lightly
moistened with water.
2003 Paxar Americas, Inc. All Rights Reserved.
TC603XWC Rev. AC 6/05
Pathfinder Ultra Gold (6037) Printer
2
Press the latch buttons
and open the supply cover.
6
Pull the Label Deflector down.
10
NOTE: Always turn off the printer before cleaning.
Pinch and Feed Rollers
Use a dry, lint-free cloth.
On-Demand Sensor
Display
Screen
Use a dry cotton swab.
3
Open the spring-loaded
supply holder.
Supply Cover
Latch Buttons
7
Feed all four inches of the backing paper
over the peel bar, and
Label
Deflector
Pull the backing paper
over the Guide Roller,
down to the Pinch and
Feed Rollers.
Press the trigger.
Guide Roller
(behind supply)
Printhead
Use a cleaning pen or a
soft cloth, lightly moistened
with 91% Isopropyl Alcohol.
Scanner Window
On-Demand
Sensor
Pull the
Label Deflector
down.
Use a soft cloth, lightly
moistened with water.
Pathfinder Ultra Platinum (6039) Printer
4
Insert the supply roll so it
feeds from the bottom.
under
the applicator roller,
under the label deflector.
11
Close the
cover and
press ESC or
return to the
previous menu.
Pinch and
Feed Rollers
Printer Flex Cable
Use a soft cloth, lightly
moistened with
91% Isopropyl Alcohol.
Black Mark Sensor
Use a dry cotton swab.
Applicator Roller
Peel Bar
Label Deflector
Adhesive
Buildup
Cable
