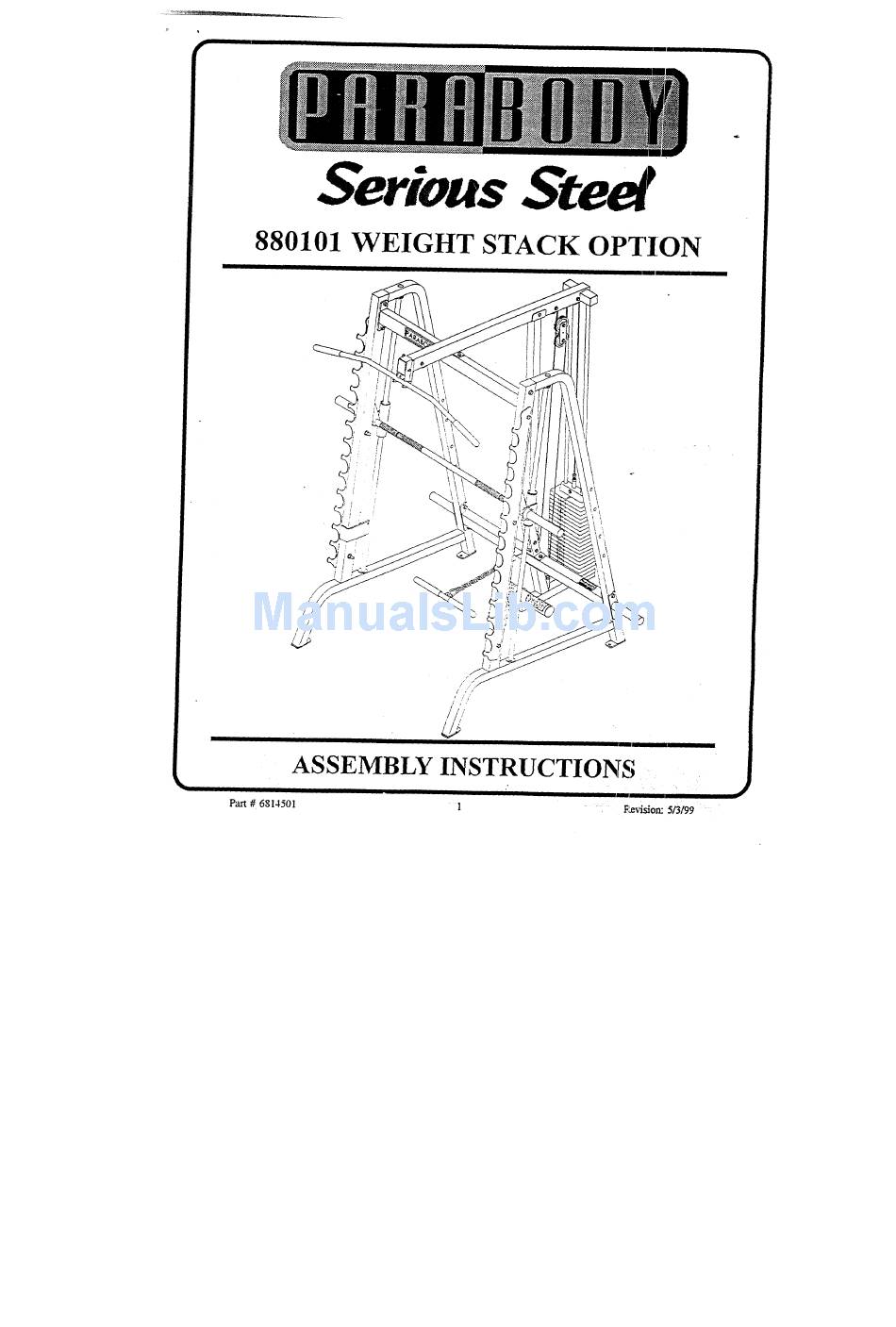

- Page 1 Serious Steel 880101 WEIGHT STACK OPTION ASSEMBLY INSTRUCTIONS Part #. 6814501...
- Page 2 2. Do not allow minors or children to play on or around tlzis equipment. 3. Exercise with care to avoid injury. 4. If unsure of proper use of equipment, call your local Parabody distributor or call the Parabody customer service department at (800) 328-971D.
- Page 3 PART# DESCRIPTION 6814303 UPRIGHT 680(Y~ ADJ" FOOT SUPPORT 681,1(~3 STACKBASE 68 13703 TOP B OOM 6801102 LAT BAR SUPPORT 6816501 76" GUIDE ROD 6274402 LOW ROW B.M:~ ’" 6725302 ’ ’ LATBAR 3116201 3-1/’2" PUI !.EY 6832801 124" CABLE 66710bi li7-3/4"...
- Page 4 FIGURE 2 STEP 2: ¯ Insert two 2" END CAP (16) into the ends of the STACK BASE (3) as shown in FIGURE ¯ Attach fou~ 3/4 X 1-1/2" GLIDES (24) to the inside of the tube on the STACK BASE (3) as shown in FIGURE 2 using the following steps: ¯...
- Page 5 STEP 6: Insert two GUIDE RODS (6) imo the STACK BASE (3) as sho~ai in.FIGURE 6. Lubricate the GUIDE RODS (6) with a slicon or teflon spray that is available at most hard~are stor~s. ¯ Slide two WEIGftT STACK CUSHIONS (26) dox~ over the GUIDE RODS (6).
- Page 6 LOWER FIGURE 4 STEP 4: ¯ NOTEi It may be necessa~" to loosen the 1/2 X 3-1/4" BOLTS of the LOWER CROSS SUPPORT connecting to the IiPRIGI~IT FR.~%IE before beginnlngSTEP 4. ¯ SECURELY assemble the STACK BASE (3) and the UPRIGHT (1) to the LOWER CROSS SUPPORT using two 3/8 X 4" BOLTS (38). four 3/8"...
- Page 7 FIGURE 3/8" LOW HEIGHT~ STEP 8: ¯ SECURELY assemble the LAT BAR SUPPORT (5) to the TOP BOOM (4) using one 3/8 X 2-3/4" (32) and one 3/8" LOWHEIGH~ NUT (29). See HGURE ¯ Slide two VINYL CAPS (22) over the LAT BAK SUPPORT (5) as sho~ in FIGUPOE FIGURE 9 STEP 9: ¯...
- Page 8 FIGURE 7 STEP 7: ¯ NOTE: It may be necessary to loosen the 1/2 X 3-1/4" BOLTS of the UPPER CROSS SUPPORT connecting the UPRIGHT FRA~IE before be~rming STEP 7. Insert two GUIDE ROD BUSI-I~GS (27) into the TOP BOOM (4) as sho~:n in HGURE Insert two 3 X 2"...
- Page 9 FIGURE 11 STEP 11: Route the threaded end of the 124" CABLE (I 1) through the slot oft.he UPRIGHT (1) then SECURELY assemble one 4-1/2" PULLEY (10) to the UPRIGHT (I) using m’o 3/8 X 2-3/4" BOLTS (32), two 3/8" FLANGE SPACERS (33), two 3/8"...
- Page 10 FIGURE 10 STEP 10: ¯ Screw the threaded end of the CABLE (12) appro~mately 3/4" into the end of the 20 HOLE SELECTOR nut securely. See FIGURE 10. ¯ PlaCe one 3-1/2" PULLEY (9) into the loop of the CABLE (12) below the second and third PULLEY of the TOP BOOM (4) as in HGURE 10.
