Extension Cord
If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade
grounding plug and a 3-slot receptacle that will accept the plug on the high speed oven. The
marked rating of the extension cord should be AC 208 volt, 20 amp. or more. Be careful not to
drape the cord over the countertop or table where it can be pulled on by children or tripped over
accidentally.
CAUTION:
DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE ROUND GROUNDING PRONG FROM THIS PLUG.
1 Door handle
To open the door, pull the handle down and forward. Never hold the door handle when moving the oven.
2 Oven door with see-through window
3 Safety door latches
The oven will not operate unless the door is securely closed.
4 Door hinges
5 Door seals and sealing surfaces
6 Turntable motor shaft
7 Removable turntable support
Carefully place the turntable support in the center of the oven floor. After cooking, always clean the turntable support, especially around
the rollers. These must be free from food splashes and grease. Built-up splashes or grease may overheat and cause arcing, begin
to smoke or catch fire.
8 Removable turntable
Place the turntable on the turntable support securely. The turntable will rotate clockwise or counterclockwise. Only remove for cleaning.
9 Ventilation openings
10 Oven light
It will light when oven is operating or door is open.
11 Waveguide cover
12 Auto-Touch control panel
13 Time display: 99 minutes, 99
seconds
14 Convection air openings
15 Removable low rack
16 Removable high rack
17 Ventilation cover
18 Oven light access cover

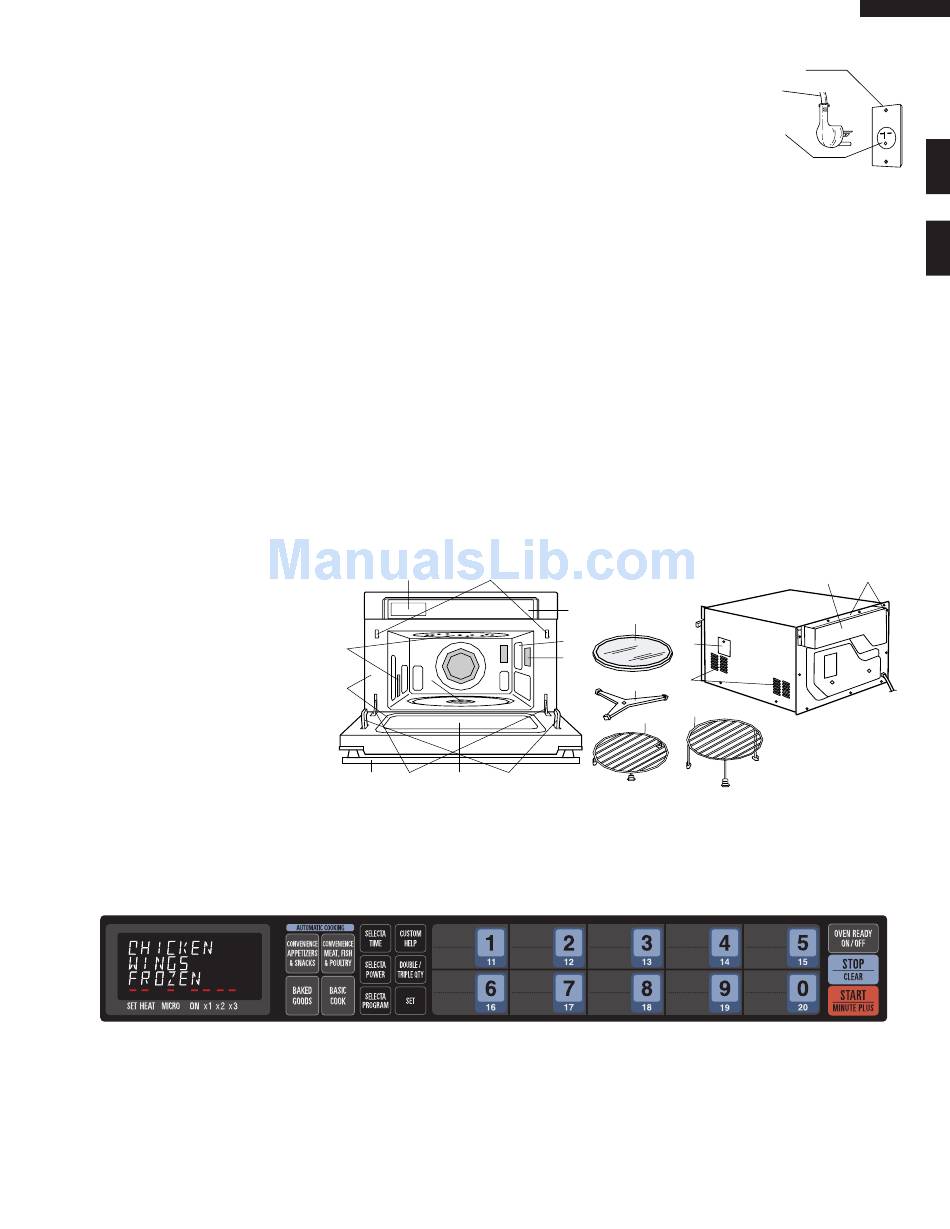

OVEN DIAGRAM
13
3
14
6
5
1
4
2
3
TOUCH CONTROL PANEL
5
Receptacle Box Cover
3-Pronged NEMA plug
(6-20P)
3-Pronged, NEMA receptacle
(6-20R)
12
8
18
11
10
9
7
16
15
R-8000G
