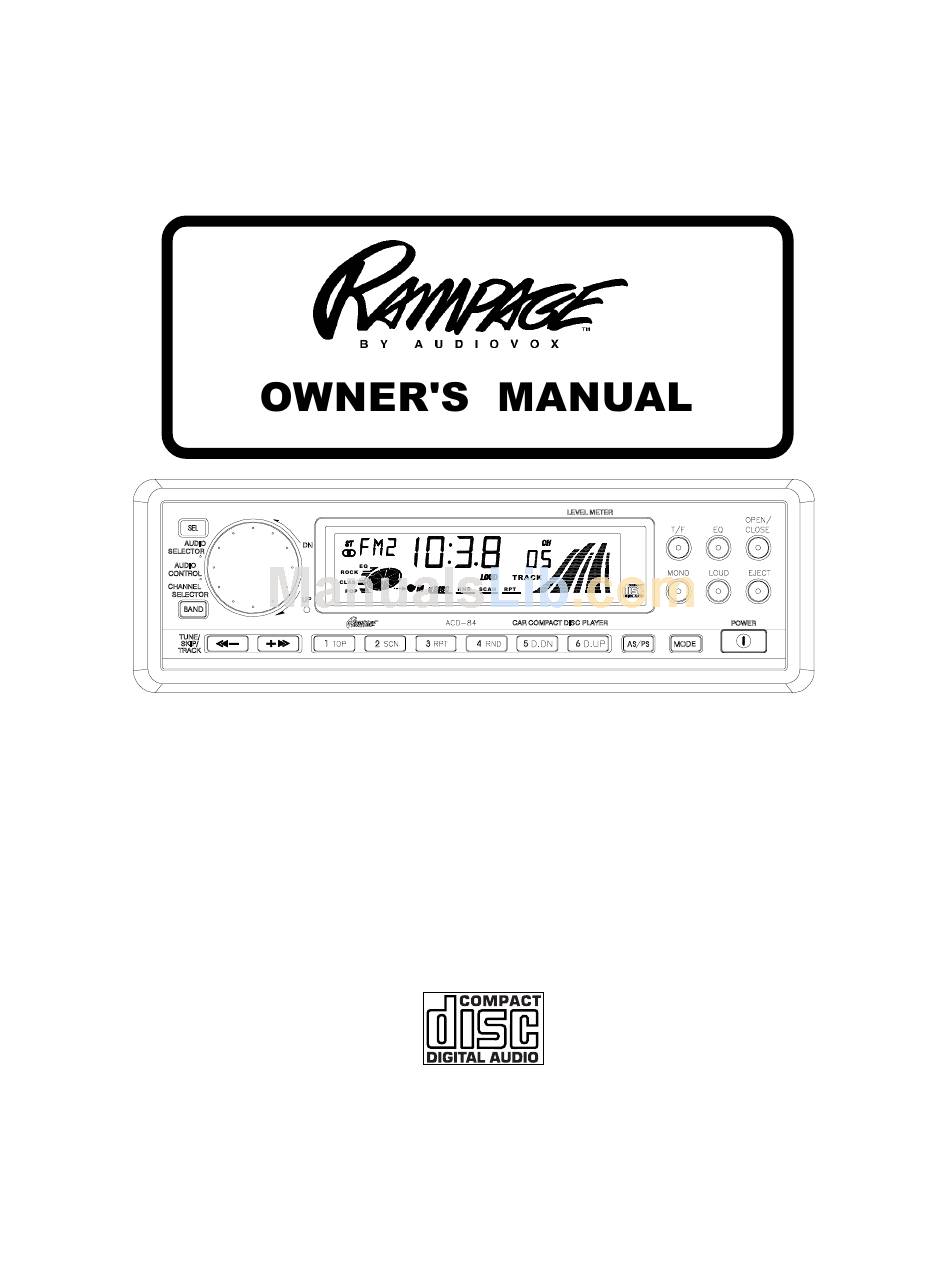

- Page 1 ACD-84 ACD-84 ACD-84 ACD-84 ACD-84 AM/FM/MPX RADIO WITH MOTORIZE FOLD-DOWN DETACHABLE FRONT PANEL, COMPACT DISC PLAYER, CD CHANGER CONTROLS, WIRELESS REMOTE CONTROL AND QUARTZ CLOCK...
- Page 2 This unit is designed for installation in cars, trucks, and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialist shops. Always check the kit application before purchasing to make sure the kit works with your vehicle.
- Page 3 TOLL-FREE INSTALLATION ASSISTANCE TOLL-FREE INSTALLATION ASSISTANCE TOLL-FREE INSTALLATION ASSISTANCE TOLL-FREE INSTALLATION ASSISTANCE TOLL-FREE INSTALLATION ASSISTANCE The installation and wiring connections for this unit are so simple, we doubt you'll need our help, but, if you do, we're here to help you. Just call our toll-free telephone assistance line at 1-800-645-4994 during the days and hours shown (U.S.A.
-
Page 4: Radio Wiring
RADIO WIRING RADIO WIRING RADIO WIRING RADIO WIRING RADIO WIRING REFER TO PAGE 4 FOR SPEAKER WIRING AUTOMATIC ANTENNA ANTENNA EXISTING ANTENNA CABLE ANTENNA LEAD ON REAR OF RADIO 3 3 3 3 3 BLUE IMPORTANT THE BLUE WIRE CAN BE USED TO REMOTELY ACTIVATE AN AUTOMATIC ANTENNA OR AN EXTERNAL AMPLIFIER (SEE ANTENNA OR AMPLIFIER MANUAL) -
Page 5: Speaker Wiring
LEFT REAR SPEAKER WARNING! NOTE: THIS RADIO WILL CONTROL RAMPAGE CD CHANGER MODELS. CHECK WITH YOUR RAM- PAGE AUDIOVOX CAR STEREO SPECIALIST OR CALL 1-800-645-4994 FOR RECOMMENDATIONS OF OTHER MODELS THAT WILL WORK WITH YOUR RADIO. RADIO CD CHANGER LEAD... -
Page 6: Bass Control
3, 4, 5, 6, 7 10, 18, 19, 34, 35 ON-OFF POWER BUTTON ( PWR ) Press this button to turn the unit on or off. If the ignition switch is “on”, the unit will also turn on automatically when a compact disc is inserted, or if the MODE switch or BAND switch is pressed. -
Page 7: Treble Control
indication appears on the display panel. Within 5 seconds of choosing the Bass mode, rotate the AUDIO CONTROL knob in the DN direction to decrease the bass response, or in the UP direction to increase it as desired. The level will be shown on the display panel from a minimum of BAS -12 to a maximum of BAS +12 (BAS 00 indicates flat response). - Page 8 AM/FM CHANNEL SELECTOR (BAND) Each time this button is pressed, the radio band is changed. The indication AM1, AM2, FM1, FM2 or FM3 will appear on the display panel according to your selection. TUNE/SKIP/TRACK ( BUTTONS To manually select a radio station, momematrily press the Up Tuning ( button to advance the unit higher, or the Down Tuning (...
-
Page 9: Level Meter Display
panel and two beeps will sound, indicating that the station is now set into that pre-set memory position. The station can now be recalled at any time by pressing that button. 4. Repeat the above procedure for the remaining 5 pre-sets on that band and for the other 4 bands on the unit. - Page 10 pressed, the next higher track number will be selected as shown on the display panel. Similarly, each time the Backward TRACK Select ( ) side of the button is pressed, the next lower track number will be selected as shown on the display panel. CUE/REVIEW FUNCTIONS High-speed audible search to any section of the disc can be made by the Cue and...
-
Page 11: Remote Sensor
TIME/FREQUENCY SELECTOR (T/F) During radio operation, press this button to call the time display on the incorporated quartz clock. The current time will appear together with an AM or PM indication. The display will return to the radio frequency indication after 5 seconds. During CD player or changer operation, the first press of the button will call the time display. - Page 12 THEFT-DETERRENT LED AND RESET BUTTON (BEHIND FRONT PANEL) 1. Switch the vehicle ignition and radio “on”. 2. Press the Time/Frequency (T/F) button to call the time display. 3. While holding the T/F button in, press the Down TUNE/SEEK/TRACK ( to adjust the hours and AM/PM indication, or the Up TUNE/SEEK/TRACK ( button to adjust the minutes to the correct time.
-
Page 13: Specifications
SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS Size: Operating Voltage: Fuse Ratings: Output Power: Output Wiring: Output Impedance: Low-Level Output: Tuning Range: Sensitivity: FM Stereo Separation: CD Frequency Response: CD Signal/Noise Ratio: CD Channel Separation: CD Distortion: *Specifications are subject to change without notice. 7"... - Page 14 CD CH NGER CONTR Built into this radio are controls to operate an optional CD changer. Please check with your Rampage/Audiovox car stereo specialist or call 1-800-645-4994 for recommendations of the models that will work with this radio. Adjustment of the audio functions (volume,...
- Page 15 canceled by activating the Repeat or Random Play function. DISC/TRACK REPEAT PLAY (RPT) When the RPT button is pressed, the RPT indication will appear on the display panel and play of the selected track will be continually repeated until the Track Repeat mode is canceled by pressing the RPT button twice or by activating the Scan or Random Play functions.
-
Page 16: Wireless Remote Control Operation
WIRELESS REMOTE CONTROL OPERATION The wireless remote control supplied with this model is capable of operating most of the features of the unit from a remote loca- tion. Each button on the remote control func- tions in the same way as the referenced button on the main unit. -
Page 17: Care And Maintenance
TRACK/DISC SCAN (SCN) - See Main Unit MODE SELECTOR (MODE) - See Main Unit AUDIO EQUALIZATION (EQ) - See Main Unit CARE AND MAINTENANCE The radio section of your new sound system does not require any maintenance. We recommend you keep this manual for reference on the many features found in this unit as well as how to set the clock. -
Page 18: Handling Compact Discs
l The unit is designed with a vibration dampening CD mechanism to minimize interruption of disc play due to normal vibration in a moving vehicle. When driving on very rough roads, however, occasional sound skips may occur. This will not scratch or damage the disc and normal play will resume when the rough conditions cease. -
Page 19: 12 Month Limited Warranty
