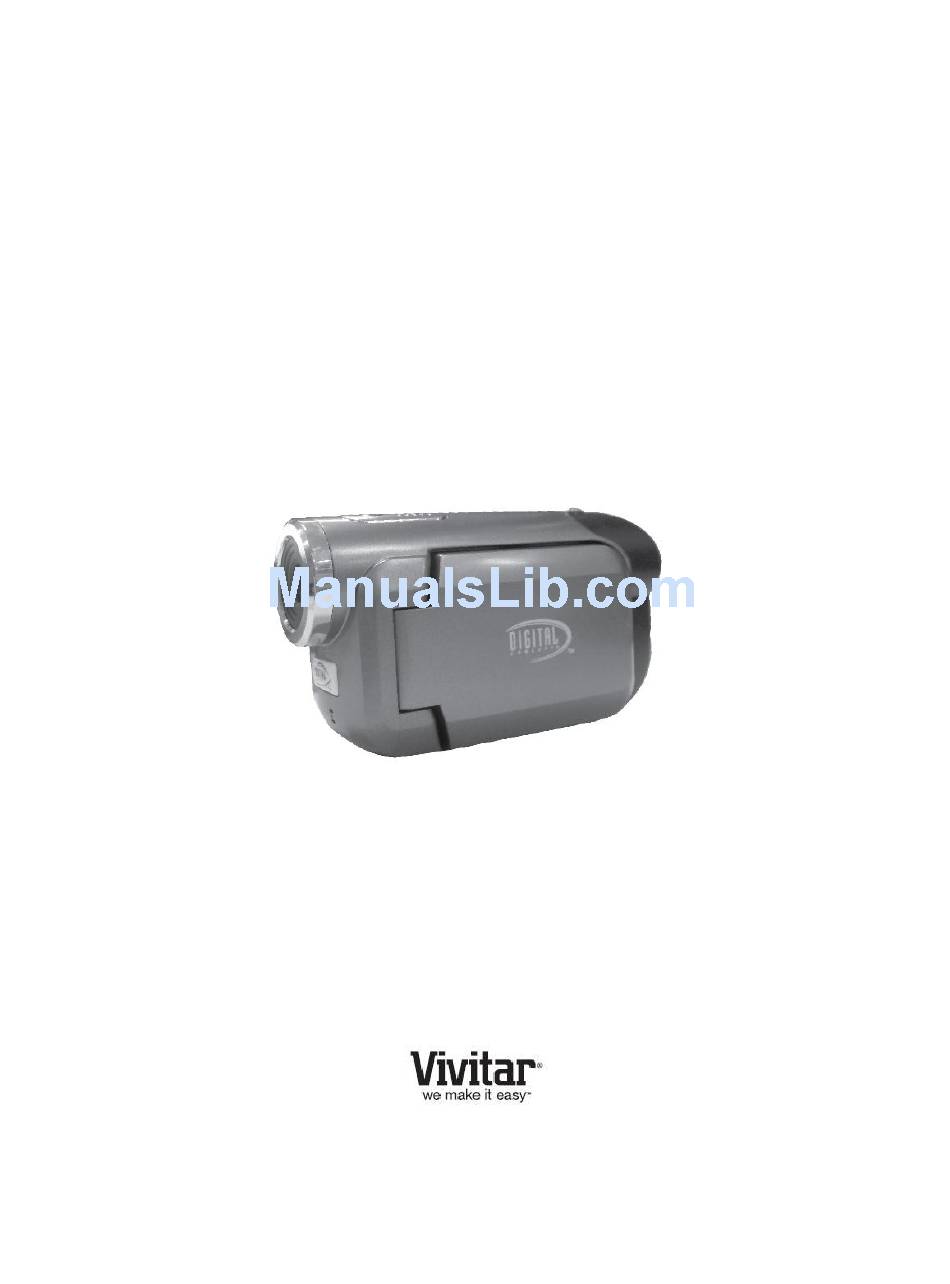

Page 1: User Manual
DVR 32490v2 Digital Video Camera User Manual © 2010 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies. -
Page 2: Table Of Contents
Table of Contents Introduction ........................2 What Your Camera Includes ..................2 Parts of the Camera ..................... 3 Initial Camera Setup ..................... 4 Main Camera Modes ....................5 Camera Technical Specifications ................. 6 Computer System Requirements – Windows ............... 7 Computer System Requirements –... -
Page 3: Introduction
Thank you for purchasing this camera. Everything you need to take quality digital photos and videos is included with your camera. Vivitar makes capturing those special moments as easy as possible. Note: Your camera needs an SD Memory card (up to 8GB) for normal use. -
Page 4: Parts Of The Camera
Parts of the Camera Power Button LCD Screen Shutter Button Up Button Down Button Mode Button Delete/Format Button Microphone TV Out/USB Jack 10. Battery Door/SD Card inside... -
Page 5: Initial Camera Setup
Initial Camera Setup Installing the Batteries Installing the Memory Card SD Memory card (up to 8GB) needed for normal use Insert 3 “AA” batteries (not included). Turning On the Camera Using the Camera... -
Page 6: Main Camera Modes
Main Camera Modes Your camera has different modes for the various camera functions. You can switch modes by pressing the MODE button on your camera after the camera has been powered ON. Video Capture Mode Use this mode to capture videos with your digital camera. This is the default mode when the camera is powered ON. -
Page 7: Camera Technical Specifications
Camera Technical Specifications Product type Digital Video Recorder 640*480 pixels (VGA/30fps) / 320*240 Digital Video resolution pixels(QVGA/25fps ) Digital Photo resolution 640*480 pixels (VGA) Image Sensor CMOS Sensor LCD Display 1.5” TFT Internal memory Limited to 2 Test Photos only SD card (up to 8GB) needs to be inserted to use the External memory camera... -
Page 8: Computer System Requirements - Windows
Computer System Requirements – Windows To be able to download photos and videos to your PC, you will need the following minimum configuration: Pentium 4 processor or above with Windows XP service pack 2, Windows Vista or Windows 7 ... -
Page 9: Using Your Digital Camera
Using Your Digital Camera Make sure the batteries have been inserted properly into your digital camera. If your camera comes with a rechargeable lithium battery, make sure it is fully charged before the first use. Make sure an SD card has been inserted into your camera. (SD card up to 8GB - SD Card not included) Powering the camera ON Press the Power button... -
Page 10: Video Capture Mode
To change the active camera mode, make sure the camera is powered ON and press the MODE button. When in Video Capture Mode, this icon will display on the top-left corner of the LCD display When in Photo Capture Mode, this icon will display on the top-left corner of the LCD display When in Playback Mode, this icon will display on the top-left corner of the LCD display... - Page 11 A red flashing spot will appear next to the video icon on the LCD indicating that the capture is in progress. The REC time counter begins to count up thus showing the length of time for this video being captured. In order to stop the video capture, press the Shutter button again.
-
Page 12: Photo Capture Mode
Photo Capture Mode The Photo Capture mode allows you to capture pictures with your digital camera. Taking a Picture The image resolution of photos taken with this camcorder is 640x480 pixels. This resolution is fixed and cannot be altered or changed. Turn on your digital video recorder. -
Page 13: Playback Mode
Playback Mode Use this mode to view and manage the photos and videos on your camera. After turning on your camera, press the MODE button twice to open the Playback mode for photos and videos. You can scroll through the photos and videos that you‟ve previously taken to view or delete them as desired. -
Page 14: Deleting Your Images
Press the Shutter button to stop playing. Note: Photos are saved in JPEG format and Video clips are saved in AVI format. When there is no file in the memory, a No File icon will appear on the LCD screen. Deleting Your Images After turning on your camera, press the MODE button twice to open the Playback mode for photos and videos. - Page 15 Deleting all Photos and Video files: Press the Mode button to select the Playback mode. Press the Delete button twice. The Delete All icon will appear on the LCD screen: Press the UP or DOWN button to select one of these options: - Delete All Images: Select the „check‟...
-
Page 16: Connecting The Camera To A Tv
Connecting the Camera to a TV Connect the camcorder to the TV via the supplied cable. Power on the TV and then your camcorder. The camcorder‟s LCD screen turns blank, and picture that previously appeared on the camcorder `s LCD screen now appear on the TV screen. Note: You cannot enter the TV out mode if your DV has no batteries inserted. -
Page 17: Installing The Software
Installing the Software You must be connected to the internet to install and run the Vivitar Experience Image Manager software. Insert the installation CD into your CD-ROM drive. The installation screen should automatically open. On PC: The Vivitar Experience Image Manager Installer window appears. If the window does not appear, open the application‟s CD/DVD drive and click on... - Page 18 On PC and Macintosh: Click the “I accept the terms of this license agreement” and then click “Next” to continue. 10) On PC only: Let the “Vivitar Experience Image Manager” installer create the folder to where the program will be installed, and then click “Install”.
-
Page 19: Connecting The Camera To The Computer
Connecting the Camera to the Computer Use the USB cable that came with your camcorder to connect your camcorder to your computer. Power the camera ON. The first time you connect the device to the computer you will have to wait a few seconds until the computer recognizes the device. -
Page 20: Get Started
Edit images using automatic and manual tools Use automatic “Geotagging” with built in Google Maps For more details on how to use the Vivitar Experience Image Manager open the Help file or click the “Take the Tour” button on the application`s Home page. -
Page 21: Transfer Media From My Camera To My Computer Manually (Using Windows)
Transfer media from my camera to my computer manually (Using Windows) Use the USB cable that came with your camera to connect your camera to your computer. MSDC appears on the LCD. A window appears with a list of options, select “Open folder to view files” and click Open the DCIM folder and the folder inside to view the media files. -
Page 22: Camera Maintenance
Camera Maintenance The digital camera is a delicate device. Please handle your camera with care to avoid damaging it. Do not expose your camera to heat sources. Do not use you camera in wet or moist conditions. Sakar Warranty Card This warranty covers for the original consumer purchaser only and is not transferable. -
Page 23: Technical Support
Technical Support For technical support issues please visit our website at www.vivitar.com. You can find manuals, software and FAQ‟s at the website. Can‟t find what you are looking for? E-mail us at support@vivitar.com and one of our technical support team members will answer your questions.
