Page 1 When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete satisfaction. He will provide quality maintenance and any other assistance you may require. If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number: U.S. OWNERS: Toyota Customer Assistance Center Toll–free:1–800–331–4331...
Page 2: Toyota
’02 4Runner_U (L/O 0108) Important information about this manual Safety and vehicle damage warnings Safety symbol Throughout this manual, you will see safety and vehicle dam- age warnings. You must follow these warnings carefully to avoid possible injury or damage. The types of warnings, what they look like, and how they are used in this manual are explained as follows: CAUTION...
Page 3: Table Of Contents
....... Your Toyota’s identification ........
Page 4: Off-Road Vehicle Precautions
’02 4Runner_U (L/O 0108) Off–road vehicle precautions This vehicle belongs to the utility ve- CAUTION hicle class, which has higher ground clearance and narrower tread in relation Always observe the following precau- to the height of its center of gravity to tions to minimize the risk of serious make it capable of performing in a wide personal injury or damage to your ve-...
Page 5: Break-In Period
To help prevent gas station mix–ups, your strike objects, etc. This may cause to the future economy and long life of Toyota has a smaller fuel tank opening. loss of control or vehicle rollover your vehicle: The special nozzle on pumps with un- causing death or serious injury.
Page 6: Toyota
Toyota, be sure that it has an octane than stated above will cause persistent The WWFC consists of three categories rating no lower than 87.
Page 7: Operation In Foreign Countries
’02 4Runner_U (L/O 0108) Operation in foreign countries Three–way catalytic converter If you plan to drive your Toyota in NOTICE another country... z Do use gasohol other than First, comply with the vehicle registration stated above. It will cause fuel sys- laws.
Page 8: Engine Exhaust Cautions
Remember, your Toyota time to time. If you hit something, cause the engine to misfire, creat- dealer knows your vehicle and its or notice a change in the sound of ing an excessive load on the three–...
Page 9: Facts About Engine Oil Consumption
’02 4Runner_U (L/O 0108) Facts about engine oil consumption FUNCTIONS OF ENGINE OIL Oil is also used to lubricate the stems Keep the back door and back win- of the intake valves. Some of this oil Engine oil has the primary functions of dow closed while driving.
Page 10: Twin Ground Electrode Spark Plugs
For detailed information on oil level check, warning light comes on, immediately stop see “Checking the engine oil level” in Sec- your vehicle and contact your Toyota deal- tion 7–2. The brake system warning light may stay on for about 60 seconds after the ignition key is turned to the “ON”...
Page 11 ’02 4Runner_U (L/O 0108) Depressing the brake pedal repeatedly ANTI–LOCK BRAKE SYSTEM Depressing the brake pedal on slippery road surfaces such as on the manhole may turn on the brake system warning (with “ABS” warning light) light and buzzer. It is normal if the light cover, the steel plate under the construc- The anti–lock brake system is designed tion, joints in the bridge, etc.
Page 12 ’02 4Runner_U (L/O 0108) CAUTION Driving with tire chains installed. Driving over the steps such as the overestimate anti–lock joints on the road. brake system: Although the anti–lock Driving on roads where the road brake system assists in providing ve- surface is pitted or has other differ- hicle control, it is still important to ences in surface height.
Page 13 This does not indicate a mal- so that the wheels could lock up during Toyota dealer. function. a sudden braking or braking on slippery In this case, not only the anti–lock road surfaces.
Page 14: Brake Pad Wear Limit Indicators
Toyota possible. dealer as soon as possible. Expensive ro- tor damage can result if the pads are not Do not place anything on the flat- replaced when necessary.
Page 15: Your Toyota's Identification
This is the primary identification number ing, and impair the driver’s control for your Toyota. It is used in registering of the vehicle. In an accident they the ownership of your vehicle. may injure the vehicle occupants.
Page 16: Theft Prevention Labels
’02 4Runner_U (L/O 0108) Theft prevention labels —Engine number Suspension and chassis (except for Canada) Your new vehicle carries theft preven- CAUTION tion labels which are approximately 56 mm (2.20 in.) by 16 mm (0.63 in.). Do not modify the suspension/chassis The purpose of these labels is to reduce with lift kits, spacers, springs, etc.
Page 17: Types Of Tires
’02 4Runner_U (L/O 0108) Types of tires Determine what kind of tires your ve- CAUTION hicle is originally equipped with. 1. Summer tires Do not mix summer and all season Summer tires are high–speed capability tires on your vehicle as this can tires best suited to highway driving under cause dangerous handling charac- dry conditions.
Page 18 ’02 4Runner_U (L/O 0108) 2002 MY 4RUNNER_U (OM35787U)
Page 19 Important information about your Toyota New vehicle warranty Accessories, spare parts and modification of your Toyota Your new vehicle is covered by the following Toyota limited warranties: A wide variety of non–genuine spare parts and accessories D New vehicle warranty for Toyota vehicles are currently available in the market.
Page 20 Installation of a mobile Toyota two–way radio system The spark ignition system in your Toyota meets all require- As the installation of a mobile two–way radio system in ments of the Canadian Interference–Causing Equipment your vehicle could affect electronic systems such as multi- Standard.
Page 21: Section 3
In addition, this vehicle shop or by your Toyota dealer before you dispose of your has a higher ground clearance and center of gravity than vehicle.
Page 22 ’02 4Runner_U (L/O 0108) 2002 MY 4RUNNER_U (OM35787U)
Page 23 ’02 4Runner_U (L/O 0108) SECTION STARTING AND DRIVING Before starting the engine ........How to start the engine .
Page 24: Before Starting The Engine
’02 4Runner_U (L/O 0108) How to start the engine— Before starting the engine (b) Starting the engine (a) Before cranking 1. Check the area around the vehicle be- 1. Apply the parking brake firmly. Before starting the engine, be sure to fol- fore entering it.
Page 25: Tips For Driving In Various Conditions
To dry them, drive vehicle cautiously while lightly pressing the brake pedal with the park- ing brake applied. If they still do not work safely, pull to the side of the road and call a Toyota dealer for assistance. 2002 MY 4RUNNER_U (OM35787U)
Page 26: Off-Road Driving Precautions
’02 4Runner_U (L/O 0108) Off–road driving precautions When driving your vehicle off–road, please To drive down a long or steep hill, continue normal driving observe the following precautions to en- reduce your speed and downshift. when the brakes are wet. If they are sure your driving enjoyment and to help Remember, if you ride the brakes wet, your vehicle will...
Page 27 ’02 4Runner_U (L/O 0108) Recreational Vehicle Clubs NOTICE After driving through tall grass, U.S. Forest Service and Bureau of mud, rock, sand, rivers, etc., check z If driving through water, such as Land Management that there is no grass, bush, paper, when crossing shallow...
Page 28: Winter Driving Tips
“TOYOTA Long Life Coolant” or equivalent. harder starting. If you are not sure about tion, refer to the “Scheduled Main- which oil to use, call your Toyota dealer— tenance Guide” or “Owner’s Manual See Section 7–2 for details about coolant he will be pleased to help.
Page 29: Dinghy Towing
Keep ice and snow from accumulating overload your vehicle or trailer. Ask your under the fenders. local Toyota dealer for further details be- Ice and snow built up under your fenders fore towing. can make steering difficult. During bad...
Page 30 ’02 4Runner_U (L/O 0108) CAUTION The gross vehicle weight must not exceed the Gross Vehicle Weight The maximum gross trailer weight Rating (GVWR) indicated Certification Label. The gross vehi- (trailer weight plus cargo weight) must never exceed 2267 kg (5000 cle weight is the sum of weights of lb.).
Page 31 Total trailer weight the ground in case it becomes dam- ∗ 2 Toyota recommends removing the hitch aged or separated. For correct safety when not towing to prevent injury and/ chain procedures, follow the hitch or...
Page 32 ’02 4Runner_U (L/O 0108) BREAK–IN SCHEDULE Never tow a trailer without using a Toyota recommends that you do not safety chain securely attached to tow a trailer with a new vehicle or a both the trailer and the vehicle. If...
Page 33 ’02 4Runner_U (L/O 0108) PRE–TOWING SAFETY CHECK TRAILER TOWING TIPS Because stopping distance may be in- creased, vehicle–to–vehicle distance Check that your vehicle remains level When towing a trailer, your vehicle will should be increased when towing a when a loaded or unloaded trailer is handle differently than when not tow- trailer.
Page 34 ’02 4Runner_U (L/O 0108) Crosswinds and rough roads will ad- Always place wheel blocks under both When restarting out after parking on a versely affect handling of your vehicle the vehicle and trailer wheels when slope: and trailer, causing sway. Pay attention parking.
Page 35: How To Save Fuel And Make Your Vehicle Last Longer
’02 4Runner_U (L/O 0108) How to save fuel and make your vehicle last longer Improving fuel economy is easy—just take Avoid long engine idling. If you have Slow down and downshift before it easy. It will help make your vehicle last a long wait and you are not in traffic, descending steep or long downhill longer, too.
Page 36 ’02 4Runner_U (L/O 0108) Keep front wheels in proper CAUTION alignment. Avoid hitting the curb and slow down on rough roads. Improper Never turn off the engine to coast alignment not only causes faster tire down hills. Your power steering and wear but also puts an extra load on brake booster will not function with- the engine, which, in turn, wastes fuel.
Page 37: In Case Of An Emergency
’02 4Runner_U (L/O 0108) SECTION IN CASE OF AN EMERGENCY If your vehicle will not start ........If your engine stalls while driving .
Page 38: If Your Vehicle Will Not Start
Then try starting the engine with broken. Have the key checked at your your foot off the accelerator pedal. Toyota dealer. If none of your keys work, If the engine turns over at its normal If the engine does not start after 15 se- the system is possibly broken.
Page 39 ’02 4Runner_U (L/O 0108) (c) Jump starting To avoid serious personal injury and JUMP STARTING PROCEDURE The gas normally produced by a damage to your vehicle which might re- 1. If the booster battery is installed in battery will explode if a flame or sult from battery explosion, acid burns, another vehicle, make sure the vehicles spark is brought near.
Page 40 ’02 4Runner_U (L/O 0108) Discharged Jumper cable battery Booster battery Negative Positive terminal terminal Discharged (“–” mark) (“+” mark) battery Positive terminal Jumper cable (“+” mark) Booster battery Connecting point 4. Make the cable connections in the or- c. Connect the clamp of the negative der a, b, c, d.
Page 41: If Your Engine Stalls While Driving
If the engine will not start, see “If your drive you vehicle at low speeds. Have 7. Carefully dispose of the battery cover vehicle will not start”. your vehicle checked by your Toyota deal- cloths—they may now contain sulfuric er as soon as possible. acid.
Page 42: If Your Vehicle Overheats
You should have it checked as 4. If the engine drive belt is broken or the opening the hood. If there is no coolant soon as possible at your Toyota dealer. coolant is leaking, stop the engine im- boiling over or steam, leave the engine mediately.
Page 43: If You Have A Flat Tire
’02 4Runner_U (L/O 0108) If you have a flat tire— 1. Reduce your speed gradually, keeping NOTICE Stop the vehicle on a level firm a straight line. Move cautiously off the ground, firmly set the parking brake road to a safe place well away from Do not continue driving with a de- and put the transmission in “P”.
Page 44 ’02 4Runner_U (L/O 0108) —Required tools and spare tire Cover (on some models) 1. Get the required tools and spare Turn the jack joint by hand. To remove the spare tire: tire. To remove: Turn the joint in direction 1 1.
Page 45 ’02 4Runner_U (L/O 0108) —Blocking the wheel —Removing wheel ornament 3. Remove the wheel ornament. Pry off the wheel ornament, using the beveled end of the wheel nut wrench as shown. CAUTION Do not try to pull off the ornament by hand.
Page 46 ’02 4Runner_U (L/O 0108) —Loosening wheel nuts —Positioning the jack 5. Position the jack at the correct jack point as shown. Make sure the jack is positioned on a level and solid place. Front Rear Two–wheel drive models 4. Loosen all the wheel nuts. Always loosen the wheel nuts before rais- ing the vehicle.
Page 47 ’02 4Runner_U (L/O 0108) —Raising your vehicle —Changing wheels CAUTION Never get under the vehicle when the vehicle supported jack alone. 6. After making sure that no one is in 7. Remove the wheel nuts and change the vehicle, raise it high enough so tires.
Page 48 ’02 4Runner_U (L/O 0108) —Reinstalling wheel nuts —Lowering your vehicle Before putting on wheels, remove any cor- 8. Reinstall all the wheel nuts finger 9. Lower the vehicle completely and rosion on the mounting surfaces with a tight. tighten the wheel nuts. wire brush or such.
Page 49 ’02 4Runner_U (L/O 0108) —Reinstalling wheel ornament 10. Reinstall the wheel ornament. CAUTION Put the wheel ornament into position and then tap it firmly with the side or heel of When lowering the vehicle, make sure your hand to snap it into place. all portions of your body and all oth- er persons around will not be injured CAUTION...
Page 50: If Your Vehicle Needs To Be Towed
’02 4Runner_U (L/O 0108) If your vehicle needs to be —After changing wheels towed— 11. Check the air pressure of the re- placed tire. (a) Towing with wheel lift type truck— (a) Towing with wheel lift type truck— Adjust the air pressure to the specification —From front —From front designated in Section 8.
Page 51 Only when you cannot receive a towing for towing at the opposite end of Two–wheel drive models— service from a Toyota dealer or com- the raised vehicle. Otherwise, the (a) Towing with wheel lift type truck mercial tow truck service, tow your ve-...
Page 52 All models— If towing is necessary, we recommend ing dolly under the front wheels. If you do you to have it done by your Toyota (c) Towing with sling type truck not use a towing dolly, place the ignition dealer or a commercial tow truck ser- key in the “ACC”...
Page 53 ’02 4Runner_U (L/O 0108) —Removing towing hook cover for emergency towing (four–wheel drive models) NOTICE NOTICE Only specified towing hook; Use only a cable or chain specifically otherwise your vehicle may be dam- intended for use in towing vehicles. aged. Securely fasten the cable or chain to the towing hook provided.
Page 54 If the towing vehicle can hardly move, do not forcibly continue the towing. Contact your Toyota dealer or a commercial tow truck service for assistance. Tow the vehicle as straight ahead as possible.
Page 55: If You Cannot Shift Automatic Transmission Selector Lever
6. Start the engine. For your safety, 2. Pry up the cover with a flat–bladed keep the brake pedal depressed. screwdriver or equivalent. Be sure to have the system checked by your Toyota dealer as soon as possible. 2002 MY 4RUNNER_U (OM35787U)
Page 56: If You Lose Your Keys
Vehicles with engine immobiliser system— Even if you lose only one key, contact your Toyota dealer to make a new key. If you lose all your master keys, you cannot make new keys; the whole engine immobi- liser system must be replaced.
Page 57: If You Lose Your Wireless Remote Control Transmitter
Have the registered identification numbers of your transmitters deleted from your ve- hicle by your Toyota dealer as soon as possible to avoid the possibility of theft or an accident. Then, have the identification number of your new transmitter registered.
Page 58 ’02 4Runner_U (L/O 0108) 2002 MY 4RUNNER_U (OM35787U)
Page 59: Corrosion Prevention And Appearance Care
CORROSION PREVENTION AND APPEARANCE CARE Protecting your Toyota from corrosion ......Washing and waxing your Toyota .
Page 60 Now, it is up to you. Proper more harm than good to simply wet the High ambient temperatures can cause care of your Toyota can help ensure long– mud and debris without removing them. corrosion to those components of the term corrosion prevention.
Page 61 ’02 4Runner_U (L/O 0108) Washing and waxing your Toyota Check the interior of your vehicle. Wa- Washing your Toyota 1. Rinse off loose dirt with a hose. Re- ter and dirt can accumulate under the move any mud or road salt from the...
Page 62 Toyota through an automatic floor when cleaning the vehicle interi- damage. car wash. On models with detachable or or exterior.
Page 63 ’02 4Runner_U (L/O 0108) NOTICE NOTICE NOTICE z Do not use organic substances (sol- z Do not use dye or bleach on the Do not use solvent, thinner, gasoline vents, kerosene, alcohol, gasoline, or window cleaner on the interior. belts—it may weaken them. etc.) or alkaline or acidic solutions.
Page 64 If you have any questions about the as benzine, alcohol or gasoline, or cleaning of your Toyota, your local alkaline or acid solutions for clean- Toyota dealer will be pleased to answer leather these could them. cause discoloring. z Use of a nylon brush or synthetic fiber cloth, etc.
Page 65 ’02 4Runner_U (L/O 0108) SECTION VEHICLE MAINTENANCE AND CARE Maintenance requirements ........General maintenance .
Page 66 Simple instructions for how to per- or if you prefer, your Toyota dealer will be dating this warranty. See “Owner’s War- form them are presented in Section 7.
Page 67 Booklet” or “Owner’s Manual Supple- should investigate the cause or take your check the nuts for looseness. Tighten ment” for the details. vehicle to your Toyota dealer or a quali- them if necessary. fied service shop immediately. It is recom- Tire rotation...
Page 68 ’02 4Runner_U (L/O 0108) INSIDE THE VEHICLE Seat belts Automatic transmission “Park” mecha- nism Items listed below should be checked Check that the seat belt system such as regularly, e.g. while performing periodic buckles, retractors and anchors operate Check the lock release button of the se- services, cleaning the vehicle, etc.
Page 69 Be on the alert for changes in perfor- If you notice any of these clues, take your mance, sounds, and visual tip–offs that vehicle to your Toyota dealer as soon as Your Toyota has a maintenance free bat- indicate service is needed. Some impor- possible.
Page 70 Toyota dealer comes on. In this case, your vehicle may to prepare the vehicle for re–testing. not pass the I/M test and need to be repaired.
Page 71 ’02 4Runner_U (L/O 0108) SECTION SPECIFICATIONS Dimensions and weight ........Engine .
Page 72: Dimensions And Weight
’02 4Runner_U (L/O 0108) Dimensions and weight Engine Model: 5VZ–FE mm (in.) Type: P265/70R 16 tire 6 cylinder V type 4 cycle, gasoline P225/75R 15 tire With wheel Without wheel Bore and stroke, mm (in.): opening extension opening extension 93.5 82.0 (3.68 3.23) Overall length...
Page 73: Fuel
’02 4Runner_U (L/O 0108) Fuel Service specifications Fuel type: ENGINE Oil grade: Unleaded gasoline, Octane Rating 87 Valve clearance (engine cold), mm (in.): API grade SJ “Energy–Conserving”, SL (Research Octane Number 91) or higher “Energy–Conserving” ILSAC multi- Intake 0.13—0.23 (0.006—0.009) Fuel tank capacity, L (gal., Imp.
Page 74 2.75 (2.9, 2.4) Up to 1.6 (1.7, 1.4) Coolant type: Four–wheel drive models Four–wheel drive models Front “TOYOTA Long Life Coolant” or equiva- Up to 2.0 (2.1, 1.8) 1.15 (1.2, 1.0) lent Rear Fluid type: With ethylene–glycol type coolant for a...
Page 75 ’02 4Runner_U (L/O 0108) CHASSIS LUBRICATION STEERING Propeller shafts: Wheel free play: Spiders Less than 30 mm (1.2 in.) Lithium base chassis grease, NLGI Power steering fluid type: No.2 Automatic transmission fluid DEXRONrII Slide yoke and double cardan joint or III Molybdenum–disulfide lithium base...
Page 76: Tires
’02 4Runner_U (L/O 0108) Tires Fuses Tire size, pressure and wheel size: Tire pressure kPa (kgf/cm or bar, psi) Tire size Wheel size Front Rear ∗ 1 P265/70R16 111S 220 (2.2, 32) 220 (2.2, 32) ∗ 2 ∗ 1 P225/75R15 102S 200 (2.0, 29) 200 (2.0, 29) ∗...
Page 77 ’02 4Runner_U (L/O 0108) 17. HEAD (HI LH) 10 A: Left–hand head- light (high beam) 18. HEAD (LO RH) Right–hand headlight (low beam) 19. HEAD (LO LH) 10 A: Left–hand head- light (low beam) 20. TOWING 25 A: Trailer lights (back–up lights, rear turn signal lights, stop/tail lights) 21.
Page 78 ’02 4Runner_U (L/O 0108) 27. ACC 15 A: Car audio system, power Fuses (type B) antenna, clock, power rear view mirror 34. HEATER 50 A: Air conditioning system, control, cigarette lighter, seat belt pre- all components in “A.C” fuse tensioners, electronically controlled au- 35.
Page 79 ’02 4Runner_U (L/O 0108) SECTION REPORTING SAFETY DEFECTS FOR U.S. OWNERS AND UNIFORM TIRE QUALITY GRADING Reporting safety defects for U.S. owners ..... . Uniform tire quality grading .
Page 80 Toyota Motor Washington, D.C. 20590. You can Your Toyota dealer will help answer any Sales, U.S.A., Inc. also obtain other information about questions you may have as you read this (Toll–free: 1–800–331–4331).
Page 81 ’02 4Runner_U (L/O 0108) Treadwear—The treadwear grade Temperature A, B, C—The temperature comparative rating based on the wear rate grades are A (the highest), B, and C, of the tire when tested under controlled representing the tire’s resistance to the conditions on a specified government test generation of heat and its ability to dissi- course.
Page 82 ’02 4Runner_U (L/O 0108) 2002 MY 4RUNNER_U (OM35787U)
Page 83 ’02 4Runner_U (L/O 0108) SECTION – OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview ........Instrument cluster overview .
Page 84 ’02 4Runner_U (L/O 0108) Instrument panel overview 1. Side vents 2. Tilt steering lock release lever 3. Instrument cluster 4. Center vents 5. Garage door opener 6. Garage door opener box or auxiliary 7. Electric moon roof switch 8. Personal lights 9.
Page 85 ’02 4Runner_U (L/O 0108) 1. Seat heater switch (for passenger) 2. Headlight and turn signal switch, and front fog light switch 3. Wiper and washer switches 4. Back window and outside rear view mirror defoggers switch 5. Driving pattern selector button 6.
Page 86 ’02 4Runner_U (L/O 0108) 22. Traction control off switch 23. Seat heater switch (for driver) or Power back window lock switch 2002 MY 4RUNNER_U (OM35787U)
Page 87 ’02 4Runner_U (L/O 0108) Instrument cluster overview 1. Service reminder indicators and 4. Speedometer 7. Trip meter reset knob indicator lights 5. Odometer and two trip meters 2. Engine coolant temperature gauge 6. Fuel gauge 3. Tachometer 2002 MY 4RUNNER_U (OM35787U)
Page 88 ’02 4Runner_U (L/O 0108) Indicator symbols on the instrument panel ∗ 1 Brake system warning light Vehicle skid control system and traction control system (two–wheel drive models) or active traction control system (four–wheel drive models) ∗ 1 ∗ 1 Driver’s seat belt reminder light warning light ∗...
Page 89 ’02 4Runner_U (L/O 0108) Overdrive–off indicator light Automatic transmission indicator lights Driving pattern (“PWR” mode) indicator light Four–wheel drive and center differential lock indicator lights Slip indicator light ∗ 1 Traction control system off indicator light (two–wheel drive models) ∗ 1 Vehicle skid control system off indicator light (four–wheel drive models) ∗...
Page 90 ’02 4Runner_U (L/O 0108) 2002 MY 4RUNNER_U (OM35787U)
Page 91 ’02 4Runner_U (L/O 0108) SECTION – OPERATION OF INSTRUMENTS AND CONTROLS Keys and Doors Keys ............Engine immobiliser system .
Page 92: Keys
If you should lose your keys or if you built–in transponder chip. glove box. need additional keys, duplicates can be made by a Toyota dealer using the key 2. Sub key (gray)—This key does not To protect things locked in the glove box number.
Page 93 ’02 4Runner_U (L/O 0108) To protect things locked in the glove box when you have your vehicle parked, leave the sub key with the attendant. Since the side doors can be locked with- out a key, you should always carry a spare master key in case you accidentally lock your keys inside the vehicle.
Page 94 If you should lose your keys or if you need additional keys, duplicates can be made by a Toyota dealer using the key number. We recommend you to write down the key number and keep it in safe place.
Page 95: Engine Immobiliser System
The indicator light will go off. For your Toyota dealer to make you a new key with built–in transponder chip, your dealer will need your key number and master key. However, there is a limit to the number of additional keys your Toyota dealer can make for you.
Page 96: Side Doors
’02 4Runner_U (L/O 0108) Side doors For vehicles sold in U.S.A. For vehicles sold in Canada FCC ID: MOZ RI–4BTY This device complies with RSS–210 of MADE IN JAPAN Industry Canada. Operation is subject to the following two conditions: This device complies with Part 15 of the FCC Rules.
Page 97 ’02 4Runner_U (L/O 0108) Driver’s side Driver’s side LOCKING UNLOCKING WITH Front passenger’s side INSIDE LOCK BUTTON Front passenger’s side Move the lock button. To lock: Push the button downward. To unlock: Pull the button upward. Closing the door with the lock button pushed in will also lock the door.
Page 98 ’02 4Runner_U (L/O 0108) LOCKING UNLOCKING WITH CAUTION POWER DOOR LOCK SWITCH Push the switch. Before driving, be sure that the doors To lock: Push the switch on the front side. closed locked, especially To unlock: Push the switch on the rear when small children are in the ve- side.
Page 99 Contact your Toyota dealer for performed by the “LOCK” switch and a details if you require it. beep will sound continuously for 10 sec- onds. However, if the key is in the igni- tion, a beep will not sound.
Page 100 Contact your Toyota dealer for detailed mitter for about 1 second. The window headlights and tail lights. information. will fully open. The “PANIC” switch is used to deter ve- At this time, you can hear a beep.
Page 101 If you lose your wireless remote control radio communications. However, there is transmitter, contact your Toyota dealer as no guarantee that interference will not soon as possible to avoid the possibility occur in a particular installation. If this of theft, or an accident.
Page 102 ’02 4Runner_U (L/O 0108) For vehicles sold in Canada REPLACING THE BATTERY Reorient or relocate the receiving an- For replacement, use a lithium battery tenna. Operation is subject to the following two CR2016 and a special screwdriver. Increase the separation between the conditions: equipment and receiver.
Page 103 ’02 4Runner_U (L/O 0108) 1. Using a coin or equivalent, open the 2. Remove the discharged transmitter bat- 3. Put new transmitter battery with posi- transmitter case. tery. tive (+) side up. Close the transmitter case securely. NOTICE z Make sure the positive side and negative side of the transmitter bat- tery should be faced correctly.
Page 104: Power Windows
If you lose your transmitter, contact your OPERATING THE DRIVER’S AND FRONT Toyota dealer as soon as possible to PASSENGER’S WINDOWS avoid the possibility of theft, or an acci- Use the switches on the driver’s door dent.
Page 105 ’02 4Runner_U (L/O 0108) Automatic operation: Push the switch completely down or pull it completely up, and then release it. The window will fully Window open or close. To stop the window part- lock switch way, lightly move the switch in the oppo- site direction and then release it.
Page 106: Power Back Window
’02 4Runner_U (L/O 0108) Power back window CAUTION To avoid serious personal injury, you must do the following. Always make sure the heads, hands and other parts of the bodies of all occupants are kept completely in- side the vehicle before you close the power windows.
Page 107 ’02 4Runner_U (L/O 0108) You can also open the back window when the back window wiper is working. At that time, the wiper stops working until the window is closed again. If you push in the window lock switch on the driver’s door (with power windows) or on the instrument panel (without power windows), the back window cannot be op-...
Page 108: Back Door
’02 4Runner_U (L/O 0108) Back door CAUTION Keep the back window closed while driving. This not only keeps the To avoid serious personal injury, you luggage from being thrown out but also prevents exhaust gases from must do the following. entering the vehicle.
Page 109 ’02 4Runner_U (L/O 0108) CAUTION Driver’s side Keep the back window and back door closed while driving. This not only keeps the luggage from being thrown out but also prevents exhaust gases from entering the vehicle. NOTICE To prevent damage to the back door dampers, do not apply any force, paint or let any other foreign matter When closing the back door, use the...
Page 110: Hood
’02 4Runner_U (L/O 0108) Hood LOCKING UNLOCKING WITH Driver’s side POWER BACK DOOR LOCK SWITCH Push the switch. To lock: Push the switch on the front side. To unlock: Push the switch on the rear side. Operating the power door lock switch si- multaneously locks or unlocks the back door.
Page 111: Theft Deterrent System
’02 4Runner_U (L/O 0108) Theft deterrent system 2. In front of the vehicle, pull up the 3. Hold the hood open by inserting the To deter the vehicle theft, the system auxiliary catch lever and lift support rod into the slot. is designed to give an alarm if any of hood.
Page 112 ’02 4Runner_U (L/O 0108) The system will automatically be set after Reactivating the alarm 30 seconds. When the system is set, the Once set, the system automatically resets indicator light will start flashing again. the alarm after the alarm stops. 4.
Page 113: Fuel Tank Cap
The indicator lamp goes off after driving injury by spraying out of the filler several times. If the indicator lamp does neck if the cap is suddenly re- not go off, contact your Toyota dealer as moved. soon as possible. 2002 MY 4RUNNER_U (OM35787U)
Page 114: Electric Moon Roof
Key off operation— case of an accident. If all the doors are closed, it works for 43 Use only a genuine Toyota fuel tank seconds even after the ignition switch is cap for replacement. It is designed turned off. It stops working when any of to regulate fuel tank pressure.
Page 115 ’02 4Runner_U (L/O 0108) Tilting operation— Always make sure nobody places To tilt up: Push the switch on the “TILT his/her head, hands and other parts UP” side. of the body in the roof opening be- To lower: Push the switch on the “TILT fore you close the roof.
Page 116 ’02 4Runner_U (L/O 0108) 2002 MY 4RUNNER_U (OM35787U)
Page 117 ’02 4Runner_U (L/O 0108) SECTION – OPERATION OF INSTRUMENTS AND CONTROLS Seats, Seat belts, Steering wheel and Mirrors Seats ............Front seats .
Page 118: Seats
’02 4Runner_U (L/O 0108) Front seats— Seats —Seat adjustment precautions While the vehicle is being driven, all ve- Adjust the driver’s seat so that the foot While adjusting the seat, do not put hicle occupants should have the seatback pedals, steering wheel instrument...
Page 119 ’02 4Runner_U (L/O 0108) —Adjusting front seats (manual seat) 1. SEAT POSITION ADJUSTING LEVER 3. SEAT CUSHION ANGLE ADJUSTING KNOB Pull the lever up. Then slide the seat to the desired position with slight body Turn the knob either way. pressure and release the lever.
Page 120 ’02 4Runner_U (L/O 0108) —Adjusting front seats (power seat) 1. SEAT POSITION AND SEAT CUSHION CAUTION ANGLE ADJUSTING SWITCH Move the control switch in the desired To reduce the risk of sliding under direction. the lap belt during a collision, avoid Releasing the switch will stop the seat at reclining the seatback any more than that position.
Page 121: Fold-Down Rear Seats
’02 4Runner_U (L/O 0108) Fold–down rear seats BEFORE FOLD–DOWN REAR SEAT 1. Swing the bottom cushion up by 2. Store the head restraints in the head pulling the lock release strap, and restraint retaining holes in the bot- Stow the rear seat belt and buckles as remove the head restraint.
Page 122: Flattening Seatbacks
’02 4Runner_U (L/O 0108) Flattening seatbacks (manual seat) CAUTION When returning seats to their original position, observe the following pre- cautions in order to prevent personal injury in a collision or sudden stop: Make sure the seatback is securely locked by pushing forward and rear- ward on the top of the seatback.
Page 123: Seat Heaters
’02 4Runner_U (L/O 0108) Seat heaters CAUTION Do not allow passengers to ride on the flattened seat while driving; use the seat in the normal position. After putting back the seat, pushing the seat and seatback for- ward and rearward to make sure it is secured in place.
Page 124: Head Restraints
’02 4Runner_U (L/O 0108) Head restraints For your safety and comfort, adjust the Persons who have delicate skin head restraint before driving. Persons who are exhausted To raise: Pull it up. To lower: Push it down while pressing the Persons who have taken alcohol or lock release button.
Page 125: Seat Belts
’02 4Runner_U (L/O 0108) Seat belts— —Seat belt precautions Toyota strongly urges that the driver and Do not allow the child to stand up or CAUTION passengers in the vehicle be properly re- kneel on either rear or front seats. An...
Page 126 It also may normally, immediately contact your lock if you lean forward too quickly. A Toyota dealer. Do not use the seat until the seat belt is fixed. It cannot slow, easy motion will allow the belt to extend, and you can move around freely.
Page 127 ’02 4Runner_U (L/O 0108) CAUTION Take up Always make sure the shoulder belt slack is positioned across the center of your shoulder. The belt should be Too high kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause serious injuries in a collision.
Page 128 ’02 4Runner_U (L/O 0108) —Rear center seat belt Lengthen CAUTION Both high–positioned lap belts and loose–fitting belts could cause seri- ous injuries due to sliding under the lap belt during a collision or other unintended result. Keep the lap belt positioned as low on hips as possible.
Page 129 If the seat belt does not function Keep as low on hips as possible normally, immediately contact your Toyota dealer. Do not use the seat until the seat belt is fixed. It cannot Remove excess length of the belt and To release the belt, press the buckle–re-...
Page 130 Failure to fol- charge. low these instructions could result in Please contact your local Toyota dealer so less effectiveness of the seat belt re- that the dealer can order the proper re- straint system in case of vehicle acci- quired length for the extender.
Page 131 If the seat belt does not function normally, immediately contact your Toyota dealer. Do not use the seat To connect the extender to the seat The driver and front passenger’s seat until the seat belt is fixed. It cannot...
Page 132 ’02 4Runner_U (L/O 0108) When the front seat belt pretensioners are activated, an operating noise may be heard and a small amount of smoke–like gas may be released. This gas is harm- less and does not indicate that a fire is occurring.
Page 133 Repairs on or near the front seat belt retractor assemblies This front seat belt pretensioner system In the following cases, contact your Toyota z Modification of the suspension sys- has a service reminder indicator to inform dealer as soon as possible: the driver of operating problems.
Page 134: Srs Driver Airbag And Front Passenger Airbag
’02 4Runner_U (L/O 0108) SRS driver airbag and front passenger airbag Your vehicle is equipped with a crash sensing and diagnostic module, which will record the use of the seat belt restraint system by the driver and the front pas- senger when the SRS airbags are inflated.
Page 135 ’02 4Runner_U (L/O 0108) However, this threshold velocity will be considerably higher if the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact, or if it is involved in an underride collision (e.g.
Page 136 ’02 4Runner_U (L/O 0108) In a severe frontal impact, the sensors detect deceleration and the system trig- gers the airbag inflators. Then a chemical reaction in the inflators quickly fills the Hitting a curb, Falling into or airbags with non–toxic gas to help restrain edge of pavement jumping over a the forward motion of the occupants.
Page 137 Toyota tems. The front seat occupants can be killed or seriously injured by the strongly recommends that all in- inflating airbags if they do not wear...
Page 138 ’02 4Runner_U (L/O 0108) Move seat fully back Never install a rear–facing child re- A forward–facing child restraint sys- Do not sit on the edge of the seat straint system on the front passen- should allowed or lean over the dashboard when ger seat because the force of the installed on front passenger...
Page 139 Failure to follow these instructions can result in death or serious injury. Consult your Toyota dealer about any Do not allow a child to stand up, Do not put objects or your pets on repairs and modifications.
Page 140 Contact your winches or any other equipment to illustration) was involved in an accident Toyota dealer as soon as possible to ser- the front end that was not severe enough to cause vice the vehicle. z Repairs made on or near the front the SRS airbags to inflate.
Page 141: Child Restraint
’02 4Runner_U (L/O 0108) Child restraint— —Child restraint precautions Toyota strongly urges the use of child CAUTION Unless it is unavoidable, do not restraint systems children small install a forward–facing child re- enough to use them. For effective protection in automo- straint system on the front seat.
Page 142 ’02 4Runner_U (L/O 0108) —Child restraint system A child restraint system for a small When not using the child restraint system, CAUTION child or baby must itself be properly keep it secured with the seat belt or place restrained on the seat with either the it somewhere other than the passenger Never install a rear–facing child re- lap belt or the lap portion of the lap/...
Page 143 ’02 4Runner_U (L/O 0108) —Types of child restraint system Child restraint systems are classified into the following 3 types depending on the child’s age and size. (A) Infant seat (B) Convertible seat (C) Booster seat Install the child restraint system following the instructions provided by its manufac- turer.
Page 144 ’02 4Runner_U (L/O 0108) —Installation with 2–point type seat belt (A) INFANT SEAT INSTALLATION 1. Run the center lap belt through or CAUTION around the infant seat following the An infant seat is used in rear–facing instructions provided by its manufactur- position only.
Page 145 Contact your Toyota dealer immediately. Do not 2. While pressing the infant seat firmly use the child restraint seat until the CAUTION against the seat cushion and seatback, seat belt is fixed. tighten the lap belt by pulling its free Push and pull the child restraint sys- end to hold the infant seat securely.
Page 146 ’02 4Runner_U (L/O 0108) 3. To remove the infant seat, press the (B) CONVERTIBLE SEAT INSTALLATION CAUTION buckle–release button. A convertible seat is used in forward– facing or rear–facing position depend- Do not install a rear–facing child ing on the child’s age and size. When restraint system on the rear seat if installing, follow...
Page 147 Contact your Toyota dealer immediately. Do not 1. Run the center lap belt through or 2. While pressing convertible seat use the child restraint seat until the around the convertible seat following firmly against the seat cushion and seat belt is fixed.
Page 148 ’02 4Runner_U (L/O 0108) —Installation with 3–point type seat belt 3. To remove the convertible seat, press (A) INFANT SEAT INSTALLATION CAUTION the buckle–release button. An infant seat is used in rear–facing position only. Push and pull the child restraint sys- tem in different directions to be sure it is secure.
Page 149 ’02 4Runner_U (L/O 0108) 1. Run the lap and shoulder belt through CAUTION Do not install a rear–facing child or around the infant seat following the restraint system on the rear seat if instructions provided by its manufactur- Never install a rear–facing child re- it interferes with the lock mecha- er and insert the tab into the buckle straint system on the front passen-...
Page 150 2. Fully extend the shoulder belt to put it 3. While pressing the infant seat firmly Toyota dealer immediately. Do not in the lock mode. When the belt is against the seat cushion and seatback, use the child restraint seat until the...
Page 151 ’02 4Runner_U (L/O 0108) 4. To remove the infant seat, press the (B) CONVERTIBLE SEAT INSTALLATION CAUTION buckle–release button and allow the A convertible seat is used in forward– belt to retract completely. The belt will facing and rear–facing position depend- Push and pull the child restraint sys- move freely again and be ready to ing on the child’s age and size.
Page 152 ’02 4Runner_U (L/O 0108) Move seat fully back CAUTION A forward–facing child restraint sys- Do not install a rear–facing child should allowed restraint system on the rear seat if Never install a rear–facing child re- installed on front passenger it interferes with the lock mecha- straint system on the front passen- seat only when it is unavoidable.
Page 153 1. Run the lap and shoulder belt through 2. Fully extend the shoulder belt to put it Toyota dealer immediately. Do not or around the convertible seat following in the lock mode. When the belt is use the child restraint seat until the...
Page 154 ’02 4Runner_U (L/O 0108) 3. While pressing convertible seat 4. To remove the convertible seat, press CAUTION firmly against the seat cushion and the buckle–release button and allow the seatback, let the shoulder belt retract belt to retract completely. The belt will Push and pull the child restraint sys- as far as it will go to hold the convert- move freely again and be ready to...
Page 155 ’02 4Runner_U (L/O 0108) Move seat fully back (C) BOOSTER SEAT INSTALLATION 1. Sit the child on a booster seat. Run CAUTION the lap and shoulder belt through or A booster seat is used in forward–fac- around the booster seat and child fol- ing position only.
Page 156 Always make sure the shoulder belt child from injury. Contact your Toyota dealer immediately. Do not is positioned across the center of child’s shoulder. The belt should be use the child restraint seat until the kept away from child’s neck, but seat belt is fixed.
Page 157 ’02 4Runner_U (L/O 0108) —Using a top strap Follow the procedure below for a child Anchor brackets restraint system that requires the use of a top strap. Symbol Outside position Use the anchor bracket on the back of the rear seatback to attach the top strap. Anchor brackets are installed for each rear seating position.
Page 158 ’02 4Runner_U (L/O 0108) TO USE OUTSIDE ANCHOR BRACKET: 2. Open the anchor bracket cover with 3. Fix the child restraint system with the symbol mark shown in the il- the seat belt. 1. Remove the head restraint. lustration. Latch hook onto the anchor bracket and tighten the top strap.
Page 159 ’02 4Runner_U (L/O 0108) 4. Replace the head restraint. Be sure to close all covers when the an- TO USE CENTER ANCHOR BRACKET: chor bracket is not in use. Fix the child restraint system with the seat belt. Run the top strap through between both seatbacks.
Page 160 ’02 4Runner_U (L/O 0108) Tilt steering wheel CAUTION CAUTION When you use the center anchor Do not adjust the steering wheel bracket, make sure the top strap while the vehicle is moving. It may runs through between both seat- cause the driver to mishandle the backs and tighten it.
Page 161 ’02 4Runner_U (L/O 0108) —Power Rear view mirror Outside rear view mirrors— control CAUTION Do not adjust the mirror while the vehicle is moving. It may cause the driver to mishandle the vehicle and an accident may occur resulting in death or serious injuries.
Page 162 ’02 4Runner_U (L/O 0108) Anti–glare inside rear view —Folding rear view mirrors mirror To adjust a mirror, use the switches. 1. Master switch—To select the mirror to be adjusted Place the switch at “L” (left) or “R” (right). 2. Control switch—To move mir-...
Page 163 ’02 4Runner_U (L/O 0108) Sun visors— CAUTION CAUTION Do not adjust the mirror while the Do not extend the plate at the end of vehicle is moving. It may cause the the sun visor when the visor is in the driver to mishandle the vehicle and position 1.
Page 164 ’02 4Runner_U (L/O 0108) —Vanity mirrors To use the vanity mirrors, swing down the sun visor and open the cover. Type B only—The vanity light comes on when you open the cover. Type A Type B 2002 MY 4RUNNER_U (OM35787U)
Page 165 ’02 4Runner_U (L/O 0108) SECTION – OPERATION OF INSTRUMENTS AND CONTROLS Lights, Wipers and Defogger Headlights and turn signals ........Emergency flashers .
Page 166: Headlights And Turn Signals
’02 4Runner_U (L/O 0108) Headlights and turn signals NOTICE To prevent the battery from being dis- charged, do not leave the lights on for a long period when the engine is not running. Daytime running light system (on some models) The headlights turn on when the parking brake is released with the engine started, even with the light switch in the “OFF”...
Page 167: Emergency Flashers
’02 4Runner_U (L/O 0108) Emergency flashers NOTICE To prevent the battery from being dis- charged, do not leave the switch on longer than necessary when the en- gine is not running. TURN SIGNALS To turn on the emergency flashers, push the switch. To signal a turn, push the headlight/ turn signal lever up or down to position All the turn signal lights will flash.
Page 168: Instrument Panel Light Control
’02 4Runner_U (L/O 0108) Instrument panel light control Front fog lights Interior light To adjust the brightness of the instru- To turn on the front fog lights, twist To turn on the interior light, slide the ment panel lights, turn the knob. the band of the headlight and turn sig- switch.
Page 169: Personal Lights
’02 4Runner_U (L/O 0108) Personal lights Personal lights Luggage compartment light (with moon roof) (without moon roof) To turn on the personal light, push the To turn on the personal light, push the To turn on the luggage compartment switch on 1 side. To turn the light off, switch.
Page 170: Ignition Switch Light
’02 4Runner_U (L/O 0108) Windshield wipers and washer Ignition switch light (intermittent type) To squirt washer fluid, pull the lever toward you. If the windshield wipers are off, they will operate a couple of times after the washer squirts. For instructions on adding washer fluid, see “Adding washer fluid”...
Page 171: Back Window Wiper And Washer
’02 4Runner_U (L/O 0108) Windshield wipers and washer Back window wiper and (mist type) washer In freezing weather, warm the windshield with the defroster before using the washer. This will help prevent the washer fluid from freezing on your windshield, which can block your vision.
Page 172: Back Window And Outside Rear View Mirror Defoggers
’02 4Runner_U (L/O 0108) Back window and outside rear view mirror defoggers Make sure you turn the defoggers off NOTICE when the surfaces are clear. Leaving the defoggers on for a long time could cause Do not operate the back window wip- the battery to discharge, especially during er if the back window is dry.
Page 173 ’02 4Runner_U (L/O 0108) SECTION – OPERATION OF INSTRUMENTS AND CONTROLS Gauges, Meters and Service reminder indicators Fuel gauge ..........Engine coolant temperature gauge .
Page 174: Fuel Gauge
The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Toyota dealer as soon as possible. The gauge works when the ignition The gauge indicates the engine coolant...
Page 175: Tachometer
’02 4Runner_U (L/O 0108) Tachometer Odometer and two trip meters Idling for a long period with the air conditioning on in stop–and–go traffic. Towing a trailer. NOTICE z Do not remove the thermostat in the engine cooling system as this may cause the engine to overheat.
Page 176: Service Reminder Indicators And Warning Buzzers
A to trip meter B, then back to the odometer each If parking brake is Take vehicle to time you push. Toyota dealer. To reset the trip meter A to zero, dis- off, stop play the meter A reading, then push immediately and...
Page 177 It is dangerous to continue driving “N”. a safe place and contact your Toyota normally when the brake fluid level is dealer. low. The light does not turn off even after the parking brake is released Stop and check.
Page 178 Any of the following conditions may oc- the buzzer sounds for about 4 to 8 se- blower, radio, etc., and drive directly to cur, but do not indicate the malfunc- conds. the nearest Toyota dealer or repair shop. tion: (c) Front Passenger’s Seat...
Page 179 Call a If the lamp remains on, or the lamp Toyota dealer or qualified repair shop for comes on while driving, first check the Contact your Toyota dealer as soon as assistance.
Page 180 Contact your system work properly, the light turns off vice the vehicle. Toyota dealer to check your vehicle’s after a few seconds. Thereafter, if either...
Page 181 (two– In the following cases, contact your Toyota the parts monitored by the warning light wheel drive models) or active traction con- dealer: system.
Page 182 “P”. With the engine id- ling, wait until the light goes off. If the light goes off, you may start the vehicle again. If the light does not go off, call a Toyota dealer or qualified repair shop for assistance. 2002 MY 4RUNNER_U (OM35787U)
Page 183 If any service reminder indicator or warn- ing buzzer does not function as described above, either the bulb is burned out or the circuit in need of repair. Have it checked by your Toyota dealer as soon as possible. 2002 MY 4RUNNER_U (OM35787U)
Page 184 ’02 4Runner_U (L/O 0108) 2002 MY 4RUNNER_U (OM35787U)
Page 185 ’02 4Runner_U (L/O 0108) SECTION – OPERATION OF INSTRUMENTS AND CONTROLS Ignition switch, Transmission and Parking brake Ignition switch with steering lock ......Automatic transmission .
Page 186: Ignition Switch With Steering Lock
’02 4Runner_U (L/O 0108) Ignition switch with steering lock You must shift the selector lever into the “P” position before turning the key from “ACC” to the “LOCK” position. Vehicles with engine immobiliser system— Once you remove the key, the engine im- mobiliser system is automatically set.
Page 187: Automatic Transmission
’02 4Runner_U (L/O 0108) Automatic transmission "Two–wheel drive models Your automatic transmission has a shift lock system to minimize the possibility of Lock release button Selector lever incorrect operation. This means you can To prevent misshifting only shift out of “P” position when the brake pedal is depressed (with the ignition switch in “ON”...
Page 188 ’02 4Runner_U (L/O 0108) Vehicles with cruise control—When the 3. Release the parking brake and brake cruise control is being used, even if you pedal. Depress the accelerator pedal downshift the transmission by pushing and slowly for smooth starting. releasing overdrive switch, engine...
Page 189 ’02 4Runner_U (L/O 0108) Vehicles with cruise control—When the (g) Parking NOTICE cruise control is being used, even if you 1. Bring the vehicle to a complete stop. downshift the transmission by pushing and z Be careful not to over–rev the en- 2.
Page 190 ’02 4Runner_U (L/O 0108) (i) Rocking your vehicle if stuck NOTICE CAUTION CAUTION If you rock your vehicle, observe the Always keep your foot on the brake following precautions to prevent dam- pedal while stopped with the engine your vehicle becomes stuck age to the transmission and other running.
Page 191 To set the “PWR” mode, push in the driving pattern selector button. The “PWR” mode indicator light comes on. For ordinary driving, Toyota recommends using the “NORM” mode to improve fuel economy. 2002 MY 4RUNNER_U (OM35787U)
Page 192 ’02 4Runner_U (L/O 0108) "Four–wheel drive models Your automatic transmission has a shift Selector lever lock system to minimize the possibility of Lock release button incorrect operation. This means you can To prevent misshifting only shift out of “P” position when the brake pedal is depressed (with the ignition switch in “ON”...
Page 193 ’02 4Runner_U (L/O 0108) Vehicles with cruise control—When the Always turn the overdrive on for better cruise control is being used, even if you fuel economy and quieter driving. If the downshift the transmission by pushing and engine coolant temperature is low or when releasing overdrive switch,...
Page 194 ’02 4Runner_U (L/O 0108) Shift into the “2” position. The trans- Vehicles with cruise control—When the (e) Using the “2” and “L”, positions mission will downshift to second gear cruise control is being used, even if you The “2” and “L” positions are used for when the vehicle speed drops down to downshift the transmission by pushing and strong engine braking as described pre-...
Page 195 ’02 4Runner_U (L/O 0108) (g) Parking z Do not continue hill climbing or CAUTION 1. Bring the vehicle to a complete stop. hard towing for a long time in the “2” or “L” position. This may cause 2. Pull the parking brake lever fully to Always keep your foot on the brake severe automatic transmission dam- securely apply the parking brake.
Page 196 The age to the transmission and other “PWR” mode indicator light comes on. parts. For ordinary driving, Toyota recommends z Do not depress the accelerator ped- using the “NORM” mode to improve fuel al while shifting the selector lever economy.
Page 197: Four-Wheel Drive System
’02 4Runner_U (L/O 0108) Four–wheel drive system— (a) Front drive control (k) If you cannot shift the selector le- Use the front drive control lever, “4WD” ver out of “P” position button center differential lock switch to select the transfer and center If you cannot shift the selector lever from differential modes.
Page 198 If the indicator unlock mode. flashes even if doing so, contact your Toyota dealer as soon as possible. There may be a trouble in the center differential lock system. See “(c) Shifting procedure” for further in- structions.
Page 199 ’02 4Runner_U (L/O 0108) (b) A.D.D. (automatic disconnecting differential) Advice for driving on slippery roads in (As for the automatic transmission lever The A.D.D. can be engaged or disen- “L4” (low speed position) mode positions, see “Automatic transmission” in gaged by the shifting operations des- this section.) cribed in “(c) Shifting procedure”.
Page 200 ’02 4Runner_U (L/O 0108) (c) Shifting procedure SHIFTING BETWEEN “H” (2WD) MODE SHIFTING BETWEEN “H” (4WD, To shift from “H” (4WD, LOCKED) to AND “H” (4WD) MODE UNLOCKED) AND “H” (4WD, LOCKED) “H” (4WD, UNLOCKED), left out the cen- ter differential lock switch. To shift from “H”...
Page 201: Traction Control System
’02 4Runner_U (L/O 0108) Traction control system (two–wheel drive models) The traction control system automatical- NOTICE NOTICE ly helps prevent the spinning of rear wheels when the vehicle is started or Do not drive on a dry paved surface Do not drive on a dry paved surface accelerated on slippery road surfaces.
Page 202 “ON”. If the indicator light does not come on when the ignition is turned on, contact your Toyota dealer. NORMAL DRIVING MODE TRACTION CONTROL OFF MODE Leave the system on during ordinary...
Page 203 “ON”, and will go off after no problem to continue your driving.) The In the following cases, contact your Toyota about a few seconds. system will be automatically restored after dealer: a short time and the “VSC TRAC”...
Page 204: Active Traction Control System
’02 4Runner_U (L/O 0108) Active traction control system (four–wheel drive models) In the following cases, contact your Toyota The active traction control system auto- dealer: matically helps prevent the spinning of 4 wheels (four–wheel drive mode) or The warning light does not come on...
Page 205 Toyota dealer. traction control system can no longer op- erate. In this case, immediately stop your vehicle at a safe place. If the system continues to operate, the buzzer sound changes from intermittent to continuous.
Page 206: Vehicle Skid Control System
In the following cases, contact your Toyota operating, you must always drive the vehicle from skidding when corner- dealer: carefully and attentively to avoid...
Page 207 “ON”. It will come on again when you push the center differential lock switch to turn off the system. In the following cases, contact your Toyota dealer: The indicator light does not come on when the ignition key is turned “ON”.
Page 208: Parking Brake
However, as con- ventional braking operates when applied, there is no problem to continue your driv- ing. In the following cases, contact your Toyota dealer: The warning light does not come on after the ignition key is turned to “ON”.
Page 209: Cruise Control
’02 4Runner_U (L/O 0108) Cruise control The cruise control allows you to cruise CAUTION the vehicle at a desired speed over 40 km/h (25 mph) even with your foot off Before driving, be sure the parking the accelerator pedal. brake is fully released and the park- Your cruising speed can be maintained up ing brake reminder light is off.
Page 210 If the speed is not with the cruise control on, engine braking your vehicle checked by your Toyota deal- satisfactory, tap the lever up for a faster will not be applied because the cruise er at the earliest opportunity.
Page 211 The indicator light does not come on. The indicator light flashes again. The indicator light goes out after it comes on. If this is the case, contact your Toyota dealer and have your vehicle inspected. 2002 MY 4RUNNER_U (OM35787U)
Page 212 ’02 4Runner_U (L/O 0108) 2002 MY 4RUNNER_U (OM35787U)
Page 213 ’02 4Runner_U (L/O 0108) SECTION – OPERATION OF INSTRUMENTS AND CONTROLS Car audio system Reference ..........Using your audio system .
Page 214 ’02 4Runner_U (L/O 0108) Reference Type 1: AM·FM ETR radio/cassette player Type 2–1: AM·FM ETR radio/cassette play- Type 2–2: AM·FM ETR radio/cassette play- er/compact disc player (with compact disc er/compact disc player (with compact disc (with compact disc auto changer control- auto changer controller) auto changer controller) ler)
Page 215 Using your audio system— —Some basics This section describes some of the basic TONE AND BALANCE features on Toyota audio systems. Some For details about your system’s tone and information may not pertain to your sys- balance controls, see the description of tem.
Page 216 To prevent damage to the antenna, player may be damaged. make sure it is removed before driv- ing your Toyota through an automatic YOUR COMPACT DISC PLAYER car wash. When you insert a disc, gently push it in with the label side up.
Page 217 ’02 4Runner_U (L/O 0108) —Controls and features "Type 1 Details of specific buttons, controls, and features are described in the alphabetical listing that follows. 2002 MY 4RUNNER_U (OM35787U)
Page 218 ’02 4Runner_U (L/O 0108) 1 2 3 4 5 6 (Preset buttons) Compact Disc Player (Program) These buttons are used to preset and If you want to fast forward or reverse Push “ ” to select the other side of a tune in radio stations.
Page 219 If the malfunction is not rectified, take sound balance between the front and rear, track and disc number currently being your vehicle to your Toyota dealer. and the right and left speakers. played. Each time you push “CD”, the DISC For front/rear adjustment, push “CTRL /...
Page 220 ’02 4Runner_U (L/O 0108) ∗ : Dolby noise reduction manufactured under license from To randomly play the tracks on a disc: Compact Disc Player Dolby Laboratories Licensing Corporation. “DOLBY” and the Quickly push and release “RAND”. “RAND” There are two repeat features—you can double D symbol are trademarks of Dolby Laboratories will appear on the display.
Page 221 ’02 4Runner_U (L/O 0108) SCAN Scanning the tracks on a disc: Cassette Player Quickly push and release “SCAN”. “SCAN” Radio By using this button, you can skip up or will appear on the display and the player down to a different track. You can either scan all the frequencies on will scan all the tracks on the disc you a band or scan only the preset stations...
Page 222 TUNE (Tuning) ceived. “ST” appears on the display. If the Your Toyota has an electronic tuning radio signal becomes weak, the radio reduces (ETR). Turn the knob clockwise to step up the amount of channel separation to prev- the frequency.
Page 223 ’02 4Runner_U (L/O 0108) "Type 2–1 Details of specific buttons, controls, and features are described in the alphabetical listing that follows. 2002 MY 4RUNNER_U (OM35787U)
Page 224 ’02 4Runner_U (L/O 0108) "Type 2–2 Details of specific buttons, controls, and features are described in the alphabetical listing that follows. 2002 MY 4RUNNER_U (OM35787U)
Page 225 ’02 4Runner_U (L/O 0108) 1 2 3 4 5 6 (Preset buttons) If a tape side rewinds completely, the cas- (Program) sette player will stop and then play that These buttons are used to preset and Push “ ” to select the other side of a same side.
Page 226 ’02 4Runner_U (L/O 0108) CONTROL / MODE (Audio control and For front/rear adjustment, push “CONTROL The display will show the range from “MID mode adjustment) / MODE” repeatedly until “FAd” appears –5” to “MID 5”. on the display. Then turn the knob to Type 2–1—...
Page 227 If the malfunction is not rectified, take by about 10 dB. For best sound reproduc- track and disc number currently being your vehicle to your Toyota dealer. tion, play your tapes with this button on played. Each time you push “CD”, the...
Page 228 ’02 4Runner_U (L/O 0108) PWR·VOL (Power and Volume) Compact disc auto changer only— Compact Disc Player Push “PWR·VOL” to turn the audio system To randomly play all the tracks in the There are two repeat features—You can on and off. Turn “PWR·VOL” to adjust the magazine: either replay a disc track or a whole com- volume.
Page 229 ’02 4Runner_U (L/O 0108) SCAN Compact disc player SEEK (Seeking) Radio There are two scan features—you can ei- Radio ther scan the tracks on a specific disc or You can either scan all the frequencies on In the seek mode, the radio finds and scan the first tracks of all the discs in the a band or scan only the preset stations plays the next station up or down the...
Page 230 TUNE (Tuning) ST (Stereo reception) display Your Toyota has an electronic tuning radio Your radio automatically changes to stereo (ETR). Turn the knob clockwise to step up reception when a stereo broadcast is re- the frequency.
Page 231 ’02 4Runner_U (L/O 0108) "Type 3 Details of specific buttons, controls, and features are described in the alphabetical listing that follows. 2002 MY 4RUNNER_U (OM35787U)
Page 232 ’02 4Runner_U (L/O 0108) 1 2 3 4 5 6 (Preset buttons) Compact disc (Program) These buttons are used to preset and To eject one compact disc only: Push and Push “ ” to select the other side of a tune in radio stations.
Page 233 ’02 4Runner_U (L/O 0108) If a tape side rewinds completely, the cas- CONTROL / MODE (Audio control and For front/rear adjustment, push “CONTROL sette player will stop and then play that mode adjustment) / MODE” repeatedly until “FAd” appears same side. If a tape fast forwards com- on the display.
Page 234 If the malfunction is not rectified, take will close after 15 seconds. If the audio system is off, you can turn your vehicle to your Toyota dealer. on the radio by pushing “FM1·2”. Also, DISC push “FM1·2” to switch from cassette or compact disc operation to radio operation.
Page 235 ’02 4Runner_U (L/O 0108) Loading multiple compact discs— To randomly play the tracks on a disc: RPT (Repeat) Quickly push and release “ ”. “ ” To load multiple compact discs, push and Cassette Player will appear on the display. The disc you hold (until you hear a beep when the au- Push “...
Page 236 ’02 4Runner_U (L/O 0108) Repeating a disc: To scan all the frequencies: Scanning the first track of all the discs in Quickly push and release “SCAN”. If you the magazine: Push and hold “ ” until you hear a hear a beep, you held the button too long, Push “SCAN”...
Page 237 TUNE (Tuning) 3” appears on the display. ent the weak signal from creating noise. Your Toyota has an electronic tuning radio If you have pushed the track button more If the signal becomes extremely weak, the (ETR). Turn the knob clockwise to step up...
Page 238 ’02 4Runner_U (L/O 0108) Car audio system operating hints Here are some common reception prob- NOTICE lems that probably do not indicate a prob- Fading—AM broadcasts are reflected by lem with your radio: To ensure the correct audio system the upper atmosphere—especially at night. operation: These reflected signals can interfere with z Be careful not to spill beverages...
Page 239 ’02 4Runner_U (L/O 0108) Use high–quality cassettes. If moisture gets into your compact disc player, you may not hear any sound Low–quality cassette tapes can cause even though your compact disc player many problems, including poor sound, appears to be working. Remove the inconsistent playing speed,...
Page 240 ’02 4Runner_U (L/O 0108) Your compact disc player cannot play CAUTION special shaped or low–quality compact discs such as those shown here. Do Compact disc players use an invisible not use them as the player could be laser beam which could cause hazard- damaged.
Page 241 ’02 4Runner_U (L/O 0108) SECTION – OPERATION OF INSTRUMENTS AND CONTROLS Air conditioning system Manual air conditioning system Controls ..........Air flow selector settings .
Page 242: Manual Air Conditioning System
’02 4Runner_U (L/O 0108) Manual air conditioning system— —Controls 1. “A/C” button (on some models) 2. Air intake selector 3. Air flow selector 4. Temperature selector 5. Fan speed selector 2002 MY 4RUNNER_U (OM35787U)
Page 243 ’02 4Runner_U (L/O 0108) Fan speed selector 4. Floor/Windshield—Air flows mainly from the floor vents and windshield Move the knob to adjust the fan speed—to vents. the right to increase, to the left to de- crease. Turning the air flow selector to the floor/windshield position turns on the Temperature selector defogging function with the purpose of...
Page 244 It is recommended to close the lower shuts off. If this happens, take your ve- vent. For details about it, see “Instru- hicle to a Toyota dealer for service. ment panel vents” in this section. For details about air flow selector settings, see the illustration after “A/C”...
Page 245: Air Flow Selector Settings
’02 4Runner_U (L/O 0108) —Air flow selector settings —Operating tips To cool off your Toyota after it has been parked in the hot sun, drive with the windows open for a few minutes. This vents the hot air, allowing the air conditioning to cool the interior more quickly.
Page 246 ’02 4Runner_U (L/O 0108) If following another vehicle on a dusty Heating Air conditioning road, or driving in windy and dusty For best results, set controls to: For best results, set controls to: conditions, it is recommended that the air intake selector be temporarily set to Fan speed—Any setting except “OFF”...
Page 247 ’02 4Runner_U (L/O 0108) Defogging On humid days, do not blow cold air Vehicles with “A/C” button— on the windshield—the difference be- The inside of the windshield Press the “A/C” button for dehumidified tween the outside and inside tempera- heating. This setting clears the front view For best results, set controls to: tures could make the fogging worse.
Page 248: Automatic Air Conditioning System
’02 4Runner_U (L/O 0108) Automatic air conditioning system— —Controls 1. Air intake selector 2. Windshield air flow button 3. “A/C” button 4. Fan speed selector 5. “OFF” button 6. “MODE” button (air flow selector) 7. Temperature selector 8. “AUTO” button 2002 MY 4RUNNER_U (OM35787U)
Page 249 ’02 4Runner_U (L/O 0108) “AUTO” button Temperature selector For automatic operation of the air condi- Turn the knob to adjust the temperatu- tioning, press the “AUTO” button. An indi- re—to the right to warm, to the left to cator light will illuminate to show that the cool.
Page 250 ’02 4Runner_U (L/O 0108) 4. Floor/Windshield—Air flows mainly To turn off the air conditioning alone, from the floor vents and windshield press the “A/C” button once again. vents. When the “A/C” button is not pressed in, It is recommended that you close the pressing another air flow button turns off lower vent.
Page 251 If this happens, take your ve- hicle to a Toyota dealer for service. Air intake selector Press the button to select the air source. 1. Recirculate—Recirculates the air inside the vehicle.
Page 252: Air Flow Selector Settings
’02 4Runner_U (L/O 0108) —Air flow selector settings —Operating tips To cool off your Toyota after it has been parked in the hot sun, drive with the windows open for a few minutes. This vents the hot air, allowing the air conditioning to cool the interior more quickly.
Page 253 ’02 4Runner_U (L/O 0108) If following another vehicle on a dusty Heating Air conditioning road, or driving in windy and dusty For best results, set controls to: For best results, set controls to: conditions, it is recommended that the —For automatic operation —For automatic operation air intake selector be temporarily set to RECIRCULATE, which will close off the...
Page 254 ’02 4Runner_U (L/O 0108) Ventilation Defogging and defrosting Pressing the windshield air flow button turns on the defroster–linked air condition- For best results, set controls to: —The inside of the windshield ing. At this time, the “A/C” button indicator —For automatic operation For best results, set controls to: comes on regardless of whether or not the For automatic operation—...
Page 255: Instrument Panel Vents
’02 4Runner_U (L/O 0108) Instrument panel vents —The outside of the windshield To turn off the air conditioning alone, press the “A/C” button once again. For best results, set controls to: When the “A/C” button is not pressed in, For automatic operation— pressing another air flow button turns off Temperature—Towards WARM the air conditioning.
Page 256 ’02 4Runner_U (L/O 0108) If air flow control is not satisfactory, check the instrument panel vents. The instrument panel vents may be opened or closed as shown. For removing frost or fog, it is recom- mended to close the lower vent when you push the windshield air flow button or us- “Floor”, “Floor/Windshield”...
Page 257: Rear Heater System
’02 4Runner_U (L/O 0108) Rear heater system 1. Fan Speed Selector 2. Temperature Selector Fan speed selector Push the switch toward “HI” or “LO”. Temperature selector Place lever anywhere except “OFF” position. 2002 MY 4RUNNER_U (OM35787U)
Page 258 ’02 4Runner_U (L/O 0108) 2002 MY 4RUNNER_U (OM35787U)
Page 259 ’02 4Runner_U (L/O 0108) SECTION – OPERATION OF INSTRUMENTS AND CONTROLS Other equipment Clock ............Thermometer .
Page 260: Clock
’02 4Runner_U (L/O 0108) Clock Thermometer If the electrical power source has been disconnected from the clock, the time dis- play will automatically be set to 1:00 (one o’clock). When instrument panel lights turned on, the brightness of the time in- dication will be reduced.
Page 261: Cigarette Lighter And Ashtrays
If the engine is not running, the key must be in the “ACC” position. Do not hold the cigarette lighter pressed Use a Toyota genuine cigarette lighter or equivalent for replacement. ASHTRAYS To use the ashtray, pull it out.
Page 262: Power Outlets
’02 4Runner_U (L/O 0108) Power outlets Glove box The power outlets are designed for power supply for car accessories. The key must be in the “ACC” or “ON” position for the power outlet to be used. NOTICE z To prevent the fuse from being blown, do not use the electricity over the total vehicle capacity of...
Page 263: Garage Door Opener
’02 4Runner_U (L/O 0108) Garage door opener (a) Programming the HomeLink 3. Simultaneously press hold hand–held garage transmitter button The HomeLink in your vehicle has 3 along with the selected HomeLink but- buttons and you can store one program ton. for each button.
Page 264 Refer the owner’s tons you want to program. lighting, contact your authorized Toyota guide supplied by the garage door dealer for assistance. 2. Place your hand–held gate/device opener manufacturer for the location of transmitter 25 to 75 mm (1 to 3 in.)
Page 265 ’02 4Runner_U (L/O 0108) (c) Erasing entire HomeLink CAUTION This device complies with Part 15 of the memory (all three programs) FCC Rules and with RSS–210 of the To erase all previously programmed codes When programming the HomeLink Industry Canada. Operation is subject to at one time, press and hold down the 2 Universal Transceiver, you may be the following two conditions: (1) This...
Page 266: Garage Door Opener Box
’02 4Runner_U (L/O 0108) Garage door opener box The box is designed to store a garage Remove the paper strip covering the adhe- Please note if transmitter has wire clip for door opener transmitter. sive on back side of loop and adhere loop sun visor, this clip must be removed prior to back side of the transmitter near cen- to adhesion of the Velcro.
Page 267 ’02 4Runner_U (L/O 0108) Place the transmitter with Velcro loop fac- Remove spacers from the box. Place the When the garage door opener transmitter ing inside of box into the box. Make sure largest spacer on the pin that would be is properly installed, you can operate the the transmitter button is located above below transmitter button when the cover is...
Page 268: Auxiliary Box
’02 4Runner_U (L/O 0108) Auxiliary box (type A) Put the remained spacers back in its place. CAUTION To reduce the chance of injury in case of an accident or a sudden stop, always keep the garage door opener box closed while driving. If the spacer does not contact your ga- To use the box, open the lid.
Page 269: Warning Reflector Holder
’02 4Runner_U (L/O 0108) Auxiliary box (type B) Warning reflector holder NOTICE During hot weather, the interior of the vehicle becomes very hot. Do not leave anything flammable or deform- able such as a lighter, glasses, etc. inside. To open the box, turn the two knobs. The auxiliary box is equipped with two straps to hold the warning reflector.
Page 270: Rear Console Box
’02 4Runner_U (L/O 0108) Rear console box UPPER TRAY To access the upper tray, raise the con- sole box lid without touching the lock release lever. CONSOLE BOX To access the rear console box, pull up the lock release lever while raising the rear console box lid.
Page 271: Card Holder
’02 4Runner_U (L/O 0108) Card holder Front cup holders There is a card holder on the inside of the rear console box lid. To use the card holder, raise the console box lid without touching the lock release lever. The cup holders are designed for hold- ing cups or drink–cans securely.
Page 272: Rear Cup Holders
’02 4Runner_U (L/O 0108) Rear cup holders The cup holders are designed for hold- ing cups or drink–cans securely. USING REAR CUP HOLDERS To use the rear cup holders, pull out the rear cup holder lid. You can select from 3 arm positions. CAUTION Do not place anything else other than cups or drink–cans in the cup...
Page 273: Tie-Down Hooks
’02 4Runner_U (L/O 0108) Tie–down hooks Luggage cover To secure your luggage, use the tie– To use the luggage cover, pull it out of To remove the luggage cover, retract down hooks as shown above. the retractor and hook it to the an- and lift it up.
Page 274: Floor Mat
’02 4Runner_U (L/O 0108) Floor mat Use a floor mat of the correct size. CAUTION If the floor carpet and floor mat have a hole, then it is designed for use with a Make sure the floor mat is properly locking clip.
Page 275 ’02 4Runner_U (L/O 0108) SECTION – DO–IT–YOURSELF MAINTENANCE Introduction Engine compartment overview ....... Fuse locations .
Page 276 ’02 4Runner_U (L/O 0108) Engine compartment overview 1. Windshield and back window washer fluid tank 2. Power steering fluid reservoir 3. Engine oil level dipstick 4. Engine oil filler cap 5. Brake fluid reservoir 6. Fuse block 7. Battery 8. Engine coolant reservoir 9.
Page 277 Read separate Toyota Warranty statement for details and suggestions. This section gives instructions only for those items that are relatively easy for an owner to perform. As explained in Section 6, there are still a number of items that must be done by a qualified technician with special tools.
Page 278 ’02 4Runner_U (L/O 0108) NOTICE CAUTION Used engine oil contains potentially harmful contaminants which z Remember that battery and ignition When the engine is running, keep cause skin disorders such as in- cables carry high currents or volt- flammation or skin cancer, so care hands, clothing, tools away...
Page 279 Parts (if level is low): filter removed, or excessive engine nance. Remember all Toyota parts are de- wear could result. Also backfiring SAE J1703 or FMVSS No.116 DOT 3 signed in metric sizes, so your tools must...
Page 280 ’02 4Runner_U (L/O 0108) CHECKING AND REPLACING FUSES Parts (if replacement is necessary): Fuse with same amperage rating as original Tools: Conventional wrench (for instrument lower panel nut) ADDING WASHER FLUID Parts: Water Washer fluid containing antifreeze (for winter use) Tools: Funnel REPLACING LIGHT BULBS...
Page 281 ’02 4Runner_U (L/O 0108) SECTION – DO–IT–YOURSELF MAINTENANCE Engine and Chassis Checking the engine oil level ....... . . Checking the engine coolant level .
Page 282: Checking The Engine Oil Level
’02 4Runner_U (L/O 0108) Checking the engine oil level If the oil level is below or only slightly ENGINE OIL SELECTION above the low level, add engine oil of Use API grade SJ “Energy–Conserving”, the same type as already in the engine. Low level Full level SL “Energy–Conserving”...
Page 283: Checking The Engine Coolant Level
Visually check the the container. radiator, hoses, radiator cap and drain cock and water pump. If you can find no leak, have your Toyota dealer test the cap pressure and check for leaks in the cooling system. ILSAC certification mark...
Page 284: Checking The Radiator And Condenser
Toyota, to provide protection down to dirty or you are not sure of their condi- about –35_C (–31_F). When it is extreme- tion, take your vehicle to a Toyota dealer. To prevent burning yourself, do not ly cold, to provide protection down to remove the radiator cap when the en- about –50_C (–58_F), 60% solution is rec-...
Page 285: Checking Brake Fluid
’02 4Runner_U (L/O 0108) Checking brake fluid Refilling brake fluid: NOTICE 1. Turn the ignition switch off. If you spill the fluid, be sure to wash 2. Depress the brake pedal more than 40 it off with water to prevent it from times.
Page 286: Checking Power Steering Fluid
’02 4Runner_U (L/O 0108) Checking power steering fluid Checking tire pressure c. Reinstall the reservoir cap. If cold add d. Remove the reservoir cap again and If cold O.K. look at the fluid level. If the fluid is cold, the level should be in the “COLD” range on the dipstick.
Page 287: Checking And Replacing Tires
Toyota dealer. Never exceed the vehicle capacity The tires on your Toyota have built–in weight. The passenger and luggage tread wear indicators to help you know weight should be located so that the when the tires need replacement.
Page 288 This also applies to the spare tire and tires stored for future use. Toyota recommends all four tires, or at REPLACING YOUR TIRES least both front or rear tires be re- placed as a set.
Page 289: Rotating Tires
SNOW TIRE SELECTION If you need snow tires, select the same size, construction and load capacity as the original tires on your Toyota. Do not use tires other than those men- tioned above. Do not install studded tires without first checking local regulations for To equalize the wear and help extend possible restrictions.
Page 290: Replacing Wheels
Correct replacement wheels are available When driving with chains installed, before installing chains. at your Toyota dealer. be sure to drive carefully. Slow CHAIN INSTALLATION down before entering the curves to A wheel of a different size or type may Install the chains on the rear tires as avoid losing control of the vehicle.
Page 291: Aluminum Wheel Precautions
1600 km (1000 miles). for a tubeless tire. When using tire chains, be careful not to damage the aluminum wheels. Use only the Toyota wheel nuts and wrench designed for your aluminum wheels. When balancing your wheels, use only Toyota balance weights or equivalent and a plastic or rubber hammer.
Page 292 ’02 4Runner_U (L/O 0108) 2002 MY 4RUNNER_U (OM35787U)
Page 293 ’02 4Runner_U (L/O 0108) SECTION – DO–IT–YOURSELF MAINTENANCE Electrical components Checking battery condition ........Battery recharging precautions .
Page 294 ’02 4Runner_U (L/O 0108) Checking battery condition— —Checking battery exterior —Precautions Terminals Ground CAUTION If electrolyte gets on your skin, cable thoroughly wash the contact area. If BATTERY PRECAUTIONS you feel pain or burning, get medi- cal attention immediately. The battery produces flammable and explosive hydrogen gas.
Page 295 Charging at a quicker rate is Green Blue Good dangerous. battery plode, causing personal injuries. Charging necessary. Have battery Dark White checked by your Toyota dealer. Clear or Have battery light checked by your yellow Toyota dealer. 2002 MY 4RUNNER_U (OM35787U)
Page 296 ’02 4Runner_U (L/O 0108) Checking and replacing fuses NOTICE Type A Never recharge the battery while the engine is running. Also, be sure all accessories are turned off. Good Blown Type B the headlights or other electrical components do not work, check the fuses.
Page 297 Add washer out tool is shown in the illustration. tem. Have your Toyota dealer correct it as fluid. soon as possible. If you are not sure whether the fuse has You may use plain water as washer fluid.
Page 298 Rear turn signal — Toyota dealer. lights Halogen bulbs have pressurized gas inside and require special handling. Stop/tail lights — 21/5 They burst shatter Back–up lights...
Page 299 Make sure the rubber cover fits snugly on bulb with the cutouts of the mounting the connector and the headlight body. hole. Aiming is not necessary after replacing the bulb. When aiming adjustment is nec- essary, contact your Toyota dealer. 2002 MY 4RUNNER_U (OM35787U)
Page 300 ’02 4Runner_U (L/O 0108) —Front fog lights 1. Loosen the cover retaining screws 2. Lift up the soft casing and discon- 3. Release the bulb retaining spring and remove the cover. nect the cords. and remove the bulb. Install a new bulb and the bulb retaining spring.
Page 301 4. Connect the cord and put the soft 5. Install the cover with the retaining casing into the cover. screws. Aiming is not necessary after replacing the bulb. When aiming adjustment is nec- essary, contact your Toyota dealer. 2002 MY 4RUNNER_U (OM35787U)
Page 302 ’02 4Runner_U (L/O 0108) —Rear turn signal, stop/tail, —Front turn signal lights and back–up lights Use a Phillips–head screwdriver. 2002 MY 4RUNNER_U (OM35787U)
Page 303 ’02 4Runner_U (L/O 0108) —License plate lights —High mounted stoplight a: Back–up light Use a Phillips–head screwdriver. Use a Phillips–head screwdriver. b: Rear turn signal lights c: Stop/tail light 2002 MY 4RUNNER_U (OM35787U)
Page 304 ’02 4Runner_U (L/O 0108) 2002 MY 4RUNNER_U (OM35787U)
Page 305 ’02 4Runner_U (L/O 0108) U−6 Quick index D If a service reminder indicator or warning buzzer comes on ..D If your vehicle will not start ........D If your engine stalls while driving .
Page 306 The Toyota authorized Repair Manual is packed with literally everything you need to know to perform your own maintenance in virtually every area of your new vehicle.
Page 307 Toyota dealer. Areas covered include such things as spark plug re Pub. Name: 2002 4Runner Repair Manual placement, valve clearance adjustment and engine oil Pub. No.: RM887U1 (Maintenance, Preparation, and filter replacement.
Page 308 ’02 4Runner_U (L/O 0108) WE REALLY CARE ABOUT YOU PLEASE BUCKLE UP Toyota has made a special effort to encourage use of seat belts. Toyota belts are: Comfortable Easy to use Convenient We encourage you to use your belts every time you drive.

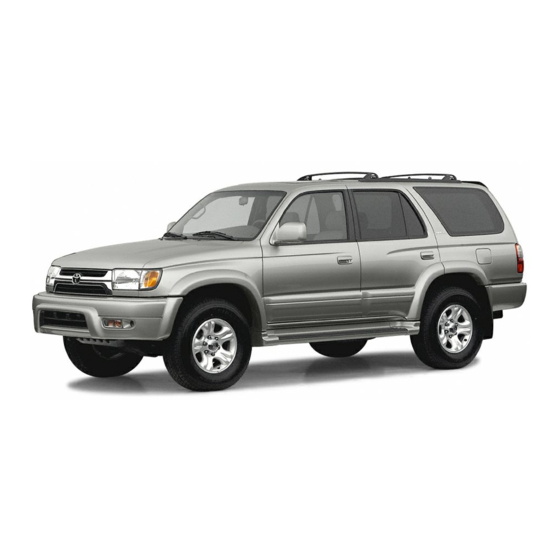

Toyota 2002 4runner Owner's Manual

2 Section

3 Section

4 Section

8 Section

1 2 Section -

1 3 Section -

1 4 Section -

1 5 Section -

1 6 Section -

1 8 Section -

1 9 Section -

Quick Links

Chapters

Related Manuals for Toyota 2002 4runner

Summary of Contents for Toyota 2002 4runner

Table of Contents
