Quadra-Fire 43M-ACC-MBK Installation Manual

Quadra-Fire 43M-ACC-MBK Installation Manual

4300 wood appliance series
Hide thumbs Also See for 43M-ACC-MBK:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

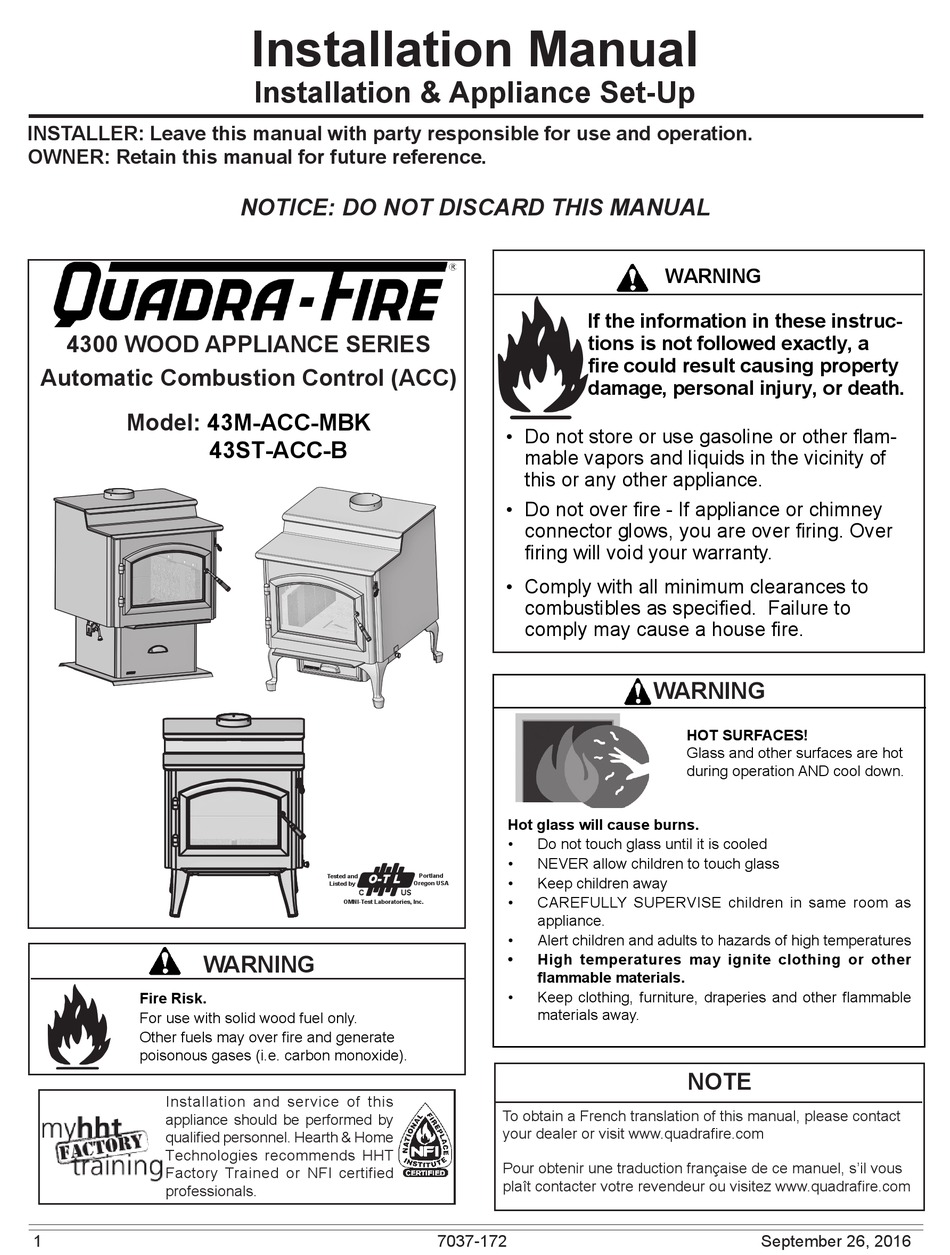

INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
4300 WOOD APPLIANCE SERIES
Automatic Combustion Control (ACC)
Model:
43M-ACC-MBK
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may over fire and generate
poisonous gases (i.e. carbon monoxide).
Installation and service of this
appliance should be performed by
quali ed personnel. Hearth & Home
Technologies recommends HHT
Factory Trained or NFI certified
professionals.
1
Installation Manual
Installation & Appliance Set-Up
NOTICE: DO NOT DISCARD THIS MANUAL
43ST-ACC-B
Tested and
O-T L
Listed by
C
OMNI-Test Laboratories, Inc.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not over fire - If appliance or chimney
connector glows, you are over firing. Over
firing will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause a house fire.
Hot glass will cause burns.
•
Do not touch glass until it is cooled
•
NEVER allow children to touch glass
Portland
•
Keep children away
Oregon USA
US
•
CAREFULLY SUPERVISE children in same room as
appliance.
•
Alert children and adults to hazards of high temperatures
•
High temperatures may ignite clothing or other
flammable materials.
•
Keep clothing, furniture, draperies and other flammable
materials away.
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafire.com
Pour obtenir une traduction française de ce manuel, s'il vous
plaît contacter votre revendeur ou visitez www.quadrafire.com
7037-172
WARNING
If the information in these instruc-
tions is not followed exactly, a
fire could result causing property
damage, personal injury, or death.
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
NOTE
September 26, 2016

Advertisement

Table of Contents
loading

Related Manuals for Quadra-Fire 43M-ACC-MBK

Summary of Contents for Quadra-Fire 43M-ACC-MBK

  • Page 1 Automatic Combustion Control (ACC) damage, personal injury, or death. Model: 43M-ACC-MBK • Do not store or use gasoline or other flam- 43ST-ACC-B mable vapors and liquids in the vicinity of this or any other appliance.

  • Page 2: Table Of Contents

    H. Proper Draft ............17 NOTE: Hearth & Home Technologies, manufacturer of this appliance, reserves the right to alter its products, their specifications and/or price without notice. Quadra-Fire is a registered trademark of Hearth & Home Technologies. 7037-172 September 26, 2016...

  • Page 3: Important Safety Information

    Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. For assistance or additional information, consult a qualified The Quadra-Fire 4300 Series Wood Appliance meets the installer, service agency or your dealer. U.S. Environmental Protection Agency’s crib wood emission limits for wood appliances sold after May 15, 2015.

  • Page 4: Getting Started

    4300 Wood Appliance Series ACC Install Guide Getting Started A. Design and Installation Considerations B. Fire Safety Consideration must be given to: To provide reasonable fire safety, the following should be given serious consideration: • Safety • Convenience Install at least one smoke detector on each floor of •...

  • Page 5: Negative Pressure

    4300 Wood Appliance Series ACC C. Negative Pressure WARNING WARNING Fire Risk. Hearth & Home Technologies disclaims any Asphyxiation Risk. responsibility for, and the warranty will be voided by, the following actions: • Negative pressure can cause spillage of com- bustion fumes, soot and carbon monoxide.

  • Page 6: Install Checklist

    4300 Wood Appliance Series ACC F. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual. Customer: __________________________________________________________________________ Date Installed: __________________________________________________________________________ Lot/Address: __________________________________________________________________________...

  • Page 7: Dimensions And Clearances

    4300 Wood Appliance Series ACC Dimensions and Clearances A. Appliance Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 4300 Millennium Pedestal Model 26-1/4 in. (667mm) 9-15/16 in. 13-1/8 in. (237mm) (333mm) 10-15/16 in. (271mm) 15-1/16 in. 14-15/16 in. (383mm) (373mm) 19-1/16 in.
  • Page 8 4300 Wood Appliance Series ACC A. Appliance Dimensions (continued) NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 4300 Step Top Q Anne Leg Model 4300 Step Top Pedestal Model 26 (660mm) 9-3/4 (248mm) (330mm) 14-15/16 19-1/16 (379mm) (484mm) 34-3/4 10-15/16 (883mm)
  • Page 9 4300 Wood Appliance Series ACC A. Appliance Dimensions (continued) NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 4300 Step Top Traditional Leg Model 33-15/16 (862) 23-7/16 (595) Figure 9.1 - Front View 25-15/16 (659) Figure 9.2 - Side View September 26, 2016 7037-172...

  • Page 10: Hearth Protection Requirements

    4300 Wood Appliance Series ACC In Canada, similar floor protection must be provided 18 inches B. Hearth Protection Requirements (457mm) in front and 8 inches (203mm) from the sides and rear of the appliance. Figure 10.2 *See exception. FLOOR PROTECTION: Floor protector must be non-combus- tible material, extending beneath appliance and to the front, *EXCEPTION: Non-combustible floor protector must extend sides and rear as indicated.
  • Page 11 4300 Wood Appliance Series ACC Step-Top Uni-Body Model Corner hearth pad dimensions with single wall and double wall pipe 49 in. 1245mm 29-1/2 in. 41in. 750mm minimum Fuel loading door 8 in. 16 in. from glass 31-5/8 in. minimum Figure 11.1 Figure 11.3 1245mm Must extend 2 in.

  • Page 12: Clearances To Combustibles

    4300 Wood Appliance Series ACC C. Clearances to Combustibles MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS in inches (Millimeters) Note: A, C, and F Dimensions are to the center of the flue collar 4300 WOOD APPLIANCE INSTALLATION: FULL VERTICAL OR HORIZONTAL WITH VERTICAL RISE SINGLE WALL PIPE MILLENNIUM 18-1/2 (470)

  • Page 13: Chimney Systems

    4300 Wood Appliance Series ACC Chimney Systems A. Locating Your Appliance & Chimney • Consider the appliance location in order to avoid floor and ceiling attic joists and rafters. Location of the appliance and chimney will affect perfor- mance. As shown in Figure 13.1 the chimney should: •...

  • Page 14: Chimney Termination Requirements

    4300 Wood Appliance Series ACC B. Chimney Termination Requirements NOTICE: Locating the appliance in a basement or in a location of considerable air movement can cause intermittent Follow manufacturer’s instructions for clearance, securing smoke spillage from appliance. Do not locate appliance near flashing and terminating the chimney.

  • Page 15: Chimney Height/Rise And Run

    4300 Wood Appliance Series ACC D. Chimney Height / Rise and Run Chimney: This product was designed for and tested on a 6 inch (152mm) The chimney can be new or existing, masonry or prefabricated chimney, 14 to 16 feet (420-480cm) high, (includes appliance and must meet the following minimum requirements and as height) measured from the base of the appliance.
  • Page 16 4300 Wood Appliance Series ACC Listed Termination Cap ney connector. • Top of wall opening is a minimum of 13-1/2 inches Storm Collar (343mm) from ceiling or 4-1/2 inches (114mm) below minimum clearance specified by chimney connector Flashing manufacturer. NFPA 211 minimum vertical clearance of 18 inches (457mm) from chimney connector and ceiling or minimum recommended by chimney connector manu- facturer.

  • Page 17: Installing Chimney Components

    Maintain minimum clearances to combustibles Figure 17.2 H. Proper Draft To be sure that your Quadra-Fire insert burns properly, the chimney draft (static pressure) should be approximately -0.10 inches water column (W.C.) during a high burn and -0.04 inches W.C. during a low burn, measured 6 inches (152mm) above the top of the insert after one hour of operation at each burn setting.

  • Page 18: Appliance Set-Up

    4300 Wood Appliance Series ACC Appliance Set-Up Pedestal Assembly and Ash Removal WARNING System (ARS) Installation Do NOT operate before fully assembling components. NOTE: The Ash Removal System, must be Burning your stove without a pedestal or leg kit installed first before installing the pedestal. attached: Included in Kit: ARS door assembly, ARS latch assembly, •...
  • Page 19 4300 Wood Appliance Series ACC Ash Removal Spacer Figure 19.4 Figure 19.1 Door latch with the ash door rod locked Ped Kit and Ash Removal System (Cont’d) in place Installing Ped Kit Knob 1. Follow Begin installing the ARS System instructions provided on page 18.

  • Page 20: Access Cover Handle

    4300 Wood Appliance Series ACC B. Access Cover Handle Ash Removel Insert Access Cover Handle handle into slot of ARS Cover to Drawer remove ARS Cover for cleaning ash out of firebox (Figure 20.4). Adapters Figure 20.1 Figure 20.4 ARS Access Leg Kit and Ash Removal System (ARS) Cover Installation...
  • Page 21 4300 Wood Appliance Series ACC 6. Remove knock out from bottom of firebox by using a hammer (Figure 18.2 on page 18). 7. Install ash door assembly by sliding the rod at an angle Align top holes into the slot on the left side (Figure 18.3 on page 18). and repeat;...

  • Page 22: Traditional Leg Installation

    4300 Wood Appliance Series ACC Traditional Leg Installation Caution! Included with Appliance: Leg brackets; inside firebox. CHECK BAFFLE BOARDS & CERAMIC BLANKET! • Verify that the baffle boards and ceramic blanket are Tools Required: 9/16 socket wrench and phillips screw driver. in their proper locations.

  • Page 23: Door Handle Assembly

    4300 Wood Appliance Series ACC E. Door Handle Assembly WARNING INSTALL NEW DOOR HANDLE Asphyxiation Risk. Install washer on door handle shaft and slide door handle Length of outside air supply duct shall NOT exceed the through door. length of the vertical height of the exhaust flue. Install second washer(s) as shown and install key in groove.

  • Page 24: Blower (Optional)

    4300 Wood Appliance Series ACC H. Adjusting The Blower Speed Control G. Blower (Optional) The blower speed control for this unit is adjusted at the factory, and normally does not require further adjustment. Tools Required: #2 Phillips head screwdriver With the appliance plugged in, turn the speed control 1.

  • Page 25: Mobile Home Installation

    4300 Wood Appliance Series ACC Mobile Home Installation You must use a Quadra-Fire Outside Air Kit Part CAUTION OAK-ACC; which is available from you dealer, for installation in a mobile home. THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL AND CEILING/ROOF MUST BE MAINTAINED 1.

  • Page 26: Reference Materials

    4300 Wood Appliance Series ACC Reference Materials A. Service & Maintenance Log Date of Service Performed By Description of Service 7037-172 September 26, 2016...

  • Page 27: Accessory List

    Plug, Trimount, .250” Front tube and Pkg of 24 229-0880/24 Fiber baffle. This tab sits behind the front tube. Logo, Quadra-Fire, Black Pkg of 10 7000-694/10 Screw, Sheet Metal #8 X 1/2 S-Grip Pkg of 40 12460/40 IMPORTANT: THIS IS DATED INFORMATION .

  • Page 28: Contact Information

    Hearth & Home Technologies 1445 North Highway Colville, WA 99114 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafire.com CAUTION DO NOT DISCARD THIS MANUAL...
