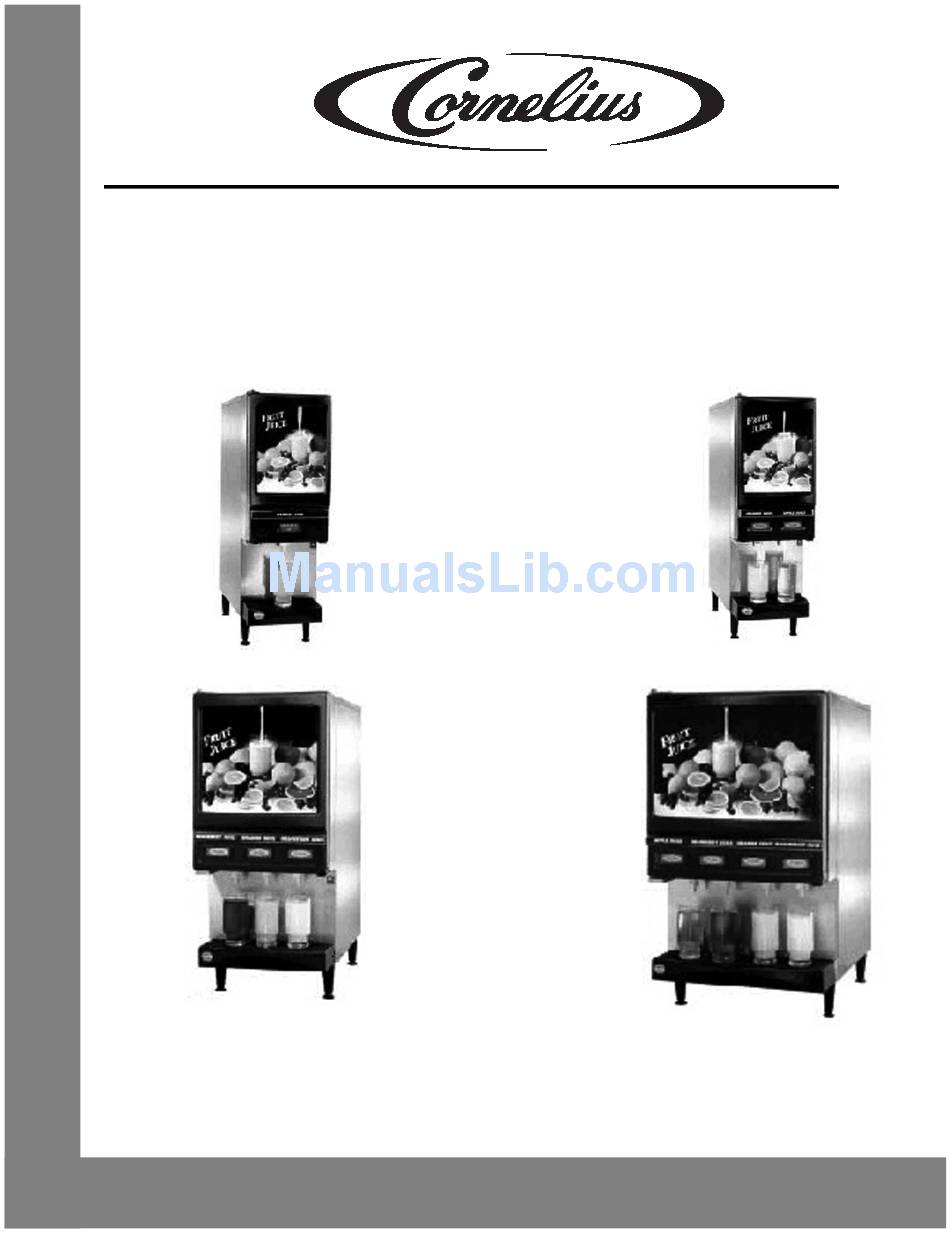

- Page 1 ® QUANTUM SERIES JUICE DISPENSER IPL Manual Release Date: April 25, 2001 Publication Number: 720901120IPL Revision Date: January 23, 2011 Revision: B Visit the IMI Cornelius web site at www.cornelius.com for all your Literature needs.
-
Page 2: Contact Information
The products, technical information, and instructions contained in this manual are subject to change without notice. These instructions are not intended to cover all details or variations of the equipment, nor to provide for every possible contingency in the installation, operation or maintenance of this equipment. This manual assumes that the person(s) working on the equipment have been trained and are skilled in working with electrical, plumbing, pneumatic, and mechanical equipment. - Page 3 Quantum Series Juice Dispensers Illustrated Parts List ENERAL SSEMBLY Figure 1. General Assembly © 2002-2011, IMI Cornelius Inc. - 1 - Publication Number: 720901120IPL...
- Page 4 Quantum Series Juice Dispensers Illustrated Parts List Table 1. General Assembly Item Part No. Name 0720405 Nut 1/4-20 0730202 Washer No. 10 Split Lock 0706903 Screw No. 10-32 X1/2” TH SS 115V 60 07061002 Screw N0. 10 X 5/8” HHWF230 50HZ 07344 Bushing Snap 3000 &...
-
Page 5: Frame Assembly
Quantum Series Juice Dispensers Illustrated Parts List EFRIGERATION AND RAME SSEMBLY Figure 2. Refrigeration and Frame Assembly © 2002-2011, IMI Cornelius Inc. - 3 - Publication Number: 720901120IPL... - Page 6 Quantum Series Juice Dispensers Illustrated Parts List Table 2. Refrigeration and Frame Assembly Item Part No. Name 729011105 Kit Compressor, 120V 60 HZ 729011106 Kit Compressor, 230V 50 HZ 08474 Clip, Spring 07301046 Washer, Flat 0.468 ID 08467 Grommet, Compressor 45163001 Motor Assembly &...
-
Page 7: Upper Cabinet
Quantum Series Juice Dispensers Illustrated Parts List PPER ABINET SSEMBLY Figure 3. Upper Cabinet Assembly © 2002-2011, IMI Cornelius Inc. - 5 - Publication Number: 720901120IPL... - Page 8 Quantum Series Juice Dispensers Illustrated Parts List Table 3. Upper Cabinet Assembly Item Part No. Name 45051 Stud, Latch No. 10-32 45119 Gasket Liner (1000 & 2000 Series) 45662 Gasket Liner (3000 Series) 45419 Gasket Liner (4000 Series) 45141 Wrap, Front (1000 & 2000 Series) 45657 Wrap, Front (3000 Series) 45441...
- Page 9 Quantum Series Juice Dispensers Illustrated Parts List LATFORM SSEMBLY Figure 4. Platform Assembly © 2002-2011, IMI Cornelius Inc. - 7 - Publication Number: 720901120IPL...
- Page 10 Quantum Series Juice Dispensers Illustrated Parts List Table 4. Platform Assembly Item Part No. Name 45115 Platform Assem. (1000 Series) 45215 Platform Assem. (2000 & 4000 Series) 45315 Platform Assem. (3000 Series) 0704101 Screw, Mach. 8-32 TRPH 12 71822081 Washer, Holddown 309852000 Client 45026...
-
Page 11: Valve Block Assembly
ALVE LOCK SSEMBLY Table 5. Valve Block Assemby Item Part No. 45045 Block Valve Assembly 45177 Holder Poppet Seal 0720406 Nut 10-32 71815321 Ring, Retaining 7215323 Armature tab 18070002 Gasket, Rubber Valve Block 18367 Spring Armature 19695001 Guide 31525021 O-Ring 1.114 ID 18071 Seat, Armature 48258005... -
Page 12: Pump And Motor Assembly
Quantum Series Juice Dispensers Illustrated Parts List OTTLE DAPTER SSEMBLY Figure 6. Bottle Adapter Assembly UMP AND OTOR SSEMBLY Figure 7. Pump and Motor Assembly Publication Number: 720901120IPL Table 6. Bottle Adapter Assembly Item Part No. 45026 Adapter Bottle Assembly 45060001 Adapter, Caddy Top 45060002... -
Page 13: Rear Door Assembly
SSEMBLY Figure 8. Rear Door Assembly ONDENSER OTOR SSEMBLY Figure 9. Condenser Motor Assembly © 2002-2011, IMI Cornelius Inc. Quantum Series Juice Dispensers Illustrated Parts List Table 8. Rear Door Assembly Item Part No. 45241 Door Assembly, Back (1000 & 2000 Series) 45390 Door Assembly, Back (3000 Series) - Page 14 Quantum Series Juice Dispensers Illustrated Parts List OVER SSEMBLY Table 10. Door Cover Assembly Item Part No. 45296006 Cover Assembly Merchandiser Push- button (2000 Series) 45296007 Cover Assembly Merchandiser Por- tion Control (2000 Series) 45296009 Cover Assembly Merchandiser Por- tion Control, Illuminated (2000 Series) 45394005 Cover Assembly Merchandiser Push- button (3000 Series)
- Page 15 (DC)A LECTRICAL Table 11. Electrical Box (DC) Assembly Item Part No. 07061001 Screw No. 10 X 3/8” 0733903 Bushing, Snap 07115001 Screw TF 8-32 TRPH 12 0734801 Rivet, Pop 59328001 Fuse, 6.25 Amp 7245059 Fuse holder 45106 Box Electric (1000 & 2000 Series) 45673 Box Electric (3000 Series) 45414...
- Page 16 Quantum Series Juice Dispensers Illustrated Parts List (AC) A LECTRICAL Figure 12. Electrical Box (AC) Assembly Publication Number: 720901120IPL SSEMBLY Table 12. Electrical Box (AC) Assembly Item Part No. 45110 45668 45410 07061001 49273 46308 463081 0735201 07061003 45028 45028001 60600002 - 14 - Name...
-
Page 17: Tank Assembly
OLTAGE EGULATOR Figure 13. Voltage Regulator Assembly SSEMBLY Figure 14.. Tank Assembly © 2002-2011, IMI Cornelius Inc. Quantum Series Juice Dispensers Illustrated Parts List SSEMBLY Table 13. Voltage Regulator Assembly Item Part No. 45138 45238 45338 45162 45675 45056 45012002 45004 45004001 Item... - Page 18 Quantum Series Juice Dispensers Illustrated Parts List Publication Number: 720901120IPL - 16 - © 2002-2011, IMI Cornelius Inc.
- Page 20 IMI Cornelius Inc. www.cornelius.com...
