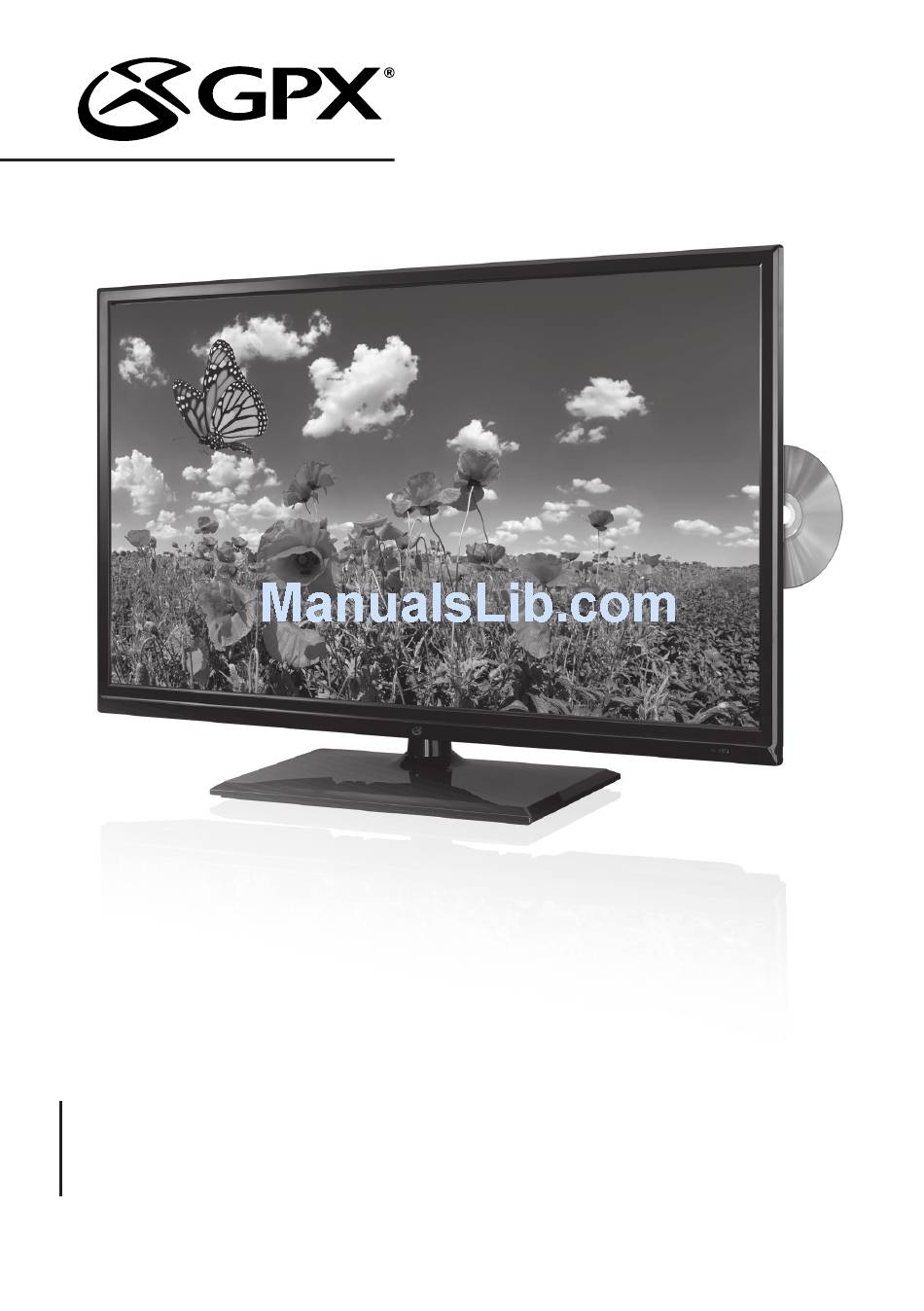

- Page 1 18.5" LED HDTV + DVD User’s Guide for Model TDE1982B v989-01 For the most up-to-date version of this User’s Guide, go to www.gpx.com...
-
Page 2: Warnings And Precautions
Warnings and Precautions CAUTION: To prevent electric shock, match wide blade WARNING: Shock hazard - Do Not Open. of plug to wide slot and fully insert into power outlet. AVERTISSEMENT: Risque de choc électirque - ne pas ouvrir. WARNING: To reduce the risk of fire or electric shock, Use only the main AC/DC power cord and adapter that do not expose this apparatus to rain or moisture. -
Page 3: Important Safety Instructions
Important Safety Instructions Read these Instructions. FCC Warnings Keep these Instructions. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s Heed all Warnings. authority to operate the equipment. Follow all instructions. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Do not use this apparatus near water. -
Page 4: Table Of Contents
Table of Contents Your 18.5" LED HDTV + DVD ................5 Includes Setup . -
Page 5: Your 18.5" Led Hdtv + Dvd
Your 18.5" LED HDTV + DVD Includes • Remote control and 2 AAA batteries • Removable stand • AC/DC Power Supply Setup Some pixels may be visible on the screen, appearing as tiny red, green, blue or black spots. This is normal and is not a defect on the TV, and does not negatively affect the performance or picture quality. -
Page 6: Orientation
Orientation TV Controls TV Side Power Volume ± Channel ± Setup Source Play/Pause Eject DVD/CD Player USB Port SD/MMC/MS Card Reader TV Inputs Stereo Headphone Jack TV Antenna Audio Output Optical Audio Output VIDEO INPUT DC Power Composite Stereo HDMI Component PC Audio VGA/PC... -
Page 7: Remote
Remote Power Mute Press to power the television off or on. Press to mute the volume. Repeat Display Press to repeat a title, chapter, track, Press to view the on-screen display. or entire disc. Aspect Freeze Press to adjust the aspect ratio Press to freeze or unfreeze the between ZOOM, WIDE, CINEMA, and current frame in TV mode. -
Page 8: Connecting Devices To Your Tv
Connecting Devices to Your TV Connecting Cable/TV Antenna You will need: a cable/antenna wire (not included). 1. Connect the Cable/Antenna wire to the input on the television. 2. Press the Source button to switch to TV mode. 3. Press the Setup button to access the setup menu. 4. - Page 9 Connecting Cable/TV Antenna- Rear View Connecting HDMI - Rear View VIDEO INPUT VIDEO INPUT HDMI Connecting Composite Audio/Video- Rear View VIDEO INPUT...
-
Page 10: Connecting Devices To Your Tv
Connecting Devices to Your TV Connecting Component (YPbPr) Video/Audio You will need: component video (green, blue, red) and RCA stereo (red, white) cables (not included). 1. Connect the audio output on your media device to the corresponding color coded audio input on the television with stereo RCA cables. - Page 11 Connecting Component (YPbPr) Cables - Rear View VIDEO INPUT Connecting a Computer- Rear View VIDEO INPUT Connecting Optical Audio - Rear View VIDEO INPUT...
-
Page 12: Dvd And Cd
DVD and CD LABEL SIDE FACING AWAY Playing a DVD or CD 1. Insert a DVD or CD into the slot-load disc drive, with the label side of the facing the rear of the television. Once a DVD or CD is loaded into the television, the TV will automatically switch to DVD mode 2. -
Page 13: Usb And Sd, Mmc, Ms Memory Card
USB and SD, MMC, MS Memory Card Using a USB Thumb Drive 1. Load a USB thumb drive into the USB Port on the side of the television. 2. Press the Source button to switch to USB mode. 3. Use the Arrow and Enter buttons to select and play content from the connected USB thumb drive. -
Page 14: Settings
Settings Parental Controls (V-Chip) 1. Press the Source button to switch to TV mode. 2. Press the Setup button. 3. Press the Arrow () buttons to highlight Lock, and press the Enter button. 4. Enter the default passcode to access the Lock preferences. The default passcode is 0 0 0 0. 5. -
Page 15: Mounting To A Wall
Mounting to a Wall 3.93” (100 mm) 3.93” (100 mm) VIDEO INPUT Specifications • 100mm x 100mm spacing (ht. x wth.) • M4 bolt pattern and thread pitch A 10 to 15mm long bolt is recommended, depending on the thickness of the wall bracket selected. WE STRONGLY RECOMMEND HAVING THIS TELEVISION MOUNTED PROFESSIONALLY. -
Page 16: Company Information
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur: www.gpx.com Green Initiative Our Environmental Commitment to "Protect for Today and Sustain for Tomorrow".
