VACUUM CLEANER (HOUSEHOLD)
Aspirateur (Domestique)
Aspiradora (Domestico)
MC-UL910
Model No.
Operating Instructions
Manuel d'utilisation
Instrucciones de operación
Before operating your vacuum cleaner,
please read these instructions completely.
Avant d'utiliser l'appareil, il est recommandé
de lire attentivement ce manuel.
Antes de usar su aspiradora, lea
completamente estas instrucciones por favor.
Advertisement
Table of Contents
Related Manuals for Panasonic MC-UL910
Summary of Contents for Panasonic MC-UL910
-
Page 1: Operating Instructions

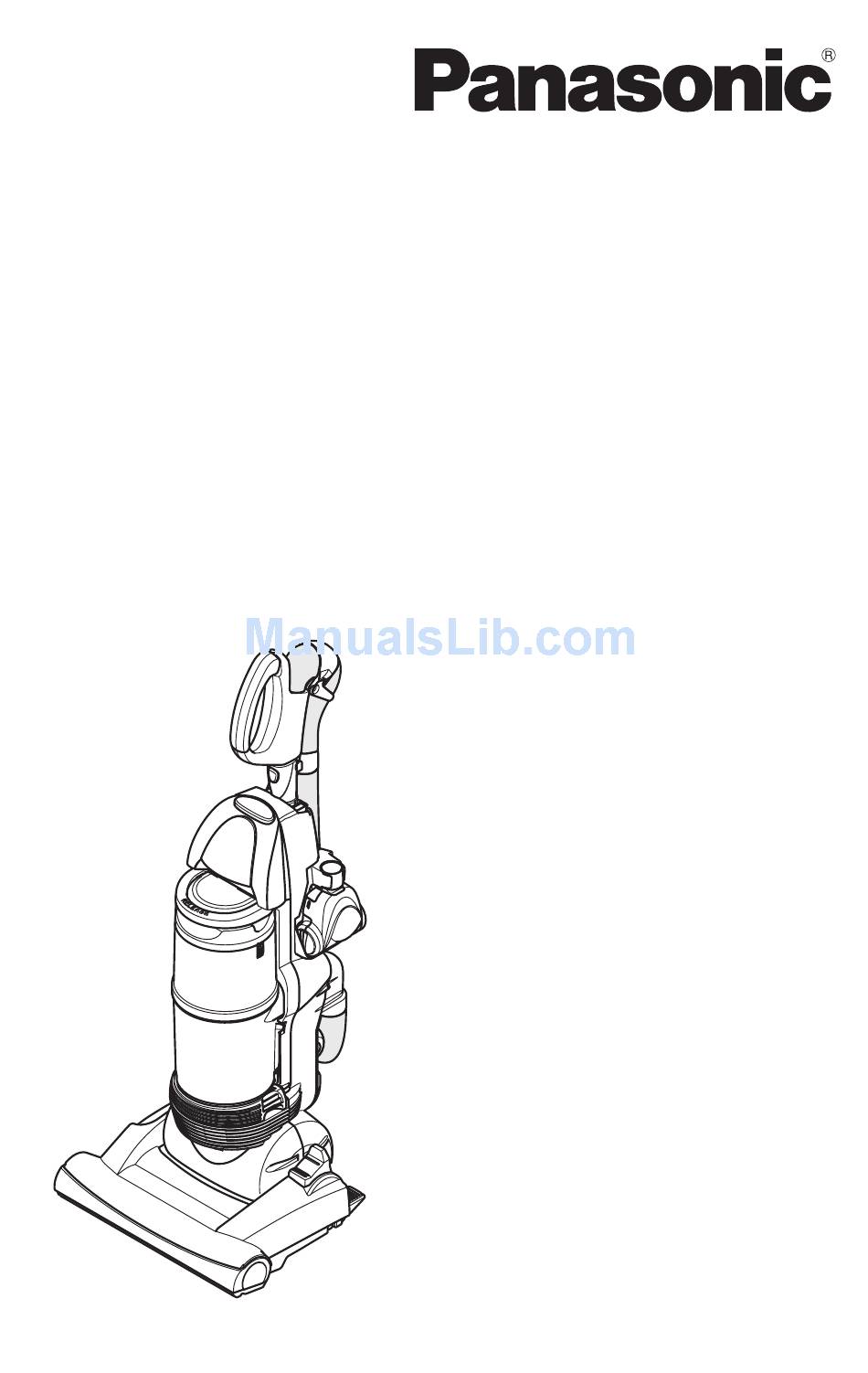

VACUUM CLEANER (HOUSEHOLD) Aspirateur (Domestique) Aspiradora (Domestico) MC-UL910 Model No. Operating Instructions Manuel d’utilisation Instrucciones de operación Before operating your vacuum cleaner, please read these instructions completely. Avant d’utiliser l’appareil, il est recommandé de lire attentivement ce manuel. Antes de usar su aspiradora, lea... -
Page 2: Table Of Contents
WHAT TO DO WHEN SERVICE IS NEEDED .......68 © 2010 Panasonic Home Appliances Company of North America, Division of Panasonic Corporation of North America. All rights reserved. - 2 -... -
Page 3: Consumer Information
Read and understand all instructions. TO OUR VALUED CUSTOMER We are very pleased to welcome you to the Panasonic family of products. Thank you for purchasing this product. Our intent is that you become one of our many satisfied customers. -
Page 4: Important Safety Instructions
WARNING To reduce the risk of fire, electrical shock, injury: 1. Use your vacuum cleaner only as described in this manual. Use only with Panasonic recommended attachments. 2. Disconnect electrical supply before servicing or cleaning out the brush area. Failure to do so could result in the brush unexpectedly starting, causing personal injury from moving parts. -
Page 5: Save These Instructions
THIS VACUUM CLEANER IS INTENDED FOR HOUSEHOLD USE ONLY NOTE: Before you plug in your Panasonic vacuum cleaner, make sure that the voltage indicated on the rating plate located at the back of the vacuum cleaner is the same as your local electrical supply. -
Page 6: Parts Identification
PARTS IDENTIFICATION Nomenclature Identificación de piezas Adjustable Handle Poignée ajustable Extension Hose Mango a justable Tuyau d’extension Manguera expansible Handle Length Crevice Tool Adjustment Suceur plat Ajustement de la Herramienta longueur de la poignée para hendiduras Ajuste del mango Combination Brush Quick Release Brosse combinée Upper Cord Hook... -
Page 7: Feature Chart
QUICKDRAW ON/OFF Switch RELEASE button Interrupteur Bouton de Interruptor de dégagement rapide encendido-apagado QUICKDRAW RELEASE botón de liberación Air Turbine Turbine à air Carrying Handle Turbina de aire Poignée de transport Mango para transportar Dust Bin Exhaust Filter Godet à poussière MC-V194H (inside) Contenedor de Filtre d’évacuation... -
Page 8: Assembly
ASSEMBLY CAUTION Hose Clip Loquet de tuyau Cerrojos de la DO NOT plug in until assembly is manguera complete. Wand Air Turbine Tube Tubo ➢ ➢ Insert wand into vacuum cleaner Turbine à air Turbina de aire until it locks in place. Crevice Tool Suceur plat ➢... -
Page 9: Features
FEATURES Automatic Self Adjusting Nozzle ➢ ➢ The nozzle of your Panasonic Shallow Nozzle vacuum cleaner automatically Pile Carpet Tête adjusts to any carpet pile height. Moquette à d'aspiration poils courts Boquilla Alfombra de Deep Pile pelo corto Carpet Pivot Point Moquette à... -
Page 10: Adjustable Handle Release
Adjustable Handle Release ➢ ➢ Remove the handle by pushing the QUICKDRAW RELEASE button. ➢ ➢ Lift adjustable handle assembly out of the vacuum cleaner. QUICKDRAW ➢ ➢ With the handle free from the RELEASE button Bouton de vacuum cleaner it now can be used dégagement rapide as an extension wand. -
Page 11: Thermal Protector
Thermal Protector ➢ ➢ This vacuum cleaner has a thermal protector which automatically trips to protect the vacuum cleaner from overheating. ➢ ➢ If a clog prevents the normal flow of air to the motor, the thermal protector turns the motor off automatically. This allows the motor to cool in order to prevent possible damage to the vacuum cleaner. -
Page 12: To Operate Vacuum Cleaner
TO OPERATE VACUUM CLEANER CAUTION Moving parts! To reduce the risk of personal injury, DO NOT touch the agitator when vacuum cleaner is on. Contacting the agitator while it is rotating can cut, bruise or cause other injuries. Always unplug from electrical outlet before servicing. -
Page 13: Adjustable Handle
Adjustable Handle ➢ ➢ Press the handle LENGTH ADJUST Adjustable button located on the back of the Handle vacuum cleaner. Poignée ajustable Mango ➢ ➢ Raise or lower the adjustable handle ajustable to the desired operating position. CAUTION Length Adjust Button DO NOT carry the vacuum cleaner by Bouton de... -
Page 14: Body Release
Body Release ➢ ➢ Your vacuum cleaner is equipped with three (3) position body release; • Upright position (locked) • Middle position (normal use) • Low position (under furniture) ➢ ➢ Release the body by pressing down on the body release pedal with your foot and pulling back and down on the handle with your hand. -
Page 15: Using Tools
Using Tools ➢ ➢ Press the handle quick release button on the wand to remove the handle to use tools on the handle. Handle Quick Release Bouton de dégagement rapide de la poign e é Botón de liberación rápida del mango ➢... -
Page 16: Tools
Tools ➢ ➢ The Crevice Tool may be used on the following items: • Furniture • Cushions • Drapes • Stairs • Walls ➢ ➢ The Combination Brush may be used on the following items: Fabric Brush Dusting • Furniture Brosse à... -
Page 17: Routine Care Of Vacuum Cleaner
ROUTINE CARE OF VACUUM CLEANER Performing the following tasks will keep your new Panasonic vacuum cleaner operating at peak performance levels and will ensure these high levels for years to come. Check the BEFORE REQUESTING SERVICE section in this manual for recommendations on performing some of these tasks to help solve various problems that may occur. - Page 18 TO REPLACE DUST BIN ➢ ➢ After the dust bin is empty of debris, firmly close the door. Make sure you hear a “click” sound to indicate that Door Latch Loquet du couvercle the door is fully latched. Seguro de la puerta Door Couvercle Puerta...
-
Page 19: Dust Bin Cleaning
Dust Bin Cleaning To Disassemble Dust Bin: ➢ ➢ Remove dust bin from vacuum cleaner (See EMPTYING DUST BIN) and empty contents. ➢ ➢ Remove pre-filter by pulling downward as shown. See PRE- FILTER CLEANING ➢ ➢ Rotate upper dust bin to unlock, then lift off. - Page 20 To assemble dust bin: ➢ ➢ Reinstall upper portion of dust bin onto air guide so that the locking screws pass through the holes in the upper portion. ➢ ➢ Using alignment marks on the fastener ring and dust bin, place fastener ring onto dust bin and rotate to lock in place.
-
Page 21: Cleaning Pre-Filter
Cleaning Pre-Filter ➢ ➢ Empty dust bin. LOCKED (For Use) VERROUILLÉ (pour l'utilisation) CERRADO (Para Usar) ➢ ➢ Rotate dust bin lid assembly counter- clockwise (as indicated on the lid), and lift off. ➢ ➢ Clean pre-filter by gently tapping over a trash container. -
Page 22: Replacing Hepa Exhaust Filter
Replacing HEPA Exhaust Filter ➢ ➢ The HEPA exhaust filter removes dirt Exhaust from exhaust air. Filter Cover Couvercle du filtre ➢ ➢ Check filter after emptying dust bin. d’évacuation Replace when dirty.* Cubierta de filtro de salida Languette Lengüeta ➢... -
Page 23: Primary Filter Cleaning
Primary Filter Cleaning It is recommended to clean filter with cold water at least every three (3) months. Check the primary filter frequently and clean when dirty. Latches Loquets Lengüetas ➢ ➢ Remove the cover by pressing the latches located on each side. ➢... -
Page 24: Removing And Installing Lower Plate
WARNING Electrical Shock or Personal Injury Hazard Disconnect the electrical supply before servicing or cleaning the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting. Removing and Installing Lower Plate ➢... -
Page 25: Replacing Belt
Courroie Correa ➢ ➢ Remove worn or broken belt. Motor Shaft Arbre du moteur Eje del motor ➢ ➢ Loop new belt (Panasonic Type UB8 only) around motor shaft and brush Carpet/Bare Floor Selector pulley; see illustration for correct Shaft belt routing. -
Page 26: Replacing Headlight Bulb
Replacing Headlight Bulb ➢ ➢ Disconnect power cord from Flat Screwdriver electrical outlet. Lower body to lay Tournevis à lame plate Desarmador plano the vacuum cleaner flat. Headlight Lens Lentille de la lampe ➢ ➢ Gently pry out light lens at slots by Lente de la luz inserting screwdriver into slot, pushing down on the lens and... -
Page 27: Cleaning Exterior And Tools
Cleaning Exterior and Tools ➢ ➢ Unplug cord from wall outlet. ➢ ➢ Clean exterior using a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water and wrung dry. ➢ ➢ DO NOT drip water on the vacuum cleaner and wipe dry after cleaning. ➢... -
Page 28: Removing Clogs
Removing Clogs If the vacuum cleaner does not seem to have adequate suction, first check if the dust bin is full or if a filter is clogged. ➢ ➢ Check the handle and extension wand area. ➢ ➢ Remove handle by pressing handle quick release button. - Page 29 TO REMOVE CLOGS FROM DUST BIN Dust Bin Lid Couvercle du ➢ Press the release button on the side godet à poussière Cubierta de contenador of the dust bin. de polvo Release Button ➢ While pressing the release button Bouton de dégagement rotate the top of the dust bin Botón de liberador...
-
Page 30: Before Requesting Service
Poor job of dirt 1. Full or clogged dust bin. 1. Empty dust bin. pick up 2. Worn agitator. 2. Take to your nearest Panasonic Service Center. 3. Clogged nozzle. 3. Check for clogs. 4. Clogged hose. 4. Check for clogs. -
Page 31: Warranty
Panasonic Vacuum Cleaner Limited Warranty Panasonic Consumer Electronics Company (referred to as "the warrantor") will repair this product, in the event of a defect in materials or workmanship, with new or refurbished parts free of charge, in the U.S.A. or Puerto Rico, for One (1) year from the date of original purchase. - Page 32 Vacuum Cleaner - One (1) year, parts and labour This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold "as is", and which product was delivered to you in new condition in the original packaging.
-
Page 33: What To Do When Service Is Needed
WHAT TO DO WHEN SERVICE IS NEEDED If your Panasonic Vacuum Cleaner needs service, look in the yellow pages of the telephone book under HOME APPLIANCE SERVICE for your nearest Panasonic Services Company (“PASC”) Factory Servicenter, or PASC authorized Servicenter, or call, 1-800-211-PANA (7262) toll free to find a convenient servicenter. DO NOT send the product to the Executive or Regional Sales offices.
