7

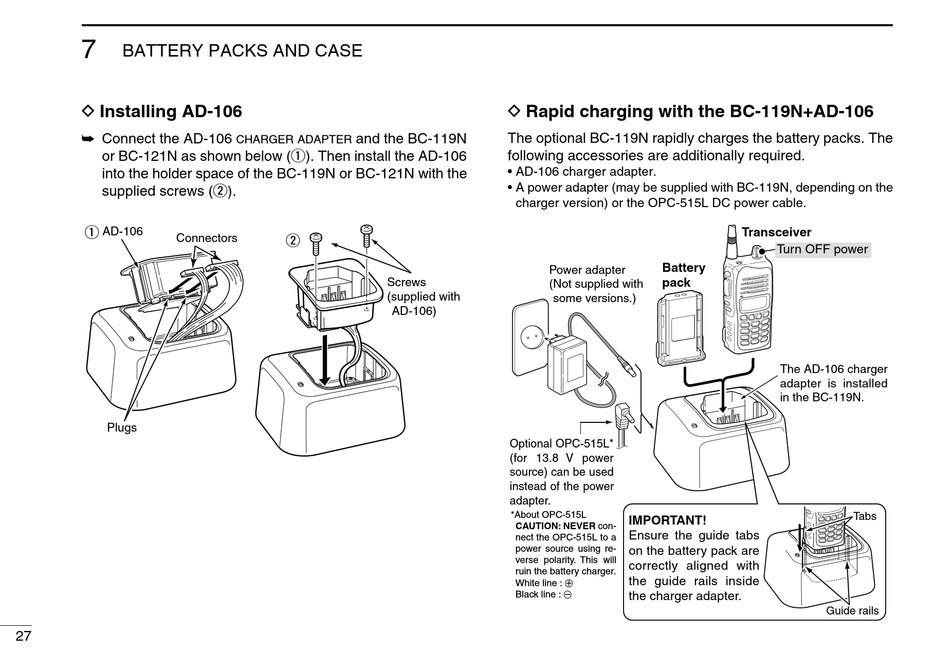

BATTERY PACKS AND CASE
D Installing AD-106
➥ Connect the AD-106
or BC-121N as shown below (q). Then install the AD-106
into the holder space of the BC-119N or BC-121N with the
supplied screws (w).
q AD-106
Connectors
Plugs
27
and the BC-119N
charger adapter
w
Screws
(supplied with
AD-106)
D Rapid charging with the BC-119N+AD-106
The optional BC-119N rapidly charges the battery packs. The
following accessories are additionally required.
• AD-106 charger adapter.
• A power adapter (may be supplied with BC-119N, depending on the
charger version) or the OPC-515L DC power cable.
Battery
Power adapter
pack
(Not supplied with
some versions.)
Optional OPC-515L*
(for 13.8 V power
source) can be used
instead of the power
adapter.
*About OPC-515L
IMPORTANT!
CAUTION: NEVER con-
Ensure the guide tabs
nect the OPC-515L to a
power source using re- on the battery pack are
verse polarity. This will
correctly aligned with
ruin the battery charger.
the guide rails inside
White line : +
Black line : _ the charger adapter.
Transceiver
Turn OFF power
The AD-106 charger
adapter is installed
in the BC-119N.
Tabs
Guide rails
