Before using your air-conditioner, please read
this operating instructions carefully and keep
it for future reference.
F563553/01-08/EN
1

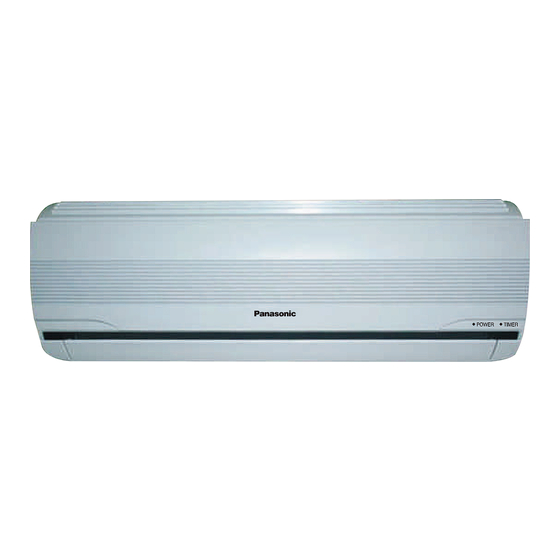

Split Type Room Air Conditioner
OPERATING INSTRUCTIONS
Outdoor Unit Model:
Indoor Unit Model:
CS-SA9CKP
CS-SA12CKP
5/6/02, 10:34 am
CU-SA9CKP5
CU-SA12CKP5
ENGLISH ...................... P. 1 — — P. 8
PORTUGUÊS ............... P. 9 — — P. 16
DEUTSCH ..................... P. 17 — — P. 24
FRANÇAIS .................... P. 25 — — P. 32
NEDERLAND ................ P. 33 — — P. 40
ITALIANO ..................... P. 41 — — P. 48
GREEK ......................... P. 49 — — P. 56
ESPAÑOL ..................... P. 57 — — P. 64
RUSSIAN ...................... P. 65 — — P. 73
MATSUSHITA AIR-CONDITIONING CORP.
XIECUN, ZHONGCUN TOWN, PANYU DISTRICT.
GUANGZHOU CITY, GUANGDONG PROVINCE, CHINA
F563553
Advertisement
Table of Contents
Related Manuals for Panasonic CU-SA12CKP
Summary of Contents for Panasonic CU-SA12CKP
-
Page 1: Operating Instructions
Before using your air-conditioner, please read this operating instructions carefully and keep Split Type Room Air Conditioner it for future reference. OPERATING INSTRUCTIONS Outdoor Unit Model: Indoor Unit Model: CS-SA9CKP CU-SA9CKP5 CS-SA12CKP CU-SA12CKP5 ENGLISH ...... P. 1 — — P. 8 PORTUGUÊS .... -
Page 2: Table Of Contents
Thank you very much for purchasing Panasonic SAFETY PRECAUTIONS Installation Precautions Split Type Room Air Conditioner. Before operating, please read the following Warning “Safety Precautions” carefully. CONTENTS Do not install, relocate or repair the To prevent personal injury, injury to others and 3 3 3 3 3 Safety Precautions ........ -
Page 3: Operation Precautions
Operation Precautions NAME OF EACH PART Outdoor Unit Indoor Unit Warning This sign warns of death or serious injury. Do not share outlet. Do not insert plug to operate the unit. Do not pull out plug to stop the unit. Do not operate with wet hands. - Page 4 Ç NAME OF EACH PART To Start the Operation RESET Button If the display is chaotic or can not be adjusted, use a Press operation OFF/ON buton. Remote Control pin to gently press this button to reset the remote POWER indicator (green) on the indoor unit will control to the original set by manufacturer.
-
Page 5: 3 3 3 3 Basic Operation
Automatic Operation Heating Operation Cooling Operation Press operation selection MODE button, the Press operation selection MODE button, the Press operation selection MODE button, the cursor key points to COOL . cursor key points to AUTO . cursor key points to HEAT . Press operation OFF/ON button, the operation Press operation OFF/ON button, the operation Press operation OFF/ON button, the operation... -
Page 6: 3 3 3 3 Setting The Timer
Setting the Vertical Airflow Direction SETTING THE TIMER CARE AND MAINTENANCE Press AIR SWING button to select. Cleaning the Indoor Unit and Remote Control The adjustment angles of the airflow direction Wipe gently with a piece of soft, dry cloth. MODE louvers for Heating, Cooling and Soft Dry Do not use water hotter than 40˚C or polishing fluid to... -
Page 7: Pre-Season Lnspection
Pre-season Inspection HELPFUL INFORMATION ENERGY SAVING AND OPERATION Is the discharged air cold/warm? HINTS Auto Operation Button Operation is normal if 15 minutes after the start of operation, the difference between the air intake Setting the Temperature and outlet vents temperature is:- Set the temperature higher or lower than the desired temperature. -
Page 8: 3 3 3 3 Trouble Shooting
TROUBLE SHOOTING Call The Dealer Immediately Normal Operation If the following conditions occur, turn off and unplug Is it okay? This is the answer the main power supply, and then call the dealer immediately. Air conditioner has been restarted, but does not This is to protect the air conditioner. - Page 9 EVALUATION OF THE PERFORMANCE WARNING Operate the unit for 15 minutes or more; 1) This appliance must be earthed. 2) If the supply cord is damaged or need to be replaced, it must be replaced by the manufacturer or its service agent Measure the temperature of the intake and outlet air;...
- Page 10 Note Remarque Please remember to record the following: oubliez pas de noter les informations suivantes: Model Number Serial Number é Dealer s Name Nom du revendeur Date Purchased Date d achat Nota Opmerking Nota Nao esqueça registar os dados seguintes: vergeet niet volgende zaken te noteren: No se olvide de registrar los datos siguientes: NÚmero de modelo...
