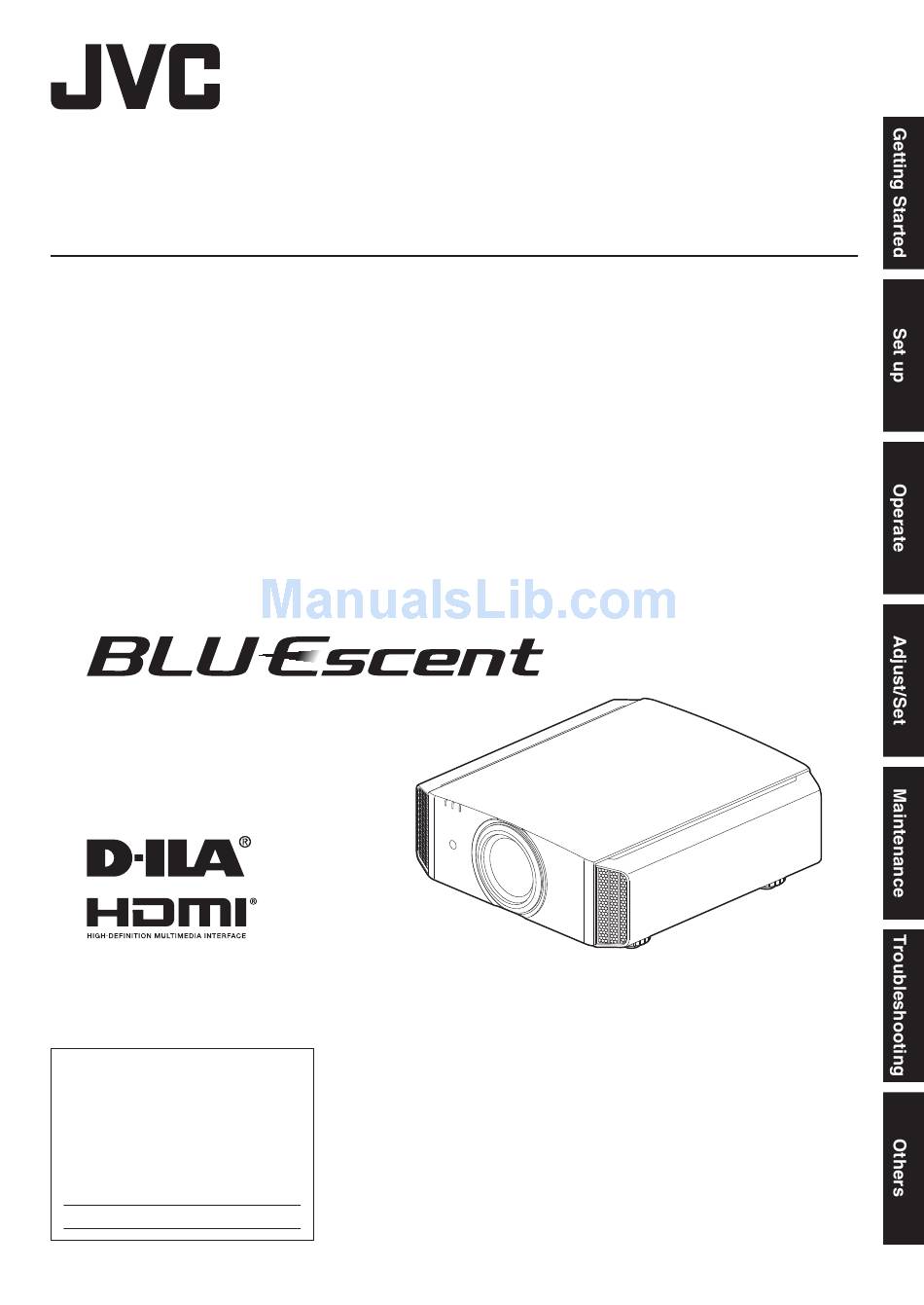

- Page 1 INSTRUCTIONS D-ILA PROJECTOR DLA-VS2500ZG DLA-VS2500G DLA-VS2300ZG DLA-VS2300G For Customer use : Enter below the serial No. which is located on the back of the cabinet. Retain this information for future reference. Model No. DLA-VS2500ZG DLA-VS2500G DLA-VS2300ZG DLA-VS2300G Serial No. B5A-0626-10...
-
Page 2: Safety Precautions
CAUTION: type plug to satisfy FCC rule. If you are unable to insert the plug into the outlet, contact your electrician. Changes or modification not approved by JVC could void the user’s authority to operate the equipment. NOTE: NOISE EMISSION DECLARATION... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Power source indicated on the label. If you are not sure of the type of power supply to your home, consult your Electrical energy can perform many useful functions. product dealer or local power company. This unit has been engineered and manufactured to This product is equipped with a three-wire plug. - Page 4 For * DO NOT allow any unqualified person to replacement, please consult your dealer, or the nearest authorized JVC service center. install the unit. When fixing the unit to the ceiling, Please note that we do...
- Page 5 Location information of the labels CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This Projector is classified as a CLASS 2 LASER PRODUCT. DO NOT STARE INTO BEAM . This CLASS 2 LASER PRODUCT label and Caution label are located on the TOP Side surface of the projector.
-
Page 6: Power Connection
THIS APPARATUS MUST BE EARTHED. Dear Customer, This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of JVC KENWOOD Corporation is: JVC Technical Services Europe GmbH Konrad-Adenauer-Allee 1-11 61118 Bad Vilbel... - Page 7 ENGLISH Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems) Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.
- Page 8 ESPAÑOL / CASTELLANO Información acerca de la eliminación de equipos eléctricos, electrónicos y baterías al final de la vida útil (aplicable a los países de la que hayan adoptado sistemas independientes de recogida de residuos) Los productos y las baterías con el símbolo (contenedor con ruedas tachado) no podrán ser desechados como residuos domésticos.
-
Page 9: Table Of Contents
Contents Getting Started Maintenance Safety Precautions ..........2 Maintaining the Cabinet and Remote Control (Sold Separately) ............40 Accessories/Optional Accessories ......10 Cleaning and Replacing the Filter ......41 Check the Accessories ........10 Optional Accessories ......... 10 Troubleshooting Controls and Features ........... 11 Troubleshooting ............ -
Page 10: Accessories/Optional Accessories
Accessories/Optional Accessories Check the Accessories Power cord (for USA) (about. 2 m) ......... 1 piece Power cord (for EU) (about. 2 m) ..........1 piece Optional Accessories Remote control: Model no. RM-MH13G AAA-size battery... -
Page 11: Controls And Features
Controls and Features Main Unit - Front A Lens P D Indicator This is a projection lens. Do not look through the lens Refer to “Indicator Display on the Main Unit”p. 52. while an image is projected. E Exhaust vent For O, the lens is sold separately. -
Page 12: Main Unit - Rear
Main Unit - Rear H Input terminals J Remote Sensor (rear) For details on the terminals. refer to “Main Unit - Input Please aim the remote control (sold separately) at this Terminals”p. 13. area when using it. * There is also a remote sensor at the front. I Operation panel K Power input terminal For more details, please refer to the “Operation... -
Page 13: Main Unit - Input Terminals
Main Unit - Input Terminals Enlarged View of Rear Face A [HDMI 1] input terminal D [RS-232C] terminal (D-sub 9-pin male) B [HDMI 2] input terminal The projector can be controlled by connecting a PC to For connecting to devices that support HDMI output. this terminal. -
Page 14: Remote Control (Sold Separately, Model No. Rm-Mh13G)
Remote control (sold separately, model no. RM-MH13G) A B [STAND BY] J [C.M.D.] For setting frame interpolation. Turns off the power. (p. 23) (p. 29) B C [ON] K [LIGHT] Turns on the power. (p. 22) Illuminates the buttons on the C [INPUT] remote control. -
Page 15: Loading Batteries Into The Remote Control (Sold Separately)
Loading Batteries into the Remote Control (Sold Separately) If the remote control has to be brought closer to the projector to operate, it means that the batteries are wearing out. Replace the batteries with new ones (AAA). Insert the batteries according to the t s marks. Be sure to insert the s end first. If an error occurs while using the remote control, remove the batteries and wait for five minutes. -
Page 16: Installing The Projector
Installing the Projector Precautions during Installation Please read the following carefully before installing this Using the projector unit. There is no particular limitation on the positioning of the projector during installation. Do not install at the following locations You can install at your preferred angle. This unit is a precision device. -
Page 17: Precautions During Mounting
Take the necessary actions to prevent the main unit from falling off such as during an earthquake. Regardless of the warranty period, JVC is not liable Make sure to secure the main unit to prevent for any product damage caused by mounting the unit accidents such as during an earthquake. -
Page 18: Adjusting The Position
Adjusting the Position Adjusting the elevation angle of the projector Adjusting the position of the image The height and inclination of the unit (0 to 5 mm) can be By using the lens shift feature of this unit, you can shift adjusted by turning the foot. -
Page 19: Connecting The Projector
Connecting the Projector Do not turn on the power until connection is complete. The connection procedures differ according to the device used. For details, please refer to the instruction manual of the device to be connected. This projector is used for projecting images. To output the audio of connected devices, please connect a separate audio output device, such as an amplifier or speaker. -
Page 20: Connecting To The Lan Terminal
Connecting to the LAN Terminal This Unit To [LAN] Terminal Network Connection Cable (Sold Separately) Server Desktop PC, etc. The network is used to control this unit. It is not used for sending or receiving video signals. Please contact your network administrator for information concerning the network connection. For more information on control, please refer to “External Control”... -
Page 21: Connecting The Power Cord (Supplied Accessory)
Connecting the Power Cord (Supplied Accessory) A Connect the power cord supplied to the power input terminal on the main unit B Insert the supplied power plug into the wall outlet. Power Cord (Supplied) Precautions to prevent fire and electric shock The power consumption of this unit is large. -
Page 22: Viewing Videos
Viewing Videos MEMO LIGHT WARNING STANDBY/ON When you are using this unit, be sure to remove the lens sheet. P Connect the power cord, and ensure that the “STANDBY/ON” indicator lights up in red. Turn on the power Projector unit: press the A [STANDBY/ON] button Remote control (sold separately): press the C [ON] button The “STANDBY/ON”... -
Page 23: Turn Off The Power
Turn off the power Projector unit: press the A [STANDBY/ON] button Remote control (sold separately): press the B [STAND BY] button While the “Are you sure you want to turn off?” message is displayed, press the button again. The laser light source turns off, and the “STANDBY/ON” indicator switches from a green light to a red blinking light. -
Page 24: Adjustments And Settings In The Menu
Adjustments and Settings in the Menu Pressing the [MENU] button displays the menu. Press the [JKH I] keys to select an item, followed by pressing the [OK] button to confirm the selection. List of Menu Items Picture Adjust Picture Mode ..............................p. 26 9 Sharpness .............................. - Page 25 Display Setup Back Color ................................ p. 37 Menu Position ..............................p. 37 Signal Display ..............................p. 37 Logo .................................. p. 37 Function Off Timer ................................p. 38 Network ................................p. 38 Remote Code ..............................p. 38 HIDE Mode ............................... p. 38 Information Information ................................
-
Page 26: Picture Adjust
Picture Adjust Picture Mode You can adjust the image quality according to the type of video image you are viewing. Item Description Natural Image quality that focuses on natural color and gradation reproduction. Suitable for displaying video images in general. Dynamic This is the picture setting best suited for viewing the picture in a room that cannot be made completely dark. -
Page 27: Color Management
Color Management Each of the colors is adjustable according to the user’s preference. Select the “Picture Adjust” " “Color Management” menu, and press the [OK] button. Set “Color Management” to “On”, and adjust to the preferred color. A Select “Color Selection”, and press the H I keys to Adjustable range when Red select the color to adjust Axis Position (Image) -
Page 28: Color Temp
Color Temp. For setting the color temperature of the video image. Preset Setting Description 5500K, 6500K, 9500K Increasing the value enhances the blue tone of the video image, while decreasing the value enhances the red tone. High Bright Color temperature that gives priority to brightness. Custom 1 to Custom 3 The color temperature of video images can be adjusted manually and saved as one of the three customized settings. -
Page 29: Clear Motion Drive
Clear Motion Drive For reducing the after-image, which occurs in a fast-moving scene. Pressing the [C.M.D.] button each time switches the mode in the following sequence: “Off”"“Mode1”"“Mode2”"“Mode3”"“Mode4”"“Off”... Setting Description No black insertion and no motion interpolation. Mode1 Black insertion weak. Mode2 Black insertion strong. -
Page 30: Input Signal
Input Signal Input Level For setting the dynamic range (gradation) of the video input. If the dynamic range is not appropriate, the bright areas become overexposed, and the dark areas become underexposed. Setting Description 0-255 (PC) Select this setting if you are inputting PC signals (dynamic range: 0 - 255). 16-235 (Video) Select this setting if you are inputting video signals (dynamic range: 16 - 235). -
Page 31: Mask
Mask For hiding the peripheral area of the image with a mask (black strip). Setting Description Not masked. 2.5% Masks about 2.5% of the peripheral area of the image. Masks about 5.0% of the peripheral area of the image. Custom Masks about 0% to 5% of the four sides of the image. -
Page 32: Installation
Installation Lens Control P Focus / Zoom / Shift For adjusting the lens according to the projection position A Press the [LENS CONTROL] button, and use the [JKH I] keys to adjust Focus, Zoom (screen size), and Shift (screen position) Focus Pressing the [LENS CONTROL] or [OK] button each time switches the mode in the following sequence: “Focus”"“Zoom”"“Shift”"“Focus”... -
Page 33: Pixel Adjust
Pixel Adjust Adjust For setting the adjustment feature to “On” or “Off”. Adjust Area Setting Description Whole Adjusts the entire image. Zone Enables fine adjustment of each zone by dividing the screen into 11 vertical x 11 horizontal zones. Adjust Color For selecting the color to adjust (“Red”... - Page 34 Operation procedure for Whole Adjust (Pixel) For making general adjustments to slight color fringing in the horizontal/vertical directions of the video image. A Set “Adjust Area” to “Whole” B Select “Adjust Color” and “Adjust Pattern Color” C Select “Adjust(Pixel)”, and press the [OK] button The selected adjustment pattern and Adjustment (Pixel) window are displayed.
- Page 35 Operation procedure for Whole Adjust (Fine) For making general adjustments on the misalignment of the entire screen using “Adjust(Pixel)”, followed by making fine adjustments. A Set “Adjust Area” to “Whole” B Select “Adjust Color” and “Adjust Pattern Color” C Select Adjust(Fine), and press the [OK] button The selected adjustment pattern and Fine window are displayed.
- Page 36 Operation procedure for Zone Adjust For fine-tuning misalignments on a part of the screen after adjusting the overall screen misalignment using “Adjust(Pixel)” and “Adjust(Fine)”. The screen can be divided vertically and horizontally into 10 sections for partial adjustments to be made. A Set “Adjust Area”...
-
Page 37: Display Setup
Installation Style For setting to “Front”, “Ceiling Mount (F)”, “Rear”, or “Ceiling Mount (R)” according to the installation status of the projector. “Front” or “Ceiling Mount (F)” is set when projector is installed in the front with respect to the screen. “Rear”... -
Page 38: Function
Function Off Timer For setting the timing to power off the unit automatically (“1 Hour”, “2 Hours”, “3 Hours”, or “4 Hours”) when it is not operated for a period of time. Network Setting Description DHCP Client Obtains the IP address automatically from the DHCP server inside the connected network. -
Page 39: Information
Information During video signal input Setting Description Input Displays video input terminal. Source Displays the input source. Deep Color* Displays the color bit depth of the input video signal. Displayed when Deep Color information is received from the source device. Light source time Displays the laser light source time. -
Page 40: Maintaining The Cabinet And Remote Control (Sold Separately)
Maintaining the Cabinet and Remote Control (Sold Separately) Gently wipe off dirt on the cabinet with a soft cloth. If it is extremely dirty, wet a cloth in water, wring dry and use it to wipe off the dirt, followed by wiping again with a dry cloth. -
Page 41: Cleaning And Replacing The Filter
Cleaning and Replacing the Filter Clean the filter regularly Otherwise, the air intake efficiency may deteriorate, and malfunction may occur. Reinstall the inner filter CAUTION Make sure that you pull out the power plug from the Check that the left outlet before cleaning or replacing the filter. -
Page 42: Troubleshooting
Troubleshooting Before sending the unit to your authorized dealer for repair, please check the following points. The following symptoms are not malfunctions. You do not need to worry about the following symptoms if there is no abnormality on the screen. A part of the top or front surface of the unit is hot. - Page 43 Cool-down time is long Check Action Refer to Is the Auto Intensity function On? Please wait until the Cool-down mode is completed. If the p. 23 Auto Intensity function is On, it will take up to 6 minutes to process the brightness adjustment. Video image looks unnatural Colors are unnatural Check...
-
Page 44: When The Following Messages Appear
Remote control does not work Check Action Refer to Are the batteries correctly loaded? Match the polarities (t s) correctly when loading the p. 15 batteries. Are the batteries exhausted? Replace with new batteries. p. 15 Is there an obstructing object between Remove any obstructing object. -
Page 45: External Control
External Control You can control this unit by connecting it to a PC using an RS-232C null modem cable (D-sub 9-pin). The projector can be controlled by connecting it to a PC through the computer network with a LAN cable for control commands to be sent to the projector. -
Page 46: Command Format
Command Format The command between this unit and the computer consists of “Header”, “Unit ID”, “Command”, “Data” and “End”. Header (1 byte), Unit ID (2 bytes), Command (2 bytes), Data (n bytes), End (1 byte) Header This binary code indicates the start of communication. Binary Code Type Description... -
Page 47: Remote Control Code
Remote Control Code Binary code is sent during communication. The following applies to the case when the remote control code is “A”. In the case of “B”, add “36” to the beginning of the code. Remote Control Button Name Binary Code Remote Control Button Name Binary Code STAND BY... -
Page 48: Communications Example
Communications Example This section shows the communication examples of RS-232C. Operating command Type Command Description Connection check PC " This unit: 21 89 01 00 00 0A Connection check This unit " PC: 06 89 01 00 00 0A Power (On) PC "... -
Page 49: Specifications
Specifications Product Name D-ILA Projector Model Name DLA-VS2500ZG, DLA-VS2500G, DLA-VS2300ZG, DLA-VS2300G Display Panel/Size D-ILA device *1, 2 0.7" (1920 x 1080 pixels) x 3 (total no. of pixels: approx. 6.22 million) Projection Lens 2.0x power zoom lens (1.4:1 to 2.8:1), motorized zoom and focusP Light source BLU-Escent Technology (Laser and Phosphor) Screen Size... -
Page 50: Screen Size And Projection Distance
About Trademarks and Copyrights HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LCC. Screen Size and Projection Distance When a 16:9 screen is used P Screen Size Projection Distance Diagonal (inch) Width (mm) Height (mm) Wide-end (m) Tele-end (m) - Page 51 When a 4:3 screen is used P Screen Size Projection Distance Diagonal (inch) Width (mm) Height (mm) Wide-end (m) Tele-end (m) 1219 2.22 4.49 1422 1067 2.60 5.24 1626 1219 2.98 6.00 1829 1372 3.36 6.75 2032 1524 3.74 7.51 2235 1676 4.11...
- Page 52 Types of Possible Input Signals Video (HDMI1, HDMI2) Digital Video Signal 480p/60 Hz (4:3), 576p/50 Hz (4:3), 720p/50 Hz, 720p/60 Hz, 1080p/50 Hz, 1080p/ 60 Hz Video (Dual) Digital Video Signal 1080p/50 Hz, 1080p/60 Hz In the Dual mode, both HDMI1 and HDMI2 need to be synchronized at 1080p/60 Hz or at 1080p/50 Hz. PC Signal (HDMI1, HDMI2) No.
- Page 53 Estimated timing for laser light source replacement Displays using the solid/blinking light of the “LIGHT” indicator. The “STANDBY/ON” indicator, which shows the operating mode of the unit, is also displayed simultaneously. * “LIGHT” indicator does not light up when “LED Indication” is set to “Off” (p. 37). “LIGHT”...
- Page 54 Dimensions (Unit: mm) Top Surface Bottom Surface Lens Lens Rear Surface Front 227.5 Ø60 Lens Center The dimensions are identical for all the models.
-
Page 55: Index
Index Installation Method ..........16 A Accessories ............10 Projection Screen Adjustment ......32 L LD Current ............26 Adjustment and Setting by the Menu ....24 Lens ..............11 Adjustment of the Image Quality ......26 Lens Control ............32 Aperture ............... - Page 56 © 2015 JVCKENWOOD Corporation 0415YKY-YS-SW...
