Weider SPARRING SYSTEM User Manual page 12

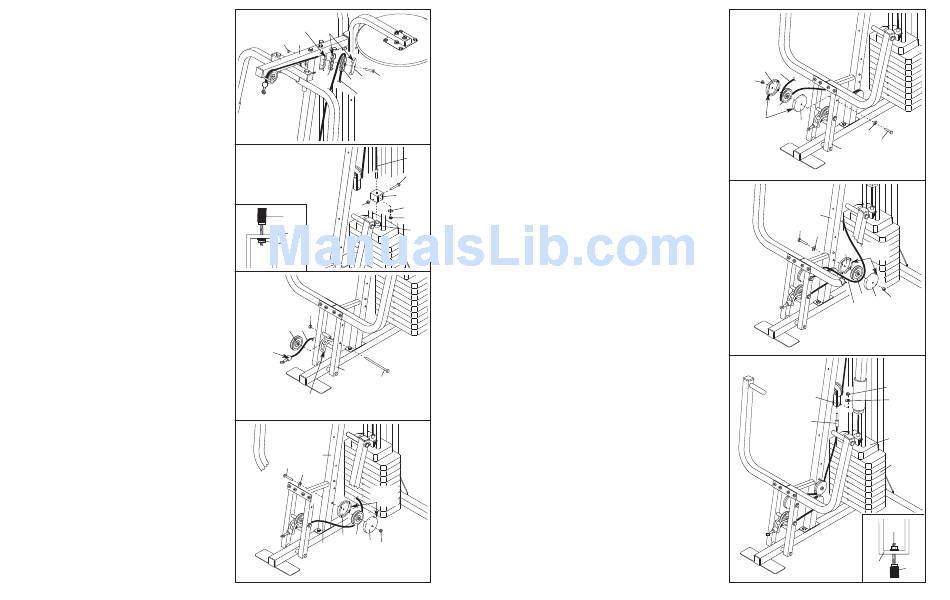

21. Wrap the Long Cable (41) around a 90mm Pulley
(45). Attach the Pulley and a pair of Pulley
Covers (44) to the bracket on the Top Frame (10)
with an M10 x 53mm Bolt (94) and the M10 Nylon
Locknut (84). Make sure that the large tabs on
the Pulley Covers are in the position shown.
22. Attach the Long Cable (41) to the Small "U"-
bracket (25) with an M8 Nylon Locknut (83) and
an M8 Washer (85). See the inset drawing. Do
not overtighten the Locknut; it should be
threaded onto the end of the Cable so that
two threads show past the Locknut.
Attach the Small "U"-bracket (25) to the Weight
Tube (26) with the M8 x 45mm Bolt (75) and an
M8 Nylon Locknut (83).
23. Locate the Short Cable (42). Route the Short
Cable through the cage on the Press Frame (13).
Attach a 90mm Pulley (45) to the Press Frame
with an M10 x 198mm Bolt (71) and an M10
Nylon Locknut (84). Make sure that the end of
the Cable with the ball is on the indicated side
of cage and Cable is in the groove of the
Pulley.
24. Wrap the Short Cable (42) around a 90mm Pulley
(45). Attach the Pulley and a pair of Pulley
Covers (44) to the lower hole in the Front Upright
(4) with an M10 x 99mm Bolt (63), an M10
Washer (86), and an M10 Nylon Locknut (84).
Make sure that the large tabs on the Pulley
Covers are in the position shown.
21
Large
Bracket
Tabs
10
84
44 94
44
45
41
22
25
83
41
25
83
23
84
45 42
Ball
13
71
Cage
24
4
63
86
Large
Tabs
44 45
44
84
42
12
25. Wrap the Short Cable (42) around a 90mm Pulley
(45). Attach the Pulley and a pair of Pulley
Covers (44) to the upper hole in the Press Frame
(13) with an M10 x 89mm Bolt (70), an M10
Washer (86), and an M10 Nylon Locknut (84).
Make sure that the large tabs on the Pulley
Covers are in the position shown.
41
75
26. Wrap the Short Cable (42) around a 90mm Pulley
(45). Attach the Pulley and a pair of Pulley
Covers (44) to the upper hole in the Front Upright
85
(4) with an M10 x 99mm Bolt (63), an M10
83
Washer (86), and an M10 Nylon Locknut (84).
26
Make sure that the small tabs on the Pulley
Covers are in the position shown.
27. Have a second person lift the Top Weight (24) off
the stack of Weights (22). Attach the end of the
Short Cable (42) to the Long "U"-bracket (50) with
an M8 Nylon Locknut (83) and an M8 Washer
(85). See the inset drawing. Do not overtighten
the Locknut; it should be threaded onto the
end of the Cable so only two threads are
showing above the Locknut.
25
44
42
84
45
Large
44
Tabs
86
70
13
26
4
63
86
Small
44
Tabs
45
84
44
42
27
83
50
85
42
24
22
83
50
13
42
