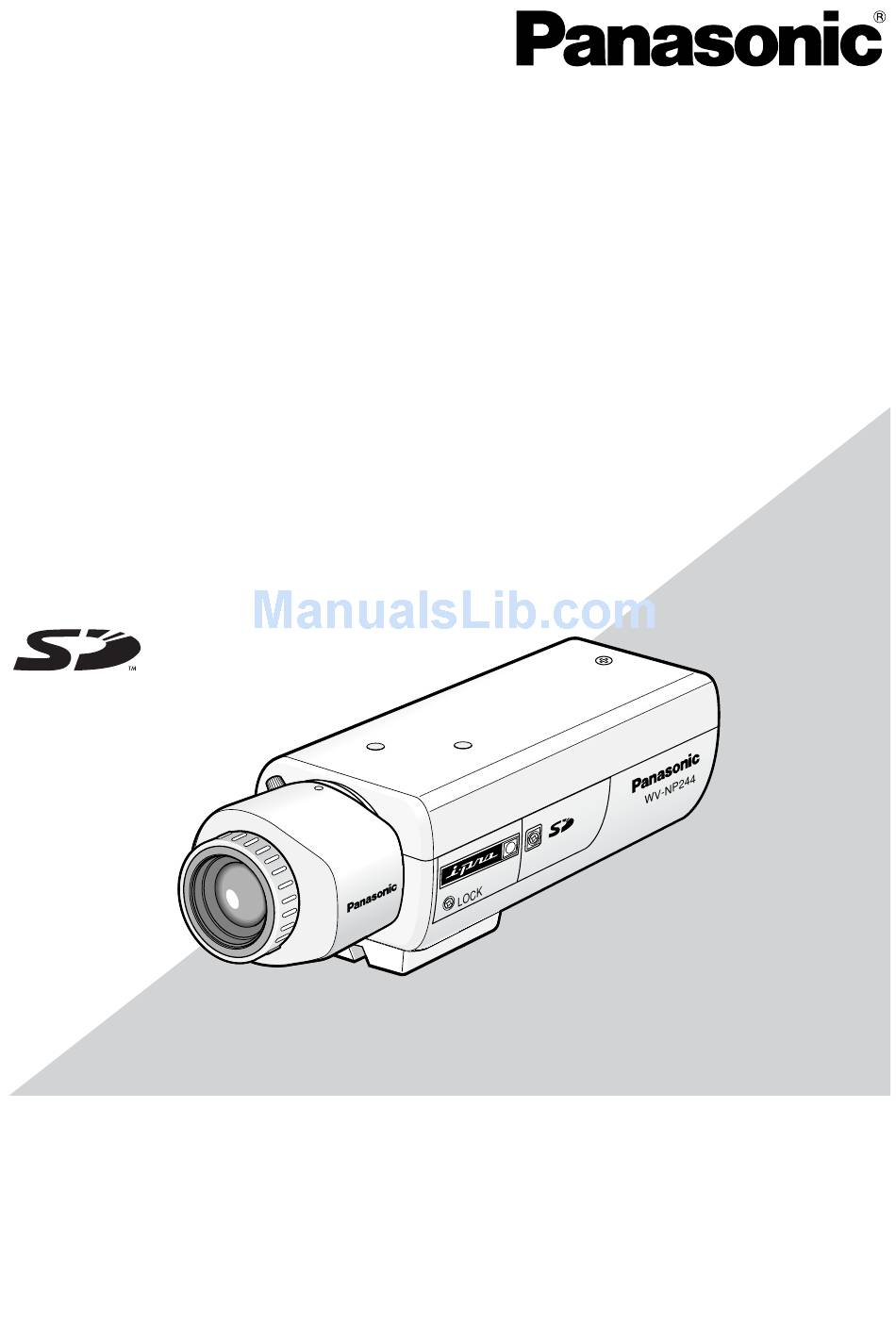

Page 1: Operating Instructions
Network camera Operating Instructions WV-NP244 Model No. (Lens is option.) Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. - Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrow- head symbol, within an equilater- al triangle, is intended to alert the user to the presence of uninsulat- ed "dangerous voltage"...
-
Page 3: Important Safety Instructions
Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. -
Page 4: Limitation Of Liability
Limitation of Liability THIS PUBLICATION IS PROVIDED "AS IS" WITHOUT WARRANTY EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WAR- RANTIES OF MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT PARTY’S RIGHT. Disclaimer of Warranty IN NO EVENT SHALL MATSUSHITA ELEC- TRIC INDUSTRIAL CO., LTD. -
Page 5: Preface
Preface The network camera WV-NP244 is designed to operate using a PC on a network (10BASE- T/100BASE-TX) to monitor images. By connecting to a network (LAN) or the Internet, images and audio from the camera can be monitored on a PC via a network. -
Page 6: About These Operating Instructions
About these Operating Instructions There are 2 sets of operating instructions for the WV-NP244 as follows. • Operating Instructions (book, these operating instructions) • Operating Instructions (PDF) These "Operating Instructions" contain descriptions of how to install and connect this camera, and how to perform the required network settings. -
Page 7: Table Of Contents
How to remove the SD memory card ... 17 Performing the Network Settings ... 18 Install the software ... 18 Configure the network settings of the camera using the Panasonic IP Setting software ... 18 Troubleshooting ... 20 Specifications ... 21 Standard Accessories ... -
Page 8: Precautions
Refer to the Operating Instructions (PDF) for descriptions of how to format an SD memory card. • It is recommended to use Panasonic’s SD memory card. - Page 9 Otherwise, the camera may not work properly or performance deterioration may be caused. • Images saved on the SD memory card may lead to personal information leak- age. When it is necessary to give the camera to someone, even when for repair, make sure the SD memory card is removed from the camera.
-
Page 10: Major Operating Controls And Their Functions
Major Operating Controls and Their Functions q Tripod mount base w Flange-back adjusting ring* e ALC lens connector r Lens (option) WV-NP244 t Focus fixing screw (LOCK) y Microphone u SD card memory slot * It is necessary to adjust the flange-back length together with the lens adjustment. - Page 11 <REAR> MONITOR OUT LINK INITIAL SET EXT I/O CARD 1 2 3 4 POWER AC 24V IN : 1L – 2N DC 12V IN : ! – @ q Power indicator (green) w Link indicator e Monitor out connector (for adjustment) (ø3.5 mm, mini jack) r INITIAL SET button t External I/O terminals y Ground terminal...
-
Page 12: Lens Mounting
Lens Mounting Mount the lens by rotating it clockwise slowly. Then, connect the lens cable to the ALC lens connector of the camera. ALC lens connector Optional lens ALC lens for 1/3 inch CCD cameras Focus adjustment When shooting an object using an ALC lens, the first adjusted focus may be out-of-focus depending on the focal depth of the lens in use. -
Page 13: How To Use A Vari-Focal Lens
How to use a vari-focal lens The following are descriptions of how to use a 2x vari-focal lens. Method of adjustment may be different depending on the lens in use. For further information, refer to the operating instructions of the lens in use. q Loosen the zoom lock knob and slide it to the "T"... -
Page 14: Installations/Connections
Installations/Connections Before start the installation/connection, prepare the required devices and cables. Before starting the connection, turn the power of the devices including the camera and the PC off or disconnect the AC adapters from the outlet. Step 1 Fix an optional camera mount base onto the desired place and mount the camera on it. - Page 15 Important: • Use all of 4 pairs (8 pins) of the LAN cable. • The maximum cable length is 100 m. • Make sure that the PoE device in use is compliant with IEEE802.3af standard. • When connecting both the AC 24 V/DC 12 V power supply and the PoE device for power supply, PoE will be used for power supply.
-
Page 16: [Connection Example]
[Connection example] When connecting with a PC directly AC adapter (DC 12 V) or AC 24 V power supply To an outlet (AC 120 V) <Required cable> LAN cable (category 5, cross) When connecting to a network using a PoE device (hub) Video monitor (for adjustment use only) (for adjustment use only) -
Page 17: Insert/Remove An Sd Memory Card
Insert/Remove an SD Memory Card How to insert an SD memory card Important: • Before inserting an SD memory card, make sure that the power of the camera is turned off. • Insert an SD memory card backside up. q Loosen the screw of the SD memory card slot cover. -
Page 18: Performing The Network Settings
It is possible to perform the network settings of the camera using the IP Setting software on the provided CD-ROM. When the Panasonic IP Setting software does not work to perform the network settings of the camera, perform the network settings of the camera and the PC individually on the "Network setup"... - Page 19 Step 1 Start the Panasonic IP Setting software. Step 2 Click the [IP Setting] button after selecting the MAC address/IP address of the camera to be configured. Note: • When using a DHCP server, the IP address assigned to the camera can be displayed by clicking the [Refresh] but- ton of the IP Setting software.
-
Page 20: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution or if the problem is not described below. Symptom The power cannot be turned on. -
Page 21: Specifications
Specifications Other specifications Power source Power consumption PoE: Ambient temperature Ambient humidity Monitor output (for adjustment) External I/O terminals Audio Dimensions Weight Camera Image sensor Effective pixels Scanning area Scanning system Resolution Minimum illumination Electronic shutter Sensitivity up White balance Electronic Zoom VMD alarm Aperture control... - Page 22 Microsoft® Windows® XP Professional SP2 Internet Explorer 6.0 Service Pack2 Alarm image transmission, FTP periodic transmission Images from 8 cameras (4 cameras x 2 groups) can be dis- played simultaneously. Manufactured by Panasonic Capacity: 64 MB, 128 MB, 256 MB, 512 MB, 1 GB...
-
Page 23: Standard Accessories
Standard Accessories CD-ROM* ... 1 pc. Operating Instructions (this book) ... 1 pc. Code Label ... 1 pc. Warranty ... 1 pc. * Panasonic IP Setting software, the viewer software and the operating instructions (PDF) are included on the CD-ROM. - Page 24 Unit Company of Panasonic Corporation of North America Security Systems www.panasonic.com/security For customer support, call 1.877.733.3689 Executive Office: Three Panasonic Way 2H-2, Secaucus, New Jersey 07094 Zone Office Eastern: Three Panasonic Way, Secaucus, New Jersey 07094 Central: 1707 N. Randal Road, Elgin, IL 60123 Southern: 1225 Northbrook Parkway, Suwanee, GA 30024 Western: 6550 Katella Ave., Cypress, CA 90630...
