Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model numbers in these Operating Instructions are given without suffix.
Network camera
Operating Instructions
WV-NP1000
Model Nos.
WV-NP1004

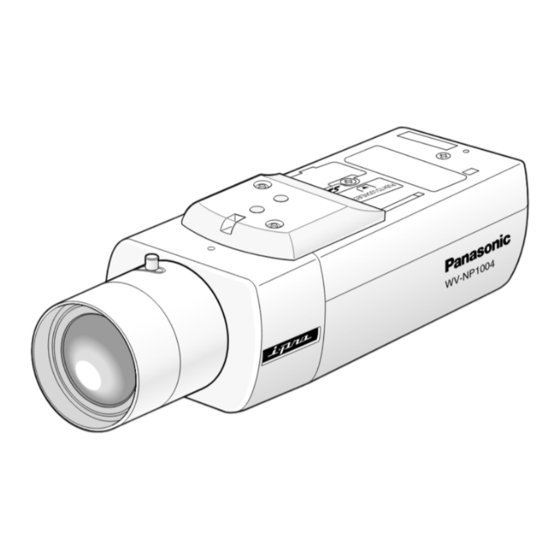

The illustration above is of the WV-NP1004.
(Lens is option.)
Advertisement
Table of Contents
Related Manuals for Panasonic WV-NP1000
Summary of Contents for Panasonic WV-NP1000
-
Page 1: Network Camera
Network camera Operating Instructions WV-NP1000 Model Nos. WV-NP1004 (Lens is option.) The illustration above is of the WV-NP1004. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model numbers in these Operating Instructions are given without suffix. - Page 2 We declare under our sole responsibility that the product to which this Wij verklaren als enige aansprakelijke, dat het product waarop deze declaration relates is in conformity with the standards or other normative verklaring betrekking heeft, voldoet aan de volgende normen of andere documents following the provisions of Directives EEC/73/23 and normatieve documenten, overeenkomstig de bepalingen van Richtlijnen EEC/89/336.
-
Page 3: Important Safety Instructions
Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Limitation Of Liability
Limitation of Liability THIS PUBLICATION IS PROVIDED "AS IS" WITHOUT WAR- THIS PUBLICATION COULD INCLUDE TECHNICAL INAC- RANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, CURACIES OR TYPOGRAPHICAL ERRORS. CHANGES INCLUDING BUT NOT LIMITED TO, THE IMPLIED WAR- ARE ADDED TO THE INFORMATION HEREIN, AT ANY RANTIES OF MERCHANTABILITY, FITNESS FOR ANY PAR- TIME, FOR THE IMPROVEMENTS OF THIS PUBLICATION TICULAR PURPOSE, OR NON-INFRINGEMENT OF THE... -
Page 5: Table Of Contents
Camera setup page chart ............................... 21 Configure the Network Settings ............................22 Install the software ................................22 Configure the network settings of the camera using the Panasonic IP setup software ..........22 Troubleshooting ................................. 23 Specifications ..................................24 Standard Accessories ................................ 26... -
Page 6: Preface
*2 The motion detection function is not the dedicated function to prevent thefts, fires, etc. We assume no responsibility what- soever for any damages resulting from the use of the motion detection function. *3 This camera is applicable with Panasonic's SD memory card (64 MB, 128 MB, 256 MB, 512 MB and 1GB). -
Page 7: About These Operating Instructions
About these operating instructions There are 2 sets of operating instructions for the WV-NP1004 as follows. • Operating Instructions (book, these operating instructions) • Operating Instructions (PDF) These "Operating Instructions" contain descriptions of how to install and connect this camera, and how to perform the required network settings. -
Page 8: Precautions
SD memory card. to high temperatures and high humidity. Do not expose • It is recommended to use Panasonic's SD memory the product to direct heat such from a heater. card. - Page 9 Power cable Save the configured settings Connect the power cable firmly. Align the connected power We recommend that you note down your settings and save cable not to be pulled/stressed when the camera pans or them. We assume no responsibility whatever for any dam- tilts.
-
Page 10: Major Operating Controls And Their Functions
Major Operating Controls and Their Functions Fixing screw for transportation Microphone Tripod mount base * Remove the fixing screw for transportation before connecting the power cable. Cover for the operation buttons ALC lens connector Inside the cover for the operation buttons (Slide to the left until the cover is locked.) Operation buttons * In these operating instructions, names of the buttons are as follows. - Page 11 ALARM IN 10BASE-T/ 10BASE-T/ 100BASE-TX 100BASE-TX q AC Inlet 220V – 240V 50 Hz (only for the WV-NP1000) Connect the power cord. w AC 24V (only for the WV-NP1004) Power cable terminals e SD memory card error indicator (red) r Link indicator...
-
Page 12: Lens Mounting
Lens Mounting Mount the lens by rotating it clockwise slowly. Then, connect the lens cable to the ALC lens connector of the camera. ALC lens connector CS-mount lens (optional) CS-mount: Less than 8 mm Attach the ferrite core as close as possible to the ALC lens connector side of the lens cable. -
Page 13: How To Use A Varifocal Lens
Then, adjust the back focal length minutely. (→ page 17) • When the lens in use is not Panasonic's and whose focus range is scalable, adjust the back focal length after setting the focus position to one step short of the FAR end in step 2. When adjusting the focus in the scalable range, focus may not be adjusted appropriately. -
Page 14: Installations/Connections
Installations/Connections Before start the installation/connection, prepare the required devices and cables. Before starting the connection, turn the power of the devices including the camera and the PC off or disconnect the power cable from the outlet. Fix an optional camera mounting bracket onto the desired place and mount the camera on it. - Page 15 (The illustration above is of the WV-NP1004.) AC24V VIDEO OUT Step 4 POWER Approx. 9 mm - 10 mm SD CARD DAY/NIGHT IN <For the WV-NP1000> AUX OUT ALARM OUT LINK ALARM IN Connect the AC power cord (provided as a standard 10BASE-T/ 100BASE-TX accessory) between the AC inlet of the camera and a 220 V –...
-
Page 16: [Connection Example]
Note: When connecting to the video input connector of a device that has the power switch for the connected camera, such as the Panasonic WV-CM142, turn the power switch for the connected camera off. Recording device Network device (Hub, router, ADSL/CATV Connect to the video input connector of a digital modem, etc.) -
Page 17: Insert/Remove A Sd Memory Card
Insert/Remove a SD Memory Card How to insert a SD memory card Important: Before inserting a SD memory card, make sure that the power of the camera is turned off. q SD memory card w SD memory card e SD memory card Loosen the screw of the Remove the cover. -
Page 18: Adjust The Back Focal Length
Adjust the Back focal Length Before adjusting the back focal length, adjust the lens first. (→ page 12) Use the operation buttons on the camera (→ page 10) to adjust the back focal length. The back focal length can also be adjusted on the [Camera] tab of the "Camera setup" page. (→ page 19) Step 1 Adjust the angular field of view while monitoring the video monitor, then press the [SET] button. -
Page 19: Configure The Settings Using The Operation Buttons On The Camera
Configure the Settings Using the Operation Buttons on the Camera Each setup item on the [Camera] tab of the "Camera setup" page can be configured using the operation buttons on the cam- era. The settings relating to image quality, brightness, privacy zone and back focal length can be configured on the [Camera] tab of the "Camera setup"... -
Page 20: Basic Operation
Basic operation The following are descriptions of how to configure each setup item on the [Camera] tab using the operation buttons on the camera. Notes: • The illustrations below are the examples of the [Camera] tab pages to be displayed on a video monitor. •... -
Page 21: Camera Setup Page Chart
Camera setup page chart Note: The illustrations below are of the WV-NP1004. <Top page> <CAMERA SETUP page> MODEL WV-NP1004 **CAMERA SETUP** 1/2 **CAMERA SETUP** 2/2 CAMERA CAMERA ID STABILIZER BACK-FOCUS ALC/ELC SPECIAL SHUTTER NETWORK ON(HIGH) SENS UP SYNC WHITE BAL ATW1 HIGH BW MODE... -
Page 22: Configure The Network Settings
When using multiple cameras, it is necessary to configure the network settings of each camera independently. When the Panasonic IP setup software does not work to perform the network settings of the camera, perform the network set- tings of the camera and the PC individually on the "Network setup" page of the setup menu. Refer to the Operating Instructions (PDF) for further information. -
Page 23: Troubleshooting
→ Confirm the cable is firmly connected. The power cannot be turned When using AC 230V power supply (WV-NP1000) • Is the power cord connected to the AC inlet firmly? → Confirm the power cord is firmly connected to the AC inlet. -
Page 24: Specifications
Specifications G General specifications Power source WV-NP1000: AC220 V - 240 V 50 Hz WV-NP1004: AC24 V 50 Hz Power consumption WV-NP1000: Approx. 10.5 W WV-NP1004: Approx. 9.5 W Ambient temperature –10 °C - +50 °C Ambient humidity 90 % or less... - Page 25 SD memory card is available.) Multi-screen Images from 8 cameras (4 cameras x 2 groups) can be displayed. SD memory card Manufactured by Panasonic (option) Capacity: 64 MB, 128 MB, 256 MB, 512 MB, 1 GB External I/O terminals...
-
Page 26: Standard Accessories
ALC lens connector cap ..........1 pc. The following is for the installation. Power cord (only for the WV-NP1000) ......1 pc. Ferrite core for the ALC lens connector cable ..... 1 pc. * The IP setup software, the viewer software and the operating instructions (PDF) are included on the CD-ROM. - Page 27 Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
- Page 28 Matsushita Electric Industrial Co., Ltd. Osaka, Japan http://www.panasonic.co.jp/global/ © 2005 Matsushita Electric Industrial Co., Ltd. All Rights Reserved. NM1205-0/1 3TR004264AAA Printed in Japan...
