Quick Setup Guide
Start Here
Please read the Product Safety Guide first, then read this Quick Setup Guide for the correct setup and installation
procedure. To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.
NOTE
Not all models are available in all countries.
1

Unpack the machine

WARNING
CAUTION
WARNING
• Plastic bags are used in the packing of your machine. To avoid danger of suffocation, keep these
plastic bags away from babies and children. Plastic bags are not toys.
• This machine is heavy and weighs more than 20.0 kg. To prevent possible injuries, at least two people
should lift the machine. One person should hold the front of the machine, and one person should hold
the back. Be careful not to trap your fingers when you put the machine down.
NOTE

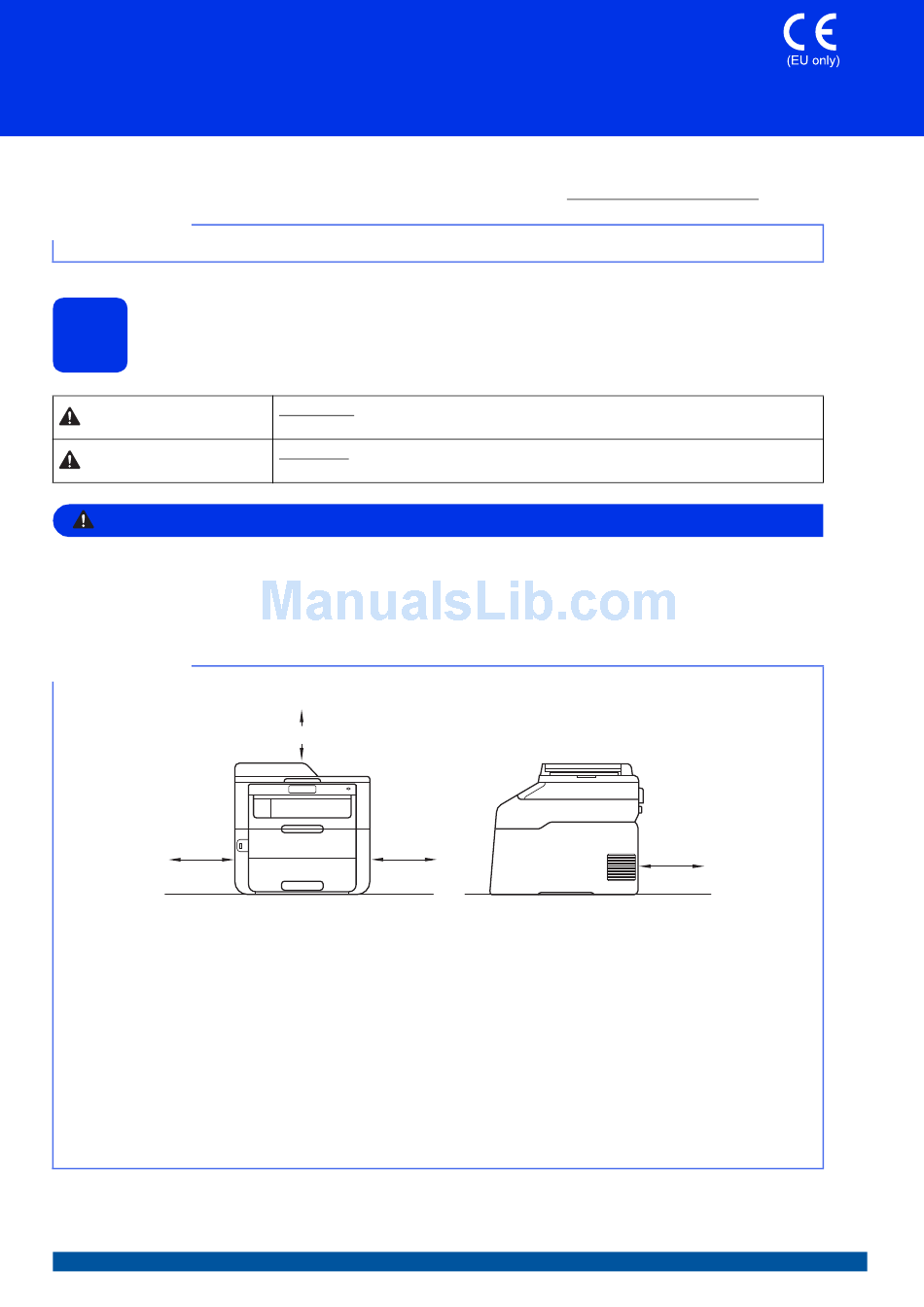

• Keep a minimum gap around the machine as shown in the illustration.
150 mm
• The components included in the box may differ depending on your country.
• We recommend that you save the original packaging.

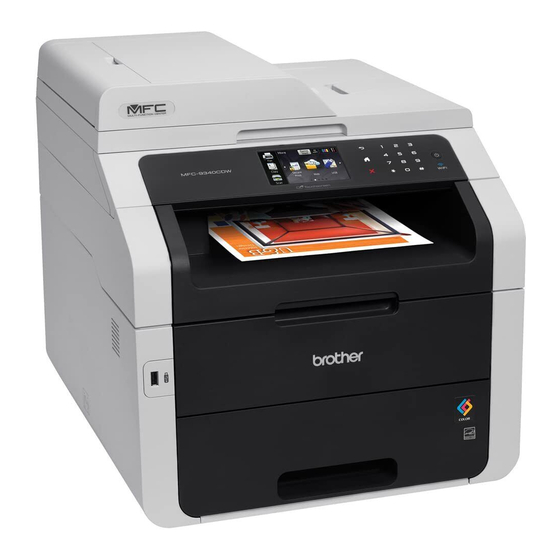

• Illustrations in this Quick Setup Guide are based on the MFC-9340CDW.
• The interface cable is not a standard accessory. Buy the appropriate interface cable for the connection you
want to use (USB or Network).
USB cable
• We recommend using a USB 2.0 cable (Type A/B) that is no longer than 2 metres.
• DO NOT connect the interface cable at this time. Connecting the interface cable is done during the MFL-Pro
Suite installation process.
Network cable
Use a straight-through Category 5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet
Network.
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injuries.
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injuries.
400 mm
150 mm
MFC-9140CDN / MFC-9330CDW
MFC-9340CDW
150 mm
CEE-ENG Version 0
1
