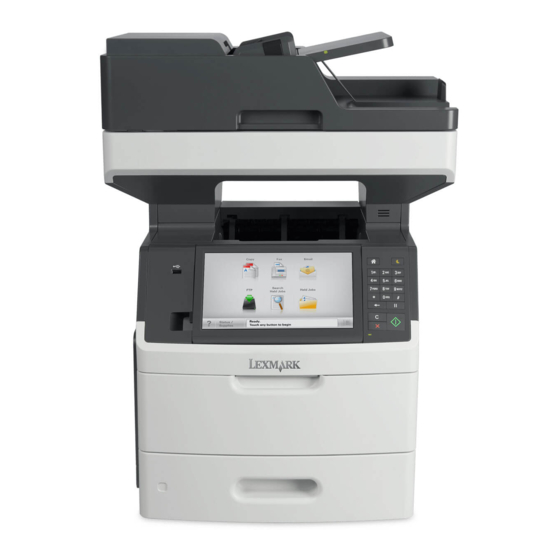

Page 1: Repair Information
7463 Repair information Removal precautions CAUTION—SHOCK HAZARD: For personal safety and to prevent damage to the printer, remove the power cord from the electrical outlet before you connect or disconnect any cable, electronic board, or assembly. Disconnect any connections between the printer and the PCs/peripherals. CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely Data security notice...
Page 2 7463 Handling ESD‑sensitive parts Many electronic products use parts that are known to be sensitive to electrostatic discharge (ESD). To prevent damage to ESD-sensitive parts, use the following instructions in addition to all the usual precautions, such as turning off power before removing logic boards: •...
Page 3 Note: The software bundle contains the latest version of the firmware, applications, and software licenses from the Lexmark Virtual Solutions Center (VSC). The printer firmware may be at a different level from what was used before replacing the controller board.
Page 4 7463 Save the zip file. Note: Make sure that the serial number in the zip file matches the serial number of the printer being restored. Extract the contents of the zip file, open the Readme file, and then follow the instructions in the file. Notes: •...
Page 5 7463 After performing the installation instructions in the Readme file, confirm from the customer if all the eSF apps have been installed. Notes: • If you are unable to access the administrative menus to verify that the printer is restored, then ask the customer for access rights.
Page 6 7463 Restoring solutions, licenses, and configuration settings To load the zip files that are extracted from the Service Restore Tool, do the following: Open a Web browser, and then type the printer IP address. Navigate to Settings > Configuration Files. From the Configuration File History tab, navigate to Import >...
Page 7 7463 Click Import. Repeat steps 3 to 5 for the other zip files that are included in the expanded zip file. Updating the printer firmware Warning—Potential Damage: Before updating the printer firmware, ask the next level of support for the correct code.
Page 8 7463 Using a network computer Using the File Transfer Protocol (FTP) Make sure that the printer is in ready state before flashing the printer. Turn on the printer. Obtain the IP address: • From the home screen • From the TCP/IP section of the Network/Ports menu From the command prompt of a network computer, open an FTP session to the printer IP address.
Page 9: Ribbon Cable Connectors
7463 Importing eSF solutions and settings file After replacing the controller board, import back to the printer the eSF solutions and settings that were exported. POR the printer into Invalid engine mode. See “Entering invalid engine mode” on page 369. Open a Web browser, and then type the printer IP address.
Page 10: Horizontal Top Contact Connector
7463 Horizontal top contact connector This FRU contains a horizontal top contact cable connector. Read the instructions before proceeding. The horizontal top contact connector uses a back flip locking actuator to lock the ribbon cable into the Zero Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector. Warning—Potential Damage: When opening or closing this type of actuator, gently lift or close the two tabs located on each end of the actuator.
Page 11 7463 Inserting a cable into the horizontal top contact connector When installing the cable, check the locking actuator to ensure it is in the unlocked position. The tabs on the ends of the actuator are vertical when the actuator is unlocked. Insert the cable with the contacts on the cable facing up.
Page 12 7463 Rotate the locking actuator to the locked position. The cable should not move while this step is performed. If the cable moves, open the actuator, reposition the cable, and then close the actuator to the down position. Repair information...
Page 13: Horizontal Bottom Contact Connector
7463 Horizontal bottom contact connector This FRU contains a horizontal bottom contact cable connector. Read the instructions before proceeding. The horizontal bottom contact connector uses a flip locking actuator to lock the ribbon cable into the Zero Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector. Warning—Potential Damage: When opening or closing this type of actuator, gently lift the center of the actuator using your finger.
Page 14 7463 Inserting a cable into the horizontal bottom contact connector Check the actuator to verify it is in the open position. Insert the cable into the ZIF connector with the contacts facing downward and away from the locking actuator. The cable needs to be inserted below the actuator.
Page 15 7463 Place your finger in the middle of the actuator, and then rotate the locking actuator to the locked position. Repair information...
Page 16: Vertical Mount Contact Connector
7463 Vertical mount contact connector This FRU contains a vertical mount contact connector. Read the instructions before proceeding. The vertical mount contact connector uses a back flip locking actuator to lock the ribbon cable into the Zero Insertion Force (ZIF) connector. The cable is inserted vertically into the connector. Warning—Potential Damage: When opening or closing this type of actuator, gently lift the center of the actuator using your finger.
Page 17 7463 Inserting a cable into the vertical mount contact connector When installing the cable, check the locking actuator to verify it is in the open position. Insert the cable with the contacts on the cable away from the locking actuator. Insert the cable on top of the actuator. Note: Verify that the cable is installed squarely into the connector.
Page 18 7463 Rotate the locking actuator to the locked position by pressing down on both ends of the actuator. The cable should not move when this step is performed. If the cable moves, open the actuator, reposition the cable, and then close the actuator to the down position.
Page 19: Horizontal Sliding Contact Connector
7463 Horizontal sliding contact connector This FRU contains a horizontal sliding contact connector. Read the instructions before proceeding. The horizontal sliding contact connector uses a slide locking actuator to lock the ribbon cable into the Zero Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector. Warning—Potential Damage: When opening or closing this type of actuator, gently push or pull the two tabs located on each end of the actuator.
Page 20 7463 Inserting a cable into the horizontal sliding contact connector When installing the cable, check the locking actuator to verify it is in the open position. If you are opening the connector, pull back on both end tabs using equal force to avoid breaking the connector. Insert the cable with the contacts on the cable facing away from the locking actuator.
Page 21 7463 Slide the locking actuator towards the connector, locking the cable into place. The cable should not move when this step is performed. If the cable moves, open the actuator, reposition the cable, and then close the actuator to the down position. Repair information...
Page 22 7463 Low Insertion Force (LIF) connector This FRU contains a Low Insertion Force (LIF) connector. Read the instructions before proceeding. Warning—Potential Damage: When installing a cable into an LIF connector, care must be taken to avoid bending the edges of the cables and damaging the contacts on the cables. Inserting a cable into the LIF connector Looking at the connector, take note on which side the contacts are located.
Page 23 7463 Adjustments Media aligner roller adjustment Complete the media aligner roller adjustment procedure when you replace the media aligner roller. Always print a copy of the Quick Test Page before making any adjustments to the media aligner roller reference adjustment screw. Note: When replacing the media aligner roller, back the reference adjustment screw out far enough to remove the old media aligner roller and install the new one.
Page 24: Polygon Printhead Mechanical Registration Adjustment
7463 Adjustment is typically 0-2 rotations. More than 3-4 turns, in either direction from the 20.5mm nominal spot, should not be necessary and may indicate other issues with the tray (such as problems with the back and side restraints), pick tires, or transfer roll mounting.
Page 25 7463 Install the new printhead with the mounting screws lightly tightened before printing the registration Quick Test Page to see if adjustment is needed. Before adjustment of the printhead, loosen each of the three mounting screws by a half turn. This will leave the screws loose enough to allow the printhead to move within its slots as the adjustment screw is rotated.
Page 26 7463 Locate the printhead adjustment screw access hole in the front of the printhead access cover. This will require a 3mm hex wrench to adjust. A ballhead hex wrench is suggested to make it easier to find the screw head. Check the Quick Test Page for any sign of misalignment by checking the diamonds at the bottom left and bottom right of the test page for equal distance from the bottom of the page.
Page 27 7463 Warning—Potential Damage: In some cases the adjustment process may take several tightening and loosening cycles of the printhead mounting screws. Care should be taken to avoid stripping the mounting screw bosses. Use only a manual hex head screwdriver, for this reason. When you have the correct adjustment, ensure that the printhead mounting screws are properly tightened, and print a final Quick Test Page for verification.
Page 28 7463 Rotate the deskew idle roll bracket (B) to correct the skew. After the skew has been corrected, tighten the two screws, and reinstall the ADF front cover. Repair information...
Page 29 7463 ADF front side skew adjustment (Second step) Determine which correction to apply. To correct, rotate the ADF adjustment screw clockwise. To correct, rotate the ADF adjustment screw counterclockwise. Note: One 360‑degree turn of the ADF adjustment screw equals approximately 0.4 mm of skew correction. Remove the ADF rear cover.
Page 30 7463 ADF back side skew adjustment Determine which correction to apply. To correct, rotate the CCDM adjustment screw counterclockwise. To correct, rotate the CCDM adjustment screw clockwise. Note: One 360‑degree turn of the CCDM adjustment screw equals approximately 0.8 mm of skew correction. Remove the ADF front cover.
Page 31: Media Squareness Check
7463 Media squareness check This test is critical when cut paper is being used to align the ADF skew during reworks. Pallets of quality paper may be found with more than 2 mm of skew. Remove two consecutive pieces of paper from the ream. Flip one of the pages over, as shown in the following image.
Page 32 7463 Look closely at the top edges of the media to see if the sheets are aligned. Print skew correction This test is critical when cut paper is being used to align the ADF skew during reworks. Pallets of quality paper may be found with more than 2 mm of skew.
Page 33 7463 Measure L1, L2, T1, T2, R1, R2, B1, and B2 data points as shown in the following image. Determine the following calculations: • L2-L1 = ___ • R2-R1 = ___ • T2-T1 = ___ • B2-B1 = ___ Determine whether the printer passes or fails the skew specifications based on the values listed in the following table: (L2-L1) (R2-R1)
Page 34 7463 If the printer does not meet the skew specifications, adjust the reference edge as specified in “Media aligner roller adjustment” on page 393 or adjust the printhead as specified in “Polygon printhead mechanical registration adjustment” on page 394 as needed. Check the registration by looking at the dots at the edges of the page.
Page 35: Scanner Calibration
7463 Determine whether the printer passes or fails the skew specifications based on the values listed in the following table: Measurement Specification Description (CopyL2‑CopyL1) Less than or equal to 2.0 mm Left skew (Copy R2‑CopyR1) Less than or equal to 2.0 mm Right skew (CopyT2‑CopyT1) Less than or equal to 1.5 mm...
Page 36 7463 Once the cleaning process is done, select Continue. When the Scanner Calibration Reset Action has Passed message displays, press the cancel button on the keypad to exit. Power off the unit. Registering the front ADF and back ADF Perform a print quick test. Navigate to Configuration mode >...
Page 37 7463 Register the front ADF: Set the printed target page into the paper tray facing up, and then navigate to Configuration mode > Scanner Manual Registration > Print Quick Test. Remove the copy of the target page from the printer. If the copy is spaced evenly on the top margin and both sides of the page, then the front side registration is complete.
Page 38 7463 Make adjustments as needed, and then select Submit. Load the test target page facing down in the ADF tray, and then select Copy Quick Test to check the results. Repeat steps a through e until the copy is evenly spaced on the top and both sides. Note: Once a test page with evenly spaced margins is generated, keep the copy as an aid in setting the ADF magnification.
Page 39 7463 Note: 110V units print letter size while 220V units print A4 size. Register the flatbed: Open the ADF, and then remove the flatbed glass cushion (A). Place the glass cushion on the flatbed scanner glass with its Velcro pads facing up, and aligning it squarely in the corner where the green arrow is located.
Page 40 7463 Remove the copy of the target page from the printer. If the copy is spaced evenly on the top and both sides, then the flatbed registration is complete. If the copy is not centered, then you will need to make an adjustment. Select Flatbed to make the flatbed adjustments.
Page 41 7463 Make adjustments as needed, and then select Submit. Load the target page in the ADF tray facing up, and then select Copy Quick Test to check the results. Repeat steps a through e until the copy is evenly spaced on the top and both sides. Note: Once a test page with evenly spaced margins is generated, keep the copy as an aid in setting the ADF magnification.
Page 42 7463 Retuning the ADF magnification Note: If the bottom arrows are touching the edge of the paper on both the front and the back side, the ADF scan magnification is good and you can skip this section. Power on the unit and perform an ADF Magnification test. Navigate to Diagnostic mode >...
Page 43 7463 Make the needed adjustment and then select Submit to save the settings. Select Back, and then select Scanner Calibration > Copy Quick Test to check the adjustments. Put the test target page in the ADF tray face up, and then select Copy Quick Test to check the Front ADF scan magnification.
Page 44: Removal Procedures
7463 The range of adjustment is from 1.020 to 0.980 in increments of 0.005. Make the needed adjustment and then select Submit to save the settings. Select Back, and then select Scanner Calibration > Copy Quick Test to check the adjustments. Put the test target page in the ADF tray face up, and then select Copy Quick Test to check the flatbed scan magnification.
Page 45 7463 Remove the screw (A) securing the column left front cover to the machine. Pull the column left front cover away from the machine, as showing in the following image, and remove it. Column left outer cover removal (MX81x) Remove the controller board access cover. See “Controller board access cover removal”...
Page 46 7463 Remove the two screws (A) securing the column left outer cover to the machine. Remove the column left outer cover. Left cover removal (MX71x) Open the front door. Pull the media tray from the machine. Raise the control panel to its uppermost position. Open the rear door.
Page 47 7463 Remove the eight screws (A) securing the left cover to the machine. Remove the left cover. Note: When removing the left cover, the charcoal filter might become detached. Repair information...
Page 48 7463 Installation note: When replacing the left cover, ensure that the charcoal filter is properly installed. Left cover removal (MX81x) Remove the controller board access cover. See “Controller board access cover removal” on page 423. Remove the rear door. See “Rear door removal”...
Page 49 7463 Remove the left cover. Note: When removing the left cover, the charcoal filter might become detached. Installation note: When replacing the left cover, ensure that the charcoal filter is properly installed. Repair information...
Page 50 7463 Left inner cover removal Open the front door. Pull the media tray from the machine. Raise the control panel to its uppermost position. Remove the rear door. See “Rear door removal” on page 549. Repair information...
Page 51: Top Cover Removal" On
7463 Detach the controller board access cover. Remove the rear lower cover. See “Rear lower cover removal” on page 551. Remove the top cover. See “Top cover removal” on page 561. Remove the three screws (A) securing the left inner cover to the machine. Repair information...
Page 52: Left Cover Removal (Mx71X)" On
7463 Remove the left inner cover. Controller board removal Notes: • Back up the eSF solutions and settings before replacing the controller board. For more information, see “Backing up eSF solutions and settings” on page 378 • If you are replacing the controller board, retain the flash card from the original controller board so that you can use it with the replacement controller board.
Page 53 7463 Remove the controller board cooling fan. See “Controller board cooling fan removal” on page 424. Disconnect all cables from the controller board. Remove the seven screws (A) securing the controller board to the machine. Remove the controller board. Installation note: Make sure you retain the flash card from the original controller board so that you can use it with the replacement controller board.
Page 54 7463 Controller board access shield removal Remove the left cover. See “Left cover removal (MX71x)” on page 416. Loosen the eight screws (A) securing the controller board access shield to the machine. Move the controller board access shield toward the front of the machine to remove it. Controller board cooling fan removal Remove the left cover.
Page 55: Rear Door Removal" On
7463 Remove the two screws (B), and then remove the fan. Fuser drive motor removal Remove the rear door. See “Rear door removal” on page 549. Remove the fuser. See “Fuser removal” on page 556. Remove the imaging unit from the machine. Remove the LVPS.
Page 56 7463 Remove the three screws (B) securing the fuser drive motor to the machine. Note: When removing the lowermost screw, the grounding plate will become detached. Disconnect the cable (C) from the fuser drive motor. Repair information...
Page 57: Main Cooling Fan Removal
7463 Remove the fuser drive motor. Installation notes: • When replacing the fuser drive motor, ensure that the grounding plate is properly reattached. • When replacing the fuser drive motor, ensure that the cable is properly reconnected. Main cooling fan removal Remove the left cover.
Page 58 7463 Disconnect the cable (C) from the controller board, and remove the main cooling fan. Main drive motor removal Installation warning: When replacing the main drive motor, make sure that the control panel door is in the closed position or the main drive motor will not align properly, and damage will occur. Remove the imaging unit from the machine.
Page 59: Rear Lower Cover Removal" On
7463 Remove the four screws (B) securing the main drive motor to the machine. Remove the main drive motor from the machine. Disconnect the cable from the main drive motor. Installation warning: When replacing the main drive motor, make sure that all gears and drive shafts are properly aligned, or damage will occur.
Page 60: Board Housing Removal" On
7463 Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the board housing. See “Board housing removal” on page 431. Remove the pick roller assembly. See “Pick roller assembly removal” on page 541. Remove the three screws (A) securing the media feeder to the machine. Note: Use care when removing the media feeder to avoid damage.
Page 61 7463 Board housing removal Note: When removing the board housing, the controller board will remain attached to the board housing. Remove the right cover. See “Right cover removal (MX71x)” on page 438. Remove the rear lower cover. See “Rear lower cover removal” on page 551.
Page 62 7463 Sensor (control panel interlock) removal Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the screw (A) securing the bracket to the machine. Remove the bracket from the machine. Disconnect the cable (B) from the sensor (control panel interlock), and remove it. Repair information...
Page 63 7463 Sensor (pick roller position) removal Remove the right cover. See “Right cover removal (MX71x)” on page 438. Remove the rear lower cover. See “Rear lower cover removal” on page 551. Remove the LVPS. See “LVPS removal” on page 445. Remove the left cover.
Page 64 7463 Disconnect the cable. Toner add motor removal Remove the right cover. See “Right cover removal (MX71x)” on page 438. Remove the rear lower cover. See “Rear lower cover removal” on page 551. Remove the LVPS. See “LVPS removal” on page 445.
Page 65 7463 Remove the toner add motor. Right side removals Column right inner cover removal Remove the right cover. See “Right cover removal (MX71x)” on page 438. Remove the two screws (A) securing the column right rear cover to the machine. Repair information...
Page 66 7463 Remove the column right rear cover. Remove the scanner rear lower cover. Remove the top cover. See “Top cover removal” on page 561. Remove the four screws (B) securing the column right inner cover to the machine. Repair information...
Page 67 7463 Remove the column right inner cover. Column right outer cover removal Remove the right cover. See “Right cover removal (MX71x)” on page 438. Remove the right inner cover. See “Column right inner cover removal” on page 435. Remove the four screws (A) securing the column right outer cover to the machine. Repair information...
Page 68 7463 Remove the column right outer cover. Disconnect the cables. Right cover removal (MX71x) Open the front door. Raise the operator panel to its uppermost position. Remove the rear door. See “Rear door removal” on page 549. Remove the rear lower cover. See “Rear lower cover removal”...
Page 69 7463 Remove the five screws (A) securing the right cover to the machine. Remove the right cover. Right cover removal (MX81x) Open the front door. Remove the media tray. Open the cartridge door. Repair information...
Page 70 7463 Remove the five screws (A) securing the right cover to the machine. Remove the right cover. Right inner cover removal (MX71x) Remove the right cover. See “Left inner cover removal” on page 420. Remove the three screws (A) securing the right inner cover to the machine. Remove the right inner cover.
Page 71 7463 Control panel speaker and speaker bracket removal (MX71x) Remove the right cover. See “Right cover removal (MX71x)” on page 438. Disconnect the speaker cable (A). Press down on the latch, and then pull to remove the speaker with the speaker bracket. Repair information...
Page 72 7463 Remove the speaker (B) from the speaker bracket (C). Cartridge cooling fan removal Remove the right cover. See “Right cover removal (MX71x)” on page 438. Remove the screw (A) securing the cartridge cooling fan to the machine. Remove the cartridge cooling fan. Repair information...
Page 73 7463 Disconnect the cable (B). Installation note: When replacing the cartridge cooling fan, ensure that it is installed as shown in the picture. Duplex cooling fan removal Remove the right cover. See “Right cover removal (MX71x)” on page 438. Remove the screw (A) securing the duplex cooling fan from the machine. Remove the duplex cooling fan.
Page 74 7463 Disconnect the cable (B). Installation note: When replacing the duplex cooling fan, ensure that it is installed as shown in the picture. HVPS removal Remove the right cover. See “Right cover removal (MX71x)” on page 438. Disconnect four cables (A) from the HVPS. Repair information...
Page 75: Lvps Removal
7463 Remove the four screws (B) securing the HVPS to the machine. Remove the HVPS. Installation notes: • When replacing the HVPS, make sure the plastic insulating shield is properly reattached. • When replacing the HVPS, make sure the cables are properly reattached. LVPS removal Remove the right cover.
Page 76 7463 Disconnect the main power cable (A) from the LVPS. While holding down the duplex rear flap, remove the two screws (B) securing the LVPS to the machine. Repair information...
Page 77 7463 Gently but firmly pull the LVPS partially from the machine, as shown in the following image. Disconnect the fuser power cable (C) from the LVPS. Repair information...
Page 78 7463 Remove the LVPS. Installation warning: When replacing the LVPS, ensure that the LVPS is perfectly square to the printer, as opposed to replacing it at an angle. If you try to replace the LVPS at an angle, damage will occur to the controller board.
Page 79 7463 Disconnect the main power cable (A) from the LVPS. Remove the two screws (B) securing the power switch to the machine. Repair information...
Page 80 7463 Remove the screw (C) securing the grounding cable. Remove the screw (D) securing the bracket to the machine. Repair information...
Page 81: Media Tray Removal" On
7463 Remove the power switch. Front side removals Duplex exit diverter removal Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the controller board access shield. See “Controller board access shield removal” on page 424. Remove the media tray. See “Media tray removal”...
Page 82 7463 Remove the spring (A). Move the duplex exit diverter to the right, and detach the left hinge point. Repair information...
Page 83 7463 Lift the right hinge point, and remove the duplex exit diverter. Front door removal Open the control panel. Lower the front door. Remove the MPF tray. See “MPF tray removal” on page 472. Repair information...
Page 84 7463 Gently flex the left bracket (A) and release the tab on the MPF support link. Gently flex the right bracket (B) and release the tab on the MPF support link. Repair information...
Page 85 7463 Slide the front door to the left, and detach it from the machine. Inner guide deflector removal Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the controller board access shield. See “Controller board access shield removal” on page 424.
Page 86 7463 Release the upper hooks on the inner guide deflector. Remove the inner guide deflector. Installation warning: Ensure that the four retention hooks (A) on the inner guide deflector are properly reattached. Repair information...
Page 87 7463 Laser printhead removal Installation note: When replacing the laser printhead, ensure that the proper adjustments are made. For more information, go to “Polygon printhead mechanical registration adjustment” on page 394. Open the control panel door. Remove the toner cartridge. Remove the two screws (A) securing the printhead access cover to the machine.
Page 88 7463 Remove all of the harnesses from the back side of the printhead access cover. Raise the paper support on top of the printer to provide access to the printhead mounting screws. Remove the three 5.5mm hex screws (B) securing the laser printhead to the machine. Note: For MX71x, the printhead mounting screws are located under the paper support which is located under the flatbed scanner.
Page 89 7463 Note: When removing the laser printhead, do not adjust the printhead adjuster screw until the new printhead has been installed. Gently lift and then remove the laser printhead from the machine. Repair information...
Page 90 7463 Disconnect the two cables from the laser printhead. Installation note: When the new laser printhead has been installed, complete the polygon printhead mechanical registration adjustment procedure, as needed. See “Polygon printhead mechanical registration adjustment” on page 394. Media aligner roller removal Installation warning: When you reinstall the media aligner roller, you will have to adjust the media alignment.
Page 91 7463 Remove the screw (B) securing the grounding wire to the media aligner roller. Locate the adjuster screw access hole in the controller board shield. Note: The adjuster screw is contained between the left frame and the drive plate; it will stay in place during media aligner roller replacement.
Page 92: Media Turn Guide Removal
7463 Gently detach the media aligner roller. Warning—Potential Damage: When removing the media aligner, ensure that you retain the attached spring. Media turn guide removal Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the controller board access shield. See “Controller board access shield removal”...
Page 93 7463 Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 465. Gently slide the media turn guide to the right to detach it from the machine. Remove the media turn guide. Installation note: When replacing the media turn guide, ensure that the alignment pin properly engages the media turn guide and that the alignment hooks properly engage the slots in the frame.
Page 94 7463 Open the control panel door. Remove the toner cartridge. Remove the imaging unit. Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 465. Remove the media turn guide. See “Media turn guide removal” on page 462.
Page 95 7463 MPF feeder lift plate removal Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the controller board access shield. See “Controller board access shield removal” on page 424. Remove the media tray. See “Media tray removal” on page 538.
Page 96 7463 Press down the plate, as shown in the following image, and remove the MPF feeder lift plate. Warning—Potential Damage: When you press down the plate, you are lowering the pick pad (B) away from the MPF feed roller to prevent damage. If you do not do this, the pick pad will likely become damaged. Installation warning: When replacing the MPF feeder lift plate ensure that the pick pad (B) is placed properly behind the MPF feed roller.
Page 97 7463 Disconnect the MPF pick solenoid cable - J3 (D). Disconnect the MPF feeder lift plate cable - J38 (E). Repair information...
Page 98 7463 Remove the MPF feeder lift plate. Installation warning: When replacing the MPF feeder lift plate, ensure that the MPF feeder lift plate cable and solenoid cable are properly rerouted and that all cables are properly reconnected. Make sure that these cables are not pinched between the MPF feeder lift plate and the frame before replacing the screws.
Page 99 7463 Remove the E-clip securing the MPF pick roller to the machine. Remove the flange. Repair information...
Page 100 7463 Remove the MPF pick roller. Remove the second flange. MPF solenoid removal Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the controller board access shield. See “Controller board access shield removal” on page 424. Repair information...
Page 101 7463 Disconnect the cable (A). Remove the media tray. See “Media tray removal” on page 538. Open the control panel door. Remove the toner cartridge. Remove the imaging unit. Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 465.
Page 102 7463 MPF tray removal Open the control panel. Lower the front door. Gently flex the left bracket and detach the left side of the MPF tray. Repair information...
Page 103 7463 Gently flex the right bracket and detach the right side of the MPF tray. Raise the MPF tray to a vertical position, and detach it from the machine. Sensor (input) removal Remove the left cover. See “Left cover removal (MX71x)” on page 416.
Page 104: Media Vertical Guide Removal
7463 Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 465. Remove the media turn guide. See “Media turn guide removal” on page 462. Remove the media vertical guide. See “Media vertical guide removal” on page 463.
Page 105: Left Cover Removal (Mx71X)" On Page
7463 Sensor (toner density) removal Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the controller board access shield. See “Controller board access shield removal” on page 424. Remove the media tray. See “Media tray removal” on page 538.
Page 106 7463 Disconnect the cable (B). Transfer roller left arm with cable removal Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the controller board access shield. See “Controller board access shield removal” on page 424. Remove the media tray. See “Media tray removal”...
Page 107 7463 Remove the screw (A) securing the part to the machine. Remove the transfer roller left arm with cable. Disconnect the cable (B) from the HVPS. Transfer roller right arm removal Remove the left cover. See “Left cover removal (MX71x)” on page 416.
Page 108 7463 Remove the front door. See “Front door removal” on page 453. Remove the toner cartridge. Remove the imaging unit. Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 465. Remove the media turn guide. See “Media turn guide removal”...
Page 109 7463 Remove the toner level contact. Remove the screw (B) securing the transfer roller right arm to the machine. Repair information...
Page 110 7463 Remove the transfer roller right arm. Transfer roller removal Open the control panel cover. Open the front door. Repair information...
Page 111 7463 Remove the toner supply. Remove the imaging unit. Repair information...
Page 112 7463 Release the transfer roller from the transfer roller right arm. Slowly raise the transfer roller until the smooth part of the gear clears the printer edge. Move the transfer roller to the right to disengage it from the transfer roller left arm. Warning—Potential Damage: Do not raise the right side of the transfer roller too far up.
Page 113 7463 10‑inch display (MX81x) removal Remove the controller board access cover. See “Controller board access cover removal” on page 423. Remove the rear door. See “Rear door removal” on page 549. Remove the left cover. See “Left cover removal (MX81x)” on page 418.
Page 114 7463 Remove the front scanner cover. Remove the control panel. See “Control panel removal (MX81x)” on page 491. Place the control panel upside down on a flat surface. Remove the six screws (B) securing the bottom cover to the assembly. Repair information...
Page 115 7463 Remove the bottom cover from the assembly. Remove the four screws (C) securing the ten-inch display to the assembly. Repair information...
Page 116 7463 Disconnect the three cables (D). Remove the ten‑inch display. Repair information...
Page 117 7463 10‑inch display (MX711) removal Remove the control panel. See “Control panel removal (MX71x)” on page 488. Remove the four screws (A) securing the display. Carefully lift the display, and then disconnect all the cables from the display. Warning—Potential Damage: Connections (B) under the display are prone to damage. Extra care is required in handling these parts.
Page 118 7463 Control panel removal (MX71x) Warning—Potential Damage: When replacing the control panel, control panel board, or controller board, replace only one component at a time. Replace the required component and perform a POR before replacing a second component. If this procedure is not followed, the printer will be rendered inoperable. Never replace both the control panel and the controller board without a POR after installing each one or the printer will be rendered inoperable.
Page 119 7463 Remove the screw (B) securing the grounding cable to the machine. Remove the e-clip (C) securing the pin to the hinge. Repair information...
Page 120 7463 Remove the pin. Raise the control panel to its uppermost position. Detach the two springs from the machine. Remove the control panel. Repair information...
Page 121 7463 Installation warning: When replacing the control panel, ensure that all cables are properly reconnected. Control panel removal (MX81x) Warning—Potential Damage: When replacing the control panel, control panel board, or controller board, replace only one component at a time. Replace the required component and perform a POR before replacing a second component.
Page 122 7463 Remove the front scanner cover. Repair information...
Page 123 7463 Remove the seven screws (B) securing the control panel to the machine. Repair information...
Page 124 7463 Disconnect the three cables (C) from the controller board. Remove the control panel. Control panel board removal (MX71x) Warning—Potential Damage: When replacing the control panel, control panel board, or controller board, replace only one component at a time. Replace the required component and perform a POR before replacing a second component.
Page 125 7463 Warning—Potential Damage: When a component has been installed in a machine and has been powered up in normal user mode, it cannot be used in another machine; it must be returned to the manufacturer. The machine must be powered up in Diagnostic mode or the controller board, control panel boards, or control panel will become locked.
Page 126 7463 Control panel board and display removal (MX711) Control panel board removal (MX71x) Warning—Potential Damage: When replacing the control panel, control panel board, or controller board, replace only one component at a time. Replace the required component and perform a POR before replacing a second component.
Page 127 7463 Remove the control panel board. 10‑inch display (MX711) removal Remove the control panel. See “Control panel removal (MX71x)” on page 488. Remove the four screws (A) securing the display. Carefully lift the display, and then disconnect all the cables from the display. Warning—Potential Damage: Connections (B) under the display are prone to damage.
Page 128 7463 Control panel board removal (MX81x) Warning—Potential Damage: When replacing the control panel, control panel board, or controller board, replace only one component at a time. Replace the required component and perform a POR before replacing a second component. If this procedure is not followed, the printer will be rendered inoperable. Never replace both the control panel and the controller board without a POR after installing each one or the printer will be rendered inoperable.
Page 129 7463 Remove the screw (A) securing the front scanner cover to the machine. Remove the front scanner cover. Remove the control panel. See “Control panel removal (MX81x)” on page 491. Place the control panel upside down on a flat surface. Repair information...
Page 130 7463 Remove the six screws (B) securing the bottom cover to the assembly. Remove the bottom cover from the assembly. Repair information...
Page 131 7463 Remove the five screws (C). Disconnect the five cables (D). Repair information...
Page 132 7463 Remove the control panel board. Control panel board and display removal (MX81x) Control panel board removal (MX81x) Warning—Potential Damage: When replacing the control panel, control panel board, or controller board, replace only one component at a time. Replace the required component and perform a POR before replacing a second component.
Page 133 7463 Remove the screw (A) securing the front scanner cover to the machine. Remove the front scanner cover. Remove the control panel. See “Control panel removal (MX81x)” on page 491. Place the control panel upside down on a flat surface. Repair information...
Page 134 7463 Remove the six screws (B) securing the bottom cover to the assembly. Remove the bottom cover from the assembly. Repair information...
Page 135 7463 Remove the five screws (C). Disconnect the five cables (D). Repair information...
Page 136 7463 Remove the control panel board. 10‑inch display (MX81x) removal Remove the controller board access cover. See “Controller board access cover removal” on page 423. Remove the rear door. See “Rear door removal” on page 549. Remove the left cover. See “Left cover removal (MX81x)”...
Page 137 7463 Remove the screw (A) securing the front scanner cover to the machine. Remove the front scanner cover. Remove the control panel. See “Control panel removal (MX81x)” on page 491. Place the control panel upside down on a flat surface. Repair information...
Page 138 7463 Remove the six screws (B) securing the bottom cover to the assembly. Remove the bottom cover from the assembly. Repair information...
Page 139 7463 Remove the four screws (C) securing the ten-inch display to the assembly. Disconnect the three cables (D). Repair information...
Page 140 7463 Remove the ten‑inch display. Control panel front cover removal Raise the control panel to its uppermost position. Repair information...
Page 141 7463 Remove the four screws (A) securing the control panel front cover to the machine. Remove the control panel front cover. Repair information...
Page 142 7463 Control panel latch removal Raise the control panel to its uppermost position. Remove the control panel front cover. See “Control panel front cover removal” on page 510. Release the two springs from the control panel frame. Carefully flex the corner of the control panel frame as shown in the following image. Note: Force is needed to properly remove the part.
Page 143 7463 Carefully remove the control panel latch. Control panel left bezel removal (MX71x) Remove the control panel front cover. See “Control panel front cover removal” on page 510. Raise the control panel to its uppermost position. Repair information...
Page 144 7463 Remove the two screws (A) securing the control panel left bezel to the machine. Remove the control panel left bezel. Repair information...
Page 145 7463 Control panel right bezel removal (MX71x) Remove the control panel front cover. See “Control panel front cover removal” on page 510. Remove the two screws (A) securing the control panel right bezel to the machine. Gently remove the control panel right bezel to gain access to the cables. Disconnect the three cables (B) from the board.
Page 146 7463 Remove the screw (C) securing the ground wires to the control panel right bezel. Remove the control panel right bezel. Left control panel hinge removal Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the right cover. See “Right cover removal (MX71x)”...
Page 147 7463 Remove the output bin sensor cover. See “Output bin sensor cover removal” on page 564. Remove the sensor (standard bin full) with actuator. See “Sensor (standard bin full) removal” on page 564. Remove the standard bin cover. See “Standard bin cover removal (MX71x)” on page 565.
Page 148 7463 Disconnect the USB cable (C) from the controller board. Remove the screw (D) securing the ground wire. Repair information...
Page 149 7463 Position the left control panel hinge as shown in the following image. Remove the left control panel hinge. Right control panel hinge removal Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the right cover. See “Right cover removal (MX71x)”...
Page 150 7463 Remove the output bin sensor cover. See “Output bin sensor cover removal” on page 564. Remove the sensor (standard bin full) with actuator. See “Sensor (standard bin full) removal” on page 564. Remove the standard bin cover. See .“Standard bin cover removal (MX71x)” on page 565.
Page 151 7463 Remove the screw (B) securing the ground wire. Position the right control panel hinge as shown in the following image. Repair information...
Page 152 7463 Remove the right control panel hinge. Tilting display removal (7‑inch and 10‑inch) Remove the control panel front cover. See “Control panel front cover removal” on page 510. Remove the control panel right bezel. Remove the screw (A) securing the cover to the control panel. Repair information...
Page 153 7463 Gently press the hinge inward to release it from the machine. Remove the tilting display. Repair information...
Page 154 7463 Remove the ground wire. Standard bin LED board removal Remove the two screws (A), and then remove the board cover. Repair information...
Page 155 7463 Disconnect the cable (B) and remove the board. Control panel cover removal Remove the control panel. See “Control panel removal (MX71x)” on page 488 “Control panel removal (MX81x)” on page 491. Remove the four screws (A), and then remove the cover. Repair information...
Page 156: 2 Remove The Control Panel Cover. See
7463 Push the latches inwards to release, and then remove the button. Remove all the control panel buttons. Control panel buttons removal Remove the control panel. See “Control panel removal (MX71x)” on page 488 “Control panel removal (MX81x)” on page 491.
Page 157 7463 Push the latches inwards to release, and then remove the button. Remove all the control panel buttons. Control panel speaker removal (MX81x) Remove the control panel. See “Control panel removal (MX81x)” on page 491. Remove the control panel cover. See “Control panel cover removal”...
Page 158: Table Of Contents
7463 USB cable removal Remove the control panel. See “Control panel removal (MX71x)” on page 488 “Control panel removal (MX81x)” on page 491. Remove the control panel cover. See “Control panel cover removal” on page 525. Remove the control panel speaker. See “Control panel speaker removal (MX81x)”...
Page 159 7463 Remove the two screws (A) securing the duplex to the machine. Gently lay the printer on its side. Remove the three screws (B) securing the duplex to the machine. Repair information...
Page 160 7463 Gently remove the duplex from the machine. Duplex (MX81x) removal Remove the top cover. See “Top cover removal” on page 561. Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the rear door. See “Rear door removal” on page 549.
Page 161 7463 Remove the two screws (A) securing the duplex to the machine. Gently lay the printer on its side. Remove the three screws (B) securing the duplex to the machine. Repair information...
Page 162 7463 Gently remove the duplex from the machine. Duplex front flap removal Warning—Potential Damage: When removing the duplex front flap, ensure that you retain the attached spring. Disconnect the machine from any input options. Carefully place the machine on its rear side so that the bottom of the machine is exposed, as shown in the following image.
Page 163 7463 Lower the duplex front flap to the angle shown in the following image, and gently detach it from the machine. Duplex rear flap removal Warning—Potential Damage: When removing the duplex rear flap, ensure that you retain the attached springs. Press down on the duplex rear flap, and remove the screw (A) securing the bracket to the machine.
Page 164 7463 Remove the bracket from the machine. Gently remove the duplex rear flap. Left frame extension removal (MX71x) Remove the left cover. See “Left cover removal (MX71x)” on page 416. Gently place the printer on its right side. Repair information...
Page 165 7463 Remove the two screws (A) securing the left frame extension to the machine. Release the two hooks (B). Repair information...
Page 166 7463 Remove the left frame extension. Disconnect the three cables from the controller board. Left frame extension removal (MX81x) Remove the controller board access cover. See “Controller board access cover removal” on page 423. Remove the controller board access shield. See “Controller board access shield removal”...
Page 167 7463 Remove the six screws (A) securing the left frame extension to the machine. Release the two hooks (B). Repair information...
Page 168 7463 Remove the left frame extension. Disconnect the cables from the controller board. Media tray removal Pull the media tray out from the machine until you meet resistance. Repair information...
Page 169 7463 Lift the media tray, as shown in the following image, and remove it from the machine. Media size actuator removal Remove the media tray. See “Media tray removal” on page 538. Pry the free end, and then swing the actuator. Repair information...
Page 170 7463 Press the free end to remove the actuator. Installation notes: Press the actuator into the square bar to attach it. Repair information...
Page 171 7463 Swing the actuator, and then press the free end to lock it in place. Pick roller assembly removal Remove the media tray. See “Media tray removal” on page 538. Lower the front duplex flap to gain access to the pick roller assembly. Note: When removing the pick roller assembly, avoid all contact with the roller surfaces, or paper jams might occur.
Page 172 7463 Sensor (duplex path) removal Disconnect the machine from any input options. Carefully place the machine on its rear side so that the bottom of the machine is exposed. Remove the three screws (A) securing the sensor (duplex path) to the machine. Remove the sensor (duplex path).
Page 173: Media Feeder Removal" On
7463 Sensor (tray 1 media out) removal Remove the right cover. “Right cover removal (MX71x)” on page 438. Remove the rear lower door. See “Rear lower cover removal” on page 551. Remove the LVPS. See “LVPS removal” on page 445. Remove the left cover.
Page 174 7463 Release the hooks (B) securing the sensor (tray 1 media out) to the media feeder. Remove the sensor (tray 1 media out). Repair information...
Page 175 7463 Separator roller assembly removal Remove the media tray from the machine. Press the button to release the separator roller assembly from the media tray. Remove the separator roller assembly. Right frame extension (MX71x) Remove the base machine from any input options. Remove the media tray.
Page 176 7463 Remove the two screws (A) securing the right frame extension to the machine. Repair information...
Page 177 7463 Release the two hooks (B) securing the right frame extension to the machine. Remove the right frame extension. Right frame extension removal (MX81x) Remove the controller board access cover. See “Controller board access cover removal” on page 423. Remove the controller board access shield. See “Controller board access shield removal”...
Page 178 7463 Remove the rear door. See “Rear door removal” on page 549. Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the right cover. See “Right cover removal (MX71x)” on page 438. Remove the rear lower door. See “Rear lower door removal (MX81x)”...
Page 179 7463 Remove the right frame extension. Rear side removals Rear door removal Open the rear door. Remove the screw (A) securing the rear door support strap to the machine. Repair information...
Page 180 7463 Remove the support strap. Slide the rear door away from the machine, and remove it. Repair information...
Page 181 7463 Rear lower cover removal Remove the rear door. See “Rear door removal” on page 549. Remove the two screws (A) securing the left frame pivot to the machine. Remove the left frame pivot. Repair information...
Page 182 7463 Remove the two screws (B) securing the rear lower cover. Gently pull the rear lower cover up and out to remove it. Rear lower door removal (MX81x) Remove the controller board access cover. See “Controller board access cover removal” on page 423.
Page 183 7463 Open the rear lower door. Remove the six screws (A) securing the rear lower door to the machine. Remove the rear lower door. Disconnect the cables from the controller board. Duplex motor removal Remove the paper tray from the machine. Remove the rear door.
Page 184 7463 Remove the three screws (A) securing the duplex motor to the machine. Position the printer so that you can access the bottom of the machine, as shown in the following image. Detach the drive belt from the pulley. Repair information...
Page 185 7463 Return the printer to the normal position, and remove the duplex motor. Disconnect the cable (B) from the control board. Installation note: When replacing the duplex motor, make sure the drive belt connected to the duplex is properly reattached. Repair information...
Page 186: Fuser Removal
7463 Fuser removal Warning—Potential Damage: Turn off the printer before removing the fuser to avoid overwriting the new fuser data with the old fuser data. CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.
Page 187 7463 Fuser access door removal Remove the rear door. See “Rear door removal” on page 549. Gently flex the fuser access door hinges. Pull the fuser access door away from the machine to remove it. Repair information...
Page 188 7463 Left frame pivot removal Remove the rear door. See “Rear door removal” on page 549. Remove the two screws (A) securing the left frame pivot to the machine. Remove the left frame pivot. Repair information...
Page 189 7463 Right frame pivot removal Remove the rear door. See “Rear door removal” on page 549. Remove the two screws (A) securing the right frame pivot to the machine. Remove the right frame pivot. Repair information...
Page 190 7463 Sensor (rear door interlock) removal Open the printer rear door. Remove the left cover. See “Left cover removal (MX71x)” on page 416. Using a flat-tip screwdriver, pry the sensor (rear door interlock) away from the machine. Note: It might take a small amount of force to remove the sensor (rear door interlock). Disconnect the cable (A) from the sensor (rear door interlock).
Page 191: Top Cover Removal" On
7463 Top side removals Top cover removal This procedure is only applicable to MX81x models. Gently lift the top cover from the machine. Remove the top cover. Cartridge door removal Remove the toner supply cartridge. Remove the imaging unit. Remove the left cover. See “Left cover removal (MX81x)”...
Page 192 7463 Remove the sensor cover. Remove the upper redrive. See “Upper redrive removal” on page 571. Remove the sensor (standard bin full) with actuator. See “Sensor (standard bin full) removal” on page 564. Remove the standard bin cover. See “Standard bin cover removal (MX81x)” on page 567.
Page 193 7463 Detach the two springs from the machine. Remove the cartridge door. Repair information...
Page 194 7463 Output bin sensor cover removal Open the rear door. Remove the screw (A). Remove the output bin sensor cover. Sensor (standard bin full) removal Open the control panel door. Open the rear door. Remove the sensor cover. Repair information...
Page 195: Left Cover Removal (Mx71X)" On
7463 Remove the screw (A) securing the sensor (standard bin full) to the machine. Remove the sensor (standard bin full). Disconnect the cable (B). Standard bin cover removal (MX71x) Remove the left cover. See “Left cover removal (MX71x)” on page 416.
Page 196 7463 Remove the sensor (standard bin full) with actuator. See “Sensor (standard bin full) removal” on page 564. Remove the four screws (A). Cut the two cable ties securing the cables to the bottom of the standard bin cover. Repair information...
Page 197 7463 Remove the standard bin cover. Standard bin cover removal (MX81x) Remove the left cover. See “Left cover removal (MX81x)” on page 418. Remove the right cover. See “Right cover removal (MX71x)” on page 438. Open the rear door. Remove the top cover. See “Top cover removal”...
Page 198 7463 Remove the sensor cover. Remove the upper redrive. See “Upper redrive removal” on page 571. Remove the sensor (standard bin full) with actuator. See “Sensor (standard bin full) removal” on page 564. Remove the five screws (B). Repair information...
Page 199: Rear Door Removal" On
7463 Remove the standard bin cover. Upper redrive motor removal Remove the rear door. See “Rear door removal” on page 549. For MX71x, remove the rear lower cover. See “Rear lower cover removal” on page 551. For MX81x, remove the rear lower door. See “Rear lower door removal (MX81x)”...
Page 200 7463 Remove the auto connector cable from the upper redrive motor bracket. Remove the seven screws (A) securing the upper redrive motor bracket. Disconnect the REDRIVE J104 cable from the controller board. Repair information...
Page 201 7463 Remove the upper redrive motor with cable. Upper redrive removal Open the rear door. For MX81x, remove the top cover. See “Top cover removal” on page 561. Open the fuser access door. Repair information...
Page 202 7463 Remove the two screws (A). Move the upper redrive down and away from the machine to remove it. ADF/scanner removals ADF/scanner assembly removal Remove the left cover. See “Left cover removal (MX71x)” on page 416. Remove the rear lower door. See “Rear lower door removal (MX81x)”...
Page 203 7463 On the right side of the machine, remove the four (A) screws securing the ADF/scanner assembly to the machine. Disconnect the two cables (B). On the left side of the machine, remove the eight (C) screws securing the ADF/scanner assembly to the machine. Repair information...
Page 204 7463 Loosen the six screws (D) securing the controller board shield to the machine. Remove the controller board shield. Remove the screw (E) securing the grounding bracket to the machine. Repair information...
Page 205 7463 Disconnect the two cables (F). Gently remove the ADF/scanner assembly from the machine. Repair information...
Page 206 7463 ADF removals ADF assembly removal Remove the ADF rear cover. See “ADF rear cover removal” on page 598. Remove the two screws (A) securing the two ground straps to the ADF. Disconnect the JICC1 and JADF1 cables from the ADF controller card. Pinch the snaps on the JICC1 and JADF1 cable router to release the cable router.
Page 207 7463 Open the ADF, and then lift to detach the ADF from the flatbed scanner. Installation note: Make sure to perform the following scanner calibration procedure after replacing the ADF assembly: Regenerate high frequency defect data. See “Regenerating high frequency defect data” on page 405.
Page 208 7463 Remove the screw (A) from the ground cable. Pinch the tabs on the ADF bottom door to open the ADF bottom door. Pry the hinge on the front (B) and rear (C) of the ADF bottom door to release the tabs. Remove the ADF bottom door.
Page 209 7463 ADF scanner CCD removal Remove the ADF front cover. See “ADF front cover removal” on page 587. Remove the ADF rear cover. See “ADF rear cover removal” on page 598. Remove the ADF input tray. See “ADF input tray removal” on page 589.
Page 210 7463 Remove the cable holder (C) and the three screws (D) securing the support brackets on the front of the ADF. Remove the top support bracket (E) then use a flat-head screw driver to remove the bottom support bracket (F). Push the ADF scanner frame away from the scanner CCD (1), and then carefully lift the front of the scanner CCD (2).
Page 211 7463 Remove the scanner CCD. Repair information...
Page 212 7463 ADF controller card removal Remove the ADF rear cover. See “ADF rear cover removal” on page 598. Remove all the cables from cable connectors on the ADF controller card. Remove the six screws (B) securing the ADF controller card, and then remove the ADF controller card. Repair information...
Page 213 7463 Installation note: When installing this part, check the firmware version installed in the printer. If the version installed is P132 and E215 or higher, then no further action is needed. If the version installed is lower than P132 and E215, then update the firmware to the latest version to maintain proper printer operation.
Page 214 7463 Remove the two screws (C) and the retaining bracket (D) securing the ADF door. Remove the ADF door. ADF feed belt removal Open the ADF door. Remove the ADF pick roller cover. See “ADF pick roller cover removal” on page 595.
Page 215 7463 Push down the feed belt, and then push the ADF feed belt to the left to release. ADF float plate with springs removal Open the ADF door. Repair information...
Page 216 7463 Pry the ADF float plate in three locations (A) on the right side. Set the paper deflector (B) aside, then pry the ADF float plate in three locations (C) on the left side. Remove the ADF float plate with springs (D). Repair information...
Page 217 7463 ADF front cover removal Raise the ADF assembly. Remove the two screws (A) at the bottom side of the ADF front cover. Open the ADF top cover. Remove the two screws (B) on the top side of the ADF front cover. Repair information...
Page 218 7463 Release the ADF front cover from the snaps. ADF front side drive parts pack removal Remove the ADF front cover. See “ADF front cover removal” on page 587. Remove the belt (A). Remove the two springs (B). Remove the c-clips (C). Remove the two screws (D).
Page 219 7463 Remove the mylar pads attached at the back of the sensor. Pinch the snap of the sensors (G) from the back to remove. ADF input tray removal Remove the ADF front cover. See “ADF front cover removal” on page 587.
Page 220 7463 Disconnect the JTRAY1 cable (A) from the ADF controller card. Remove the four screws (B) securing the ADF input tray. Repair information...
Page 221 7463 Remove the ADF input tray. ADF left hinge removal Remove the ADF rear cover. See “ADF rear cover removal” on page 598. Remove the ADF assembly. See “ADF assembly removal” on page 576. Remove the ADF rear side drive parts pack. See “ADF rear side drive parts pack removal”...
Page 222 7463 ADF left lower cover removal Open the ADF top door. Remove the four screws (A) securing the ADF rear cover. Open the ADF then loosen the ADF rear cover. Note: Do not completely remove the ADF rear cover. Repair information...
Page 223 7463 Slide the ADF left lower cover down to disengage it from the tabs on the ADF frame. Repair information...
Page 224 7463 Remove the ADF left lower cover. ADF lift tray removal Remove the ADF front cover. See “ADF front cover removal” on page 587. Remove the ADF rear cover. See “ADF rear cover removal” on page 598. Remove the ADF left lower cover. See “ADF left lower cover removal”...
Page 225 7463 Lift and slide the ADF lift tray to remove. ADF pick roller cover removal Open the ADF top cover. Repair information...
Page 226 7463 Press the two latches on the ADF pick roller cover, and then remove the ADF pick roller cover (A). ADF pick roller removal Open the ADF door. Remove the pick roller cover. See “ADF pick roller cover removal” on page 595.
Page 227 7463 Slide the pick roller to remove. ADF push button switch sensor removal Remove the ADF rear cover. See “ADF rear cover removal” on page 598. Remove the cable (A) attached to the push button switch sensor. Repair information...
Page 228 7463 Pinch the tabs on the push button switch sensor to remove. ADF rear cover removal Open the ADF top cover. Repair information...
Page 229 7463 Remove the four screws (A) securing the ADF rear cover. Remove the ADF rear cover. Repair information...
Page 230 7463 ADF rear side drive parts pack removal Remove the ADF rear cover. See “ADF rear cover removal” on page 598. Disconnect the two connectors (A). Remove the seven screws (B) securing the ADF rear side drive parts pack. Remove the ADF rear side drive parts pack. ADF right hinge removal Remove the ADF rear cover.
Page 231 7463 Remove the ADF right hinge (B). ADF separation guide removal Open the ADF top cover. Remove the four screws (A) securing the ADF separation guide. Repair information...
Page 232 7463 Remove the ADF separation guide (B). ADF separator roller removal Open the ADF top cover. Repair information...
Page 233 7463 Remove the ADF separator roller access cover. Press the latch on the ADF separator roller to release it from the shaft. Repair information...
Page 234 7463 Remove the ADF separator roller. Installation note: Make sure the separator roller is properly secured to the shaft. An improperly installed roller will jam the ADF and cause a 295 error. Align the notch on the left with the protrusion on the shaft. Push in the separator roller.
Page 235 7463 Remove the screw (A) securing the sensor. Pull the sensor bracket to access the sensor. Disconnect the cable (B). Release the latches securing the sensor to the bracket, and then remove the sensor. Sensor (ADF elevator tray home position) removal Remove the ADF rear cover.
Page 236 7463 Disconnect the cable (A). Sensor (ADF lower door interlock) removal Remove the ADF front cover. See “ADF front cover removal” on page 587. Remove the ADF rear cover. See “ADF rear cover removal” on page 598. Remove the ADF input tray. See “ADF input tray removal”...
Page 237 7463 Remove the mylar and release the hooks securing the sensor (ADF lower door interlock) to the machine. Remove the sensor (ADF lower door interlock). Disconnect the cable (A). Sensor (ADF top door interlock) removal Remove the ADF front cover. See “ADF front cover removal”...
Page 238 7463 Remove the mylar and release the hooks securing the sensor (ADF top door interlock) to the machine. Remove the sensor (ADF top door interlock). Disconnect the cable (A). ADF tray lift drive removal Remove the ADF front cover. See “ADF front cover removal”...
Page 239 7463 Remove the ADF lift tray. See “ADF lift tray removal” on page 594. Remove the input tray. See “ADF input tray removal” on page 589. Remove the JELEV1 cable (A) from the ADF controller card. Remove the three screws (B) and the c-clip (C) on the rear of the ADF tray lift drive. Repair information...
Page 240 7463 Remove the bushing (D), motor (E), and gear (F). Remove the second bushing (G) underneath the gear from the rear of the ADF tray lift drive. Repair information...
Page 241 7463 Remove the c-clip (H) and bushing (I) from the front of the ADF tray lift drive. Pull then lift the ADF tray lift drive shaft to remove. Repair information...
Page 242 7463 Bin extension removal Pull the bin extension to remove it. Deskew idler shaft removal Open the ADF door. Repair information...
Page 243 7463 Remove the e-clip securing the deskew idler shaft from the inside of the ADF. Remove the ADF front cover. See “ADF front cover removal” on page 587. Remove the e-clip securing the deskew idler shaft from the front of the ADF. Remove the deskew idler shaft.
Page 244 7463 Remove the e-clip (A) on the first scan roll drive gear. Remove the first scan roll drive gear (B). Interrupt with flag sensor (ADF 2nd scan) removal Remove the ADF front cover. See “ADF front cover removal” on page 587.
Page 245 7463 Disconnect the interrupt with flag sensor cable (B) to remove the interrupt with flag sensor. Interrupt with flag sensor (ADF media exit) removal Remove the ADF front cover. See “ADF front cover removal” on page 587. Remove the ADF rear cover. See “ADF rear cover removal”...
Page 246 7463 Remove the ADF input tray. See “ADF input tray removal” on page 589. Remove the ADF lift tray. See “ADF lift tray removal” on page 594. Disconnect the cable (A) from the sensor. Remove the mylar, and then pinch the snap of the sensor to remove. Repair information...
Page 247 7463 Magnetic clutch removal Remove the ADF rear cover. See “ADF rear cover removal” on page 598. Disconnect the JDSKW1 cable (A) from the ADF controller card. Remove the ADF rear side drive parts pack. See “ADF rear side drive parts pack removal” on page 600.
Page 248 7463 Multifeed sensor parts kit removal Remove the ADF front cover. See “ADF front cover removal” on page 587. Remove the ADF rear cover. See “ADF rear cover removal” on page 598. Remove the ADF left lower cover. See “ADF left lower cover removal” on page 592.
Page 249 7463 Release the ADF door cover from the snaps. Disconnect the cable (B) from the interface card. Remove the three screws (C). Remove the ADF separation guide. Remove the three screws (D). Repair information...
Page 250 7463 Disconnect the cable (E) from the multifeed sensor parts kit. Sensor (ADF gap detect) removal Open the ADF door. Remove the pick roller cover. See “ADF pick roller cover removal” on page 595. Remove the screw (A) securing the sensor (ADF gap detect) to the assembly. Repair information...
Page 251 7463 Using pliers, gently remove the sensor (ADF gap detect) from the assembly. Disconnect the cable (B). Sensor (ADF media present) removal Remove the ADF front cover. See “ADF front cover removal” on page 587. Remove the ADF rear cover. See “ADF rear cover removal”...
Page 252 7463 Remove the ADF lift tray. See “ADF lift tray removal” on page 594. Disconnect the cable from the controller board. Push the sensor to remove. Sensor (ADF pick) removal Open the ADF top cover. Remove the separation guide. Remove the ADF separator roll. Disconnect the cable from the sensor.
Page 253 7463 Remove the screw (A) from the sensor. Sensor (ADF skew detect) removal Open the ADF top cover. Remove the separation guide. Remove the ADF separator roll. Disconnect the cable from the sensor. Repair information...
Page 254 7463 Remove the screw (A) from the sensor. Separation roll drive gear (29t) removal Remove the ADF rear cover. See “ADF rear cover removal” on page 598. Remove the ADF rear side drive parts pack. See “ADF rear side drive parts pack removal” on page 600.
Page 255 7463 Remove the separation roll drive gear (B). Flatbed scanner removals Scanner unit removal Remove the controller board cover. Remove the controller board shield. Remove the J51 cable (A) and JADF1 cable (B) from the controller board. Remove the flatbed scanner left cover. Remove the column left outer cover.
Page 256 7463 Remove the column left front cover. Remove the flatbed scanner front cover. Remove the flatbed scanner right cover. Take out the J51 cable (C) and JADF1 cable (D). Remove the control panel. Note: Do not disconnect the cables and do not entirely remove the control panel from the machine. Remove the four screws (E) securing the flatbed scanner on the left of the machine.
Page 257 7463 Remove the four screws (F) securing the flatbed scanner on the right of the machine. Remove the scanner unit assembly. Flatbed scanner assembly removal Remove the ADF assembly. See “ADF assembly removal” on page 576. Remove the printer left cover. See “Left cover removal (MX71x)”...
Page 258 7463 Disconnect the JADF1 and J51 cables (A) from the printer controller card, and then remove the cables from the frame. Remove the six screws (B) securing the flatbed assembly on the left side of the printer. Remove the printer right cover. See “Right cover removal (MX71x)”...
Page 259 7463 Disconnect the speaker cable (C) and bin LED cable (D), and then remove the four screws (E) securing the flatbed scanner assembly on the right side of the printer. Remove the four screws (E) securing the flatbed assembly on the right side of the printer. Open the printer rear door.
Page 260 7463 Flatbed scanner front cover removal Flatbed scanner front cover removal (MX71x) Remove the ADF assembly. Pry the edge of the ADF front cover to disengage the snaps. Unsnap the flatbed front cover from the rest of the tabs on the flatbed scanner glass assembly. Repair information...
Page 261 7463 Flatbed scanner front cover removal (MX81x) Open the ADF. Remove the screw (A) securing the front scanner cover to the machine. Slide the flatbed scanner front cover to the right, and then pull to remove. Repair information...
Page 262 7463 Flatbed glass cushion removal Open the ADF. Remove the flatbed glass cushion. Repair information...
Page 263 7463 Flatbed scanner left cover removal topic Flatbed scanner left cover removal (MX71x) Remove the ADF assembly. See “ADF assembly removal” on page 576. Slide the flatbed scanner left cover to the rear, and then slide out to remove. Flatbed scanner left cover removal (MX81x) Open the ADF.
Page 264 7463 Flatbed scanner right cover removal Flatbed scanner right cover removal (MX71x) Remove the ADF assembly. See “ADF assembly removal” on page 576. Slide the flatbed right cover to the rear, and then remove the flatbed scanner right cover. Flatbed scanner right cover removal (MX81x) Open the ADF.
Page 265 7463 Remove the flatbed left cover. See “Flatbed scanner left cover removal topic” on page 633. Remove the flatbed right cover. See “Flatbed scanner right cover removal” on page 634. Remove the flatbed front cover. See “Flatbed scanner front cover removal” on page 630.
Page 266 7463 Move the flatbed CCD scanner until it exits completely from the other shaft. Release the flatbed CCD scanner from the belt. Installation note: Make sure that the belt grooves are in full contact with the CCD grooves. Repair information...
Page 267 7463 Unlock the cable connector, and then disconnect the FFC from the flatbed CCD scanner. Repair information...
Page 268 7463 Route off the FFC from the flatbed CCD scanner to completely remove. Flatbed scanner drive parts kit removal Remove the ADF/scanner assembly from the base printer. See “ADF/scanner assembly removal” on page 572. Remove the ADF assembly from the flatbed scanner assembly. See “ADF assembly removal”...
Page 269 7463 Remove the ground strap (B). Disconnect the cable (C) from the motor. Slide off one end of the shaft, and then remove the two screws (D). Repair information...
Page 270 7463 Remove the tension belt (E). Remove the two c-clips (F). Remove the two gears (G). Repair information...
Page 271 7463 Flatbed scanner glass removal Remove the ADF/scanner assembly from the base printer. See “ADF/scanner assembly removal” on page 572. Remove the ADF assembly from the flatbed scanner assembly. See “ADF assembly removal” on page 576. Remove the flatbed left cover. See “Flatbed scanner left cover removal topic”...
Page 272 7463 Remove the three screws (C) at the left side. Remove the three screws (D) at the right side. Repair information...
Page 273 7463 Raise the flatbed scanner glass to remove. Flatbed scanner board removal Remove the ADF/scanner assembly from the base printer. See “ADF/scanner assembly removal” on page 572. Remove the ADF assembly from the flatbed scanner assembly. See “ADF assembly removal” on page 576.
Page 274 7463 Remove the screw (B) securing the flatbed scanner board. Flatbed tension pulley with belt removal Remove the ADF/scanner assembly from the base printer. See “ADF/scanner assembly removal” on page 572. Remove the ADF assembly from the flatbed scanner assembly. See “ADF assembly removal”...
Page 275 7463 Loosen the adjustment screw (A). Pull the belt to right, and then tighten the adjustment screw. Remove the belt. Repair information...
Page 276 7463 Remove the screw (B) securing the tension pulley. Installation notes: Loosen the adjustment screw (A). Repair information...
Page 277 7463 Squeeze the pulley, and then tighten the adjustment screw. Install the pulley by tightening the screw (B). Install the belt on the gear. Repair information...
Page 278 7463 Loosen the adjustment screw again to tighten the belt. Tighten the adjustment screw again. 250/550-sheet media tray option removals (MX710 and MX711) 250/550-sheet media tray option removal Push the latch to unlock the drawer, then lift the printer or drawer above it, and separate. Media tray separation roller removal Press and hold the button (1), then pull the separation roller (2) and remove.
Page 279 7463 Media tray assembly removal Fully extend the tray, then tilt it upward and remove. Media tray front cover removal Remove the media tray. See “250/550-sheet media tray option removal” on page 648. Remove the two screws (A) securing the front tray cover. Release the tabs (B) at the bottom, then remove the front tray cover.
Page 280 7463 Drawer pick roller removal Remove the media tray. See “250/550-sheet media tray option removal” on page 648. Move the rollers downward (1), then push the latches inward (2), and pull out the pick roller (3). Sensor (pick roll position) removal Remove the media tray.
Page 281 7463 Disconnect the cable (B), and remove the sensor (pick roller position). Drawer assembly rear cover removal Note: This is not a FRU. Remove the four screws (A), then remove the rear cover. Repair information...
Page 282 7463 Drawer assembly left cover removal Note: This is not a FRU. Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal” on page 651. Remove the five screws (A) from the left cover. Repair information...
Page 283 7463 Remove the three screws (B) from the bottom of the left cover. Pull the left cover, and remove. Drawer controller board removal Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal” on page 651. Remove the drawer assembly left cover. See “Drawer assembly left cover removal”...
Page 284 7463 Remove the controller board. Drawer upper interface cable removal Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal” on page 651. Remove the drawer assembly left cover. See “Drawer assembly left cover removal” on page 652. Remove the tray controller board.
Page 285 7463 Crimp both connector studs (A) using a pliers to make them fit to the holes. Push the connector off its slot. Route the upper interface cable off the drawer, and remove. Note: Pay attention to the original routing of the cable. Drawer lower interface cable removal Remove the drawer assembly rear cover.
Page 286 7463 Push the tabs inward, then push the connector off its slot. Route the interface cable off the drawer, and remove. Note: Pay attention to the original routing of the cable. Drawer media feeder removal Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal”...
Page 287 7463 Remove the three screws from the media feeder using a #1 Phillips screwdriver. To remove the media feeder, take note of the following: • While pushing the media feeder upward, clear the obstacle points (B). Repair information...
Page 288 7463 • While pushing the media feeder upward, release the tab (C) by pulling the feeder backward. Warning—Potential Damage: Ease the media feeder off the drawer. Be careful not to damage the media feeder. Drawer transport motor removal Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal”...
Page 289 7463 Remove the two screws (A) using a #1 Phillips screwdriver. Route the cable off the drawer, then remove the transport motor. Sensor (drawer pass through) removal Remove the media tray. See “250/550-sheet media tray option removal” on page 648. Remove the rear cover.
Page 290 7463 Remove the seven screws (A) under the drawer. From the left side of the drawer, remove the nine screws (B). Repair information...
Page 291 7463 Pry the frame loose to release the pins (C). To access the cable, lift the left side of the top plate, and pull the sensor assembly away from the drawer. Note: Pay attention to the original routing of the cable. Route the sensor cable off the drawer, and remove the sensor.
Page 292 7463 Disconnect and release the cables (J4, J8 and J7) from the controller board. Note: Pay attention to the original position of the cables. Remove the six screws (A) under the drawer. Repair information...
Page 293 7463 From the left side of the drawer, remove the nine screws (B). Pry the frame loose to release the pins (C). Repair information...
Page 294 7463 To access the cable, lift the left side of the top plate, and pull the sensor assembly away from the drawer. Note: Pay attention to the original routing of the cable. Route the sensor cable off the drawer, and remove the sensor. High capacity input tray option removals (MX710 and MX711) High capacity input tray option removal Push the latch sideward until it locks.
Page 295 7463 HCIT removal Fully extend the tray, then press the left and right latches to release the tray. Pull the media tray out of the drawer. HCIT drawer assembly removal Remove the HCIT. See “HCIT removal” on page 665. The drawer remains. Repair information...
Page 296 7463 HCIT separator roller assembly removal Press and hold the button. Pull the separator roller assembly and remove. Repair information...
Page 297 7463 HCIT media guide removal Pull the media guide out of the tray. Remove the media guide. Repair information...
Page 298 7463 HCIT front cover removal Remove the HCIT. See “HCIT removal” on page 665. Remove the three screws (A) behind the media tray front cover. Repair information...
Page 299 7463 Remove the three screws (B) behind the cover at the other side. Release the latches, and remove the media tray front cover. Repair information...
Page 300 7463 HCIT pick roller assembly removal Remove the HCIT. See “HCIT removal” on page 665. Push the latches inward (1), and pull out the pick roller assembly (2). Repair information...
Page 301 7463 HCIT rear cover removal Note: This is not a FRU. Remove the four screws (A) from the rear cover. Flex the cover to release the tabs securing the upper portion. Ease the rear cover off the drawer, and remove. Repair information...
Page 302 7463 HCIT left cover removal Remove the HCIT rear cover. See “HCIT rear cover removal” on page 671. Remove the two screws (A) from the front side of the cover. Remove the two screws (B) from the top side of the cover. Repair information...
Page 303 7463 Remove the two screws (C) from the rear side of the cover. Remove the left cover. Repair information...
Page 304 7463 HCIT right cover removal Remove the HCIT rear cover. See “HCIT rear cover removal” on page 671. Remove the two screws (A) from the front side of the cover. Repair information...
Page 305 7463 Remove the two screws (B) from the top side of the cover. Remove the two screws (C) from the rear side of the cover. Repair information...
Page 306 7463 Pull the tab to release, then remove the right cover. HCIT controller board removal Remove the HCIT rear cover. See “HCIT rear cover removal” on page 671. Remove the HCIT left cover. See “HCIT left cover removal” on page 672.
Page 307 7463 Remove the controller board. Installation note: Make sure the controller board is properly mounted by aligning the pins (B). HCIT top cover assembly removal Note: This is not a FRU. Remove the HCIT rear cover. See “HCIT rear cover removal” on page 671.
Page 308 7463 Remove the ground screw (A). Remove the 11 screws (B), then remove the top cover. Repair information...
Page 309 7463 HCIT lift drive motor removal Remove the HCIT rear cover. See “HCIT rear cover removal” on page 671. Remove the HCIT right cover. See “HCIT right cover removal” on page 674. Disconnect the drive motor cable (B), then remove the four screws (A) from the drive motor frame. Repair information...
Page 310 7463 Remove the other four screws (C) from the front side of the frame. Repair information...
Page 311 7463 Lift the motor cover, and remove the two screws (D) using a #1 Phillips screwdriver. Remove the lift drive motor. HCIT interface cable removal Remove the HCIT rear cover. See “HCIT rear cover removal” on page 671. Remove the HCIT left cover. See “HCIT left cover removal”...
Page 312 7463 Crimp both connector pins (A) using pliers to make them fit through the pin holes. Push the connector off its slot. Route the interface cable off the drawer, and remove. Note: Pay attention to the original routing of the cable. Sensor (HCIT media low) with flag removal Remove the HCIT.
Page 313 7463 Disconnect the cable (B), and remove the sensor. Flex the brace to release, then remove the flag. Sensor (HCIT pick roller position) removal Remove the HCIT. See “HCIT removal” on page 665. Remove the HCIT rear cover. See “HCIT rear cover removal” on page 671.
Page 314 7463 Release the latches (A) holding the sensor to the media feeder. Repair information...
Page 315 7463 Disconnect the cable (B), and remove the sensor. Sensor (HCIT pick) removal Remove the HCIT. See “HCIT removal” on page 665. Remove the HCIT rear cover. See “HCIT rear cover removal” on page 671. Remove the HCIT left cover. See “HCIT left cover removal”...
Page 316 7463 Remove the screw (A) securing the sensor. Release the cable from its cable holders, then remove the sensor. HCIT media feeder removal Remove the HCIT. See “HCIT removal” on page 665. Remove the HCIT rear cover. See “HCIT rear cover removal” on page 671.
Page 317 7463 Remove the screw (A) securing the feeder to the top. Disconnect the two cables (B) from the media feeder. Remove the six screws (C) securing the media feeder. Repair information...
Page 318 7463 With a prying tool, release the spring to loosen the link (D). Lift the media feeder and release the link holding the media feeder. Ease the media feeder off the drawer, and remove. 550-sheet media tray option removals (MX810, MX811, and MX812) 550-sheet media tray option removal Push the latch to unlock the drawer.
Page 319 7463 Media tray separation roller removal Press and hold the button (1), then pull the separation roller (2) and remove. Media tray assembly removal Fully extend the tray. Tilt it upward, and then remove. Media tray front cover removal Remove the media tray. See “Media tray assembly removal”...
Page 320 7463 Release the tabs (B) at the bottom, then remove the front tray cover. Drawer pick roller removal Remove the media tray. See “550-sheet media tray option removal” on page 688. Move the rollers downward (1), then push the latches inward (2), and pull out the pick roller (3). Sensor (pick roll position) removal Remove the media tray.
Page 321 7463 Disconnect the cable (B), and remove the sensor. Drawer assembly rear cover removal Note: This is not a FRU. Remove the four screws (A), then remove the rear cover. Repair information...
Page 322 7463 Drawer assembly left cover removal Note: This is not a FRU. Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal” on page 691. Remove the five screws (A) from the left cover. Repair information...
Page 323 7463 Remove the three screws (B) from the bottom of the left cover. Pull the left cover, and remove. Drawer controller board removal Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal” on page 691. Remove the drawer assembly left cover. See “Drawer assembly left cover removal”...
Page 324 7463 Remove the controller board. Drawer upper interface cable removal Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal” on page 691. Remove the drawer assembly left cover. See “Drawer assembly left cover removal” on page 692. Remove the tray controller board.
Page 325 7463 Crimp both connector studs (A) using a pliers to make them fit to the holes. Push the connector off its slot. Route the upper interface cable off the drawer, and remove. Note: Pay attention to the original routing of the cable. Drawer lower interface cable removal Remove the drawer assembly rear cover.
Page 326 7463 Push the tabs inward, then push the connector off its slot. Route the interface cable off the drawer, and remove. Note: Pay attention to the original routing of the cable. Drawer media feeder removal Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal”...
Page 327 7463 Remove the three screws from the media feeder using a #1 Phillips screwdriver. To remove the media feeder, take note of the following: • While pushing the media feeder upward, clear the obstacle points (B). Repair information...
Page 328 7463 • While pushing the media feeder upward, release the tab (C) by pulling the feeder backward. Warning—Potential Damage: Ease the media feeder off the drawer. Be careful not to damage the media feeder. Drawer transport motor removal Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal”...
Page 329 7463 Remove the two screws (A) using a #1 Phillips screwdriver. Route the cable off the drawer, then remove the lift plate drive motor. Sensor (drawer pass through) removal Remove the media tray. See “550-sheet media tray option removal” on page 688.
Page 330 7463 Remove the seven screws (A) under the drawer. From the left side of the drawer, remove the nine screws (B). Repair information...
Page 331 7463 Pry the frame loose to release the pins (C). To access the cable, lift the left side of the top plate, and pull the sensor assembly away from the drawer. Note: Pay attention to the original routing of the cable. Route the sensor cable off the drawer, and remove the sensor.
Page 332 7463 Disconnect and release the cables (J4, J8 and J7) from the controller board. Note: Pay attention to the original position of the cables. Remove the six screws (A) under the drawer. Repair information...
Page 333 7463 From the left side of the drawer, remove the twelve screws (B). Pry the frame loose to release the pins (C). Repair information...
Page 334 7463 To access the cable, lift the left side of the top plate, and pull the sensor assembly away from the drawer. Note: Pay attention to the original routing of the cable. Route the sensor cable off the drawer, and remove the sensor. High capacity input tray option removals (MX810, MX811, and MX812) High capacity input tray option removal...
Page 335 7463 HCIT removal Fully extend the tray, then press the left and right latches to release the tray. Pull the media tray out of the drawer. HCIT drawer assembly removal Remove the HCIT. See “HCIT removal” on page 705. The drawer remains. Repair information...
Page 336 7463 HCIT separator roll assembly removal Press and hold the button (1), then pull the separator roll assembly and remove (2). HCIT media guide removal Pull the media guide out of the tray, and remove. Repair information...
Page 337 7463 HCIT front cover removal Remove the HCIT. See “HCIT removal” on page 705. Remove the three screws (A) behind the media tray front cover. Remove the three screws (B) behind the cover at the other side. Repair information...
Page 338 7463 Release the latches, and remove the media tray front cover. HCIT pick arm assembly removal Remove the HCIT. See “HCIT removal” on page 705. Push the latches inward (1), and pull out the pick arm assembly (2). Repair information...
Page 339 7463 HCIT drawer assembly rear cover removal Note: This is not a FRU. Remove the four screws (A) from the drawer rear cover. Ease the drawer assembly rear cover off the drawer, and remove. HCIT drawer assembly left cover removal Remove the drawer assembly rear cover.
Page 340 7463 Remove the two screws (B) from the top side of the cover. Remove the left cover. HCIT drawer assembly right cover removal Remove the drawer assembly rear cover. See “HCIT drawer assembly rear cover removal” on page 709. Remove the two screws (A) from the front side of the cover. Repair information...
Page 341 7463 Remove the two screws (B) from the top side of the cover. Remove the right cover. HCIT controller board removal Remove the drawer assembly rear cover. See “HCIT drawer assembly rear cover removal” on page 709. Remove the drawer assembly left cover. See “HCIT drawer assembly left cover removal”...
Page 342 7463 Remove the controller board. Installation note: Make sure the controller board is properly mounted by aligning the pins (B). HCIT top cover assembly removal Note: This is not a FRU. Remove the drawer assembly rear cover. See “HCIT drawer assembly rear cover removal” on page 709.
Page 343 7463 Remove the ground screw (A). Remove the 11 screws (B), then remove the top cover. Repair information...
Page 344 7463 HCIT lift drive motor removal Remove the HCIT drawer assembly rear cover. See “HCIT drawer assembly rear cover removal” on page 709. Remove the HCIT drawer assembly right cover. See “HCIT drawer assembly right cover removal” on page 710. Disconnect the drive motor cable (B), then remove the four screws (A) from the drive motor frame.
Page 345 7463 Remove the other four screws (C) from the front side of the frame. Repair information...
Page 346 7463 Lift the motor cover, and remove the two screws (D) using a #1 Phillips screwdriver. Remove the tray lift drive motor. HCIT drawer assembly interface cable removal Remove the HCIT drawer assembly rear cover. See “HCIT drawer assembly rear cover removal” on page 709.
Page 347 7463 Crimp both connector pins (A) using pliers to make them fit through the pin holes. Push the connector off its slot. Route the interface cable off the drawer, and remove. Note: Pay attention to the original routing of the cable. Sensor (HCIT closed) with flag removal Remove the HCIT.
Page 348 7463 Disconnect the cable (B), and remove the sensor (HCIT closed). Flex the brace to release, then remove the flag. Sensor (pick roll position) removal Remove the HCIT. See “HCIT removal” on page 705. Remove the drawer assembly rear cover. See “HCIT drawer assembly rear cover removal”...
Page 349 7463 Release the latches (A) holding the sensor to the media feeder. Repair information...
Page 350 7463 Disconnect the cable (B), and remove the sensor (roller position). Sensor (HCIT pick) removal Remove the HCIT. See “HCIT removal” on page 705. Remove the drawer assembly rear cover. See “HCIT drawer assembly rear cover removal” on page 709. Remove the drawer assembly left cover.
Page 351 7463 Remove the screw (A) securing the sensor. Release the cable from its cable holders, then remove the sensor (pass through). HCIT media feeder removal Remove the HCIT. See “HCIT removal” on page 705. Remove the drawer assembly rear cover. See “HCIT drawer assembly rear cover removal”...
Page 352 7463 Remove the screw (A) securing the feeder to the top. Disconnect the two cables (B) from the media feeder. Remove the six screws (C) securing the media feeder. Repair information...
Page 353 7463 With a prying tool, release the spring to loosen the link (D). Lift the media feeder and release the link holding the media feeder. Ease the media feeder off the drawer, and remove. Staple finisher/offset stacker option removals Staple finisher/offset stacker option removal Press the latches to release, and lift the output option off the printer.
Page 354 7463 Stapler/offset stacker rear door removal Open the rear door, and detach the string (A) from the door. Note: Fasten the string end (B) to the rear side to prevent it from recoiling into the interior of the stapler/offset stacker. Repair information...
Page 355 7463 Position the door at an angle approximately 90 degrees from the stapler. Release the right hinge of the door first (1), then move the door to the right (2) to release the left hinge. Repair information...
Page 356 7463 Remove the rear door assembly. Stapler/offset stacker left cover removal Note: This is not a FRU. Open the rear door, then detach the string (A) from the rear door. Installation note: Fasten the string end (B) to the rear side to prevent it from recoiling into the interior of the stapler/offset stacker.
Page 357 7463 Remove the two screws (C), then remove the left cover. Repair information...
Page 358 7463 Stapler/offset stacker top cover removal Remove the left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the right cover. See “Stapler right cover removal” on page 782. Remove the two screws (A) from the left side. Repair information...
Page 359 7463 Remove the two screws (B) from the right side. Remove the top cover. Repair information...
Page 360 7463 Stapler/offset stacker spring with string removal Open the rear door, and detach the string (A). Remove the right cover. See “Stapler right cover removal” on page 782. Remove the spring (B) with string. Installation note: Pay attention to the original position of the string. The string on the pulley is wound clockwise.
Page 361 7463 Stapler/offset stacker option latch removal Remove the stapler left cover or stapler right cover. See “Stapler/offset stacker left cover removal” on page 726 “Stapler right cover removal” on page 782. Pull the latch off the machine. Repair information...
Page 362 7463 Stapler/offset stacker tray spring removal Remove the stapler left cover and stapler right cover. See “Stapler/offset stacker left cover removal” on page 726 “Stapler right cover removal” on page 782. Disconnect the spring (A) off the frame, and remove. Repair information...
Page 363 7463 Stapler/offset stacker tray link assembly removal Left tray link removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Unhook the spring (A) to release the tray link. Remove the three screws (B) securing the controller board. Move the board to access the link underneath it. Repair information...
Page 364 7463 Remove the two screws (C), and then remove the link. Right tray link removal Remove the stapler right cover. See “Stapler right cover removal” on page 782. Unhook the spring (A) to release the tray link. Repair information...
Page 365 7463 Remove the two screws (B), and then remove the link. Sensor (stapler/stacker rear door interlock) removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Disconnect the cable (A) from the sensor. Release the latches securing the sensor to the frame, and then remove the sensor. Repair information...
Page 366 7463 Sensor (paddle motor HP) removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Disconnect the cable (A) from the sensor. Remove the screw (B), and then remove the sensor bracket. Release the latches securing the sensor to the bracket, and then remove the sensor. Media stack flap (right) removal Remove the stapler left cover.
Page 367 7463 Remove the two screws (B) from the cover (A). Move the media stack flap to the right to release the pins from the holes. Note: The metal latch (C) may need to be flexed to release the pins. Repair information...
Page 368 7463 Ease the media stack flap off the option. Media stack flap (left) removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the stapler right cover. See “Stapler right cover removal” on page 782.
Page 369 7463 Remove the two screws (B) from the cover (A). Move the media stack flap to the right to release the pins from the holes. Note: The metal latch (C) may need to be flexed to release the pins. Repair information...
Page 370 7463 Ease the media stack flap off the option. Sensor (right tamper motor HP) removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the stapler right cover. See “Stapler right cover removal” on page 782.
Page 371 7463 Move the right tamper arm to clear the home position flag (A) off the path of the sensor. Repair information...
Page 372 7463 Disconnect the cable (B) from the sensor, and then release the latches securing the sensor to the frame. Pull the sensor off the frame and remove. Sensor (left tamper motor HP) removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726.
Page 373 7463 Move the left tamper arm to clear the home position flag (A) off the path of the sensor. Repair information...
Page 374 7463 Disconnect the cable (B) from the sensor, and then release the latches securing the sensor to the frame. Pull the sensor off the frame and remove. Repair information...
Page 375 7463 Standard output bin LED removal With a prying tool, open the LED sensor cover. Release the latches (A) to remove the LED clear lens. Disconnect the cable (B), and remove the standard output bin LED. Repair information...
Page 376 7463 Sensor (finisher/stacker bin media present) removal Remove the left cover. See “Stapler/offset stacker left cover removal” on page 726. With a prying tool, open the LED sensor cover. Release the latches holding the sensor (B) to the cover. Disconnect the cable from the stapler controller board, then remove the sensor. Repair information...
Page 377 7463 Tamper assembly removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the stapler right cover. See “Stapler right cover removal” on page 782. Remove the stapler top cover. See “Stapler/offset stacker top cover removal” on page 728.
Page 378 7463 Remove the four screws (B) securing the tamper assembly to the frame. Remove the tamper assembly. Installation note: Make sure the tab (C) is correctly inserted into its designated slot. Repair information...
Page 379 7463 Tamper motor (right) removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the stapler right cover. See “Stapler right cover removal” on page 782. Remove the stapler top cover. See “Stapler/offset stacker top cover removal” on page 728.
Page 380 7463 Remove the two screws (B), then remove the motor. Tamper drive belt removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the stapler right cover. See “Stapler right cover removal” on page 782.
Page 381 7463 Unhook the spring (A) to loosen and release the belt. Remove the tamper drive belt. Stapler/offset stacker output bin LED removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the stapler right cover. See “Stapler right cover removal”...
Page 382 7463 Release the latches (A) securing the LED. Disconnect the cable (B), and remove the LED. Repair information...
Page 383 7463 Paddle drive motor removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the stapler right cover. See “Stapler right cover removal” on page 782. Disconnect the cable (A) from the drive motor. Remove the two screws (B), then remove the paddle drive motor.
Page 384 7463 Stapler/offset stacker lower interface cable removal Remove the left cover. See “Stapler/offset stacker left cover removal” on page 726. Unplug the two connectors (J18 and J15) from the controller board. Repair information...
Page 385 7463 From the bottom of the stapler/offset stacker, release the latches, and push the connector off its slot. Remove the lower interface cable. Repair information...
Page 386 7463 Stapler/offset stacker controller board removal Remove the left cover. See “Stapler/offset stacker left cover removal” on page 726. Disconnect all the cables (J11, J5, J6, J4, J26, J24, J22, J23, J17, J3, J2, J1, J18, J15, J1, J12, J14, J8, J20, J9, and J7), then remove the three screws (A) from the controller board.
Page 387 7463 Remove the controller board. Stapler/offset stacker main motor removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Disconnect the motor cable J3 from the controller board. Remove the three screws (A) from the motor bracket, and then cut the cable tie securing the cables. Note: Pay attention to the original routing of the cables.
Page 388 7463 Move away the bracket to access the screws (B). Remove the two screws (B), and then remove the motor from the bracket. Repair information...
Page 389 7463 Stapler/offset stacker diverter motor removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Disconnect the motor cable (A), and then remove the two screws (B). Remove the motor from the bracket. Repair information...
Page 390 7463 Stapler/offset stacker diverter plunger assembly removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the three screws (A) from the main motor bracket. Note: Removing the main motor bracket will not be required. Just move it out of the way to make it easier to release the diverter motor bracket.
Page 391 7463 Remove the two screws (C) securing the diverter plunger and cam. Remove the cam first, and then remove the plunger. Installation note: Make sure that the locating pin (D) is correctly inserted into the diverter cam. The C-shaped slot on the cam must be engaged with the locating pin (D) on the plunger. Stapler/offset stacker drive gear assembly removal Remove the stapler left cover.
Page 392 7463 Release the E-clip securing the lowermost gear. Remove the spacers, and then pull the gears off the machine. Sensor (bin full send) removal Remove the stapler right cover. See “Stapler right cover removal” on page 782. Remove the two screws (A) from the sensor. Repair information...
Page 393 7463 Disconnect the cable (B), and remove the sensor (bin full send). Sensor (bin full receive) removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the stapler controller board. See “Stapler/offset stacker controller board removal” on page 756.
Page 394 7463 Remove the two screws (A) from the sensor. Disconnect the cable (B), and remove the sensor (bin full receive). Repair information...
Page 395 7463 Media pusher assembly removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Disconnect the cable J17 from the controller board. Remove the three screws (A), and then remove the media pusher. Stapler/offset stacker feed roll removal Note: This is not a FRU.
Page 396 7463 Remove the two E-clips (A) securing the shaft. Warning—Potential Damage: Be careful not to lose the E-clips and spacers. Remove the two screws (B), and remove the grounding plate. Repair information...
Page 397 7463 Slightly move the shaft horizontally to release, and then remove it. Warning—Potential Damage: Be careful not to lose the bushing and spacers that hold the shaft. Installation note: To make it less difficult to reinstall the E-clip, use a pair of long-nose pliers to position it onto the shaft, and then lock it in place.
Page 398 7463 Remove the two screws (A) from the left side of the machine. Remove the two screws (B) from the right side of the machine. Repair information...
Page 399 7463 Slightly push the right frame to loosen the left part of the chute, while pushing the chute upward to dislodge it from its frame. Obstacles (C) may cause difficulty in removing the chute. Ease the chute out of obstacles (C), and release it from the machine.
Page 400 7463 Disconnect the sensor cable (D), and remove the stapler chute assembly. Sensor (stapler/stacker pass through) removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the stapler right cover. See “Stapler right cover removal” on page 782.
Page 401 7463 Disconnect the sensor cable (A), and then remove the screw (B) from the sensor bracket. Release the latches securing the sensor to the bracket, and then remove the sensor. Stapler/offset stacker ejector motor assembly removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal”...
Page 402 7463 Release the cable holder (A) from the frame and remove it. Remove the four screws (B) from the motor assembly frame. Repair information...
Page 403 7463 Remove the three screws (C) securing the bottom part of the motor assembly. Release the cables off their guides. Note: Pay attention to the original routing of the cables. Pull the motor assembly away from the machine. Remove the screw (D) securing the sensor bracket. Pull the bracket and separate it from the motor assembly. Installation note: Make sure the paddles (E) align and fit properly.
Page 404 7463 Installation note: Make sure the cables don't get in the way of moving parts. Sensor (stapler/stacker ejector HP) removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the stapler right cover. See “Stapler right cover removal”...
Page 405 7463 Release the cable holder (A) from the frame and remove it. Remove the four screws (B) from the motor assembly frame. Repair information...
Page 406 7463 Remove the three screws (C) securing the bottom part of the motor assembly. Release the cables off their guides. Note: Pay attention to the original routing of the cables. Pull the motor assembly away from the machine. Disconnect the cable (D), and release the latches to remove the sensor from the bracket. Repair information...
Page 407 7463 Sensor (media pusher HP) removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726. Remove the stapler right cover. See “Stapler right cover removal” on page 782. Remove the stapler diverter plunger assembly. See “Stapler/offset stacker diverter plunger assembly removal”...
Page 408 7463 Remove the four screws (B) from the motor assembly frame. Remove the three screws (C) securing the bottom part of the motor assembly. Release the cables off their guides. Note: Pay attention to the original routing of the cables. Pull the motor assembly away from the machine.
Page 409 7463 Remove the mylar plate (D) covering the sensor latches. Release the sensor latches. From the other side of the frame, disconnect the sensor cable, and then remove the sensor from the frame. Sensor (stapler/stacker diverter plunger HP) removal Remove the stapler left cover. See “Stapler/offset stacker left cover removal”...
Page 410 7463 Release the cable holder (A) from the frame and remove it. Remove the four screws (B) from the motor assembly frame. Repair information...
Page 411 7463 Remove the three screws (C) securing the bottom part of the motor assembly. Release the cables off their guides. Note: Pay attention to the original routing of the cables. Pull the motor assembly away from the machine. Remove the mylar plate covering the sensor latches. Release the sensor latches. From the other side of the frame, disconnect the sensor cable, and then remove the sensor from the frame.
Page 412 7463 Stapler-unique FRU removals Stapler right cover removal Open the rear door, then detach the string from the rear door. Note: Fasten the string end (B) to the rear side to prevent it from recoiling into the interior of the finisher. Repair information...
Page 413 7463 Remove the two screws (C), then remove the right cover. Repair information...
Page 414 7463 Stapler cartridge access door removal Open the access door, then pull it off the stapler right cover. Repair information...
Page 415 7463 Stapler carriage assembly removal Remove the stapler right cover. See “Stapler right cover removal” on page 782. Remove the four screws (A) securing the stapler carriage frame. Disconnect the two cables (B) from the stapler carriage assembly. Lift the stapler carriage frame, then remove the two screws (C) from the stapler carriage assembly. Remove the stapler carriage assembly.
Page 416 7463 Sensor (cartridge door interlock) removal Remove the stapler right cover. See “Stapler right cover removal” on page 782. Disconnect the cable (A) from the sensor. Release the latches from the stapler assembly frame, then remove the sensor (B). Stapler door close limit switch removal Remove the stapler left cover.
Page 417 7463 Remove the four screws (A) securing the stapler carriage frame. Disconnect the cables (B) from the stapler carriage assembly. Lift the stapler carriage frame, then remove the two screws from the stapler carriage assembly (C). Lift the stapler carriage to access the screws securing the limit switch. Repair information...
Page 418 7463 Remove the two screws (D) securing the limit switch. Disconnect the cable J7 from the controller board. Route the cable off the stapler, and remove the stapler door close limit switch. Note: Pay attention to the original routing of the cables. Sensor (throat media present) removal Remove the stapler right cover.
Page 419 7463 Remove the four screws (A) securing the stapler carriage frame. Move the stapler carriage assembly out of the way to access the parts underneath it. Release the latches (B) securing the sensor. Repair information...
Page 420 7463 Disconnect the cable (C), and remove the sensor. Installation note: Make sure the sensor is correctly installed onto the frame. Push the sensor until it is securely latched onto the frame. Repair information...
Page 421 7463 Mailbox option removals Mailbox option removal Press the latches to release. Lift the option off the printer. Mailbox top cover removal Lift the top cover. Remove the top cover from the mailbox option. Mailbox rear door removal Open the rear door, and detach the string (A) from the door. Note: Fasten the string end (B) to the rear side to prevent it from recoiling into the interior of the mailbox.
Page 422 7463 Position the rear door at the angle shown, and pull the door off the mailbox. Repair information...
Page 423 7463 Mailbox right cover removal Open the rear door, and detach the string (A) from the door. Remove the mailbox top cover. See “Mailbox top cover removal” on page 791. Repair information...
Page 424 7463 Remove the two screws (B) from the mailbox, then remove the right cover. Mailbox top bin cover with bail removal Slightly push the inner frame of the mailbox to the left to release the bin cover, and then lift the bin cover. Repair information...
Page 425 7463 Release the mud bail flap from the bin cover, and then remove. Mailbox spring with string removal Remove the mailbox top cover. See “Mailbox top cover removal” on page 791. Remove the mailbox right cover. See “Mailbox right cover removal” on page 793.
Page 426 7463 Mailbox solenoid removal Remove the mailbox top cover. See “Mailbox top cover removal” on page 791. Remove the mailbox right cover. See “Mailbox right cover removal” on page 793. Remove the mailbox left cover. See “Mailbox left cover removal” on page 798.
Page 427 7463 Lift the middle portion of the cover to release the tabs (A), then remove the cover. Disconnect the solenoid cable (J2A, J2B, or J2C) from the controller board. Repair information...
Page 428 7463 Remove the screw (B) securing the solenoid. Route the cable off the mailbox, then remove the solenoid. Mailbox left cover removal Open the rear door. Remove the mailbox top cover. See “Mailbox top cover removal” on page 791. Repair information...
Page 429 7463 Remove the screw from the mailbox (A), then remove the left cover. Mailbox option latch removal Remove the mailbox left cover or right cover. See “Mailbox left cover removal” on page 798 “Mailbox right cover removal” on page 793. Pull the latches off the mailbox, and then remove.
Page 430 7463 Disconnect the cable (A), and then release the latches to remove the sensor. Mailbox main drive gear removal Remove the mailbox left cover. See “Mailbox left cover removal” on page 798. Remove the mailbox rear door. See “Mailbox rear door removal” on page 791.
Page 431 7463 Remove the two screws (A), and then remove the shield. Repair information...
Page 432 7463 Remove the seven screws (B) from the inner left frame. Note: Pay attention to the original position of the grounding plate (C). Repair information...
Page 433 7463 Move away the left inner frame to access the parts underneath. Repair information...
Page 434 7463 Remove the E-clip (D) to release the gear, and then pull the gear off the shaft. Mailbox main motor removal Remove the mailbox left cover. See “Mailbox left cover removal” on page 798. Remove the mailbox rear door. See “Mailbox rear door removal”...
Page 435 7463 Mailbox diverter plunger assembly removal Remove the mailbox left cover. See “Mailbox left cover removal” on page 798. Remove the mailbox rear door. See “Mailbox rear door removal” on page 791. Remove the two screws (A), and then remove the shield. Repair information...
Page 436 7463 Remove the seven screws (B) from the inner left frame. Note: Pay attention to the original position of the grounding plate (C). Repair information...
Page 437 7463 Move away the left inner frame to access the parts underneath. Repair information...
Page 438 7463 Remove the two screws (D), and then remove the diverter plunger. Remove the E-clip (E) to release the cam, and then remove the diverter cam. Repair information...
Page 439 7463 Mailbox controller board removal Remove the mailbox top cover. See “Mailbox top cover removal” on page 791. Remove the mailbox left cover. See “Mailbox left cover removal” on page 798. Disconnect all cables (J1B, J5, J4D, J2A, J4C, J2B, J4B, J2C, J4A, J8, J1A, J3B, J7, J6, J12, and J3T), and then remove the two screws (A) from the controller board.
Page 440 7463 Remove the controller board. Sensor (mailbox diverter plunger HP) removal Remove the mailbox top cover. See “Mailbox top cover removal” on page 791. Remove the mailbox left cover. See “Mailbox left cover removal” on page 798. Repair information...
Page 441 7463 Rotate the cam to clear the obstacle blocking the sensor. Disconnect the sensor cable (A). Repair information...
Page 442 7463 Release the latches (B), and remove the sensor. Mailbox lower interface cable removal Remove the mailbox top cover. See “Mailbox top cover removal” on page 791. Remove the mailbox left cover. See “Mailbox left cover removal” on page 798. Repair information...
Page 443 7463 Disconnect the lower interface cable J1A from the controller board. Cut the cable tie holding the lower interface cable. Installation note: Make sure the cables don't get in the way of moving parts. Push inward to release the latches (A), then push the connector off its slot. Remove the lower interface cable.
Page 444 7463 Mailbox upper interface cable removal Remove the mailbox top cover. See “Mailbox top cover removal” on page 791, Remove the mailbox left cover. See “Mailbox left cover removal” on page 798. Disconnect the upper interface cable J1B from the controller board. Crimp both connector pins, using pliers to make them fit the pin holes.
Page 445 7463 Remove the two screws (B) using a #1 Phillips screwdriver, then remove the motor. Repair information...
Page 446 7463 Mailbox media bin full flag removal Pull the flag upwards to release the front pin. Ease the media bin full flag off the mailbox. Installation note: Make sure the flag's front and rear pins are inserted into their respective slots. Repair information...
Page 447 7463 Sensor (mailbox bin full receive) removal Remove the mailbox top cover. See “Mailbox top cover removal” on page 791. Remove the mailbox left cover. See “Mailbox left cover removal” on page 798. Remove the mailbox diverter motor. See “Mailbox diverter motor removal” on page 814.
Page 448 7463 Disconnect all cables (J1B, J5, J4D, J2A, J4C, J2B, J4B, J2C, J4A, J8, J1A, J3B, J7, J6, J12, and J3T) from the controller board. Remove the two screws (A), then remove the shield. Repair information...
Page 449 7463 Remove the seven screws (B) from the inner left frame. Installation note: Pay attention to the original position of the grounding plate (C). Repair information...
Page 450 7463 Swing the inner left frame away from the mailbox to access the sensors. Disconnect the cable (D) from the sensor. Release the latches, and remove the sensor. Mailbox belt removal Remove the mailbox top cover. See “Mailbox top cover removal” on page 791.
Page 451 7463 Remove the nine screws (A) from the inner right frame. Pull the latch to release, then remove. Repair information...
Page 452 7463 Carefully lift the inner right frame, then remove the ground screw (B). Swing away the inner right frame to access the belt (C). Remove the belt. Mailbox output bin LED assembly removal Remove the mailbox top cover. See “Mailbox top cover removal” on page 791.
Page 453 7463 Remove the nine screws (A) from the inner right frame. Pull the latch to release, then remove. Repair information...
Page 454 7463 Carefully lift the inner right frame, then remove the ground screw (B). Swing the inner right frame away to access the LED assembly. Using a #1 Phillips screwdriver, remove the two screws (C) from the LED assembly. Repair information...
Page 455 7463 Disconnect the two cables (D), and remove the output bin LED assembly. Mailbox top diverter removal Remove the mailbox left cover. See “Mailbox left cover removal” on page 798. Remove the mailbox rear door. See “Mailbox rear door removal” on page 791.
Page 456 7463 Remove the two screws (A), and then remove the shield. Repair information...
Page 457 7463 Remove the seven screws (B) from the inner left frame. Note: Pay attention to the original position of the grounding plate (C). Repair information...
Page 458 7463 Move away the left inner frame to access the parts underneath. Unhook the diverter spring (D) to release the diverter. Note: Be careful not to lose the diverter spring (D). Repair information...
Page 459 7463 Pry the right end of the diverter off its hinge. Dislodge also the other end of the diverter, and then pull the diverter off the mailbox. Repair information...
Page 460 7463 Mailbox middle diverter removal Remove the mailbox rear door. See “Mailbox rear door removal” on page 791. Release the spring (A) from the diverter. Pry the right end of the diverter until it is released. Repair information...
Page 461 7463 Carefully twist until the left end is also released. Remove the diverter. Installation note: Use a flat-head screwdriver to push the left and right ends of the diverter in place. Mailbox top diverter spring removal Remove the mailbox left cover. See “Mailbox left cover removal”...
Page 462 7463 Remove the two screws (A), and then remove the shield. Repair information...
Page 463 7463 Remove the seven screws (B) from the inner left frame. Note: Pay attention to the original position of the grounding plate (C). Repair information...
Page 464 7463 Move away the left inner frame to access the parts underneath. Repair information...
Page 465 7463 Unhook the diverter spring (D), and remove. Sensor (mailbox pass through) removal Remove the mailbox left cover. See “Mailbox left cover removal” on page 798. Remove the mailbox rear door. See “Mailbox rear door removal” on page 791. Repair information...
Page 466 7463 Remove the two screws (A), and then remove the shield. Repair information...
Page 467 7463 Remove the seven screws (B) from the inner left frame. Note: Pay attention to the original position of the grounding plate (C). Repair information...
Page 468 7463 Move away the left inner frame to access the parts underneath. Disconnect the sensor cable from the controller board. Repair information...
Page 469 7463 Pull the sensor off its slot, and then carefully route the cable off its cable guides. Thread the sensor cable through the hole until it is removed. Note: Pay attention to the original route of the sensor cable. Installation note: There will be some difficulty inserting the connector through the hole. Use a spring hook to thread the connector through the hole.
Page 470 7463 Staple, hole punch finisher option removals Staple, hole punch finisher option removal Press the latches to unlock the option. Lift the option off the printer. Repair information...
Page 471: Stapler Cartridge Access Door Removal
7463 Remove the option. Stapler cartridge access door removal Open the access door. Pull the door off the stapler right cover. Hole punch box removal Firmly hold the hole punch box by its handles. Pull out the hole punch box. Repair information...
Page 472 7463 Staple, hole punch left cover removal Open the rear door, and then remove the two screws (A) securing the left cover. From the inner portion of the stapler, remove the two screws (B) securing the left cover. Repair information...
Page 473 7463 Push down on the top cover to loosen the left cover, and then pull the left cover off the finisher. Staple, hole punch right cover removal Remove the hole punch box. See “Hole punch box removal” on page 841. Open the rear door, and then remove the screw (A) securing the right cover.
Page 474 7463 From the inner portion of the stapler, remove the two screws (B) securing the right cover. Remove the screw (C) from the right cover. Repair information...
Page 475 7463 Push down on the top cover to loosen the right cover, and then pull the right cover off the finisher. Sensor (cartridge door interlock) removal Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 843.
Page 476 7463 Stapler door close limit switch removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 843. Remove the finisher top cover. See “Staple, hole punch top cover removal”...
Page 477 7463 Lift the stapler carriage to access the screws securing the limit switch. Remove the two screws (D) securing the limit switch. Disconnect the cable J7 from the controller board. Route the cable off the stapler, and remove the stapler door close limit switch. Note: Pay attention to the original routing of the cables.
Page 478 7463 Stapler carriage assembly removal Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 843. Remove the four screws (A) securing the stapler carriage frame. Disconnect the two cables (B) from the stapler carriage assembly. Lift the stapler carriage frame, then remove the two screws (C) from the stapler carriage assembly.
Page 479 7463 Sensor (throat media present) removal Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 843. Remove the four screws (A) securing the stapler carriage frame. Move the stapler carriage assembly out of the way to access the parts underneath it.
Page 480 7463 Disconnect the cable (C), and remove the sensor. Installation note: Make sure the sensor is correctly installed onto the frame. Push the sensor until it is securely latched onto the frame. Repair information...
Page 481 7463 Staple, hole punch latch removal Remove the finisher left cover or finisher right cover. See “Staple, hole punch left cover removal” on page 842 “Staple, hole punch right cover removal” on page 843. Pull the latch off the finisher. Note: The latch on the right side of the finisher can also be removed by the same manner.
Page 482 7463 Stapler main motor removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Disconnect the motor cable J3 from the controller board. Remove the three screws (A) securing the motor bracket to the frame. Move away the bracket to access the screws.
Page 483 7463 Stapler paddle motor removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Disconnect the motor cable (A), and then remove the two screws (B) from the motor. Remove the motor. Repair information...
Page 484 7463 Sensor (paddle motor HP) removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Disconnect the cable (A) from the sensor. Remove the screw (B), and then remove the sensor bracket. Release the latches securing the sensor to the bracket, and then remove the sensor. Repair information...
Page 485 7463 Stapler diverter motor removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. From the bottom of the finisher, press the latches to release, and then move the lower interface cable out of the way to access the parts underneath it.
Page 486 7463 Stapler diverter plunger assembly removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Remove the three screws (A) from the main motor bracket. Note: Removing the main motor bracket will not be required. Just move it out of the way to make it easier to release the diverter motor bracket.
Page 487 7463 Remove the two screws (C) securing the diverter plunger and cam. Remove the cam first, and then remove the plunger. Installation note: Make sure that the pin (D) is inserted into the center hole on the diverter cam. The C-shaped slot on the cam must be engaged with the locating pin on the plunger.
Page 488 7463 Release the E-clip securing the lowermost gear. Remove the spacers, and then pull the gears off the machine. Sensor (bin full send) removal Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 843. Remove the two screws (A) from the sensor. Repair information...
Page 489 7463 Disconnect the cable (B), and remove the sensor (bin full send). Sensor (bin full receive) removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Remove the stapler controller board. See “Stapler controller board removal” on page 851.
Page 490 7463 Remove the two screws (A) from the sensor. Disconnect the cable (B), and remove the sensor (bin full receive). Repair information...
Page 491 7463 Staple, hole punch lower interface cable removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Unplug the connector J15 from the stapler controller board. From the bottom of the finisher, release the latches, and then push connector off its slot. Remove the interface cable.
Page 492 7463 Remove the three screws (A), and then remove the media pusher. Standard output bin LED removal With a prying tool, open the LED sensor cover. Repair information...
Page 493 7463 Release the latches (A) to remove the LED clear lens. Disconnect the cable (B), and remove the standard output bin LED. Sensor (finisher bin media present) removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842.
Page 494 7463 Release the latches holding the sensor (B) to the cover. Disconnect the cable from the stapler controller board, then remove the sensor (finisher bin media present). Staple, hole punch top cover removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842.
Page 495 7463 Remove the two screws (B) from the left side of the finisher. Pull the top cover off the finisher, and remove. Sensor (right tamper motor HP) removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842.
Page 496 7463 Move the right tamper arm to clear the home position flag (A) off the path of the sensor. Repair information...
Page 497 7463 Disconnect the cable (B) from the sensor, and then release the latches securing the sensor to the frame. Pull the sensor off the frame and remove. Sensor (left tamper motor HP) removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842.
Page 498 7463 Move the left tamper arm to clear the home position flag (A) off the path of the sensor. Repair information...
Page 499 7463 Disconnect the cable (B) from the sensor, and then release the latches securing the sensor to the frame. Pull the sensor off the frame and remove. Stapler tamper assembly removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842.
Page 500 7463 Release the latches (A) securing the sensors. Remove the stapler output bin LED. See “Stapler output bin LED removal” on page 874. Remove the left and right tamper motors. See “Tamper motor (left) removal” on page 872 “Tamper motor (right) removal”...
Page 501 7463 Tamper motor (right) removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 843. Remove the finisher top cover. See “Staple, hole punch top cover removal”...
Page 502 7463 Remove the two screws (B), then remove the motor. Tamper motor (left) removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 843.
Page 503 7463 Remove the two screws (B), then remove the motor. Tamper drive belt removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 843.
Page 504 7463 Unhook the spring (A) to loosen and release the belt. Remove the tamper drive belt. Stapler output bin LED removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Remove the finisher right cover. See “Staple, hole punch right cover removal”...
Page 505 7463 Release the latches (A) securing the LED. Disconnect the cable (B), and remove the LED. Repair information...
Page 506 7463 Staple, hole punch tray link tension spring removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 843. On the left side of the finisher, unhook the tension spring (A), and then remove. On the right side of the finisher, unhook the tension spring (B), and then remove.
Page 507 7463 Disconnect the sensor cable (A), and then release the latches securing the sensor. Remove the sensor. Staple, hole punch tray link removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Remove the finisher right cover. See “Staple, hole punch right cover removal”...
Page 508 7463 Remove the two screws (B), and then remove the right tray link. Sensor (HPU rear door interlock) removal Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 842. Remove the screw (A), and then remove the shield. Remove the four screws (B) from the controller board.
Page 509 7463 Disconnect the sensor cable, and release the latches securing the sensor. Remove the sensor. Repair information...
Page 510 7463...
