Owner's Manual
Models:
Boost Output
208/240V~
Rated Input
208/240V~
Rated Output for 8hr
Charge Period
# of Bricks
(3 Bricks per Package)
Installed Weight
kWh
IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to install or use this
Heating System. For your safety, always comply with all warnings and safety instructions contained in this
manual to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit www.dimplex.com
Owner's Manual

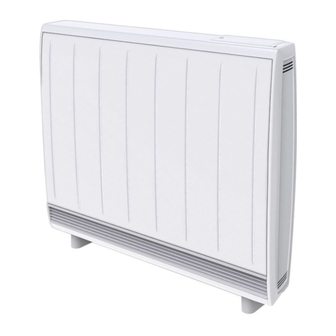

Quantum Storage Heater
QSH-70
473/630W
1170/1560W
1665/2220W
700W
18
91 kg
(200 lbs)
10.9 kWh
QSH-100
QSH-125
660/880W
848/1130W
2070/2760W
1000W
24
115 kg
(254 lbs)
15.4 kWh
QSH-150
1035/1380W
2478/3300W
1250W
30
142 kg
(313 lbs)
19.3 kWh
23.1 kWh
1500W
36
165 kg
(364 lbs)
7212670100R04
Advertisement
Table of Contents
Related Manuals for Dimplex QSH-70
Summary of Contents for Dimplex QSH-70
- Page 1 IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to install or use this Heating System. For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage. To view the full line of Dimplex products, please visit www.dimplex.com 7212670100R04...
-
Page 2: Table Of Contents
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.renewables.dimplex.com... -
Page 3: Welcome & Congratulations
Welcome & Congratulations Thank you and congratulations for purchasing a Quantum Storage Heating System from Dimplex. Please use our convenient online registration page to record your model and serial numbers for future reference at www.dimplex.com/register DO NOT COVER Model: Serial: Series: Please carefully read and save these instructions. -
Page 4: Important Instructions
11. HIGH TEMPERATURES: Keep electrical cords, furniture, draperies or any other blocking material away from the heater. See Installation Section for specific distances. 12. The heater is very heavy and must be secured to a wall to ensure that it cannot move. SAVE THESE INSTRUCTIONS www.renewables.dimplex.com... -
Page 5: Quick Reference Guide
When heat is required throughout the day, the heater releases its stored heat by a silent ther- mostatically controlled fan. The Dimplex control 100 mm system automatically stores more energy as it (3.9”) gets colder, keeping you warm and comfortable no matter the outdoor conditions. -
Page 6: Site Selection And Preparation
2. Secure the feet to the heater, using the screws provided in the hardware kit. NOTE: For models QSH-70 and QSH-100 two locations are possible for mounting each foot. They are indicated by an “X” and “Y”... -
Page 7: Installation Instructions
Installation Instructions WARNING: This appliance is heavy. The floor Figure 7 must be checked to ensure that it is capable of bearing the weight of the unit up to 177 kg (390 lbs). WARNING: Do not under any circumstances attempt to move or reposition this heater without seeking expert advice. -
Page 8: Building The Center Core
208/240V Installations 6. Position the second row of bricks so that they Terminal are facing down and the element sits within the Block grooves. (Figure 11) Figure 10 Cable Clamp Wire Entrance www.renewables.dimplex.com... -
Page 9: Reassembly
Installation Instructions Reassembly 7. The third row of brick is positioned in a manner similar to the first row. 1. Replace all the panels of the outer casing CAUTION: Be careful not to damage or reverse steps 5-8 of Site Selection and dislodge the element. -
Page 10: Operation
Saving’ settings, and Setback settings. 3. BACK shows previous programming stage. 4. ADVANCE button on the User Interface is used to skip from the current Comfort mode to the next – turning the heater from OFF to ON or vice versa. www.renewables.dimplex.com... -
Page 11: Setting The Date And Time
Operation NOTE: When the heater is initially installed, a Warning Message may appear. This means the real time clock has not been initialized. This can be set by pressing the Menu button and following the above steps to set the time. Choosing and Setting a Timer Mode Your Quantum controller comes pre-programmed with a set of operating periods. -
Page 12: Boost
1-4 hours – Timer can be set to enable the heater for a specified period of time - 1 to 4 hours. Auto Boost – Enables the auxiliary boost el- ement to come on automatically as required providing the highest comfort level. www.renewables.dimplex.com... -
Page 13: Options
Operation Options Service Menu The Options Menu enables you to choose time and CAUTION: Changing the settings in the Ser- temperature formats that suit your preferences. vice Menu should ONLY be done by a SERVICE These are: TECHNICIAN as changes may affect the preferred operation of the unit. -
Page 14: Maintenance
Discoloration of wall finished can sometimes oc- cur immediately above a heater due to the proper- ties of some paints and decorating materials or the presence of environmental impurities in the air such as soot or incense generated from the burn- ing of candles, etc.) www.renewables.dimplex.com... -
Page 15: Warranty
• Dimplex will not be responsible for, and the limited warranty services shall not include, any expense incurred for installation or removal of the product or part (or any replacement product or part) or any labour or transportation costs. Such costs shall be the purchaser’s responsibility. -
Page 16: Quantum - Quick Set-Up Sheet And Settings Records
Customer Name Installer Name Address Installer Phone # Quantum - Quick Set-Up Sheet and Settings Records General Settings MENU button displays < Date/Time - Timer Mode - Option > TECHNICIAN OPTIONS AVAILABLE SETTINGS RECOMMENDATIONS TO INPUT • Select Date /Time by pressing the selector dial •... - Page 17 Ignore, unless you want to reset to FACTORY Factory reset factory settings EXTRA Adjustment to increase the □ None CHARGE amount of energy stored Dimplex North America Limited 1367 Industrial Road Cambridge ON Canada N1R 7G8 © 2015 Dimplex North America Limited...
