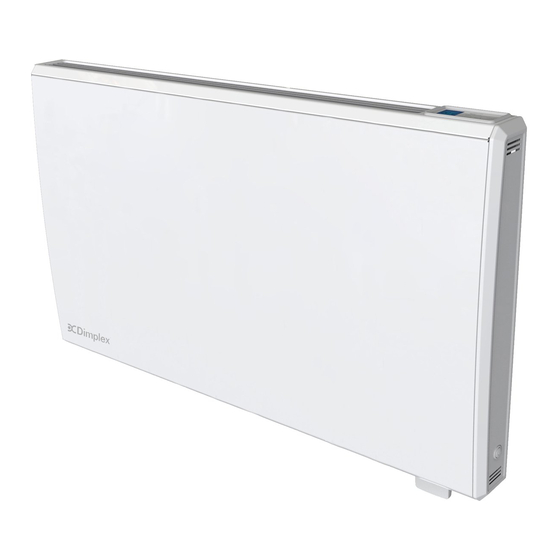

- Page 1 OPERATING INSTRUCTIONS MANUAL Q-Rad Smart Electric Radiator QRAD200 Models: QRAD150 These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. INDEAUE3RG ISSUE 1...
- Page 2 IMPORTANT These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. IMPORTANT SAFETY ADVICE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: IMPORTANT –...
- Page 3 Electrical Connection WARNING - THIS APPLIANCE MUST BE EARTHED CAUTION - if you use this heater in conjuction with a thermal control, programme controller, timer or any device which switches the heater on automatically observe all safety warnings at all times. DO NOT pull the heater along by the mains lead.
-
Page 4: Wall Mounting
Dimensions Model(s) Watt (kW) A (mm) QRAD150 1.5 kW QRAD200 2.0 kW Wall Mounting 1. Remove wall mounting bracket from the back of the heater by depressing the spring latch at the top of each bracket - See Fig.3. - Page 5 Fig. 1 Fig. 2 150 mm (Min) Shelf 546 mm 300 mm 105 mm 150 mm (Min) Fig. 3 Model (s) A (mm) QRAD150 QRAD200 275 mm 294 mm (Min) 260 mm (Min)
- Page 6 150 mm 150 mm 287 mm ( min ) ( min ) Fig. 4 Fig. 5 Fig. 7 Fig. 6 Fig. 8 Fig. 9...
- Page 7 Energy saving features The Dimplex Q-Rad Electric Radiator has many features which are designed to save you money. It has a self-learning capacity, constantly monitoring the effect that its actions have on the room temperature.
-
Page 8: Set The Temperature
Quick Start Guide This guide is for quick reference only. Please refer to the operating section for further information. How Does the Heater Control Work? The control allows you to choose when you want heat and at what temperature. When using a timer mode (see below), Comfort On will display on the home screen to tell you when the heater is maintaining the temperature displayed. - Page 9 Which Timer Mode is Best for Me? The heater leaves the factory set in Out All Day mode. If you are out during the day and only require heat in the mornings and evenings then this mode will suit your lifestyle and you won’t need to alter anything. If you are in during the day then you should select the Home All Day mode which is a single heating period.
-
Page 10: Operation
Operation The controls are located on the top right of the heater. The heater is fitted with an adjustable electronic controller consisting of a display screen and six touch sensitive buttons. Display Screen ‘Menu’ Button ‘Back’ Button ‘Up and Down’ Arrows ‘Enter’... -
Page 11: Control Functions
Control Functions The heater controls can be easily adjusted by using the six buttons on the User Interface. The Display Screen shows the options available at each stage of adjustment. Menu – displays the main options list; Date/Time – Set the date and time. Mode –... -
Page 12: Main Screen
Main Screen After 30 seconds of inactivity the heater will default back to the Main Screen. Here the chosen temperature is displayed along with the mode of operation. Any use of the Advance function will be displayed here, and pressing Enter will show the functions which are enabled. -
Page 13: Modes Of Operation
Modes of Operation The heater comes pre-programmed with a set of heating profiles. There are four options available - three preset and one user adjustable timer; 1. Out Day (pre-programmed) - has the following preset times Monday to Sunday, which can be altered if desired; 07.00 until 08.30 17.30 until 22.00 2. - Page 14 Choosing and Setting a Mode Timer Modes To choose a timer mode press Menu and to select Mode, then press Enter. Now select Timer Mode, again using the Enter button. Select the mode required, by pressing the and Enter buttons. For options Out All Day, Home All Day and User Timer, three choices are available - Select, Preview and Modify.
- Page 15 If EcoStart control is disabled, the heater will not operate until the beginning of the heating period. This should be taken into consideration when setting the heating periods (See note below and page 17). In Holiday mode the number of days that the room will be unoccupied can be adjusted together with the required room temperature.
- Page 16 Advance The Advance function allows the heating profile of the appliance to be changed temporarily. When Advance a timer has been selected, the Advance function is used to begin the next Comfort On mode early. Home All Day If the heater is in Comfort Off mode and heat is Comfort On required, press the Advance button.
-
Page 17: Child Lock
Child Lock To lock the controls press Back and Enter for three seconds. Child Lock will appear at the bottom of the screen. To unlock the control repeat the action of pressing Back and Enter for three seconds. NOTE: The controls cannot be adjusted when child lock is active. -
Page 18: Energy Saving Tips
Energy Saving Tips The energy we use to heat, light and power our Treat your hot water tank... homes contributes over a quarter of the UK’s give it a jacket An insulating jacket for hot carbon emissions, the principle contributor to water tanks costs only a few pounds and pays climate change. - Page 19 Storage Should you require assistance with this product If the radiator is not required for long periods, please go to www.dimplex.com.au or e-mail for example during the summer, it should be us at sales@glendimplex.com.au. Alternatively stored in a dry place and preferably covered to call our contact centre on 1300 556 816.
- Page 20 Unit 1, 21 Lionel Road, Email: sales@glendimplex.com.au Mount Waverley, VIC 3149 Web: www.dimplex.com.au © Glen Dimplex Australia PLC. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing.
