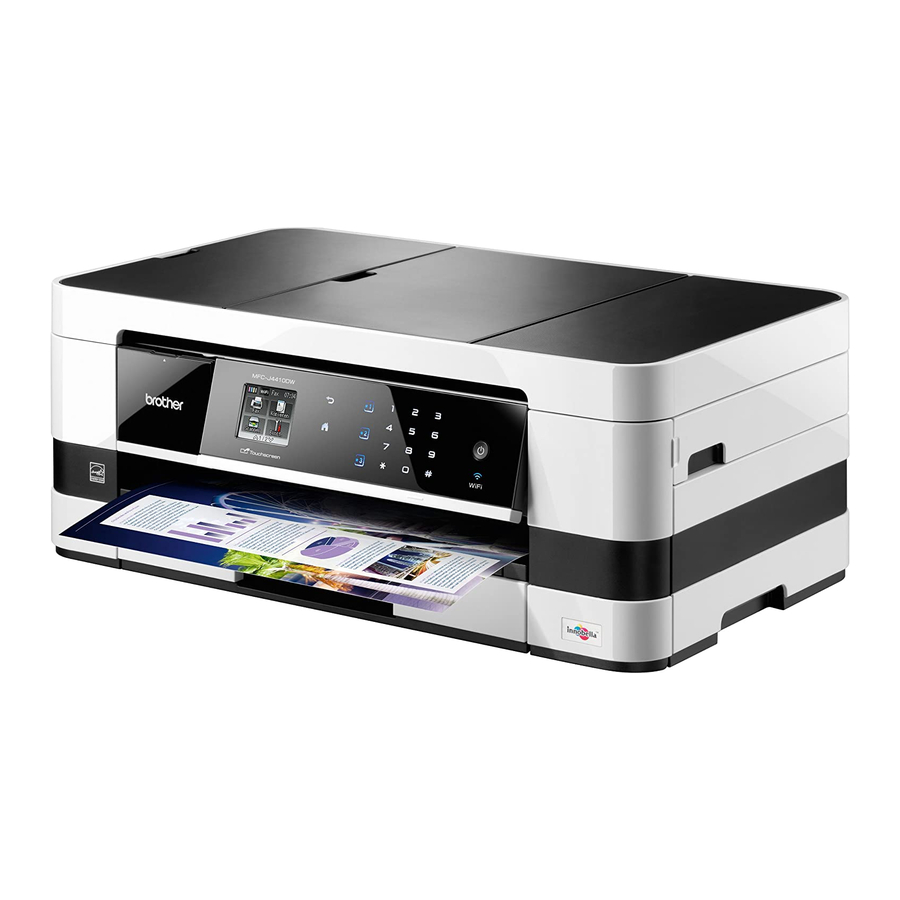

Brother MFC-J4410DW Quick Start Manual
  1. Manuals
  2. Brands
  3. Brother Manuals
  4. All in One Printer
  5. MFC-J4410DW
  6. Quick start manual
Brother MFC-J4410DW Quick Start Manual

Brother MFC-J4410DW Quick Start Manual

Hide thumbs Also See for MFC-J4410DW:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Function Manual
Quick Setup Guide
Start Here
Please read the Product Safety Guide first before you set up your machine. Then, please read this Quick Setup
Guide for the correct setup and installation.
WARNING
CAUTION
IMPORTANT
NOTE
1

Unpack the machine

Most of the illustrations in this Quick Setup Guide show the MFC-J4410DW.
WARNING
Plastic bags are used in the packing of your machine. To avoid the danger of suffocation, keep these
plastic bags away from babies and children. Plastic bags are not toys.
a
Remove the protective tape and film covering the machine, and also from the Touchscreen.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injuries.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injuries.
IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in
damage to property or loss of product functionality.
Notes tell you how you should respond to a situation that may arise or give tips about how the
operation works with other features.
MFC-J4410DW
MFC-J4610DW
CEE-ENG Version 0
1

Advertisement

Table of Contents
loading

Related Manuals for Brother MFC-J4410DW

Summary of Contents for Brother MFC-J4410DW

  • Page 1: Unpack The Machine

    Unpack the machine  Most of the illustrations in this Quick Setup Guide show the MFC-J4410DW. WARNING Plastic bags are used in the packing of your machine. To avoid the danger of suffocation, keep these plastic bags away from babies and children.
  • Page 2 Gently put the paper into the paper tray (for Load plain A4 paper MFC-J4610DW, tray #1) print side down and top edge first. IMPORTANT CAUTION Be careful that you do not push the paper in too far; it may lift at the back of the tray and cause DO NOT carry the machine by holding the scanner paper feed problems.
  • Page 3 While holding the paper tray in place, pull out Connect the power cord the paper support until it clicks, and then unfold the paper support flap. and telephone line NOTE WARNING • For printing and copying on special media, open the manual feed slot a on the back of the •...

  • Page 4: Install The Ink Cartridges

    Lift the scanner cover until it locks securely into Lift the scanner cover to release the lock a. the open position. Gently push the scanner cover support down b and close the scanner cover c using both hands. Connect the telephone line cord. Connect one end of the telephone line cord to the socket of the machine marked LINE.

  • Page 5: Check The Print Quality

    Open the ink cartridge cover a. Take care to match the sticker colour with the cartridge colour. Install each ink cartridge in the direction of the arrow on the label. Gently push the back of the ink cartridge marked “PUSH” until the cartridge lever lifts. After all the ink cartridges are installed close the ink cartridge cover.

  • Page 6: External Tad

    Set the paper settings Choose a Receive Mode (MFC-J4610DW) There are four possible receive modes: Fax Only, For your machine to produce the best print quality and Fax/Tel, Manual and External TAD. to feed the correct paper size, the paper type and size must be set to match the paper in the tray.

  • Page 7: Set The Date And Time

    Set the date and time Set Tone or Pulse dialling mode Press Settings. Press Settings. Press s or t to display Initial Setup. Press s or t to display Initial Setup. Press Initial Setup. Press Initial Setup. Press Date & Time. Press s or t to display Tone/Pulse.

  • Page 8: Set The Time Zone

    Set the telephone line Set the Time Zone compatibility (VoIP) If you are connecting the machine to a VoIP service You can set the time zone on the machine for your (over the Internet) you need to change the location. compatibility setting.

  • Page 9: Choose Your Connection Type

    • If your computer does not have a CD-ROM drive you can download the latest drivers, manuals and utilities for your model from the Brother Solutions Center at http://solutions.brother.com/. Some software applications included on the CD-ROM may not be available as a download.

  • Page 10: For Usb Interface Users

    ® Windows For USB interface users ® ® ® (Windows XP Home/XP Professional/Windows Vista /Windows Before you install Connect the USB cable Make sure that your computer is ON and you are logged on with Administrator rights. Install MFL-Pro Suite Put the supplied installation CD-ROM into your CD-ROM drive.
  • Page 11 The following screens will appear. • When the Software Update Setting screen appears, choose the software update setting you want and click OK. • When the Brother Product Research and Support Program screen appears, select IMPORTANT your preference and follow the on-screen instructions.
  • Page 12 Macintosh For USB interface users (Mac OS X v10.5.8, 10.6.x, 10.7.x) Before you install Make sure your machine is connected to the power and your Macintosh is ON. You must be logged on with Administrator rights. Connect the USB cable IMPORTANT IMPORTANT Make sure that the cable does not restrict the...
  • Page 13 Next. Follow the on-screen instructions. Please wait for the software to install. After the installation, the Brother software will search for the Brother device. This will take a few moments to complete. Choose your machine from the list, and then click OK.

  • Page 14: Connect The Network Cable

    Wired Network ® Windows For wired network interface users ® ® ® (Windows XP Home/XP Professional/Windows Vista /Windows Before you install Make sure that your computer is ON and you are logged on with Administrator rights. Connect the network cable IMPORTANT Make sure that the cable does not restrict the cover from closing, or an error may occur.
  • Page 15 Follow the appears, choose the software update setting on-screen instructions. you want and click OK. • When the Brother Product Research and Choose Wired Network Connection Support Program screen appears, select (Ethernet), and then click Next.
  • Page 16 Wired Network Macintosh For wired network interface users (Mac OS X v10.5.8, 10.6.x, 10.7.x) Before you install Make sure your machine is connected to the power and your Macintosh is ON. You must be logged on with Administrator rights. Connect the network cable...
  • Page 17 Please wait for the software to install. After the installation, the Brother software will search for the Brother device. This will take a few moments to complete. If the machine is configured for your network, choose your machine from the list, and then click OK.

  • Page 18: For Wireless Network Users

    For Wireless Network Users For wireless network interface users Before you begin Although your Brother machine can be used in both a wired and wireless network, only one of the connection methods can be used at a time. NOTE If you have previously configured the wireless settings of the machine you must reset the network settings before you can configure the wireless settings again.
  • Page 19 For Wireless Network Users SSID (Network Name) / Network Key Please do not contact Brother Customer Service for assistance without the wireless security information. We cannot assist you in locating your network security settings. Item Record the current wireless network settings...
  • Page 20 For Wireless Network Users Setup using the Temporarily connect the USB cable (not included) directly to the computer and the installation CD-ROM and machine. ® a USB cable (Windows If the confirmation screen appears, check the box and click Next, go to g. and Macintosh) Otherwise, go to h.
  • Page 21 For Wireless Network Users Enter the Network Key you wrote down on page 18, and then click Next. NOTE If your network is not configured for Authentication and Encryption, the following screen will appear. To continue configuration, click OK and go to j. Click Next.

  • Page 22: For Windows Users

    Press Yes to connect your machine using please go to the manuals download selection on WPS. (If you choose No to continue manual your model’s home page of the Brother Solutions configuration, go to d to enter a Network Key.) Center at http://solutions.brother.com/.

  • Page 23: Wireless Network

    Put the supplied installation CD-ROM into your sensitive. CD-ROM drive. Follow the on-screen instructions. The installation of the Brother drivers will automatically start. The installation screens The CD-ROM Top menu will appear. appear one after another. Click Install MFL-Pro Suite and click Yes if you accept the license agreements.
  • Page 24 The following screens will appear. • When the Software Update Setting screen appears, choose the software update setting you want and click OK. • When the Brother Product Research and Support Program screen appears, select your preference and follow the on-screen instructions.
  • Page 25 If your wireless settings fail, the Wireless Device Setup Wizard screen appears. Follow the on-screen instructions to complete the wireless configuration. Choose your machine from the list, and then click OK. The installation of the Brother drivers will automatically start. Please wait for the software to install.

  • Page 26: Install Optional Applications

    Install Optional Applications ® Windows Install optional Install FaceFilter Studio applications Help You can install the following applications. To run FaceFilter Studio, go to FaceFilter Studio and BookScan & Start/All Programs/Reallusion/ Whiteboard Suite supported by FaceFilter Studio on your computer. Reallusion, Inc Click Check for Updates on the screen.

  • Page 27: For Network Users

    For Network Users Reset the network settings to factory default To restore all network settings of the internal Print/Scan server to the factory default, please follow the steps below. Make sure the machine is idle, then disconnect all the cables from the machine (except the power cord). Press Settings.
  • Page 28 The contents of this manual and the specifications of this product are subject to change without notice. Brother reserves the right to make changes without notice in the specifications and materials contained herein and shall not be responsible for any damages (including consequential) caused by reliance on the materials presented, including but not limited to typographical and other errors relating to the publication.
