Supplemental Instructions For Water Heater
Installation of this water heater insulation blanket is recommended after
completing the installation of the water heater. See "Installation &
Operating Instruction Manual" supplied with the water heater.
• Disconnect or turn off power supply to water heater before
installing insulation blanket or servicing.
• DO NOT block drain valve or temperature and pressure relief
valve.
RECOMMENDED INSTALLATION PROCEDURE
Wear clothing adequate to protect against skin contact and irritation.
A long-sleeved shirt with collar and cuffs buttoned, gloves, hat,
glasses and disposable dust respirator are advisable.
Write down the complete model and serial numbers of the water heater
in the space provided below and store in a safe place for future
reference, or write via permanent marker on the outer covering of the
insulation blanket.
MODEL NUMBER
SERIAL NUMBER
To ease the installation process, the discharge line connected to the
temperature and pressure relief valve may be temporarily removed.
The discharge line must be reconnected to the temperature and
pressure relief valve after installation of the insulation blanket has
been completed.
Insulation Blanket
DANGER
CAUTION
WARNING
238-51237-00C 8/15
Advertisement
Related Manuals for Bradford White RE340T6
Summary of Contents for Bradford White RE340T6
- Page 1 Supplemental Instructions For Water Heater Insulation Blanket Installation of this water heater insulation blanket is recommended after completing the installation of the water heater. See “Installation & Operating Instruction Manual” supplied with the water heater. DANGER • Disconnect or turn off power supply to water heater before installing insulation blanket or servicing.
- Page 2 When a drain pan must be installed to avoid water damage to the area adjacent to the water heater, the drain pan must have a minimum length and width of at least 6 inches (15.2 cm) greater than the diameter of the water heater (prior to the blanket being installed).

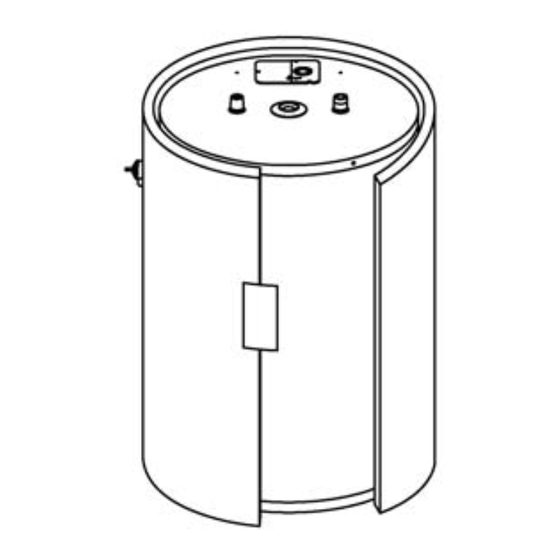

- Page 3 With vinyl facing outward and fiberglass against water heater surface, loosely wrap insulation blanket around water heater. Align pre-cut openings in insulation blanket with drain valve, control covers and temperature and pressure relief valve of water heater. When components on water heater align with corresponding pre-cut openings, secure one end of insulation blanket to water heater using a 5”...
- Page 4 With the vinyl facing upward and fiberglass against the top of the water heater, place the head blanket on top of the water heater. Align pre-cut openings in the head blanket with the water nipples, temperature and pressure relief valve, and junction box of the water heater. When components on water heater align with corresponding pre-cut openings in the head blanket, secure the head blanket to the insulation blanket...
