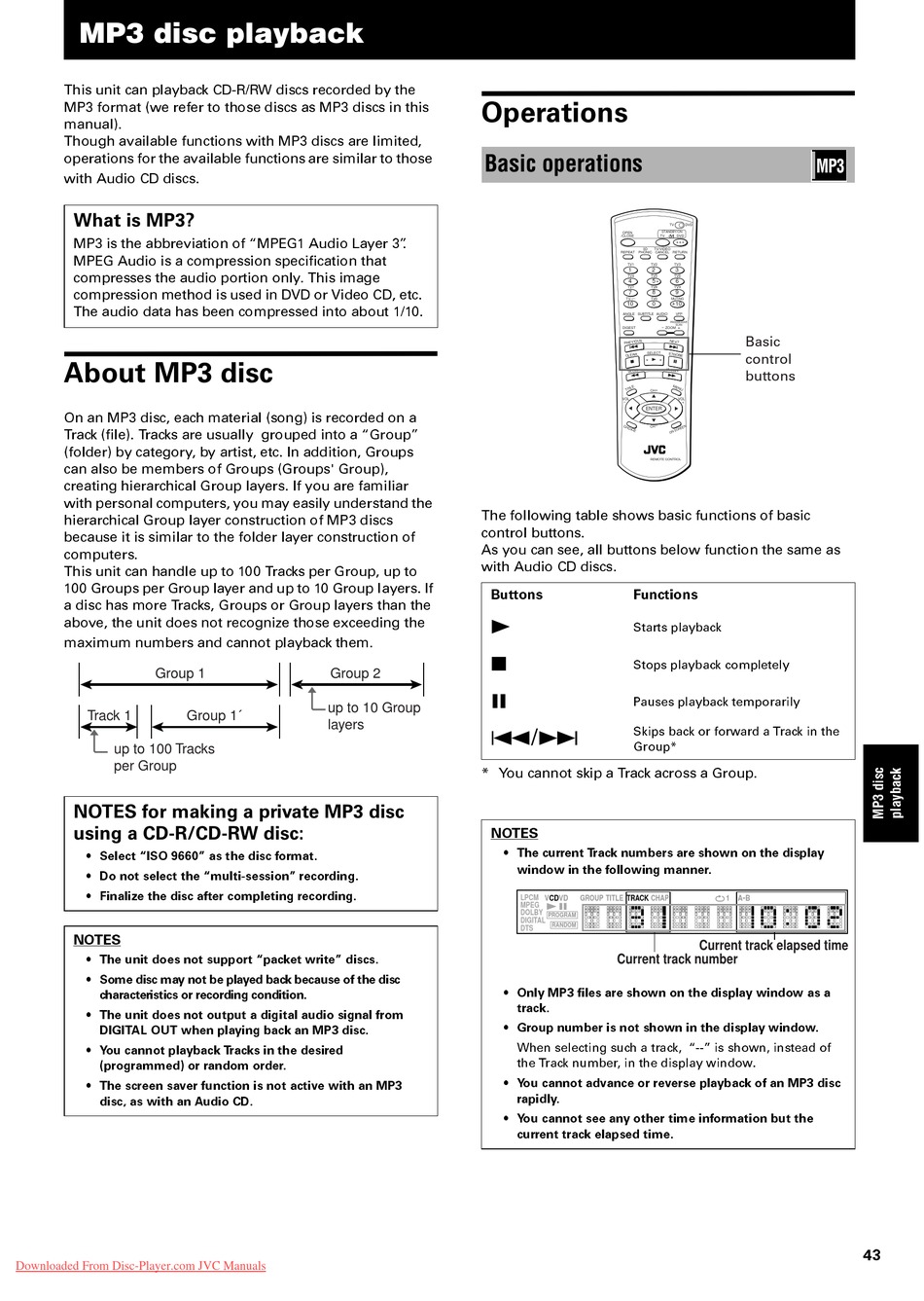

Mp3 Disc Playback; About Mp3 Disc; Operations - JVC XV-S60BK Instructions Manual

MP3 disc playback

This unit can playback CD-R/RW discs recorded by the
MP3 format (we refer to those discs as MP3 discs in this
manual).
Though available functions with MP3 discs are limited,
operations for the available functions are similar to those
with Audio CD discs.
What is MP3?
MP3 is the abbreviation of “MPEG1 Audio Layer 3” .
MPEG Audio is a compression specification that
compresses the audio portion only. This image
compression method is used in DVD or Video CD, etc.
The audio data has been compressed into about 1/10.

About MP3 disc

On an MP3 disc, each material (song) is recorded on a
Track (file). Tracks are usually grouped into a “Group”
(folder) by category, by artist, etc. In addition, Groups
can also be members of Groups (Groups' Group),
creating hierarchical Group layers. If you are familiar
with personal computers, you may easily understand the
hierarchical Group layer construction of MP3 discs
because it is similar to the folder layer construction of
computers.
This unit can handle up to 100 Tracks per Group, up to
100 Groups per Group layer and up to 10 Group layers. If
a disc has more Tracks, Groups or Group layers than the
above, the unit does not recognize those exceeding the
maximum numbers and cannot playback them.
Group 1
Track 1 Group 1´
up to 100 Tracks
per Group
NOTES for making a private MP3 disc
using a CD-R/CD-RW disc:
• Select “ISO 9660” as the disc format.
• Do not select the “multi-session” recording.
• Finalize the disc after completing recording.
NOTES
• The unit does not support “packet write” discs.
• Some disc may not be played back because of the disc
characteristics or recording condition.
• The unit does not output a digital audio signal from
DIGITAL OUT when playing back an MP3 disc.
• Y ou cannot playback T racks in the desired
(programmed) or random order.
• The screen saver function is not active with an MP3
disc, as with an Audio CD.
Downloaded From Disc-Player.com JVC Manuals

Operations

Basic operations
The following table shows basic functions of basic
control buttons.
As you can see, all buttons below function the same as
with Audio CD discs.
Buttons
3
7
Group 2
8
up to 10 Group
layers
4/¢
* You cannot skip a Track across a Group.
NOTES
TV
STANDBY/ON
OPEN
/CLOSE TV DVD
3D TV/VIDEO
REPEAT PHONIC CANCEL RETURN
TV1 TV2 TV3
1 2 3
TV4 TV5 TV6
4 5 6
TV7 TV8 TV9
7 8 9
TV -/-- TV0 MUTING
10 0 +10
ANGLE SUBTITLE AUDIO VFP
PROGRESSIVE
SCAN
DIGEST - ZOOM
SELECT
3
+
CH
5
VOL
-
ENTER
∞
-
CH
RM-SXVM50J REMOTE CONTROL
Functions
Starts playback
Stops playback completely
Pauses playback temporarily
Skips back or forward a Track in the
Group*
• The current T rack numbers are shown on the display
window in the following manner.
LPCM VCDVD GROUP TITLE TRACK CHAP
3 8
MPEG
DOLBY
PROGRAM
DIGITAL
RANDOM
DTS
Current track number
• Only MP3 files are shown on the display window as a
track.
• Group number is not shown in the display window.
When selecting such a track, “--” is shown, instead of
the Track number, in the display window.
• Y ou cannot advance or reverse playback of an MP3 disc
rapidly.
• Y ou cannot see any other time information but the
current track elapsed time.
DVD
+
Basic
control
buttons
VOL
+
1 A-B
Current track elapsed time
