JVC XV-E100SL Instructions Manual
  1. Manuals
  2. Brands
  3. JVC Manuals
  4. DVD Player
  5. XV-E100SL
  6. Instructions manual

JVC XV-E100SL Instructions Manual

Jvc dvd video player instruction manual
Hide thumbs Also See for XV-E100SL:

Advertisement

Quick Links

Download this manual See also: Service Manual

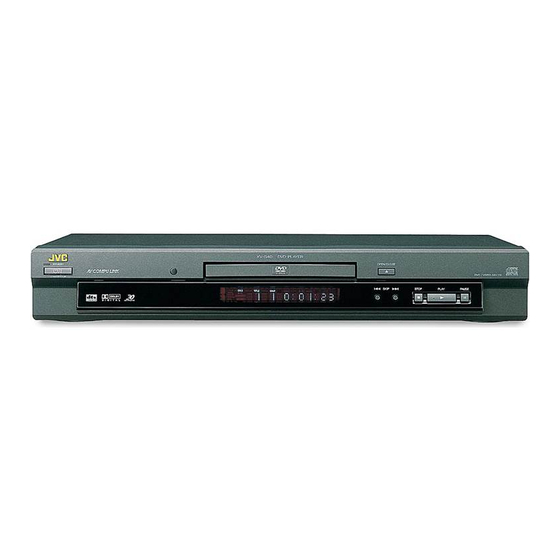

DVD VIDEO PLAYER
XV-S40BK/XV-S42SL
XV-E100SL
OPEN
STANDBY/ON
/CLOSE
PLAY
3D
MODE
PHONIC CANCEL
RETURN
1
2
3
4
5
6
7
8
9
10
0
+10
THEATER
ANGLE
SUBTITLE
AUDIO
POSITION
DIGEST
ZOOM
SELECT
3
5
STANDBY
ENTER
STANDBY ON
∞
DOLBY
D I G I T A L
RM-SXVB40A
REMOTE CONTROL
DVD/CD PLAYER
OPEN/CLOSE
0
4
¢
STOP
PLAY
SKIP
7
3
INSTRUCTIONS
DVD/VIDEO CD/CD
PAUSE
8
For Customer Use:
Enter below the Model No. and Serial No.
which are located on the rear, bottom or
side of the cabinet. Retain this information
for future reference.
Model No.
Serial No
LET0178-005A
[B]

Advertisement

loading

Related Manuals for JVC XV-E100SL

Summary of Contents for JVC XV-E100SL

  • Page 1 DVD VIDEO PLAYER XV-S40BK/XV-S42SL XV-E100SL OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT STANDBY ENTER STANDBY ON ∞ DOLBY D I G I T A L RM-SXVB40A REMOTE CONTROL DVD/CD PLAYER OPEN/CLOSE DVD/VIDEO CD/CD ¢...
  • Page 2 Undgå udsæt- AVOID DIRECT EXPOSURE urkopplad. Betrakta ej telse for stråling TO BEAM. strålen. XV-S40BK/ Front XV-S42SL/ XV-E100SL Stand height 5 cm or more Floor VARO: Avattaessa ja suo- jalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen.
  • Page 3 English English English English 4 ¢...
  • Page 4 Introduction...
  • Page 5 To playback in random order [RANDOM] You can play titles or tracks on discs inserted in random order by using the Random function. 7 While stopped Press PLAY MODE. The play mode menu appears on the TV screen. Use CURSOR 2/3 to move The number indicates the [RANDOM].
  • Page 6 © ©...
  • Page 7 1 STANDBY indicator 3 Remote sensor 2 STANDBY/ON 4 Disc tray button STANDBY STANDBY ON DOLBY D I G I T A L 6 Display window 5 0 (OPEN/CLOSE) button DVD/CD PLAYER OPEN/CLOSE ¢ STOP SKIP 8 7 (STOP) button 7 4/¢...
  • Page 8 1 OPEN/CLOSE button 2 PLAY MODE button 3 3D PHONIC button 4 Numeric button 5 ANGLE button 6 SUBTITLE button 7 DIGEST button 8 4/PREVIOUS button 9 7/CLEAR button 0 1/SLOW– button - TITLE button = 5 UP, ∞ DOWN,2 LEFT, 3 RIGHT (CURSOR)buttons ~ CHOICE button OPEN...
  • Page 9 English English English English...
  • Page 10 1 Disc indicator VCDVD TITLE TRACK CHAP PROGRAM RANDOM 4 PROGRAM/RANDAM indicators 1 DIGITAL OUT jack (OPTICAL/COAXIAL) DIGITAL OUT PCM / STREAM COAXIAL OPTICAL RIGHT LEFT S-VIDEO VIDEO VIDEO OUT AUDIO OUT 3 S-VIDEO jack 4 VIDEO jack 5 AUDIO OUT jacks (L/R) 3 Repeat mode indicators 2 Title/chapter/ track indicators...

  • Page 11: Audio Language

    Opening display NOW READING LANGUAGE AUDIO AUDIO DISPLAY SYSTEM LANGUAGE LANGUAGE ENGLISH MENU LANGUAGE DIGITAL AUDIO OUTPUT ENGLISH AUDIO LANGUAGE DOWN MIX ENGLISH SUBTITLE COMPRESSION ENGLISH ON SCREEN LANGUAGE EXIT PRESS PRESS DISPLAY SYSTEM LANGUAGE AUDIO DISPLAY SYSTEM LANGUAGE 4:3 LB MONITOR TYPE AUTO STANDBY SCREEN SAVER...
  • Page 12 While stopped During DVD VIDEO playback DVD CONTROL REPEAT PROGRAM RANDOM REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH During Audio CD playback During Video CD playback CD CONTROL VCD CONTROL REPEAT A-B REPEAT TIME SEARCH REPEAT A-B REPEAT TIME SEARCH DVD VIDEO function status Disc/time (DVD VIDEO) 1 / 2...
  • Page 13 THEATER ANGLE SUBTITLE AUDIO POSITION English English English English...
  • Page 14 Title 1 Chapter 1 Chapter 2 Chapter 3 Track 1 Track 2 Title 2 Chapter 1 Chapter 2 Track 3 Track 4...
  • Page 15 Connections The unit DIGITAL OUT PCM / STREAM COAXIAL OPTICAL RIGHT LEFT S-VIDEO VIDEO VIDEO OUT AUDIO OUT Yellow White S-video cable (not supplied) NOTES AV COMPU LINK VIDEO OUT COMP. Yellow White Audio/Video cable (supplied) S-VIDEO VIDEO LEFT AUDIO RIGHT English English...
  • Page 16 The unit DIGITAL OUT VIDEO OUT PCM / STREAM COAXIAL OPTICAL RIGHT LEFT S-VIDEO VIDEO VIDEO OUT AUDIO OUT (Display Window) VCDVD PROGRAM RANDOM (Display Window) VCDVD PROGRAM RANDOM SCART cable (not supplied) AV COMPU LINK VIDEO OUT COMP. A - B TITLE TRACK CHAP A - B TITLE TRACK CHAP...
  • Page 17 The unit DIGITAL OUT PCM / STREAM COAXIAL OPTICAL RIGHT LEFT S-VIDEO VIDEO VIDEO OUT AUDIO OUT White Audio cable (not supplied) The unit DIGITAL OUT PCM / STREAM COAXIAL OPTICAL RIGHT LEFT S-VIDEO VIDEO VIDEO OUT AUDIO OUT White Audio cable (not supplied) The OPTICAL jack is protected by the hinged cover.
  • Page 19 OPEN STANDBY/ON /CLOSE STANDBY/ON PLAY MODE PHONIC CANCEL RETURN THEATER DVD/CD PLAYER STANDBY STANDBY ON DOLBY D I G I T A L With the label side up /C LO ¢ • To insert an 8-cm disc, place D VD -S 30 GL E P TIT...
  • Page 20 DIGEST SELECT ZOOM Basic control buttons...
  • Page 21 English English English English...
  • Page 22 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER POSITION ANGLE SUBTITLE AUDIO DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL Example: OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL Example:...
  • Page 23 ¢ 4 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞...
  • Page 24 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL DVD CONTROL REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH GO TO CHAPTER = OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE...
  • Page 25 (for DVD VIDEO) (for Audio CD) DVD CONTROL CD CONTROL REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH REPEAT A-B REPEAT TIME SEARCH GO TO 2 : 3 4 : 0 0 GO TO 0 2 : 3 4 Selected time Selected time (for Video CD) VCD CONTROL...
  • Page 26 Selected scene ¢ " ANGLE DIGEST RM-SXVB40A OPEN /CLOSE PLAY MODE ANGLE DIGEST RM-SXVB40A THEATER SUBTITLE AUDIO POSITION ZOOM SELECT ENTER ∞ REMOTE CONTROL STANDBY/ON PHONIC CANCEL RETURN THEATER SUBTITLE AUDIO POSITION ZOOM SELECT 1, 2 ENTER ∞ REMOTE CONTROL...
  • Page 27 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER POSITION ANGLE SUBTITLE AUDIO DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL ZOOM ZOOM...
  • Page 28 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL REPEAT PROGRAM RANDOM The programmed title/track number is shown under each program number. ¢ 4...
  • Page 29 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL REPEAT PROGRAM RANDOM (current title repeat) (current chapter repeat) OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION...
  • Page 30 (for Audio CD) (for Video CD) CD CONTROL REPEAT A-B REPEAT TIME SEARCH PBC CALL REPEAT A-B REPEAT TIME SEARCH REPEAT ALL REPEAT ALL Selected repeat mode Selected repeat mode REPEAT ALL (all track repeat) REPEAT 1 (current track repeat) No indication (off) &...
  • Page 31 4 ¢ 1, 2 Example: English English English English OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL 1 / 3 1 / 3 2 / 3 3 / 3...
  • Page 32 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL The selected camera angle 1, 2 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT...
  • Page 33 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION 1, 2 DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL (DVD VIDEO) (Video CD) 1 / 3 ENGLISH Example: 1/3 ENGLISH 2/3 FRENCH 3/3 SPANISH STEREO Example: STEREO English English...
  • Page 34 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL THEATER 1 Selected picture character THEATER 1 THEATER 2 THEATER 3 THEATER OFF 1, 2 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN...
  • Page 35 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL (for DVD VIDEO) 2:25:25 TITLE CHAP. TIME BITRATE Mbps Transmission rate Elapsed time Current chapter number Current title number (for Audio CD or Video CD playing without PBC) 00:08 TRACK...
  • Page 36 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL 1 / 2 1 / 2 1 / 2 ENGLISH ENGLISH !" OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE...
  • Page 37 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER POSITION ANGLE SUBTITLE AUDIO DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL LANGUAGE AUDIO AUDIO DISPLAY SYSTEM LANGUAGE LANGUAGE MENU LANGUAGE ENGLISH DIGITAL AUDIO OUTPUT AUDIO LANGUAGE ENGLISH DOWN MIX SUBTITLE ENGLISH COMPRESSION ENGLISH...
  • Page 38 LANGUAGE MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE PRESS LANGUAGE MENU LANGUAGE AUDIO LANGUAGE SUBTITLE ON SCREEN LANGUAGE PRESS English ON SCREEN LANGUAGE German BILDSCHIRMMENUE-SPRACHE French AUDIO DISPLAY SYSTEM ENGLISH ENGLISH ENGLISH ENGLISH EXIT AUDIO DISPLAY SYSTEM ENGLISH ENGLISH ENGLISH ENGLISH EXIT...
  • Page 39 AUDIO DISPLAY SYSTEM LANGUAGE DIGITAL AUDIO OUTPUT STREAM / PCM DOWN MIX Lo / Ro COMPRESSION EXIT PRESS AUDIO DISPLAY SYSTEM LANGUAGE DIGITAL AUDIO OUTPUT STREAM / PCM DOWN MIX Lo / Ro COMPRESSION EXIT PRESS English English English English LANGUAGE AUDIO DISPLAY...

  • Page 40: Screen Saver

    AUDIO DISPLAY SYSTEM LANGUAGE MONITOR TYPE 4:3 LB SCREEN SAVER MODE 2 ON SCREEN GUIDE EXIT PRESS AUDIO DISPLAY LANGUAGE AUTO STANDBY RESUME AV COMPULINK MODE DVD 1 PRESS LANGUAGE AUDIO DISPLAY AUTO STANDBY RESUME AV COMPULINK MODE DVD 1 PRESS LANGUAGE AUDIO...
  • Page 41 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL PARENTAL LOCK Country Code Set Level - - - - PASSWORD EXIT PRESS ENTER 1, 3, 5, 7 2, 4 PARENTAL LOCK Country Coce Set Level...
  • Page 42 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM 1, 2 SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL Country Code Set Level PASSWORD CURRENT PASSWORD? ··· PRESS 0~9 KEY PARENTAL LOCK - - - - EXIT 5 °...
  • Page 43 OPEN STANDBY/ON /CLOSE PLAY MODE PHONIC CANCEL RETURN THEATER ANGLE SUBTITLE AUDIO POSITION DIGEST ZOOM SELECT ENTER ∞ RM-SXVB40A REMOTE CONTROL URSOR 5/° to move then PARENTAL LOCK This DISC can’t play now! Temporary Level Change ? PASSWORD PRESS ENTER 5 °...
  • Page 45 English English English English...
  • Page 47 English English English English...

  • Page 48: Safety Instructions

    “SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT” This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. Do read the operating instructions before you attempt to use the equipment.

This manual is also suitable for:

Xv-s40bkXv-s42sl
