Set up the PictureTel 70 Camera with a Bose Speaker

• If you have a PictureTel 70 camera, a cart that has a Bose speaker (such as the Premier Cart), and a
single-monitor system, you must connect the audio cables to the Bose speaker inside the cart. See the
Installing a Collaboration System on the Premier Cart document for complete information about connecting
the camera when you have a Premier Cart.

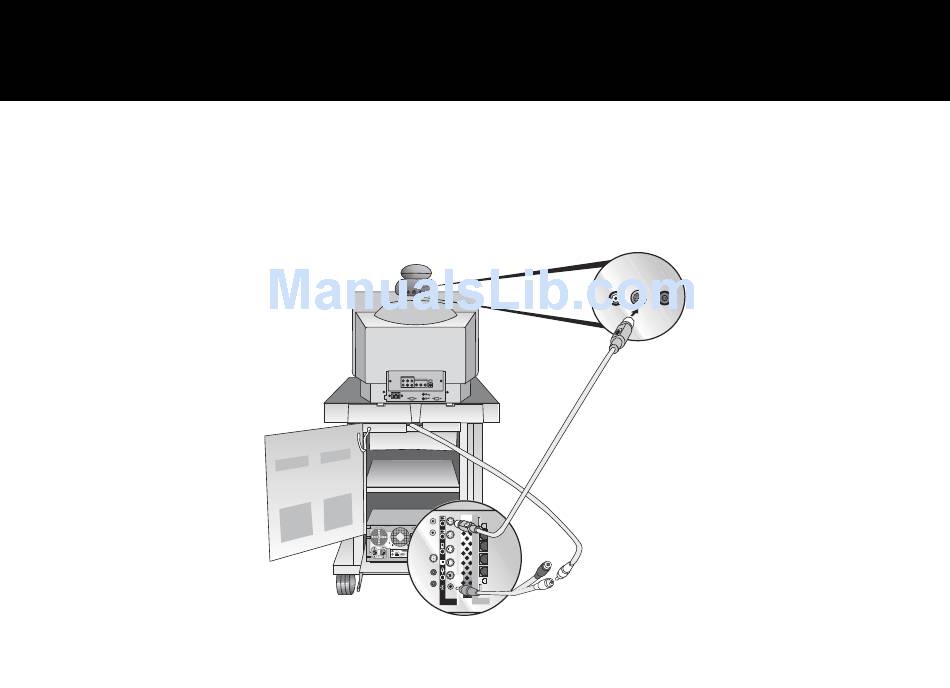

Once you've set up the PictureTel 70 camera on a cart with a Bose speaker, the camera and audio cabling
typically looks like this (note that this illustration shows the Premier Cart):
