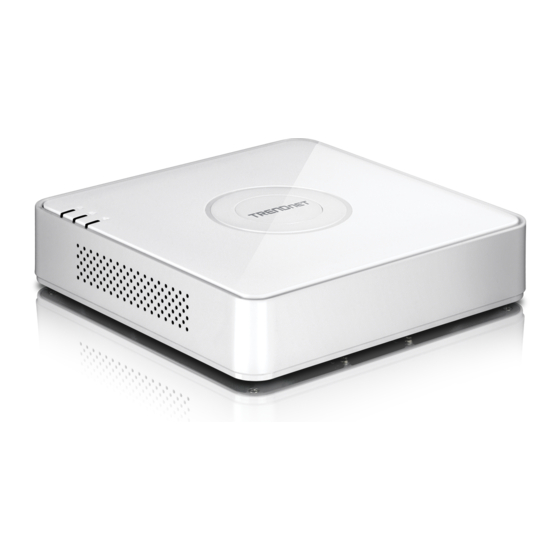

TRENDnet TV-NVR104 Quick Installation Manual

4-channel 1080p hd poe nvr
Hide thumbs Also See for TV-NVR104:
Table of Contents

Advertisement

Quick Links

4-Channel 1080p HD PoE NVR
Ÿ
TV-NVR104
Ÿ Quick Installation Guide (1)
TV-NVR104 (V1)/06. 1 6.2015

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TV-NVR104

Summary of Contents for TRENDnet TV-NVR104

  • Page 1 4-Channel 1080p HD PoE NVR Ÿ TV-NVR104 Ÿ Quick Installation Guide (1) TV-NVR104 (V1)/06. 1 6.2015...

  • Page 2: Before You Start

    Outdoor 2MP Full HD 1080p PoE+ IR Mini Speed Dome Network Camera TV-IP450P Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera TV-IP450PI Outdoor 1.3 MP HD PoE IR Speed Dome Network Camera TV-IP662PI Megapixel HD PoE Day/Night PTZ Network Camera Note: Visit http://www.trendnet.com/info/TV-NVR104 for the most current camera compatibility list.
  • Page 3 Compatible Hard Drive The TV-NVR104 is compatible with 3.5” SATA I or SATA II hard drives. To ensure uninterrupted 24/7 recording, it is recommended that you select a drive rated for video or surveillance applications. Mobile App To remote viewing the live video...
  • Page 4 3. Connect the power adaptor to the TV-NVR104 and plug the adaptor into an electrical outlet. 4. Connect your camera to the TV-NVR104 and wait 30 seconds for the camera to power on. 5. Insert the CD-ROM that was included with your camera into your computer.
  • Page 5 11. Enter the IP Address for the Camera. The IP default range for the NVR unit is: 192.168.10.XX We recommended that you assign IP values that match the default range of the TV-NVR104 (192.168.10.1 – 192.168.10.254). Except the default IP of TV-NVR104 (192.168.10.60) Example: Camera 1: 192.168.10.50...
  • Page 6 3. Connect the power adaptor to the TV-NVR104 and plug the adaptor into an electrical outlet. 4. Connect your first camera (one at a time only) to the TV-NVR104 and wait 30 seconds for the camera to boot up. 5. Open a web browser, and type 192.168.10.30 into the address bar. This is the default IP address of the camera.
  • Page 7 2. Hardware Drive Installation (Sold Separately) Note: Ÿ Static electricity can damage the TV-NVR104. Before handling the unit, discharge any static electricity by touching a metal object, or use an anti-static wrist strap. Ÿ The TV-NVR104 supports 3.5” SATA I and II drives up to 4TB.
  • Page 8 4. Mount the hard drive to the TV-NVR104's drive bay using the mounting screws included with your hard drive. 5. Reattach the top cover to the unit. Make sure the lower panel lines up with the slots on the cover.

  • Page 9: System Installation

    3. System Installation Note: The following installation steps support a stand-alone setup WITHOUT a wired connection to a network. To set up the NVR using a wired network connection (for remote access to NVR), proceed to the User's Guide for the appropriate setup steps (do not continue with this section).
  • Page 10 3.1 Camera Installation (Sold Separately) 1. Connect the IP camera to a PoE network port on the TV-NVR104. The use of non-PoE cameras is supported by the TV-NVR104 but the camera will require an external power supply. 2. If you are using camera model TV-IP450P or TV-IP450PI, a PoE injector is required (one included with the camera). Camera model TV-IP430PI also requires a PoE+ injector (sold separately).

  • Page 11: Connect The Monitor

    3.2 Connect the Monitor 1. Using an HDMI or VGA cable, connect the TV-NVR104 to your monitor. HDMI VGA cable HDMI calbe (Not included) (Not included) Display Display (Sold separately) (Sold separately) 3.3 Connect the Mouse Plug the optical mouse into the TV-NVR104.

  • Page 12: Connect The Power

    3.4 Connect the Power Connect the power adapter to the TV-NVR104 power port. 2. Connect the power cable to the power adapter. 3. Plug the power cable into an electrical outlet. 4. (Optional) Connect a ground wire to the grounding point.

  • Page 13: System Setup

    5. System Setup 1. The setup wizard will start after the TV-NVR104 is powered up. Click Next. Start wizard when device starts? Next Exit 2. Enter the default administrator password: admin. 3. Enter a new admin password. 4. Enter the new password again in the Confirm field.
  • Page 14 7. Click the selection list to the right of Date Format to choose a format. MM-DD-YYYY Time Zone (GMT-08:00) Pacific Time (U.S. & YYYY-MM-DD Cananda) MM-DD-YYYY Date Format MM-DD-YYYY DD-MM-YYYY System Date 11-10-2014 System Time 16:41:08 Previous Next Exit 8. Click the selection list to the right of System Date. Time Zone (GMT-08:00) Pacific Time (U.S.
  • Page 15 12. Click the selection list to the right of System Time and then enter the time using a 24-hour format. Time Zone (GMT-08:00) Pacific Time (U.S. & Cananda) Date Format MM-DD-YYYY System Date 11-10-2014 System Time 16:41:08 Previous Next Exit 13.

  • Page 16: Camera Setup

    6. Camera Setup 1. If your TRENDnet camera is Plug-and-Play compatible, as listed on the table below, live video will now be playing. No further setup is required. Proceed to the next section. Plug and Play Cameras Outdoor 3MP Full HD PoE Day/Night Network Camera...
  • Page 17 4. Right-click the mouse to bring up the popup menu. Click on the Menu button. Menu 5. Enter the TV-NVR104 password and click on OK to bring up the main menu. 6. Click the Camera Settings icon on the Main Menu.
  • Page 18 8. From the Edit IP Camera page, select the Adding Method menu, and click on Manual. 9. Enter the camera's IP address. 192.168.10.50| 10. Find your TRENDnet camera from the table below, and note the unit's protocol and port information. Model Protocol...
  • Page 19 13. The NVR defaults to your camera's highest set video stream (Stream 1, listed as “Channel No.1”). To use a lower camera stream, select it from the menu. 14. Enter the camera's username. For TRENDnet cameras, the username is admin. admin 15.

  • Page 20: Start Recording

    7. Start Recording 1. In Live View, right click anywhere on the screen to access the menu options. 2. Click Start Recording and then choose between Continuous Record and Motion Detection Record. 3. Continuous Record is the recommended setting. Motion Detection Record mode requires advanced configuration from the main menu before motion recording will be activated.

  • Page 21: Instant Playback

    8. Instant Playback 1. In Live View, left-click on the camera video you want to review. 2. Click the play icon to playback the last 5 minutes of recording. 3. Detailed playback is available from the main menu. Please see the User's Guide for more advanced video playback features.
  • Page 22 4-Channel HD PoE NVR Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + A11: 2009: +A1: 2010 + A12: 2011 + A2: 2013 EN 55022: 2010 + AC: 2011 Class B EN 50130-4：2011...
  • Page 23 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre gratuit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU). Ces codes sont distribués SANS GARANTIE et sont sujets aux droits d'auteurs des programmeurs.
  • Page 24 Garantie Limitée TRENDnet garantit ses produits contre les défauts matériels et de fabrication, dans des conditions normales d’utilisation et de service, pour les durées suivantes, à compter de la date de leur achat. Limitée: 2 ans de garantie limitée (Si applicable: 1 an de garantie sur l’adaptateur secteur, l’alimentation en énergie et les composants du ventilateur de refroidissement.) Visitez TRENDnet.com pour lire la politique complète de garantie, les droits et les restrictions s’appliquant à...
