Table of contents TRENDnet User’s Guide Camera installations .................. 22 Table of Contents On screen Display Settings .................. 25 Product Overview ................ 5 Display Settings...................... 26 Package Contents ...................... 5 Display settings ...................... 27 Features ......................... 5 Basic pan and tilt .................... 27 Product Hardware Features ................... 7 Advanced PTZ .................... 27 ...
Page 3
Table of contents TRENDnet User’s Guide Channel‐Zero Encoding .................. 43 Scheduled recording .............. 57 Exceptions ........................ 44 Schedule ........................ 57 User Accounts ...................... 45 Video Settings ...................... 59 Add ........................ 45 Sub Stream ...................... 60 ...
Page 4
Table of contents TRENDnet User’s Guide Events ........................ 96 Storage Settings .................... 101 Appendix .................. 1 02 Turn on network discovery on Windows .............. 102 Direct video access ‐ RTSP .................. 102 Install your NVR System on Your Network............... 102 Compatible Camera List ........... E rror! Bookmark not defined. Regulations .................. 1 04 ...

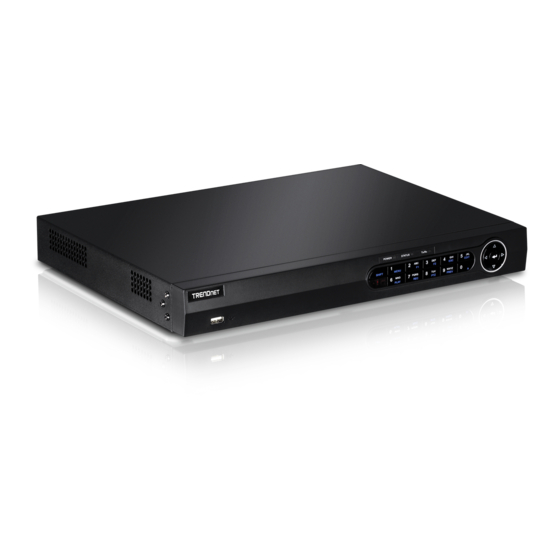

Product Overview Features TRENDnet’s standalone 16‐Channel H.265 1080p HD PoE+ NVR, model TV‐NVR416, offers a comprehensive rack mountable camera management solution. The NVR networks and powers up to sixteen PoE cameras*. Install up to 12TB of storage (hard drives not included) to record one month of continuous video from sixteen 1080p HD PoE cameras**. The TV‐NVR416 features advanced video playback and ...
Page 6
TV‐NVR416 TRENDnet User’s Guide Max. for a single camera: 8MP resolution in H.265 Mouse Included compression Supports mouse and keyboard (keyboard not included) Recording Time Mobile App (A) One month of recording per camera with 12TB of storage (HDDs ® See live video on a mobile device with the free iOS and not included) and 16x 1080p cameras at 30 fps (H.265 Android™ apps compression, medium VBR) Remote Access (B) Over one month of recording per camera with 12TB of storage Access the NVR over the internet (HDDs not included) and 16x 720p cameras at 30 fps (H.265 compression, medium VBR) Camera Setup ...
TV‐NVR416 TRENDnet User’s Guide Rear View Product Hardware Features Network port HDMI Port Front View Power port Audio Ports VGA Port Power USB 2.0 port USB 2.0 button PoE Ports ...
TV‐NVR416 TRENDnet User’s Guide Setup Wizard 3. Create the unlock pattern for quick access later. If you are accessing the DVR for the first time, the device will go through these basic settings. Please follow the onscreen display to complete these information. 1. If you are accessing the DVR the first time, please activate the device by following the password setup. ...
Page 10
TV‐NVR416 TRENDnet User’s Guide 8. Click the selection list to the right of Date Format and then select a date 10. Click the selection list to the right of System Time and then enter the time with format. 24‐hour format then click Next. 11. Display current network type 9. Click the selection list to the right of System Date. ...
Page 11
TV‐NVR416 TRENDnet User’s Guide 13. Click OK to exit the wizard if you have a brand new installation. Select the hard 12. Configure the port related settings here. drive and then click Init to initiate your hard drive if you are running the setup wizard in later time and want to clean up the video on the hard drive. Then click OK. ...
Page 12
TV‐NVR416 TRENDnet User’s Guide 14. Select type of recording method you would like to set the cameras to be. This Start Recording settings can also be configure later under recording section. You can start recording immediately just with a few clicks. In Live View, right click on the mouse. A short menu will come up. Choose Start Recording and then Continuous Record. Click Yes to start continuous recording. Instant Playback Move your mouse pointer over the camera display you want to playback the video 15. Click OK to complete the Wizard installation. and select the display by click on it. The instant playback tool bar will show up. Click on to playback the last 5 minutes of recording. (For more advanced video playback features, please see the Video playback on page 64 for more ...
TV‐NVR416 TRENDnet User’s Guide System Management (local) Single Screen: Display video live view one at a time. Click on Single Screen and then choose the camera you want. (The With the basic system setup, your system is now up and running. Now, you can use video you choose will be replaced with other video if your mouse pointer and monitor to view, set up, and manage your network video the auto‐switch is on, and the auto‐switch is on by recorder. default.) Using the Short Menu Right click your mouse while you are viewing the live video. The short menu will be popped out. Multi‐screen: Display all four video live views at the same time. By default, the video live view is set in the Multi‐screen mode. If you are now in Single Screen mode, click on Multi‐Screen and then choose from 2 x 2,1+5,1+7 or Short Menu 3 x 3 to switch to multi‐screen live view mode. Common Menu: Click to go to the Configuration section directly Menu: Click to show the main menu (see page 18 for Main ...
Page 14
TV‐NVR416 TRENDnet User’s Guide Playback: Click Playback to go full playback menu. PTZ Control: Click this to open the PTZ control panel for the supported cameras Previous Screen: In Single Screen mode, you can manually switch the video to the previous channel. Next Screen: In Single Screen mode, you can manually switch the video to the next channel. Stop/ Start Auto‐ Start (default) or stop automatic live view switch. The switch: live view video will be changed by channel sequence. Start Recording: Start Continuous or Motion Detection recording. To set up motion detection area, or stop continuous and motion detection recordings, you need to navigate to ...
TV‐NVR416 TRENDnet User’s Guide Shortcut Menu Picture Mode: Select a monitor display setting from Standard, Bright, Gentle, and Vivid of your choice. Click OK to confirm Each video in live view has a short cut menu to perform the frequent adjustments your choice. of the video. Move your mouse pointer over the camera display you want to bring up the Shortcut Menu. Click on the video. The frame of the video shows active (yellow frame). And then click on the button of the selected jobs. ...
Page 16
TV‐NVR416 TRENDnet User’s Guide Instant playback Advanced PTZ You can further control zoom, focus, and aperture with compliant PTZ camera. Click Click on to playback the last 5 minutes of recording. on + or – to adjust zoom, focus and aperture (iris). Click button, the camera will Audio turning it around continuously. Click the button again to stop moving. Click on to enable the audio on selected channel. Click to mute the audio. Special features PTZ control (Feature availability depends on camera models) Click on to proceed PTZ operations. The PTZ menu will show up on the screen. Menu. Bring up the advanced PTZ menu. Zoom operation. Zoom In: Click and drag area from left to right to zoom in the defined area. ...
Page 17
TV‐NVR416 TRENDnet User’s Guide PTZ Configuration Image settings Click on to adjust the video display settings. Quickly access the PTZ presets by clicking the One‐touch button and to access the preset settings, click on the General button. Use the slider or enter a number (0‐255) to adjust the image brightness. Default: 128 Use the slider or enter a number (0‐255) to adjust the image contrast. Default: 128 Digital zoom Use the slider or enter a number (0‐255) to adjust the color Click on to enable digital zoom. A navigate window will showed up on right saturation. The greater number means the color will be more lower screen corner. Drag and drop or double click to define the area you want to saturated. Default: 128 ...
TV‐NVR416 TRENDnet User’s Guide Live view strategy Using the Main Menu Click on to manage the live view strategy. The Real‐time strategy allocate all Right click your mouse while you are viewing the live video. The short menu will be popped out. Mouse over the Menu and click the button to bring up the Main resources to minimize the delay of video delivery. When the network is congested, Menu. the video may be interrupted. Fluency strategy makes larger video buffer to save and play video back. It makes the communication more robust, but the live view playback timing is delayed. Balanced strategy set up the good enough video buffer to take care of the playback fluency while maintain the network robustness. Information Click on to see current camera stream frame rate, bandwidth, resolution and compression information. ...
TV‐NVR416 TRENDnet User’s Guide Logout, start up, or shut down the NVR The NVR is a class A network equipment designed for 24/7 operation. Just plug‐in the power source, the NVR is up and running. When you want to change the NVR settings, manage the cameras proceed system maintenance or software upgrade, you need to log in, log out, restart, or shut down your NVR gently. Pulling out the power source may cause unexpected hard drive damage and system malfunction which is not a suggested way to power down your NVR. Startup your NVR Rebooting your NVR Make sure the power supply is plugged into an electrical outlet. It is highly recommended that an uninterruptible power supply (UPS) to be used in Click Reboot to reboot your NVR without power down. conjunction with the unit. Shutdown your NVR Log out from NVR management Bring up the main menu. Click on Shutdown Menu icon. The Shutdown sub When you have done the NVR settings and managements, you’ll want to lock your menu is showing up. NVR before you leave. Click Logout to exit the NVR management. ...
PoE Password Set: If you install plug‐and‐play TRENDnet 1 with its factory found on TRENDnet website. There are three major groups of TRENDnet compatible default setting, the NVR will set the camera away from cameras interacts differently with the NVR, TRENDnet 1, TRENDnet 3, and ONVIF the default and load the NVR password as camera access cameras. TRENDnet cameras may fit into one or more camera groups. Please ...
Page 23
TV‐NVR416 TRENDnet User’s Guide camera passwords are synchronized. Plug‐and‐Play installation This is an effort free installation. Just to make sure all your cameras are set to Refresh: Click refresh to refresh the camera list. Only the cameras factory default and connect the plug‐and‐play cameras to the PoE ports. One for ...
Page 25
TV‐NVR416 TRENDnet User’s Guide 6. Enter camera access user name. On screen Display Settings Compatible camera on screen display can be changed directly through camera access or through NVR. Note: Please reference compatible camera list for more details. 7. Enter camera access password. 8. Click OK to save the settings. Camera: Click to choose the camera you want to change the settings. Camera Name: The name of the chosen camera. Display Name: Check this box to display camera name. Display Date: Check this box to display system time. Display Week: Check this box to display time of the week. Time Format: Select 12 or 24‐hour time format. ...
Page 26
TV‐NVR416 TRENDnet User’s Guide image HUE setting. Default: 128 Display Settings Mirror: Adjust video image quality, lightness, and color settings here. Note: Please reference compatible camera list for more details. Choose horizontal, vertical or both to adapt to the physical installation. Click Apply to apply the settings. Camera: Click to choose the camera you want to change the settings. Camera Name: The name of the chosen camera. Brightness: Use the slider or enter a number (0‐255) to adjust the image brightness. Default: 128 Contrast: Use the slider or enter a number (0‐255) to adjust the image contrast. Default: 128 Saturation: Use the slider or enter a number (0‐255) to adjust the color saturation. The greater number means the color will be more saturated. Default: 128 ...
Page 27
TV‐NVR416 TRENDnet User’s Guide Basic pan and tilt Display settings All compatible PTZ cameras can do the basic pan and tilt to adjust the video Control PTZ camera’s video shooting position, patrol route, zoom, focus, and iris. shooting position. Click the buttons you want to pan or tilt the camera. Adjust the Note: Please reference compatible camera list for more details. distance of each step of moving by sliding the Speed. Each step can have farther distance when sliding the Speed toward the right, and vice versa. Right‐Up Up Right Down Left‐Up Right Down Left Left Down Speed Advanced PTZ You can further control zoom, focus, and aperture with compliant PTZ camera. Click on + or – to adjust zoom, focus and aperture (iris). Click button, the camera will ...
Page 28
TV‐NVR416 TRENDnet User’s Guide 2. Adjust the zoom, focus and aperture. 3. Select Save Preset. 4. Click the number of preset. Running the pattern of behaviors: Click to start running the pattern. Click to stop recording. Patrol You can setup up to 255 presets depends on camera’s capability. To access preset ...
Page 29
TV‐NVR416 TRENDnet User’s Guide 2. To erase a key point, click on the key point. If you want to edit a key point, just erase the key point and then add a new one. 3. Click or to move the order of the patrol key points. 4. Click to clean up all key points. Start or stop a patrol: Camera: Click to choose the camera you want to change the settings. Click to start patrol. Enable Motion Check this box to enable motion detection. Click Apply to ...
Page 31
TV‐NVR416 TRENDnet User’s Guide Linkage action Privacy Mask When motion event detected, the corresponding actions will be executed. Create a masking area to keep your privacy. Note: Please reference compatible camera list for more details. Camera: Click to choose the camera you want to change the Full Screen Switch the video on the VGA/HDMI monitor to the settings. Monitoring: camera detected motion event. Enable Privacy Mask: Check this box to enable privacy masking. Audible Warning: Activate the audible on board buzzer. Draw Area: Click and drag on the area you want to set up the Send Email: Send email to notify the system manager. privacy mask. Clear All: Click this button to clear all the masking area. ...
Page 32
TV‐NVR416 TRENDnet User’s Guide Video tamper settings Video Tamper Click Settings to bring out the detailed set up menu. Detects if a camera has been tampered with and surveillance is compromised. You Arming Schedule can set up video tamper notifications to alert the system manager to check the camera. Note: Please reference compatible camera list for more details. 1. Select day of the week you want to edit on the row of Week. Camera: Click to choose the camera you want to change the settings. Enable Tamper‐ Check this box to enable video tamper. proof: Draw Area: Click and drag on the area you want to set up the video tamper. 2. Enter the period of time you want to actively detect the motion events. Clear: Click this button to clear the video tamper area. Sensitivity: Move the slider to adjust detection sensitivity. Sliding ...
Page 36
TV‐NVR416 TRENDnet User’s Guide Configuration Menu Setting and manage your NVR system by bring up the main menu. Click on Configuration Menu icon. Time Zone: Click the selection list to the right of Time Zone. System Settings Date Format: Click the selection list to the right of Date Format and General then select a date format. Set up the basic time, display resolution, and operation settings here. System Date: Click the selection list to the right of System Date. System Time: ...
Page 37
TV‐NVR416 TRENDnet User’s Guide DST settings More settings Set up Daylight Saving Time. Daylight saving time More settings Auto DST The daylight saving time adjustment is setting to Device Name: This is the name of the NVR. Default: NVR adjustment: automatic adjustment according to the time zone setting by default. If you want to set the daylight settings Auto logout: Set up the timeout to logout NVR management after manually, uncheck this box to disable the automatic DST management inactive for a period of time. adjustment. Menu Output The video output is active for both HDMI and VGA Enable DST: Manually enable or disable daylight saving time Mode: interfaces. adjustment. ...
Page 38
TV‐NVR416 TRENDnet User’s Guide Network IPv6 Address 1: IPv6 self‐assigned address including the subnet prefix expression in the end of the string. Set up NVR network, DDNS, NTP, Email, and UPnP settings. IPv6 Address 2: IPv6 static address including the subnet prefix expression General in the end of the string. Setup the network interface connecting to the Internet. IPv6 Default The default route going further from IPv6 subnet Gateway: MAC Address: The MAC address of the NVR network interface. MTU: Maximum transmission unit. The maximum field size in the Ethernet packet. Default: 1500 Preferred DNS: Enter your first IPv4 or IPv6 DNS server address Alternate DNS: Enter your second IPv4 or IPv6 DNS server address Click Apply to apply the changes. Network General Settings ...
Page 39
TV‐NVR416 TRENDnet User’s Guide DDNS NTP Dynamic Domain Name Service, DDNS, allows you to find your NVR from the Network Time Protocol Service. The accuracy of the system clock is important for Internet with an easy to remember domain name. scheduling and accurate logging. You can automatically check the time accuracy with a network time server (NTP server). DDNS Enable DDNS: Check this box to enable DDNS Service. NTP settings DDNS Type: Select a DDNS service provider: dyn.com or no‐ip.com. Enable NTP: Check this box to enable NTP Service. Server Address: Enter the DDNS server address. Interval: The time interval that the NVR will synchronize the time with Device Domain Enter your registered domain/host name on selected NTP server. Default: 60 minutes Name: DDNS service. NTP Server: Specify a time server (NTP server) to synchronize with. (e.g. ...
Page 40
TV‐NVR416 TRENDnet User’s Guide Email Select Receiver: Select the pull down menu to select the receiver you Set up email accounts for notifications. want to set up the detail. You can send to 3 accounts at the same time, but just set up separately. Receiver: The receiver’s name. Receiver’s The receiver’s email address. Address: *Note: Many ISPs does not allow service port 25 going through their network. ...
Page 41
TV‐NVR416 TRENDnet User’s Guide UPnP More settings Universal Plug‐and‐Play is a device discovery protocol set. It allows your camera to easily be found, for example, on a Windows operation system. More Settings UPnP Server Port: The service port number for NVR management. The Enable UPnP: Check this box to enable UPnP connection. default service port of NVR is 8000. Mapping Type: Choose Manual or Auto port mapping. HTTP Port: The default web access port. You can change the port UPnP List number. The default port number is 80. Port Type: The service type on the UPnP port RTSP Port: The Real‐Time Streaming Protocol port for video streaming. You can change the port. The default port Edit: Click the icon to manually edit the port mapping. ...
TV‐NVR416 TRENDnet User’s Guide Output: disabled Live View Event Output: Define where the video is going out when event triggered. The NVR is set to both VGA and HDMI. Change the live view settings. Full Screen When event triggered full screen display, who long the Monitoring video is going to stay on the screen. Default: 10 Dwelling Time: seconds. Click Apply to apply the changes. View Setting live view display arrangement and sequence. General Live view general settings Video Output The video output interface is VGA or HDMI Interface: Live View Mode: Choose the default Live View mode to be 1x1 single video on the screen or 2x2 four video on the screen at ...
Control Panel TV‐NVR416 TRENDnet User’s Guide Channel‐Zero Encoding Layout Panel: Preview how the layout the video display. Setting camera to certain frame rate and bit rates. To remove a camera from the display, just click on the selected cell to remove the channel number. To assign a channel to a display cell, choose the camera from the camera list. Note: Each video channel can be assigned to one display cell. Click on camera when it is not assigned and double click on the list if it is currently assigned ...
Page 44
TV‐NVR416 TRENDnet User’s Guide maintenance tools on the NVR checking and managing Exceptions your hard drive. See page 55 for more detail.) Setup the action when exception happened. Select the exception you want to Network The exception is triggered when network port is monitor and then choose the audible warning or email notification. Click Apply to Disconnected: disconnected. apply the changes and remember to setup your email account if you choose the email notification. IP Conflicted: The NVR is constantly monitoring if there’s an IP conflict is happening. Exception is triggered when there’s an IP conflict. Illegal Login: Exception is triggered when NVR detect the attempt login with wrong credential. Record Exception: Exception will be triggered when anything goes wrong during video recording process. Alarm feature is not supported on this model. ...
Page 45
TV‐NVR416 TRENDnet User’s Guide User Accounts User: Enter the user name. You can setup up to 16 user accounts to access the camera’s video stream with a Password: Enter the password. web browser or real time video stream (RTSP). Only one administrator account Confirm: Enter the password again. (username: admin) can be setup to configure the NVR and cannot be deleted. Level: Select the user’s level from Guest or Operator for the preset permissions. By default, an operator can view the video and operate the camera pan, tilt, and zoom. Guest can only view the video. NVR settings are only allowed to be changes with administrator account. User’s MAC Enter the user’s MAC address limit the access to add on security. Address: Leave it 00:00:00:00:00:00 as wild card address if you don’t limit the access. Edit Click Edit on user to change the account settings. ...
Page 46
TV‐NVR416 TRENDnet User’s Guide Permission: Local configuration Permission: Remote configuration Local Log Search: Search the NVR log with local login. Remote Log Search: Search the NVR log with web login. Local Parameters Setting NVR with local login. Remote Parameters Setting NVR with web login. Settings: Settings: Local Camera Manage cameras on NVR with local login. Remote Camera Manage cameras on NVR with web login. Management: Management: Local Advanced Setting NVR advanced features with local login. Remote Advanced Setting NVR advanced features with web login. Operation: Operation: Local Shutdown / ...
Page 47
TV‐NVR416 TRENDnet User’s Guide Maintenance Menu Manage your NVR system by bring up the main menu. Click on System Maintenance Menu icon. System Maintenance System Information is displaying here for system maintenance. Permission: Camera configuration NVR information Camera Permission: The camera management permission list: Remote Live View: Viewing video through the network. Local Manual Operation: Manage camera settings with local NVR login. Remote Manual Operation: Manage camera settings with web login. Local Playback: Allow recording playback on connected monitor. Remote Playback: Allow recording playback via network access. Local PTZ Control: Allow camera PTZ operations through NVR with local NVR login. NVR Information Remote PTZ Control: Allow camera PTZ operations ...
Page 48
TV‐NVR416 TRENDnet User’s Guide Camera information Recording Information Camera Information NVR Recording Status Information Camera No.: The channel number camera assigned into. Camera No.: The channel number camera assigned into. Camera Name: Camera device name Recording Status: Showing the status and setup of the video recording. Status: Showing the camera is connected or disconnected. Frame Rate: Showing the camera recording frame rate. Motion Detection: Showing the status and setup of the camera motion Bitrate: Showing the camera recording video stream bitrate in detection. thousands bits per second. Tamper‐proof: Showing the status and setup of the camera video Resolution: Showing the camera recording video resolution. ...
Page 49
TV‐NVR416 TRENDnet User’s Guide Network Information Storage Information NVR Network Interface Information HDD Status Information NIC: Network Interface Card. LAN1 is the assigned network Label: Index of the HDD. NVR supports 2 Hard Drive bays with interface which represent to the non‐PoE network port. up to 6TB each. IPv4 Address: The IPv4 address on this interface Status: Showing the hard drive working condition. IPv4 Subnet Mask: Network range of the subnet Capacity: The total hard drive storage capacity after formatting. IPv4 Default The default route going further from TV‐IP320PI IPv4 Free space: Displays how much space is available free for video Gateway: subnet recordings. ...
Page 50
TV‐NVR416 TRENDnet User’s Guide IP conflict, network disconnect, recording Log Information exception, IP camera disconnection, IP camera All NVR activities are registered on the log. Find the activity by searching with time address conflict, recording buffer overflow. range and log type. Click Search to start the search. Operation: Log Search power on, abnormal shutdown Local operations: shutdown, reboot, login, logout, configure parameters, upgrade, start recording, stop recording, PTZ control, lock file, unlock file, initialize HDD, add IP camera, delete IP camera, set IP camera, playback by file, playback by time, export configuration file, import configuration file, export recordings, restore administrator’s password, operate tag, and HDD detect. Remote operations: reboot, login, logout, configure parameters, upgrade, start recording, stop recording, PTZ control, lock file, unlock file, initialize HDD, add IP camera, delete IP camera, set IP camera, playback / download by file, playback / download by time, export ...
Page 52
TV‐NVR416 TRENDnet User’s Guide 1. If a firmware upgrade is available, download the firmware to your Import/Export Configuration Settings computer. To save current or load previous NVR settings, choose the Import / Export page 2. Unzip the file to a folder on your computer. and then export the file to the USB drive or import the file. 3. Read the firmware upgrade instruction for specific version update ...
Page 53
TV‐NVR416 TRENDnet User’s Guide Network Monitoring Traffic To monitor the network traffic, navigate to the traffic chart. Factory Default To reset the NVR to the factory default, navigate to this Default page and then click on OK to reset all NVR settings back to factory default. Traffic LAN1: The network interface. Sending: The network traffic generated from the NVR. Receiving: The network traffic receiving by the NVR. Link Status: The network linking status. Type: Type of network, Ethernet. MAC Address: Media Access Address of the network interface. MTU: Maximum Transmission Unit in bytes. NIC Type: Type of the network card. Speed and duplexing. ...
Page 55
TV‐NVR416 TRENDnet User’s Guide Hard Drive Maintenance and conveyance tests. S.M.A.R.T Settings S.M.A.R.T.: Click to start S.M.A.R.T. test. The S.M.A.R.T. (Self‐Monitoring, Analysis and Reporting Technology) is a monitoring Temperature: The temperature of the hard drive in Celsius. technology to detect and report on various performance and reliability factors to help predict and prevent disk failures. Power on days: Days the hard drive is on. Self‐evaluation: The result of self‐evaluation. All‐evaluation: Functional evaluations. S.M.A.R.T. Detailed S.M.A.R.T. hard drive information. Information: Bad Sector Detection Detect if there’s any bad sector on the disk drive. S.M.A.R.T. Settings Continue to use: Check the Continue to use this disk when self‐...
Page 56
TV‐NVR416 TRENDnet User’s Guide Hard Drive Management Bad Sector Detection Manage and allocate your storage space by bring up the main menu. Click on HDD HDD No.: The Disk number. The NVR has one HDD. Capacity: The total hard drive storage capacity after Menu icon. formatting. Type of Select key area detection or full detection. Detections: Format / Initiate the Hard Drive Detect: Click this button to start bad sector detection. Select the hard drive and then click on Init to format and initialize the hard drive. HDD Capacity: The storage capacity of the hard drive. Block Capacity: The block capacity. Status: The status of bad sector detection. Error count: The total error count detected. Error Info. Detailed sector damage or shield information. ...
TV‐NVR416 TRENDnet User’s Guide Click Copy to copy the same quota setting to other channel. Advanced Storage Quota Settings To set up the disk quota for each channel video recording, select the camera and Click Apply to apply the changes. then enter the maximum recording capacity. Scheduled recording Setup the video recording settings by bring up the main menu. Click on Scheduled Recording Menu icon. Schedule Select the video channel, type of recording, and then click and drag on the weekly schedule. Click Edit to bring up the detailed schedule setting table or click Copy to copy the same schedule to other channel. Storage quota settings Mode: Quota setting Camera: Select the camera you want to setup the storage quota. Used Record The storage space spend in recording for the Capacity: specific channel. HDD Capacity: The storage capacity of the hard drive. Max. Record ...
TV‐NVR416 TRENDnet User’s Guide Video Settings Start/End Time: Specify the starting and end of recording time in 24‐hour format. Set up the video quality for recording (main stream), the higher video quality require larger storage space and better network condition. Please choose the best Type: Select Continuous or Motion Detection recording profile of your choice. Copy to: To quickly setup the same schedule over the week, click Copy. Click another day of the week (1: Monday, 2: Tuesday, 3: Wednesday, 4: Thursday, 5: Friday, 6: Saturday and 7: Sunday). Click All to select the whole week. Click OK after you select the day of the week you want to copy to. Note: Settings in this section are not available all cameras. The NVR will prompt the message to remind you the setting is not available on selected camera. Main Stream (Record) Settings Camera: Select the camera you want to change the recording ...
TV‐NVR416 TRENDnet User’s Guide Sub Stream Stream Type: Select you want to stream video only or video and audio. The sub stream video is mainly for NVR live view. Change your camera option to Resolution: Select the video resolution. lower resolution if your camera generates too much information to the NVR for live Bitrate type: The bitrate is the rate of information generated from the view. video. The higher bitrate means more data and more traffic and better video quality. Constant bitrate generates same amount of information over the same period of time. Variable bite rate takes one step further to compress the information whenever it can, therefore, generates the same or lower amount of information compare to the constant bitrate. Video Quality: Select the video compression algorithm. Frame rate: Select the frame rate to decide how many pictures you want to take in each second. Max. Bitrate Mode: Select General to set the maximum bitrate in certain brackets. Choose Customized to set the maximum Sub Stream ...
TV‐NVR416 TRENDnet User’s Guide want to take in each second. Advanced recording setting Max. Bitrate Mode: Select General to set the maximum bitrate in certain Setup if the NVR can overwrite the previous video recording or not. If you checked brackets. Choose Customized to set the maximum this option, the NVR will overwrite old recordings when the disk is full. Otherwise bitrate on your own. the NVR will send Disk Full Notification to let administrator knows that the disk is full and cannot proceed any recording. Max. Bitrate: The maximum information allowed to record on the NVR in thousands of bits per second. Max. Bitrate Range Recommended bitrate setting. Recommended: ...
TV‐NVR416 TRENDnet User’s Guide Backup Video Recordings Quickly and backup and export your video recordings with the file exporting menu. Bring up the main menu then click on Export Menu icon. Export Select the video channel and range of time and then click on Search to search the video you want to export. Click Quick Export if you want to export all video recordings. Edit Holiday Schedule Holiday Name: Change the holiday name to meaningful name instead of index numbers. Enable: Enable or disable this holiday rule. Mode: Select the holiday is for a day, a week or a month. Day mode: Select the start and end dates to specify the period of holidays. This setting is good for one time only. It does not repeat periodically. Week mode: Select the start and end dates of the week to specify the period of holidays. This setting is repeating every year. Month mode: Select the start and end dates to specify the period of holidays. This setting is repeating every year. ...
TV‐NVR416 TRENDnet User’s Guide Video playback Click to lock the video clip. When video is locked, the video clip is not going to be overwrite accidentally. To unlock the video clip, click . The warning message will remind you again you are unlocking the video clip. Click Yes if you want to Bring up the main menu then click on Export Menu icon. proceed unlock. Click Export again to export the video recordings to the USB drive of your choice. Select the USB drive on the Device Name and then click Refresh if you want to change the drive. Click New Folder to create a new folder on current directory. Click Format to format this USB storage. ...
TV‐NVR416 TRENDnet User’s Guide Search for video recordings Playback buttons Check on the camera you want to see the playback or check on Camera to select all Use playback controls to play back the video recording. channels. Then, choose the date for the recording. If there are video recording in selected channel, the date on the calendar will show blue. Double click the date to start playback. Click this button to play the video backward. Click this button to play the video. Click this button to pause video playback. Click this button to stop playback. Click this button to skip forward 30 seconds. Click this button to skip backward 30 seconds. Time line ...
TV‐NVR416 TRENDnet User’s Guide Playback operations Tagging More playback operations such as mute the audio, clip a customized video, add and Tagging on video recordings help you to mark the critical time of video recording manage tags, and zoom in the viewing are available on the action buttons section. and easier tracking and editing. Find the video is critical and click on to make the tag with default tag name “tag”. Click on to make the tag with customized tag name. Search the video on Tagged video playback mode explained in following sections. The audio is on. Click this button to mute the audio. Zoom The audio is muted. Click this button to enable audio. Click to zoom the playback. A navigate window will showed up on right lower screen corner. Drag and drop or double click to define the area you want to zoom Click this button to start video clipping. in. The defined area is showed in red rectangular. Right click to exit the zoom mode. ...
TV‐NVR416 TRENDnet User’s Guide Playback modes Use the scroll bar to browse the recordings and adjust the pre‐play and post‐play between 5 seconds and the maximum amount of a single section of recording to The video playback not only can playback the video recorded on the hard drive decide the length of playback before and after the motion event. indexed by the time. You can also search the video with motion detection event, tag, or playback the video stored on the USB external hard drive. Tag If you set up the tags and want to search video with the tags, click and select the Tag playback mode. Select the channel you want to search the tags. Enter the start and stop time. If you want to search for specific tag name, enter the tag name or leave it blank for all tags. And, then click on Search. Event To search video with motion detection event, click and select the Event playback mode. Select the channel you want to search the motion detection. Enter the start and stop time. And, then click on Search. ...
TV‐NVR416 TRENDnet User’s Guide External file Access your NVR with the Web Browser To playback the video files saved on the USB drive, click and select the External File Default Settings and Factory Reset playback mode. To manage your NVR through the web browser, you have to setup the network connection first. If you didn’t set up your NVR attaching to your home/business ...
TV‐NVR416 TRENDnet User’s Guide 3. The NVR management page will detect if you installed the camera video System Requirement streaming plug‐in or not. Click the link to download the plug‐in from NVR. To access you NVR with the browser, you need a Windows or OS X based computer and up‐to‐date browser (Internet Explorer, Safari, or Firefox). A web browser plug‐ in must be installed to supported computer and browser to watch the video. You need to setup the IP address in the same network of NVR. (192.168.10.x ...
Page 72
TV‐NVR416 TRENDnet User’s Guide 8. Open the browser and login again. 9. (Go to step 11 if you already changed your password). The NVR will ask you to change your password from default setting. Please enter the new password twice and click OK. The password must be between 8 and 16 characters. ...
TV‐NVR416 TRENDnet User’s Guide 11. The Live View page will show up and begin streaming video. Logging‐in to the NVR for the First Time (OS X) 1. Open Safari on your computer. In the address bar, enter the IP address of the NVR 192.168.10.60. (If you have a DHCP server on your network, the IP address will be assigned dynamically. For example, if you have a home gateway on your network and you plug‐in the NVR on the same network, then you can find the NVR IP address on your home gateway), and then press Enter. 2. Enter the user name, admin, and the default password, admin, and then click OK. Note: If you were not go through the basic setup, the camera plug‐and‐play process will begin after you setup the password. Wait a few minutes and press F5 to refresh the browser for the live video. ...
Page 74
TV‐NVR416 TRENDnet User’s Guide 3. The camera management page will detect if you installed the camera video 4. Quit your browser completely by command‐Click on the browser icon and then streaming plug‐in or not. Click the link to download the plug‐in from the NVR. click Quit before installing the plug‐in. Note: Internet connection is required to download the plug‐in. If you do not ...
Page 77
TV‐NVR416 TRENDnet User’s Guide 15. Click Trust (You’ll have to do this again when your camera changes to a new IP 17. Enter the user name admin and new password again to start secured session. address.) 18. The Live View page shows up and the video starts to stream. 16. The NVR will ask you to change your password from the default setting. Please enter the new password twice and click OK. The password must be between 8 and 16 characters. (Alphanumeric: a‐z, A‐Z, 0‐9, !, @, #, $). Note: If you were not go through the basic setup, the camera plug‐and‐play process ...
Page 79
TV‐NVR416 TRENDnet User’s Guide Select single video display and then click once to enable zoom. When enabled, click and drag the area on the picture to zoom in. Right click to resume 100% zoom. Click Start/Stop Streaming the icon again to disable zoom. The zoom function works in full screen mode as Click this button to start or stop streaming. Select the display cell by click on it, (The well. yellow frame will wrap around the selected display cell.) then click on the icon of Microphone the stream you want. If the channel has been selected by others, stop that streaming before you change. Select the video channel and then click on this button to start/stop talking through the camera. Video Stream Click this button to choose the video stream between main stream and sub stream. Speaker 1: main stream; 2: sub stream. Select the video channel and then click on this button to start/stop listening from the camera. Use the slide below to adjust the volume. ...
TV‐NVR416 TRENDnet User’s Guide Playback Time Line You can playback the video recording one at a time at this page. You can also There is a play back head in the center of the time line represented in a yellow download the video clip and snapshots to your local computer. Select the video vertical line. To look for a specific video recording, move the time line by clicking channel on the left hand side and then search for the video. and dragging it. Play video Use playback controls to play back the video recording. Click this button to play the video. Click this button to pause video playback. Click this button to stop playback. Click this button increase playback speed*. Search for video recordings ...
Page 81
TV‐NVR416 TRENDnet User’s Guide Slice images from video playback Download recorded videos You can take snapshots from playback video or make new video clips from the To save complete video sections, you can download the files directly. video you are playing back. Click selected icon to open camera recording download page Click this button to stop video playback streams. Click this button to take a snapshot of current playback. Click this button to start clipping a video from playback. Click this button or anywhere on the timeline to zoom Click this button to download the files. Click this button to enable or disable the audio playback. ...
TV‐NVR416 TRENDnet User’s Guide Log System Information The log of the NVR is saving on the hard disk drive. You can search the relevant System Information page shows the NVR’s basic information. Click System then records and save to your local computer. click System Info to show the page. Search for logs Click the type of log and then the Start Time and End Time. Click Search to start searching. Basic Information Device Name: Human readable device name for easy identification. Click First Page, Prev Page, Next Page, and Last Page to show the logs. Click Save Firmware Version: Firmware version Log to save the logs to your computer. MAC Address: The MAC address of Ethernet Interface System Time: The system time setup in the camera. Keeping this ...
TV‐NVR416 TRENDnet User’s Guide Logout Logout page allows user to log out the NVR web configuration page totally. Click OK Network Information to logout completely or Cancel to stay in the configuration page. IP Address: IP address of the NVR Subnet Mask: Network range of IP address Default Gateway: The default route going from the NVR subnet. Primary DNS: Primary DNS server address Secondary DNS: Secondary DNS server address ...
TV‐NVR416 TRENDnet User’s Guide User Accounts Advanced You can setup up to 16 user accounts to access the NVR’s video stream with a web browser or real time video stream (RTSP). Only one administrator account can be System setup to configure the NVR and cannot be deleted. Device Settings Setup your system name for easy identification. This device name will also be recognized by other network camera software as the name of this camera. OSD, On Screen Display, camera name is referring to this setting as well. User Accounts Add: Click Add button to add one user account Enter the customized device name and the click on Save to save the settings. Modify: To change a user’s name and password, highlight the user by clicking on it. Then, click Modify button. You can change the user’s name and password. You can also change the administrator’s password here. But, the administrator’s name is fixed, you cannot change that. ...
Page 85
TV‐NVR416 TRENDnet User’s Guide Time Settings The accuracy of the system clock is important for scheduling and accurate logging. You can synchronize the system time with your computer, or automatically check the time accuracy with a network time server (NTP server). Manual Time Sync Device Time: The system time of this camera. Set Time: Click the calendar icon and manually select the date. Automatic Update Check the Sync. with computer time to copy the time from your computer. NTP Specify a time server (NTP server) to synchronize with. Server: (e.g. pool.ntp.org) Click Save to save the changes Interval: The time interval that the NVR will synchronize the time with NTP server. Default: 1440 minutes (24 hours) Click Save to save the changes ...
Page 86
TV‐NVR416 TRENDnet User’s Guide Daylight Savings Live View Settings Setup daylight savings. Setup the live view video quality, file size and file saving directories. Automatic Update Enable DST: Check this box if your time zone has daylight savings. Start Time: Enter the date that daylight savings starts End Time: Enter the date that daylight savings ends DST Bias Enter how much time the daylight saving adjusted by Live View Parameters daylight savings. Live View Configure the buffer size for live view video stream. Buffer: With low buffer size setting, you can get real‐time video Click Save to save the changes stream, but the video may be stop and go if the network is congested. With high buffer setting, you can have ...
Page 87
TV‐NVR416 TRENDnet User’s Guide your user name, under the subdirectory Record File Settings TRENDnet/PlaybackFiles. Click Browse and then Record file size: This size of live view video recording. You can choose choose a new destination if you want to save the file 256MB, 512MB, or 1GB a file. Smaller file size is good somewhere else. for many short recordings. Click Save to save the changes Save record By default, files will be saved under the folder with files to: your user name, under the subdirectory Maintenance TRENDnet/RecordFiles. Click Browse and then choose a new destination if you want to save the file You can restart, load camera settings and upgrade the camera firmware on this somewhere else. page. Save By default, files will be saved under the folder with downloaded your user name, under the subdirectory files to: TRENDnet/DownloadFiles. Click Browse and then ...
Page 88
TV‐NVR416 TRENDnet User’s Guide is a firmware upgrade available for your device, please check your TRENDnet model Reboot and version using the link. Reboot: Click this button to reboot this camera. http://www.trendnet.com/downloads/ 1. If a firmware upgrade is available, download the firmware to your computer. Reset 2. Unzip the file to a folder on your computer. Reset: Reset all NVR settings, except the IP network settings 3. Read the firmware upgrade instruction for specific version update ...
TV‐NVR416 TRENDnet User’s Guide Network Network Interface Duplex and Choose one of the Ethernet duplex and speed to TCP/IP Speed: match your network. Default: auto. Setup your basic IPv4 and IPv6 network settings on this page. MAC Address: Click this button to reboot this camera. MTU: Maximum transmission unit. The maximum field size in the Ethernet packet. Primary DNS: Enter your first IPv4 or IPv6 DNS server address Secondary DNS: Enter your second IPv4 or IPv6 DNS server address IPv4 DHCP: Check this box if the IP address is assigned by DHCP server. IPv4 Address: The IPv4 dynamic or static address Subnet Mask: Network range of the subnet ...
Page 90
TV‐NVR416 TRENDnet User’s Guide Port DDNS You can change the service port numbers of NVR and enable/disable RTSP or HTTP Dynamic Domain Name Service, DDNS, allows you to find your camera from the services. Internet with an easy to remember domain name. Port Numbers DDNS HTTP Port: The default web access port. You can change the port number. However, you cannot disable the web Enable DDNS: Check this box to enable DDNS Service. service. The default port number is 80. DDNS Type: Select a DDNS service provider. RTSP Port: The Real‐Time Streaming Protocol port for video Server Address: Enter the DDNS server address. streaming. You can change the port number or disable the service by uncheck the box. The default Domain: Enter your registered domain/host name on ...
TV‐NVR416 TRENDnet User’s Guide Virtual Host Video Virtual Host allows you to set virtual ports for each camera. Video Format Adjust the settings of video streams. Virtual Host Enable Virtual Check this box to enable Virtual Host Host: Camera: Select camera to configure Virtual HTTP Create a virtual HTTP port number for the camera Port: Virtual RTSP Create a virtual RTSP port number for the camera Channel: Select which video stream for video format Port: changes. Virtual HTTPS Create a virtual HTTPS port number for the camera Port: ...
Page 92
TV‐NVR416 TRENDnet User’s Guide On Screen Display Settings Bitrate Type: Choose between variable bit rate and constant bit Display the camera name and the time the video. Select the video channel you want rate for video compression. The default is variable to change the setting, then change the settings. Move the red box to position the rate. text. Click on Save to save the changes. Video Quality: Choose the video quality. The default is medium quality. Frame Rate: Choose the capturing frame rate. Reduce the frame rate to reduce the capture file size. Max. Bitrate: Choose the maximum video sampling bit rate. Click Save to save the changes Channel: Select the video channel you want to edit. Display Name: Check this box to display the product name that was setup in the device settings. Display Date: Check this box to display system time. Display Week: Check this box to display time of the week. ...
Page 93
TV‐NVR416 TRENDnet User’s Guide Text Overlay Privacy Mask Display extra information on the screen over the image. Move the red box to Create a masking area to keep your privacy. You can create up to four independent position the text. Click on Save to save the changes. masking areas by clicking and dragging on the screen. Channel: Select the video channel you want to edit. Channel: Select the video channel you want to edit. Check Box: Check this box to enable text overlay. Enable Privacy Mask: Check this box to enable privacy masking. Text Field: Enter the text you want to display. The length of the Stop Drawing: Click this button to stop drawing. text is decided by limitation of the camera. Clear All: Click this button to clear all the masking areas. Click Save to save the changes ...
Page 94
TV‐NVR416 TRENDnet User’s Guide Video Recording Expire Time: Specify how many days you want to lock the recording. Click Save to save the changes Edit: Click Edit to edit the recording schedule. The Edit Schedule window will pop up. 1. Select day of the week you want to edit. 2. Select All Day or Customized schedule of Channel: Select the video channel you want to edit. the day. 3. Set the time period and the event you Enable Record Check this box and then click Save to enable video want to trigger the video recording Schedule: recording. continuous (always recording) or motion Pre‐record: Recording time before trigger event. ...
Page 95
TV‐NVR416 TRENDnet User’s Guide Holiday Settings Edit Holiday Schedule Recording video in holidays may has different requirements. You can set up to 11 Holiday Name: Change the holiday name to meaningful name holidays of a year sharing the same holiday profile. instead of index numbers. Set up the holiday schedule by click on button. Enable: Enable or disable this holiday rule. Type: Select the holiday is for a day, a week or a month. Day mode: Select the start and end dates to specify the period of holidays. This setting is good for one time only. It does not repeat periodically. Week mode: Select the start and end dates of the week to specify the period of holidays. This setting is repeating every year. Month mode: Select the start and end dates to specify the period of holidays. This setting is repeating every year. Start Date: Select the day when the holiday starts. End Date: Select the day when the holiday ends. ...
TV‐NVR416 TRENDnet User’s Guide Events Motion Save to save the choice. Detection: Motion Detection Draw Area: Click Draw Area button to start drawing. Click and Set up how the motion detection event will be triggered and what actions will be drag on the area you want to set up the motion triggered. detection. The number of areas you can set up depends on camera models. Click Stop Drawing to Note: This feature is camera dependent. stop drawing motion detection areas. The red grids represent the motion detection area, by default, the entire area is selected. Click Clear All to erase the area to restart. Sensitivity: Move the slider to adjust detection sensitivity. Clear All: Click this button to clear all the set up areas. ...
Page 97
TV‐NVR416 TRENDnet User’s Guide Arming Schedule Linkage Method Edit: Click Edit to edit the recording schedule. The Edit Schedule window will pop up. 3. Select day of the week you want to edit. Alarm is not supported for this model. 4. Select All Day or Customized schedule of the day. 5. Set the time period and the event you want Click Save to save the changes to trigger the video recording continuous (always recording) or motion detection. 6. Click Select All or the weekday you want to have the same schedule on different day. 7. Click another day of the week by clicking on ...
Page 98
TV‐NVR416 TRENDnet User’s Guide Video Tampering Draw Area: Click Draw Area button to start drawing. Click and Set up how the video tampering detection event will be triggered and what actions drag on the area you want to set up the tamper will be triggered. When video is suddenly blocked or blacken, tampered, the video detection. Click Stop Drawing to stop drawing motion tamper notifications will alert the system manager to check the camera. detection areas. The gray block represents the Note: This feature is camera dependent. detection area. Sensitivity: Move the slider to adjust detection sensitivity. Clear All: Click this button to clear all the set up areas. Arming Schedule Edit: Click Edit to edit the recording schedule. The Edit Schedule window will pop up. 1. Select day of the week you want to edit. 2. Select All Day or Customized schedule of the ...
Page 99
TV‐NVR416 TRENDnet User’s Guide Exception 4. Click Select All or the weekday you want to have the same schedule on different day. Provide notifications for other system events, set up your notifications here. 5. Click another day of the week by clicking on its tab to set the next schedule. Click OK when you have finished your settings. Linkage Method Notification Exception Type: First, choose the exception type, and then choose the corresponding action. Full Screen Switch the video on the VGA/HDMI monitor to the Monitoring: camera detected motion event. Audible Activate the audible on board buzzer. Warning: Audible Activate the audible on board buzzer. ...
Page 100
TV‐NVR416 TRENDnet User’s Guide Click Save to save the changes address as your incoming email server, maybe not. Email Please ask your email service provider for detail. Set up email accounts for notifications. SMTP Port: Service port number for outgoing email.* Authentication: Check this box if your server requires a password in order to send email. Most email servers require authentication when sending an email. User name: Enter the user name of outgoing email account Password: Enter the password Confirm: Enter the password again to confirm that the password was entered correctly. Click Save to save the changes Receiver Receiver 1: The first receiver’s name. Receiver 1’s The first receiver’s email address. Address: Receiver 2: The second receiver’s name. ...
TV‐NVR416 TRENDnet User’s Guide Storage Settings Network Storage Network Storage must be setup before it can be managed. You can add up to 8 network storages for your NVR. The recordings will subsequently be stored in these Storage Management spaces. Save video from the first storage and then the next when the first one is full. To setup and initiate the hard drive remotely, check the hard disk drive and then Click on the entry to change the settings and click Save to save the settings. click on Format. ...
TV‐NVR416 TRENDnet User’s Guide Appendix Install your NVR System on Your Network Turn on network discovery on Windows To enable remote network access to the NVR, you need to install your NVR onto your network. Make sure your NVR system is working on the same network The NVR is UPnP enabled device. Find your camera is easy with Windows network segment your router defined. Reserve a pool of IP addresses for NVR and all discovery. If your network discovery is turned off, go to Control Panel >> Network cameras. You can then access your NVR and network cameras everywhere over the and Internet >> Network and Sharing Center >> Advanced sharing settings and network. then select Turn on network discovery. Click Save changes to save the changes. If The other option to setup the NVR and cameras on your network is using DHCP. The you still have difficulty to find your camera with network discovery, check it out if it NVR DHCP client is default disabled. You can enable DHCP client manually. has to network discovery setting on other network profiles. 1. Go to General Network Settings to enable the NVR getting its IP address from your router DHCP. 2. Reboot your NVR. 3. Plug in the PoE cameras to the PoE ports. 4. All the cameras are getting the assigned IP address from your router. 5. For plug‐and‐play cameras, such as TV‐IP320PI, installed directly on the PoE ...
TV‐NVR416 TRENDnet User’s Guide IMPORTANT NOTE: Regulations FCC Radiation Exposure Statement Federal Communication Commission Interference Statement This equipment complies with FCC radiation exposure limits set forth for an This equipment has been tested and found to comply with the limits for a Class B uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential This transmitter must not be co‐located or operating in conjunction with any other installation. This equipment generates uses and can radiate radio frequency energy antenna or transmitter. and, if not installed and used in accordance with the instructions, may cause The availability of some specific channels and/or operational frequency bands are harmful interference to radio communications. However, there is no guarantee that country dependent and are firmware programmed at the factory to match the interference will not occur in a particular installation. If this equipment does cause intended destination. The firmware setting is not accessible by the end user. harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. •...
TEW‐821DAP TRENDnet User’s Guide Europe – EU Declaration of Conformity 2004/108/EF, 2006/95/EF og 2009/125/EF. Deutsch [German] Hiermit erklärt TRENDnet, dass sich das Gerät NVR in TRENDnet hereby declare that the product is in compliance with the essential Übereinstimmung mit den grundlegenden Anforderungen und den requirements and other relevant provisions under our sole responsibility. übrigen einschlägigen Bestimmungen der Richtlinie 2004/108/EG, 2006/95/EG und 2009/125/EG befindet. Eesti [Estonian] Käesolevaga kinnitab TRENDnet seadme NVR vastavust direktiivi 2004/108/ EÜ, 2006/95/ EÜ ja 2009/125/ EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, TRENDnet, declares that this NVR is in compliance with the essential requirements and other relevant provisions of Directive Safety 2004/108/CE2006/95/CE, and 2009/125/CE. EN 60950‐1: 2006 + A11: 2009: +A1: 2010 + A12: 2011 + A2: 2013 Español [Spanish] Por medio de la presente TRENDnet declara que el NVR cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o EMC ...
TEW‐821DAP TRENDnet User’s Guide [Hungarian] alapvetõ követelményeknek és az 2004/108/EK, 2006/95/EK és a 2009/125/EK irányelv egyéb elõírásainak. Polski [Polish] Niniejszym TRENDnet oświadcza, że NVR jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 2004/108/WE, 2006/95/WE i 2009/125/WE. Português TRENDnet declara que este NVR está conforme com os requisitos [Portuguese] essenciais e outras disposições da Directiva2004/108/CE, 2006/95/CE e 2009/125/CE. Slovensko TRENDnet izjavlja, da je ta NVR v skladu z bistvenimi zahtevami in [Slovenian] ostalimi relevantnimi določili direktive2004/108/ES, 2006/95/ES in 2009/125/ES. ...
Page 107
General Public License ("LGPL"). shipping from outside of the USA are responsible for custom charges, including but not Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section limited to, duty, tax, and other fees. and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS the developers. TRENDnet does not provide technical support for these codes. Please go ...
