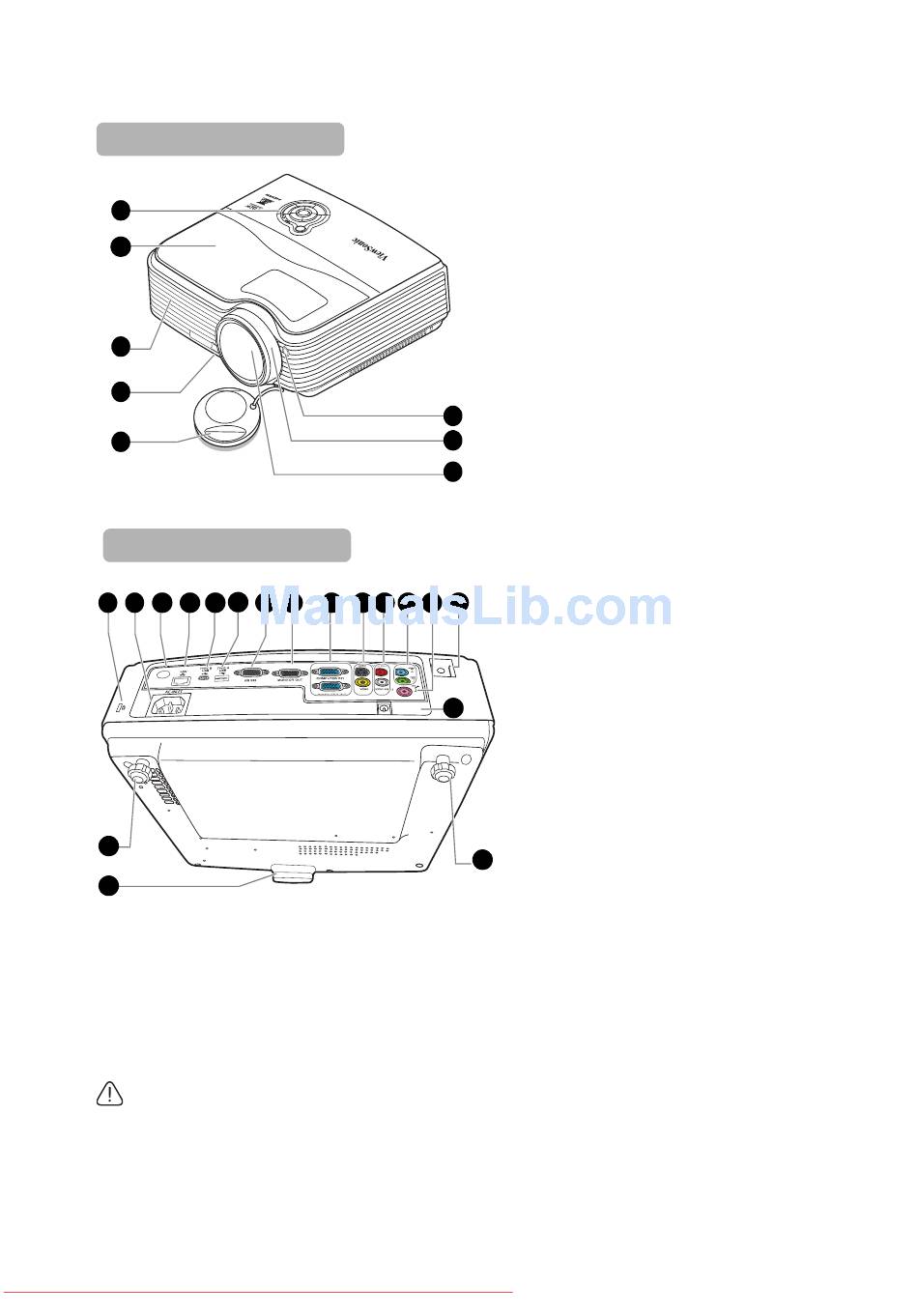

Projector exterior view
Front/upper side
1
2
3
4
5
Rear/lower side
9
10
11 12
24
25
Warning
•
THIS APPARATUS MUST BE EARTHED.
•
When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring,
or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should
occur during operation of the unit, operate the disconnect device to switch the power supply
off, or disconnect the power plug.
Downloaded From projector-manual.com Viewsonic Manuals
13
14 15
16
17
18
19
1.
External control panel
(See
details.)
2.
Lamp cover
3.
Vent (heated air exhaust)
4.
Quick-release button
5.
Lens cover
6.
Front IR remote sensor
7.
Focus ring
8.
Projection lens
9.
Kensington anti-theft lock slot
10.
AC power cord inlet
11.
Rear IR remote sensor
6
12.
RJ45 LAN input port
7
13.
Mini B USB port
8
14.
Type A USB port
15.
RS-232 control port
16.
RGB signal output socket
17.
RGB (PC)/Component video
(YPbPr/YCbCr) signal input
socket-1/2
20
21
22
18.
Video input socket/
S-Video input socket
19.
Audio signal input socket (L/R)
20.
Audio signal input socket
23
DC 12V OUT
Audio signal output socket
21.
Microphone input socket
Connects a microphone with a 3.5
mm mini jack cable or wireless
module.
22.
Security bar
24
Connects a commercially available
theft prevention cable.
23.
12V DC output terminal
Used to trigger external devices
such as an electric screen or light
control, etc. Consult your dealer for
how to connect these devices.
24.
Rear adjuster foot
25.
Quick-release foot
"Projector" on page 8
for
Introduction
7
