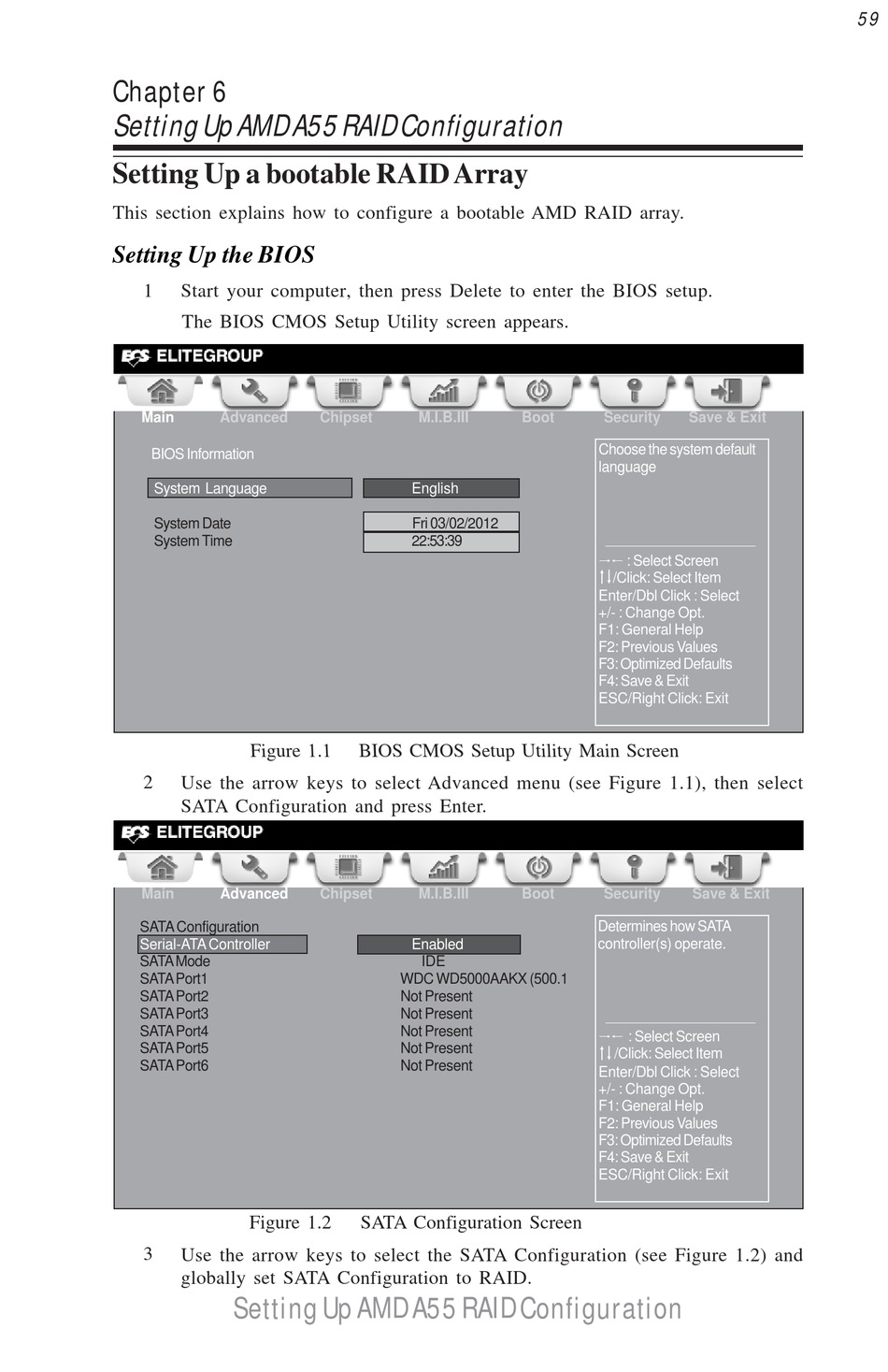

Chapter 6

Setting Up AMD A55 RAID Configuration

Setting Up a bootable RAID Array

This section explains how to configure a bootable AMD RAID array.
Setting Up the BIOS
1 Start your computer, then press Delete to enter the BIOS setup.
The BIOS CMOS Setup Utility screen appears.
Main Advanced
BIOS Information
System Language
System Date
System Time
Figure 1.1
2
Use the arrow keys to select Advanced menu (see Figure 1.1), then select
SATA Configuration and press Enter.
Main Advanced
SATA Configuration
Serial-ATA Controller
SATA Mode
SATA Port1
SATA Port2
SATA Port3
SATA Port4
SATA Port5
SATA Port6
Figure 1.2
3
Use the arrow keys to select the SATA Configuration (see Figure 1.2) and
globally set SATA Configuration to RAID.
Setting Up AMD A55 RAID Configuration
Chipset M.I.B.III
English
Fri 03/02/2012
22:53:39
BIOS CMOS Setup Utility Main Screen
Chipset M.I.B.III
Enabled
IDE
WDC WD5000AAKX (500.1
Not Present
Not Present
Not Present
Not Present
Not Present
SATA Configuration Screen
Boot Security
Choose the system default
language

: Select Screen

/Click: Select Item
Enter/Dbl Click : Select
+/- : Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Boot Security
Determines how SATA
controller(s) operate.

: Select Screen

/Click: Select Item
Enter/Dbl Click : Select
+/- : Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Save & Exit
Save & Exit
59
