Sony HDR-CX630V Service Manual

HDR-CX630V/PJ630V/PJ650E/PJ650V/
PJ650VE/PJ660/PJ660E/PJ660V/PJ660VE
SERVICE MANUAL
Ver. 1.0 2013.01
SERVICE NOTE (Check the following note before the service.)
– ENGLISH –
1-1. POWER SUPPLY DURING REPAIRS
1-2. PRECAUTION ON REPLACING THE VC-1015 BOARD
1-3. ADDITION OF DESTINATION DATA FILE
1-4. SELF-DIAGNOSIS FUNCTION
1-5. METHOD OF COPING WITH SHIFT LENS ERROR
1-6. GPS RECEIVING CHECK (CX630V/PJ630V/PJ650V/PJ650VE/PJ660V/PJ660VE)
1-7. PRECAUTION ON REPLACING THE MM-102 BOARD (CX630V/PJ630V/PJ650V/PJ650VE/PJ660V/PJ660VE)
1-8. DISCHARGE OF LED FLASH/VIDEO LIGHT
1-9. NOTE ON REPLACING PROJECTOR UNIT (PJ630V/PJ650E/PJ650V/PJ650VE/PJ660/PJ660E/PJ660V/
PJ660VE)
1-10. LENS DEVICE (LSV-1400B) REPLACING METHOD
‒ JAPANESE ‒
1-1. 修理時の電源供給について
1-2. VC-1015基板交換時の注意
1-3. Destination Data ファイルの追加について
1-4. 自己診断機能
1-5. シフトレンズエラーの対処方法
1-6. GPS 受信確認 (CX630V/PJ630V/PJ650V/PJ650VE/PJ660V/PJ660VE)
1-7. MM-102基板交換時の注意 (CX630V/PJ630V/PJ650V/PJ650VE/PJ660V/PJ660VE)
1-8. LEDフラッシュ／ビデオライトの放電について
1-9. プロジェクターユニット交換時の注意 (PJ630V/PJ650E/PJ650V/PJ650VE/PJ660/PJ660E/PJ660V/PJ660VE)
1-10. レンズデバイス (LSV-1400B) の交換方法
The components identified by mark Les composants identifiés par une
0 or dotted line with mark 0 are marque 0 sont critiques pour la
critical for safety. sécurité.
Replace only with part number Ne les remplacer que par une
specified. pièce portant le numéro spécifié.
HDR-CX630V/PJ630V/PJ650E/PJ650V/PJ650VE/PJ660/PJ660E/PJ660V/PJ660VE_L2
9-834-714-31
Canadian Model
North European Model
Hong Kong Model
Chinese Model
Korea Model
Tourist Model
Japanese Model

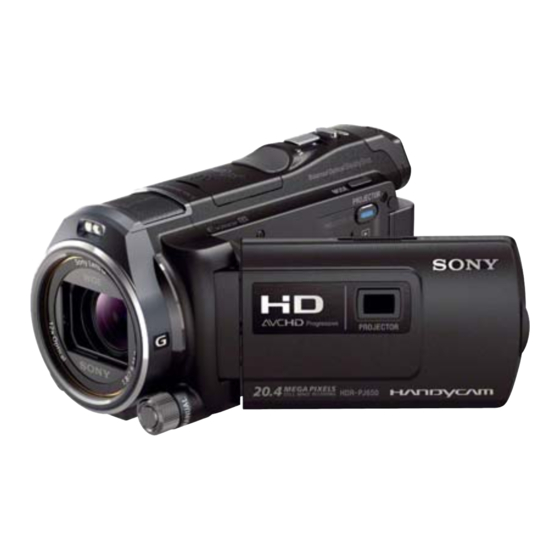

Photo: HDR-PJ650V
Digital HD Video Camera Recorder
Ver. Date
2
LEVEL
1.0 2013.01
US Model
AEP Model
E Model
Sony Corporation

Revision History

History Contents
Official Release —
983471431.pdf
S.M. Rev.
issued
—
2013A08-1
© 2013.01
Published by Sony Techno Create Corporation
