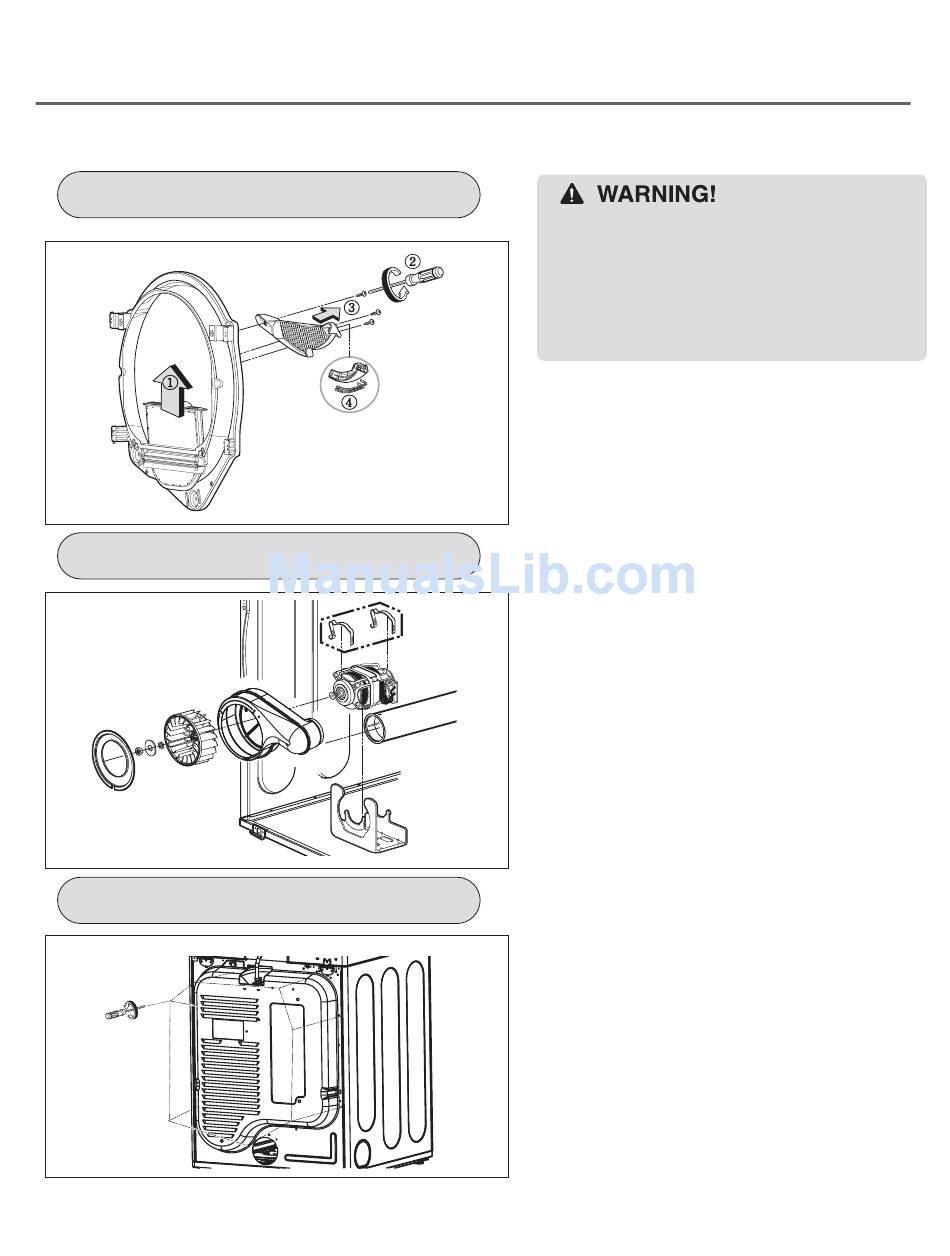

FILTER ASSEMBLY

BLOWER HOUSING

BACK COVER

When you disassemble the Dryer, be sure to
disconnect the dryer from its electrical supply.
Protect your hands and arms from sharp edges
when working. To reduce the risk of personal
injury, adhere to all industry recommended
safety procedures including the use of long
sleeved gloves and safety glasses.
1.
Remove the filter.
2.
Remove 3 screws.
3.
Remove the cover grid.
4.
Disconnect the electrode sensor.
1.
Disassemble the top plate.
2.
Remove the cabinet cover and tub drum [Front ].
3.
Remove the drum assembly.
4.
Remove 2 screws and cover (Air guide).
5.
Remove the bolt and washer.
6.
Remove the fan.
7.
Disconnect the motor clamp and motor.
1.
Disassemble the top plate.
2.
Remove the cabinet cover and tub drum [Front ].
3.
Remove the drum assembly.
4.
Remove 7 screws.
5.
Pull the tub drum [Rear] towards the front.
35
