DISASSEMBLY INSTRUCTIONS

Disassemble and repair the unit only after pulling out power plug from the outlet.
TOP PLATE
MAIN PCB
WARNING!
When you disassemble the Dryer, be sure to
disconnect the dryer from its electrical supply.
Protect your hands and arms from sharp edges
when working. To reduce the risk of personal
injury, adhere to all industry recommended
safety procedures including the use of long
sleeved gloves and safety glasses.

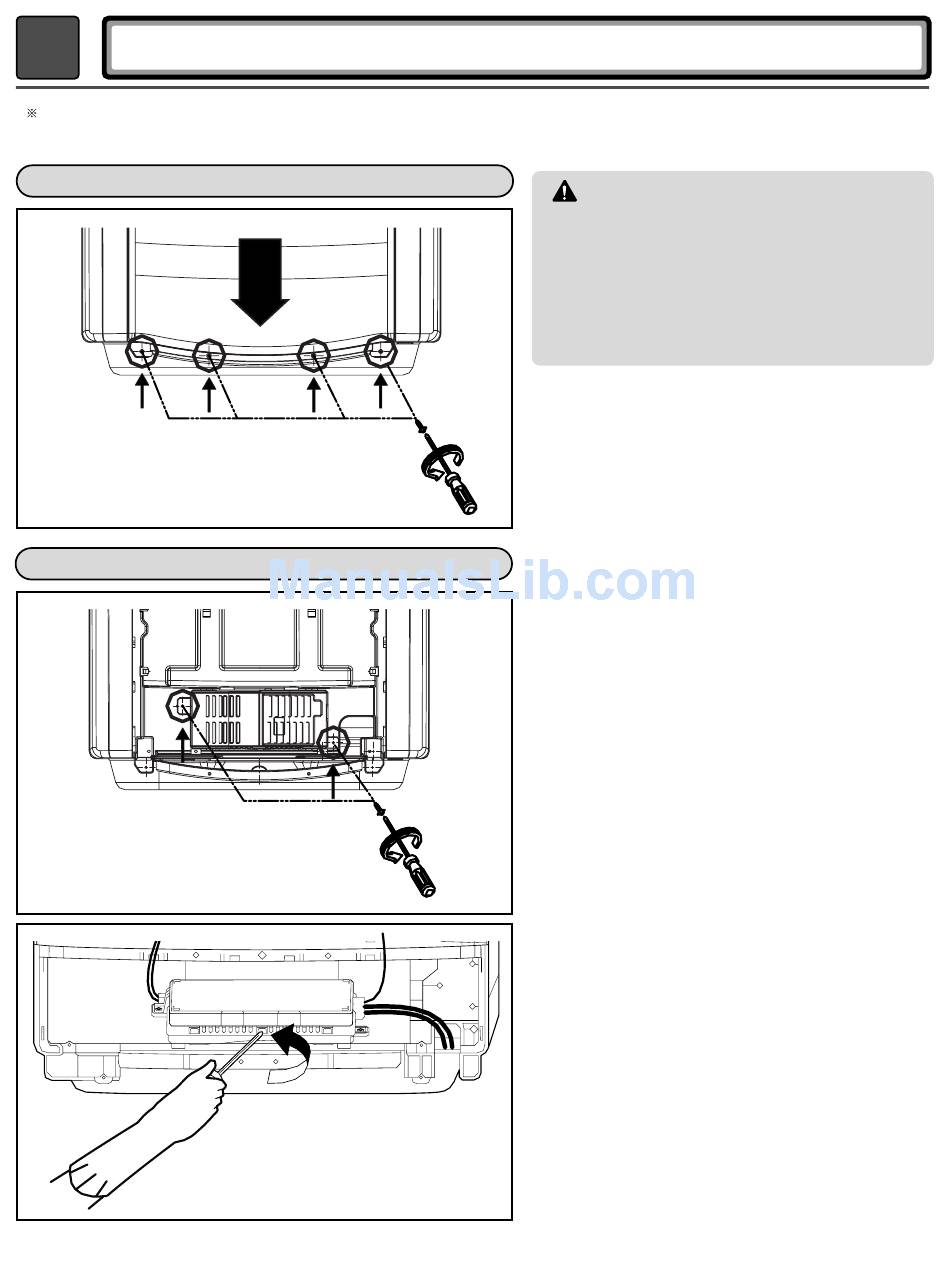

1.
Remove the 4 screws on the top plate.
2.
Pull top plate backward from the front panel
assembly.
3.
Lift and disassemble the top plate from the top
cover assembly.
1.
Remove the 2 screws that hold the PCB
box in place.
2.
Slide the PCB box toward the rear of the
dryer and lift out.
3.
With a flat blade screwdriver, press the tabs
on the side of the PCB box and gently pry it
open.
4.
Disconnect the wiring from the PCB board
then remove the PCB board.
