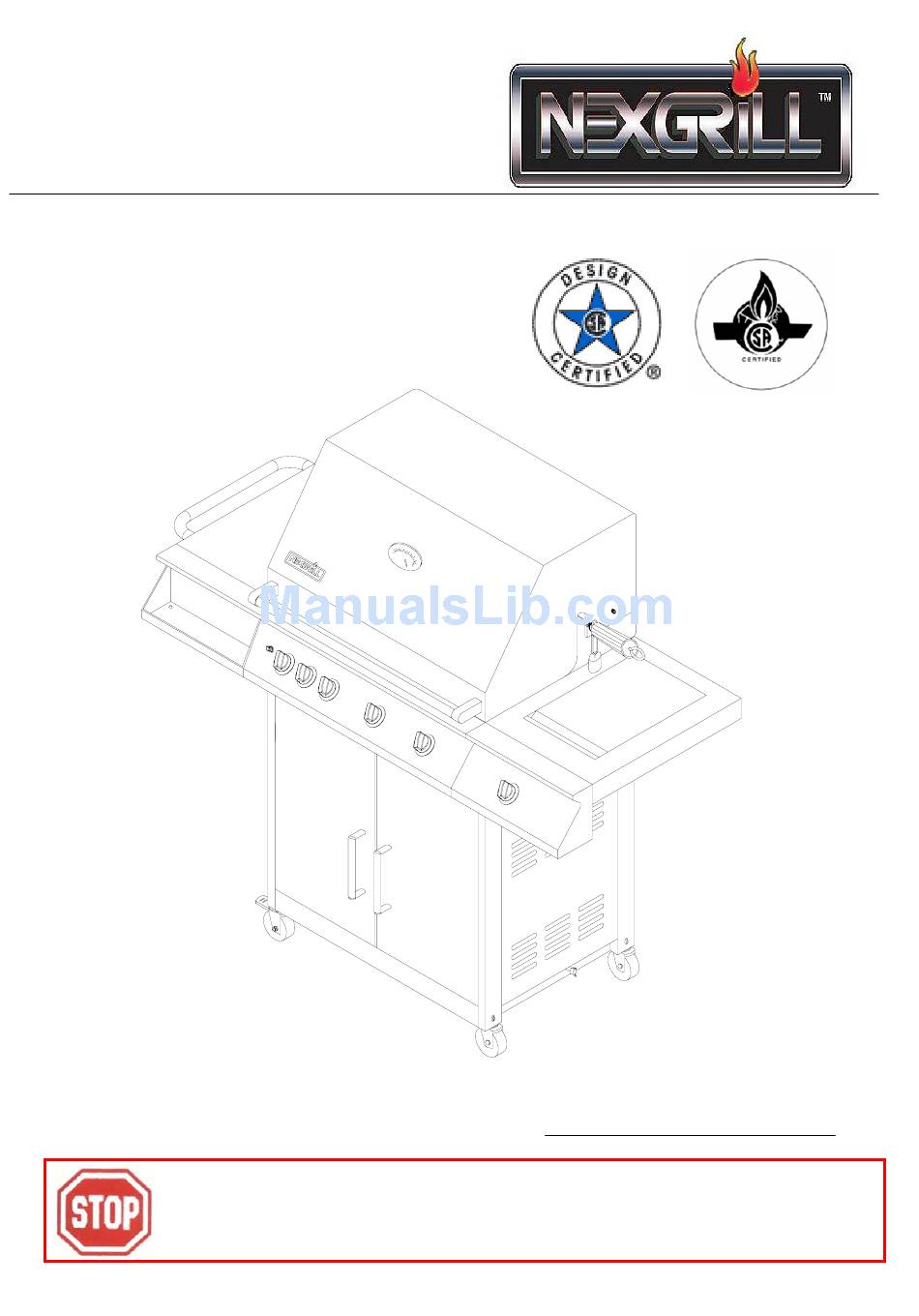

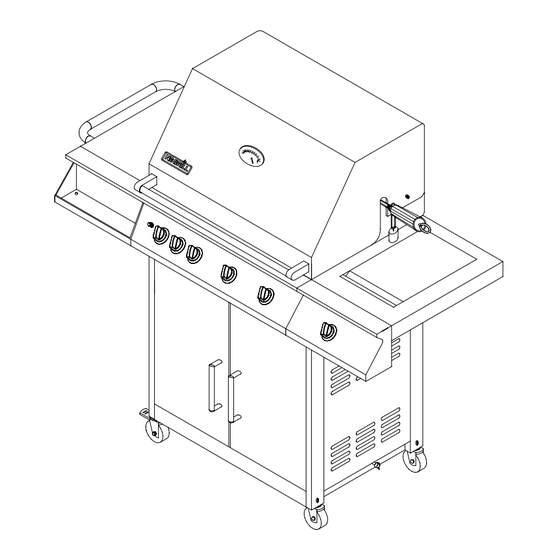

- Page 1 Stainless Steel GAS GRILL With Side Burner USE AND CARE GUIDE MODEL NO.: 720-0133-LP PLEASE CONTACT 1-800-913-8999 FOR ASSISTANCE DO NOT RETURN TO PLACE OF PURCHASE. FOR OUTDOOR USE ONLY ®...
-
Page 2: Table Of Contents
Read this booklet carefully and be sure your gas grill is properly assembled, installed and maintained. Failure to follow these instructions could result in serious bodily injury and/or property damage. This gas grill in intended for outdoor use only and is not intended to be installed in or on recreational vehicles or boats. -
Page 3: Precautions
FOR YOUR SAFETY If you smell gas: Shut off gas to the appliance. Extinguish any open flames. Open lid. If odor continues, immediately call your gas supplier. WARNING Do not try to light this appliance without first reading the “LIGHTING INSTRUCTIONS”... - Page 4 DO NOT STORE ITEMS OF INTEREST TO CHILDREN AROUND OR BELOW THE GRILL OR IN THE CART. NEVER ALLOW CHILDREN TO CRAWL INSIDE OF THE CART. Never let clothing, pot holders or other flammable materials come in contact with or too close to any grate, burner or hot surface until it has cooled.
-
Page 5: Placement Of The Grill
Do not use the grill for cooking excessively fatty meats or products which promote flare- ups. Do not operate the grill under unprotected combustible construction. Use only in well ventilated areas. Do not use in buildings, garages, sheds, breezeways or other such enclosed areas. - Page 6 SIDE SHELF ASSEMBLY STEP 1: Use two screws and lock washers to fasten the condiment tray to the side shelf ,use two screws and lock washers to fasten the support brackets to the side shelf as illustrated. STEP 2: Use two screws and lock washers to fasten the control panel to the side shelf, do not tighten these screws until the valve stem protrudes through the control panel(step 8);use two screws and lock washes to fasten the support brackets to the side burner as illustrated.
- Page 7 ASSEMBLY INSTRUCTION STEP 3: The screws used to attach the side shelves are already screwed into the side panel ( see the figure A below of the grill ).Remove the screws and flat washers from the both panels, also remove the 2 screws on the sides of both shelf assemblies(figure B).
- Page 8 ASSEMBLY INSTRUCTION STEP 4:Allow the side shelves washers & screws (removed to step 3 figure A) with the holes in the side panels of the grill, tighten each side shelf assembly into place, also tighten the screws taken from the shelf assemblies (step 3 figure B) back into each side shelf from inside the lid of the grill’s cooking area.
-
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step 5: Insert valve assembly through side Step 6: Remove 4(four) screws & washers panel from the “U” brackets on the side burner (Side panel, right) Step 7: Insert valve stem assembly into burner Step 8: Insert valve stem assembly into venturi face-plate. - Page 10 Step 9: Replace “U” brackets with 4(four) Screws( DO NOT TIGHTEN) and stem with 2(two) screws & washers Step 11; Tighten all 4(four) screws on the “U” brackets on the burner, then connect the ignition wire on to valve. ASSEMBLY INSTRUCTIONS Step 10: Align &...
- Page 11 ASSEMBLY INSTRUCTION The screws used to attach the push bar are already screwed into the sides of the push bar. Remove STEP 13: the screws from the push bar, align with the holes in the side shelf, and then re-screw into the holes on the push bar tightening it into place.
- Page 12 ASSEMBLY INSTRUCTION STEP 14: Place flame tamers, cooking grids, warming rack and grease tray as shown below.
- Page 13 ASSEMBLY INSTRUCTION STEP 15: The screws for rotisserie mount are already screwed into the rotisserie kit. Remove the screws and install. Assemble the rotisserie skewer as shown in the figure below. STEP 16: Install the battery in the battery casing , by unscrewing the battery cap located on the far left side of the control panel ,insert the battery (positive and pointing out) and replace the cap.
-
Page 14: Gas Hook-Up
Total gas consumption (per hour) of this stainless steel gas grill with all burners on “HI”: Main burner Side burner Rear burner Total L.P. - Page 15 PROPANE TANK ASSEMBLE Attach propane gas tank to regulator inlet fitting by turning the regulator clockwise as shown in figure below. LP gas cylinder must be fitted with a listed overfill prevention device (OPD)
-
Page 16: Leak Testing
valve, hand tighten the nut clockwise to a complete stop. Do not use a wrench to tighten. Use of a wrench may damage the quick coupling nut and result in a hazardous condition. 6. Open the tank valve fully (counterclockwise). Use a soapy water solution to check all connections for leaks before attempting to light the grill, see below. -
Page 17: Installer Final Check List
GAS FLOW CHECK Each grill burner is tested and adjusted at the factory prior to shipment; however, variations in the local gas supply may make it necessary to adjust the burners. The flames of the burners should be visually checked. Flames should be blue and stable with no yellow tips, excessive noise or lifting. -
Page 18: Visual Check For Burner Flame
VISUAL CHECKING BURNER FLAME Approximate 1 1/2 “ Flame Height... -
Page 19: Operation Instructions
GENERAL USE OF THE GRILL Each main burner is rated at 12,000 Btu/hr. The main grill burners encompass the entire cooking area and are side ported to minimize blockage from falling grease and debris. Above the burners are stainless steel radiants (flame covers). -
Page 20: To Match Light The Grill
FLAME CHARACTERISTICS Check for proper burner flame characteristics. Each burner is adjusted prior to shipment; however, variations in the local gas supply may take minor adjustments necessary. Burner flames should be blue and stable with no yellow tips, excessive noise, or lifting. If any of these conditions exist call our customer service line. - Page 21 Step 1. Make sure the Lid is open Step 2. Push and turn one of main or side burner knobs to HI position Step 3. You may need 3 or 4 trials to light the burner. After the burner is lit, adjust the knob as desired If you’ve just attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to dissipate.
-
Page 22: Using The Side Burner
WARNING: IMPORTANT! USING THE SIDE BURNER: Inspect the gas supply hose prior to turning the gas “ON”. If there is evidence of cuts, wear or abrasion, it must be replaced prior to use. Do not use the side burner if the odor of gas is present. - Page 23 created as water contacts the hot grill assists the cleaning process by softening any food particles. The food particles will fall and burn. If the grill is allowed to cool before cleaning, cleaning will be more difficult. ENSURE THAT THE GAS SUPPLY AND THE KNOBS ARE IN THE “OFF”...
-
Page 24: Trouble Shooting
SPIDER AND INSECT WARNING!!! Spiders and insects can nest in the burners of this or any other grill, and cause the gas to flow from the front of the burner. This is a very dangerous condition which can cause a fire to occur behind the valve panel, thereby damaging the grill and making it unsafe to operate. -
Page 25: Parts List
PARTS LIST... - Page 26 REF# DESCRIPTION Lid, Front Heat Indicator Name Plate Heater Insulating Spacer Handle Assembly, Lid Inner Lid Rotisserie Motor Motor Bracket Front Baffle Thermocouple Regulator LP Electronic Ignition Gas Valve,Main Burner Gas Valve, Infrared Burner Valve Manifold Manifold Retainer Bracket Control Panel,Main burner Control Knob Seat Electronic Ignition Button Control Knob...
-
Page 27: Ordering Parts
To obtain replacement parts, contact the dealer from which products was purchased. If dealer service is not available, contact: Nexgrill Industries, Inc. customer service 1-800-913-8999 or fax 909-598-7699. The doneness of meat, whether rare, medium, or well done, is affected to a large degree by the thickness of the cut. -
Page 28: Grill Cooking Chart
FOOD WEIGHT OR THICKNESS VEGETABLES Fresh Beets Carrots Turnips Onion 1/2 inch slices Potatoes Sweet Whole White 6 to 8 ounces Frozen Asparagus Broccoli Brussels Sprouts Green beans Peas French fries MEATS Beef Hamburgers 1/2 to 3/4 inch Steaks Rib eye, Tenderloin, Porterhouse, T-Bone, Sirloin... - Page 29 FOOD WEIGHT OR THICKNESS 1-1/2 inches Lamb Chops & Steaks Rare 1 inch 1-1/2 inch Medium 1 inch 1-1/2 inch Well-done 1 inch Pork Chops 1 inch Well-done 1-1/2 inches Ribs Pork Ham steaks (precooked) 1/2 inch slices Hot dogs POULTRY Broiler/fryer 2 to 3 pounds...
-
Page 30: Grill Recipe Suggestions
BBQ SALMON 2 large salmon steaks 2 tbs. Oil Salt & pepper 2 oz. thin bacon slices 2 tbs. Butter 1 tbs. Lemon juice Spring of parsley Lemon wedges Preheat the BBQ. Brush the steaks with oil and season with salt and pepper. Place on BBQ grill and cook for 10 minutes, turning steaks over halfway cooking time. - Page 31 6 to 8 hours. Wrap tortillas in foil. Remove meat from marinade. Cook on a pre- heated gas grill for 5 to 8 minutes on each side. While meat is cooking, heat tortillas on grill. Slice meat across grain in thin slices.
- Page 32 CHICKEN TANDOORI STYLE 8 large chicken thighs or drumsticks 1 c. plain nonfat yogurt ½ c. lemon juice 2 tsp. salt ½ tsp. cayenne ½ tsp. black pepper ½ tsp. crushed garlic ½ tsp. grated ginger 1 tbs. corn oil Combine all the ingredients in a large mixing bowl and marinate the chicken for 8 hours in the...
-
Page 33: Limited Warranty
Our obligation under this warranty is limited to repair or replacement, at our option, of the product during the warranty period. The extent of any liability of Nexgrill Industries, Inc. under this warranty is limited to repair or replacement. This warranty does not cover normal wear of parts, damage...
