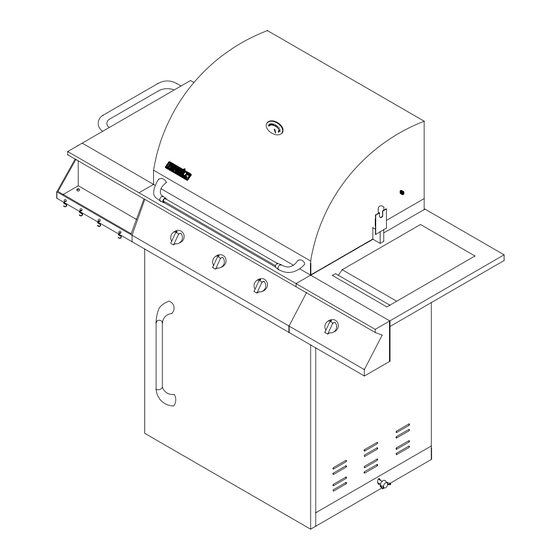

- Page 1 STAINLESS STEEL GAS GRILL USE AND CARE GUIDE MODEL NO.:720-0125-LP PLEASE CONTACT 1-800-913-8999 FOR ASSISTANCE DO NOT RETURN TO PLACE OF PURCHASE. ® FOR OUTDOOR USE ONLY...
- Page 2 FOR YOUR SAFETY If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open lid 4. If odor continues, immediately call you gas supplier or your fire department. FOR YOUR SAFETY 1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 3: Table Of Contents
SECTION ONE: Precaution…………………………1-2 Placement of the grill ……………...3 SECTION THREE: Lighting instruction ……………………………..16 Using the side burner …………………………..17 Care & maintenance ……………………………18 Lighting illustrations………………….…………..19 To match light the grill ……………..……………20 Care & maintenance of side burner …….…….21 Troubleshooting …………………………………21 TABLETABLE OF CONTENTS SECTION TWO: Assembly instruction………………4-11 Gas hook-Up ………………………. -
Page 4: Precaution
WARNING Do not try lighting this appliance without reading the “LIGHTING INSTRUCTIONS” section of this manual. TESTED IN ACCORDANCE WITH ANSI Z21.58a- 1995 STANDARD FOR OUTDOOR COOKING GAS APPLIANCES. THIS GRILL IS FOR OUTDOOR USE ONLY. Check your local building codes for the proper method of installation. -
Page 5: Placement Of The Grill
When using the grill, do not touch the grill rack, burner grate or immediate surroundings as these areas become extremely hot and could cause burns. Use only dry potholders. Moist or damp potholders on hot surfaces may cause burns from steam. Do not use a towel or bulky cloth in place or potholders. -
Page 6: Assembly Instruction
ASSEMBLY INSTRUCTIONS PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP. Attention: Please lock the caster during the process of installation of the grill. TOOLS REQUIRED: Philips head screwdriver(not provide),monkey wrench(not provide) Step1：. Assemble two regular casters to the right side panels and caster with brakes on the left side panel as shown figure below.. - Page 7 Step 2: : Assemble bottom panel to side panels,back panel and transom panel with eight( 14) 1/4’ *15 mm screws as shown figure below Remove the head unit of grill from carton. Insert Step 3: Assemble the head part to the bobywork part. the upper portion of the grill onto the cart from the top with four (4)1/4*13mm screws.
- Page 8 Step 4: First assemble handle of side shelf,then assemble sprice tray and control panel of side burner as the figure show below: : Remove the head unit of screws with four (8)1/4’*13mm screws. Step5...
- Page 9 : Assemble the fortified steel to the main with (8)1/4’*13. Step 6 : Assemble side shelf and side burner with four(8) 1/4*13mm screws as figure show below . Step7...
-
Page 10: Assembly Instructions
ASSEMBLY INSTRUCTIONS Side burner valve assembly: Step 1: Insert valve assembly through side panel Valve (Side panel, right #29) Step 3: Insert valve stem assembly into burner venturi Valve Stem Valve Step 5: Replace “U” brackets with 4(four) Screws( DO NOT TIGHTEN) Step 7;... - Page 11 Assemble the door to the grill as the figure show below: Step 8: Assemble the motor bracket to the fire box with four (4) 1/4*10mm screws. Step9...
-
Page 12: How To Install A Gas Tank
How to install a gas tank Opening the front door and place gas tank into the gas tank holes. Secure the gas tank by turning the retention screw at the right of the grill clockwise until it is tight. - Page 13 Your gas grill is ready to use...
-
Page 14: Gas Hook-Up
Only the pressure regulator and hose assembly supplied with the grill should be used. Any replacement pressure regulator and hose assembly must be specified by the grill manufacturer. This is a liquid propane configured grill. Do not attempt to use a natural gas supply unless the grill has been reconfigured for natural gas use. -
Page 15: Installer Final
BEFORE TESTING Make sure that all packing material is removed from the grill including the burner tie-down straps. DO NOT SMOKE WHILE LEAK TESTING. NEVER LEAK TEST WITH AN OPEN FLAME. Make a soap solution of one part liquid detergent and one part water. -
Page 16: Propane Tank Assemble
PROPANE TANK ASSEMBLE Attach propane gas tank to regulator inlet fitting by turning the regulator clockwise as shown in figure below. LP gas cylinder must be fitted with a listed overfill prevention device (OPD) -
Page 17: Operating Instruction
OPERATING INSTRUCTION General use of the grill Each main burner is rated at 12,000 Btu/hr. The main grill burners encompass the entire cooking area and are side ported to minimize blockage from falling grease and debris. Above the burners are stainless steel radiant (flame covers). -
Page 18: Section Three: Lighting Instruction
LIGHTING INSTRUCTIONS WARNING: IMPORTANT! BEFORE LIGHTING… Inspect the gas supply hose prior to turning the gas “ON”. If there is evidence of cuts, wear, or abrasion, it must be replaced prior to use. Do not use the grill if the odor of gas is present. Only the pressure regulator and hose assembly supplied with the unit should be used. -
Page 19: Using The Side Burner
USING THE SIDE BURNER WARNING: IMPORTANT! USING THE SIDE BURNER: Inspect the gas supply hose prior to turning the gas “ON”. If there is evidence of cuts, wear or abrasion, it must be replaced prior to use. Do not use the side burner if the odor of gas is present. -
Page 20: Care & Maintenance
LIGHTING ILLUSTRATIONS Step1. Make sure the lid is open Step 2. Push and turn one of main or side burner knobs to HI position Step 3. You may need 3 or 4 trials to light the burner. After the burner is lit, adjust the knob as desired... -
Page 21: Lighting Illustrations
Approximate 1 1/2 “ Flame Height... -
Page 22: To Match Light The Grill
TO MATCH LIGHT THE GRILL If the burner will not light after several attempts then the burner can be match lit. If you’ve just attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to dissipate. Keep your face and hands as far away from the grill as possible. -
Page 23: Care & Maintenance Of Side Burner
CARE & MAINTENANCE OF SIDE BURNER BURNER CLEANING: Clean the exterior of the burner with a wire brush. Clear any clogged burner ports with a straightened paper clip. Never enlarge the burner ports. Never use a wooden toothpick as it may break off the clog the port. STAINLESS STEEL: There are many different stainless steel cleaners available. -
Page 24: Explodedview
EXPLODED VIEW... -
Page 25: Partslist
REF# DESCRIPTION Lid, Front Heat Indicator Handle Assembly, Lid Warming Rack Cooking Grid With Hole Flame Tamer Main Burner Grease Tray Bowl assembly Motor Bracket Rotisserie Bracket Regulator, LP Front Baffle Gas Valve, Main Burner Gas Valve Manifold Manifold Retainer Bracket Control Panel Control Knob Seat Control Knob... -
Page 26: Ordering Parts
To obtain replacement parts, contact the dealer from which products was purchased. If dealer service is not available, contact: Nexgrill Industries, Inc. customer service 1-800-913-8999 or fax 909-598-7699. The doneness of meat, whether rare, medium, or well done, is affected to a large degree by the thickness of the cut. -
Page 27: Grillcooking Chart
GRILL COOKING CHART... - Page 28 GRILL COOKING CHART...
- Page 29 GRILL COOKING CHART...
- Page 30 BBQ SALMON 2 large salmon steaks 2 tbs. Oil Salt & pepper 2 oz. thin bacon slices 2 tbs. Butter 1 tbs. Lemon juice Spring of parsley Lemon wedges Preheat the BBQ. Brush the steaks with oil and season with salt and pepper. Place on BBQ grill and cook for 10 minutes, turning steaks over halfway cooking time.
- Page 31 Preheat grill. Combine cheese, condensed soup, milk, BBQ sauce, oregano, salt and pepper in a large mixing bowl. Stir in potatoes until well coated. Turn into well buttered1-1/2 quart rectangular baking dish. Cover dish with aluminum foil. Bake covered 25 minutes on medium with the lid of your BBQ grill closed.
- Page 32 CHICKEN TANDOORI STYLE 8 large chicken thighs or drumsticks 1 c. plain nonfat yogurt ½ c. lemon juice 2 tsp. salt ½ tsp. cayenne ½ tsp. black pepper ½ tsp. crushed garlic ½ tsp. grated ginger 1 tbs. corn oil Combine all the ingredients in a large mixing bowl and marinate the chicken for 8 hours in the...
-
Page 33: Warranty
Our obligation under this warranty is limited to repair or replacement, at our option, of the product during the warranty period. The extent of any liability of Nexgrill Industries, Inc. under this warranty is limited to repair or replacement. This warranty does not cover normal wear of parts, damage resulting from any of the following: negligent use or misuse of the product, use on improper fuel/gas supply, use contrary to operating instructions, or alteration by any person other than our factory service center.
