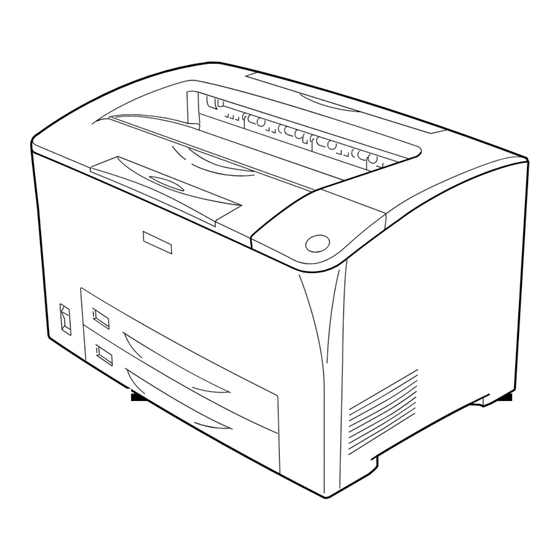

Epson EPL-N2500 Quick Reference Manual

Hide thumbs Also See for EPL-N2500:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual
EPSON EPL-N2500 Quick Reference

Advertisement

Table of Contents
loading

Related Manuals for Epson EPL-N2500

Summary of Contents for Epson EPL-N2500

  • Page 1 EPSON EPL-N2500 Quick Reference...

  • Page 2: Control Panel Operation

    EPSON EPL-N2500 Quick Reference Control Panel Operation The control panel is made up of three 6. Cancel Job Press once to cancel the current elements: a liquid crystal display (LCD) button print job. panel, indicator lights, and buttons. The Press and hold for more than...

  • Page 3: How To Access The Control Panel Menus

    EPSON EPL-N2500 Quick Reference How to access the control panel Use the u Up and d Down buttons to scroll through available settings, and menus press the Enter button to select a setting and return to the previous level. For a complete description of the items and...

  • Page 4: Status And Error Messages

    Check to Make sure that the appropriate paper size is see if the correct size of paper is loaded in the set and a printer driver for EPSON specified paper source. EPL-N2500 is used.
  • Page 5 EPSON EPL-N2500 Quick Reference Check Paper Type If Off is selected as the Auto Cont setting on the control panel’s Setup Menu, press the N The media loaded in the printer does not Start/Stop button to print on the back of the...
  • Page 6 EPSON EPL-N2500 Quick Reference Turn the Image Optimum setting off on the If a paper jam occurs at two or more locations control panel’s Printing Menu if you do not simultaneously, the corresponding multiple want the printer to automatically lower the locations are displayed.
  • Page 7 EPSON EPL-N2500 Quick Reference Need Memory Printer Open The printer has insufficient memory to One or more of the following covers are complete the current print job. Cancel open; Cover A or Cover B. printing by deleting it from the print queue...
  • Page 8 EPSON EPL-N2500 Quick Reference Reset Toner Low The printer’s current interface has been reset The imaging cartridge is running out of and the buffer has been cleared. However, toner. If the printout is too light or faint, other interfaces are still active and retain replace the imaging cartridge as described in their settings and data.

  • Page 9: Precautions For Clearing Jammed Paper

    Clearing Jammed Paper Jam A (Cover A) If paper becomes jammed in the printer, the printer’s LCD panel and EPSON Status Monitor 3 provide alert messages. When a paper jam occurs in the location shown in the illustration below, the Jam A message appears on the printer’s LCD panel.
  • Page 10 EPSON EPL-N2500 Quick Reference 2. Hold the handle of the imaging cartridge 4. Gently pull out any sheets that have fed and pull out. part way into the printer. 5. Reinstall the imaging cartridge. Note: Place the cartridge on a clean, flat surface.

  • Page 11: Jam A B (Cover A Or B)

    EPSON EPL-N2500 Quick Reference 6. Close Cover A until it clicks shut. 1. Open Cover A. 2. Hold the handle of the cartridge and pull Jam A B (Cover A or B) it out. When a paper jam occurs in the location shown in the illustration below, the Jam A B message appears on the printer’s LCD panel.
  • Page 12 EPSON EPL-N2500 Quick Reference 3. If there is any jammed paper, remove it 5. Open the paper holder by pulling down gently with both hands. Be careful not to on the lever on which a green label is tear the jammed paper.
  • Page 13 EPSON EPL-N2500 Quick Reference 7. Close the paper holder and close Cover 9. Close Cover A until it clicks. Note: Jam MP A, Jam C1 A, Jam C2 A, If you installed the Duplex Unit, close the Jam C3 A (All paper cassettes and Duplex Unit’s cover after closing Cover B.
  • Page 14 EPSON EPL-N2500 Quick Reference Follow these steps to clear paper jams in 4. Reinsert the paper cassette. paper cassettes. 1. Pull out the cassette from the printer. 5. Open Cover A and then close Cover A again. 2. Remove the cassette’s cover and discard any crumpled paper.

  • Page 15: Jam Dm (Cover Dm)

    EPSON EPL-N2500 Quick Reference Jam DM (Cover DM) 2. Gently remove the jammed paper inside the cover. Be careful not to tear the paper. When a paper jam occurs in the location shown in the illustration below, the Jam DM message appears on the printer’s LCD panel.
