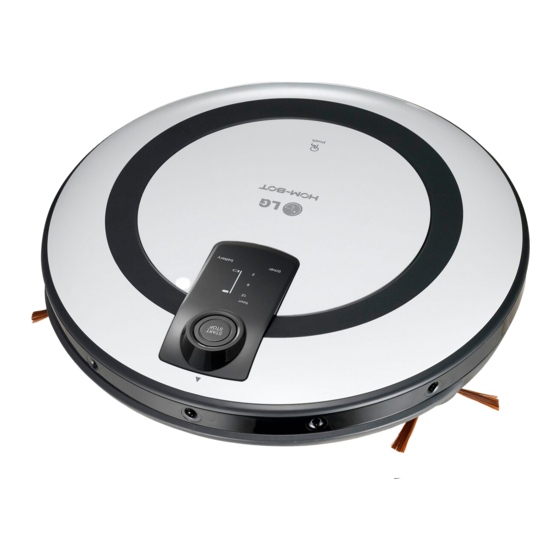

- Page 1 CLEANING ROBOT Before using, please carefully read the Safety Precautions pages to allow for safe operation of the product. After reading the operation manual, please keep it in an easily accessible location. *M : Ultra microfiber mop (option) VR5906LM www.lg.com...
- Page 2 FEATURES Images of the floor are obtained from the sensors of the lower camera, and through this, the location of roboking will be confirmed,therefore, elaborate cleaning can be accomplished for every part of the room. Camera sensor As the height of the Roboking is low (90mm), even the underside of a framed bed or furniture can be cleaned.
-
Page 3: Table Of Contents
CONTENTS BEFORE USING ADDITIONAL INFORMATION Safety Precautions 28~30 Troubleshooting Included with Product Before You Call for Service Parts Descriptions Button Functions REFERENCE Display Status Information Product Specifications Before You Start Overview HOW TO USE How to Install the Home Station How to Turn the Power Supply On and Off. -
Page 4: Safety Precautions
Failure to follow this warning can cause fire or Doing so can cause fire or product failure. product failure. If the power cord is broken, replace it at an LG Electronics customer care center. Do not place the home station and Always use a dedicated outlet. - Page 5 SAFETY PRECAUTIONS WARNING Do not use the Roboking while a Do not touch the power plug with child or object is on it. Do not use the wet hands. Roboking while an object is hanging Doing so can cause electric shock. from it.
- Page 6 Doing so can cause product failure. put any water or detergent on the Roboking. If liquids get inside of the Roboking, turn off the power supply and contact an LG Electron- ics sales agent or customer care center. When the robot cleaner is operat-...
-
Page 7: Included With Product
Before using, please carefully read the Safety Precautions pages to allow for safe operation of the product. After reading the operation manual, please keep Spot cleaning it in an easily accessible location. *M : Ultra microfiber mop (option) VR5906LM www.lg.com Operation manual Dust bin filter (spare) Quick guide... - Page 8 PARTS DESCRIPTION - Roboking Top view Manipulation button Dust bin cover button Dust bin cover Status indication lamp Detecting sensor of home station & receiving sensor of remote controller Front view Ultrasonic sensor Obstacle detecting sensor window Rear view Ventilation port Bottom view Cliff detection sensor Charging terminal...
- Page 9 PART DESCRIPTION – HOME STATION / DUST BIN Home station Power lamp Charging terminal Reset button Power cord fixing groove Dust bin Dust bin handle Dust bin cover Suction port cover Sponge filter Dust bin cover opening HEPA filter button Figures can be different from actual objects.
- Page 10 BUTTON FUNCTIONS – Roboking • Use the TIMER button to start cleaning after a set amount of time has elapsed. • The timer can be set from 1 to 12 hours. TIMER • The timer button only works when the Roboking is attached to the home station. Always attach Roboking to the home station when setting the timer function •...
-
Page 11: Button Functions
BUTTON FUNCTIONS – REMOTE CONTROL Start Charging The Roboking will start cleaning The Roboking will move to the home station for charging. Directional button Stop The Roboking will move as desired If the Roboking is in operation it will by the user: to front, rear, left, and be stopped. -
Page 12: Display Status Information
DISPLAY STATUS INFORMATION Battery and reserved time indi- cation • While waiting for cleaning, the remain- ing battery level will be shown. • While waiting for timer cleaning, the reservation time will be shown. Timer icon • This indicates when timer cleaning has Battery icon been set up. -
Page 13: Before You Start
BEFORE YOU START Check these items before cleaning • Do not use this device in a room where a child is left alone. The child could be injured. • Remove fragile or unnecessary objects from the room to be cleaned. Especially, remove expensive ceramics and valuables from the floor. -
Page 14: Overview
OVERVIEW Install the home station. (page 13) Insert the power cord plug into an outlet and locate the station against a wall. If power is not supplied to the home station, the Roboking will not charge. Turn on the power supply of the Roboking. (page 14) Turn on the power switch located on the bottom of the Roboking and press the upper START/STOP button to turn on the power supply. -
Page 15: How To Install The Home Station
• Do not operate the Roboking if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. To avoid hazard, the cord must be replaced by LG Elec- tronics, Inc. or a qualified service person. -
Page 16: How To Turn The Power Supply On And Off
HOW TO TURN THE POWER SUPPLY ON AND OFF. Turning on the main power supply To turn the power supply on, turn the Roboking upside down on a smooth/soft surface and check whether the main power sup- ply switch is turned on. If the main power supply switch is turned off, turn on the switch. -
Page 17: How To Start And Stop Cleaning
HOW TO START AND STOP CLEANING Using the buttons on the Roboking After the Roboking is turned on, press the START/STOP button to begin cleaning. A melody will sound and cleaning will begin. Press the START/STOP button during the cleaning cycle to stop cleaning. ※... -
Page 18: How To Charge The Battery
HOW TO CHARGE THE BATTERY Automatic charging The Roboking returns to the home station at the end of a cleaning cycle or when its battery is running low. ※ If the Roboking is unable to dock to the home station on its first at- tempt, it will try again until it docks successfully. - Page 19 HOW TO CHARGE THE BATTERY Remaining Battery Charge Indicator The remaining battery charge can be confirmed from the charge indication light, which will indicate charge as follows: • During charging, the charge remaining indication light will flicker. • When charging is completed at the home station, only the battery icon will illuminate to save power. •...
-
Page 20: Cleaning Modes
CLEANING MODES Spatial expansion cleaning 수동 청소 When the START button on the main unit or the remote control is pressed, Roboking operates in the spatial ex- pansion cleaning mode. The 1st stage: A maximum area of 3 m x 3 m (9.84 ft x 9.84 ft) will be cleaned. -
Page 21: Auxiliary Cleaning Modes
AUXILIARY CLEANING MODES Manual cleaning This method of cleaning involves manually moving the Roboking by pressing the directional (arrow) buttons on the remote control. The interior space will be cleaned by the Roboking as it is being moved to the front, rear, or rotated to the left and right side according to the input of the directional buttons. -
Page 22: Timer Cleaning
TIMER CLEANING Roboking can be scheduled to start cleaning after a certain period of time. The time can be set among 2 hours, 6 hours and 12 hours. 1. By pressing the TIMER button on the re- mote control or the Roboking, a clean- ing time can be scheduled. -
Page 23: Mop Cleaning (Option)
MOP CLEANING (option) By attaching the ultra microfiber mop, you can ef- Ultra microfiber mop fectively use the Roboking to remove dust. Mop plate When the mop plate is attached, the Roboking will not climb on to carpets or over thresholds, in order to prevent transferring dirt from the mop. -
Page 24: Cleaning The Dust Bin
CLEANING THE DUST BIN If the dust bin is full, suction power can be weakened. Clean the dust bin before and after each cleaning ses- sion. Clean the dust bin using the following sequence: 1. Open the dust bin cover by pressing the PUSH button on the Roboking. -
Page 25: Cleaning The Dust Bin Filter
CLEANING THE DUST BIN FILTER The dust bin filters are comprised of the HEPA filter and the sponge filter. Clean the HEPA filter and the sponge filter according to the following sequence: 1. Separate the HEPA filter and the inside sponge filter by removing the HEPA filter. -
Page 26: Cleaning The Brush
CLEANING THE BRUSH The brush, located on the bottom of the Roboking, helps with the suction of foreign objects. Perform the fol- lowing steps to clean the brush: Lay a smooth cloth on the floor. Separate the cover by press- Wearing gloves turn the brush Turn the Roboking over and ing the fixing hook and pulling... -
Page 27: Cleaning The Sensor/Charging Terminal
CLEANING THE SENSOR/CHARGING TERMINAL There are sensors on the Roboking that can detect obstacles, stairways and the home station for charging the battery. In order to maintain the performance of the Roboking, regularly clean the sensors and charging terminal as follows: 1. -
Page 28: Cleaning The Side Brush
CLEANING THE SIDE BRUSH Foreign objects/materials such as hair can easily adhere to the side brush. Remove such materials at least once a week. If excessive amounts of foreign materials are stuck to the brush, there is the risk of breakage. If the floor is rough or walls are frequently cleaned, the side brush may bend or become damaged. -
Page 29: Cleaning The Ultra Microfiber Mop (Option)
3. Use the mop only after allowing it to dry completely in a sunny, well-ventilated area. • To avoid product malfunction, only use the ultra microfiber mop provided with the Roboking. • Additional microfiber mops can be purchased by visiting a nearby LG Electronics service center. - Page 30 TROUBLESHOOTING When the voice, “Please check the wheels”, is announced. If the unit becomes stuck or suspended and the wheels do not allow the unit to move, the voice, “Please check the wheels”, will be announced. • Is a wheel trapped in the front door, balcony, stairway, etc? ▶...
- Page 31 TROUBLESHOOTING When the voice, “Please check the dust bin”, is announced When an abnormality is detected with the dust bin, the voice, “Please check the dust bin”, is announced. • Is the dust bin fitted correctly? ▶ Open the dust bin cover, and if check if the dust bin is actually fitted. the unit will not operate without the dust bin.
- Page 32 TROUBLESHOOTING When the voice, “Please check the brush”, is announced. When the Roboking detects that the brush is not functioning properly, you will hear the message “Please check the brush. ” Lay a smooth cloth on the floor, overturn the Roboking, and place it on the cloth. •...
- Page 33 BEFORE YOU CALL FOR SERVICE Check the following before calling for service. Problem Solutions (Reference page) ▶ Confirm that the power switch is turned on. (page 14) The Roboking will not activate. ▶ Confirm that the battery has been charged. (page 17) ▶...
- Page 34 PRODUCT SPECIFICATIONS Item/model LG Roboking VR5906LM Φ 360 mm X 90 mm External dimension Weight 3.2 kg Power consumption 15 W Battery (fully charging) DC 16.8 V Traveling velocity 350 mm/sec Use time Approx. 90 minutes (1 time charging) Based on general floor surface...
- Page 35 MEMO...
- Page 36 Disposal of waste batteries/accumulators 1. When this crossed-out wheeled bin symbol is attached to batteries/accumulators of Your product it means they are covered by European Directive 2006/06/EC. 2. This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead(Pb) if the battery Con- tains more that 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
