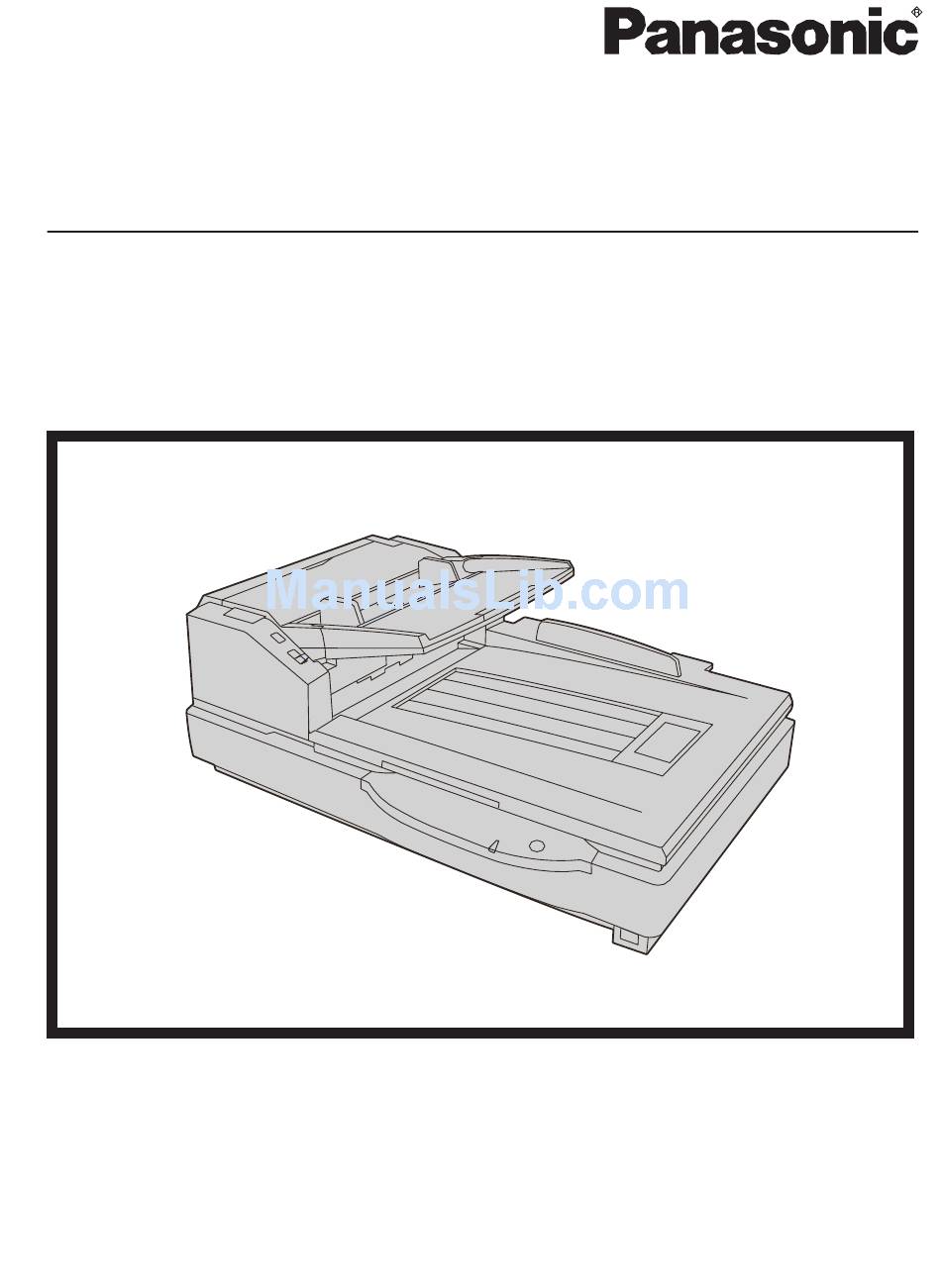

Installation Manual

High Speed Color Scanner
KV-S7075C
Model No.
These instructions contain information on installing the scanner. Please read this manual before installing the
unit.
For information on operating the scanner, please read the Operating Manual on the CD-ROM enclosed with this
unit.
Please carefully read this manual, and keep this documentation in a safe place for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KV-S7075C

Summary of Contents for Panasonic KV-S7075C

  • Page 1: Installation Manual

    Installation Manual High Speed Color Scanner KV-S7075C Model No. These instructions contain information on installing the scanner. Please read this manual before installing the unit. For information on operating the scanner, please read the Operating Manual on the CD-ROM enclosed with this unit.

  • Page 2: About The Documentation

    Introduction Introduction Thank you for purchasing a Panasonic High Speed Color Scanner. About the documentation The scanner documentation consists of 2 manuals: the Installation Manual and the Operating Manual. In addition, 3 software reference manuals are included. Installation Manual The Installation Manual explains the installation method and (this manual) procedures.
  • Page 3 Introduction International ENERGY STAR Program As an ENERGY STAR ® Partner, Panasonic has determined that this product meets the ENERGY STAR guidelines for energy efficiency. Federal Communications Commission Requirements (For United States only) Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Table Of Contents

    Table of Contents Table of Contents Before You Start ..................5 For Your Safety .........................5 Safety Information (For United Kingdom only) ..............8 Precautions ........................9 Installation ....................11 Installing the Unit ......................11 Installing Software ......................13 System Requirements ....................13 CD-ROM Contents ......................13 Software Installation .......................14 Uninstalling Software ......................15 Viewing Electronic Documentation ................16 Viewing Manuals From the CD-ROM ................16...

  • Page 5: Before You Start

    Before You Start Before You Start For Users For Your Safety To prevent severe injury and loss of life, read this WARNING section carefully before using the unit to ensure proper and safe operation of your unit. • This section explains the graphic symbols used in this manual.
  • Page 6 Before You Start Do not pull, bend, rest objects on, or chafe During thunderstorms, do not touch the the power cord, and plug. unit and plug. It may cause an electric Damage to the power cord or plug can shock. cause fire or electric shock.
  • Page 7 Before You Start Installation and Relocation Operating Safeguards Do not position the unit in a location where If the unit falls down or gets damaged, turn it is unstable. the unit off, and unplug the power cord. Otherwise, it may cause fire or electric shock.

  • Page 8: Safety Information (For United Kingdom Only)

    A replacement fuse cover can be with the letter E or by the Earth symbol or coloured purchased from your local Panasonic Dealer. GREEN or GREEN-AND-YELLOW. The wire that is coloured BLUE must be connected to IF THE FITTED MOULDED PLUG IS UNSUITABLE...

  • Page 9: Precautions

    Do not move the unit immediately from a cold place refer to the Material Safety Data Sheet (MSDS). to a warm place. It may cause dew. Please ask your Panasonic sales company about obtaining the Material Safety Data Sheet. CD-ROM KEEP AWAY FROM FIRE.
  • Page 10 Before You Start Illegal Duplication Caution Labels It is unlawful to make duplication of certain documents. Duplicating certain documents may be illegal in your country/area. Penalties of fines and/or imprisonment may be imposed on those found guilty. The following are examples of items that may be illegal to duplicate in your country/area.

  • Page 11: Installation

    Installation Installation Installing the Unit Check the accessories. • Check that all accessories are included before installing the scanner. About the installation location In the event that an item is missing, please contact your dealer. • In order to ensure proper operation, install the unit maintaining the proper distances from surrounding objects, as shown in the following illustration.
  • Page 12 Installation Remove all packing tape. Connect the power cord and the USB cable to the unit. Attach the hopper tray. • Install the front side of the hopper tray by Notice inserting the pin located in the front of the feeder •...

  • Page 13: Installing Software

    QuickScan Pro does not work with the 64-bit version of Windows. For details on how to use MCD, refer to PIE Reference Manual and RTIV Reference Manual. PIE is an acronym for Panasonic Image Enhancement Technology. The control sheets are stored as PDF files. For use them, print the control sheets in the same size as the document pages to be scanned.

  • Page 14: Software Installation

    Installation Software Installation Select your scanner model. The software on the enclosed CD-ROM can be installed on your computer. You can select from the 4 installation methods below, depending on your needs. Complete: Install all of the CD-ROM components. All Drivers & Utilities: Install all of the CD-ROM components except for applications.

  • Page 15: Uninstalling Software

    Select the item that you want to uninstall. • The software is displayed with the program names below: Software Program Name Device driver Panasonic High Speed Scanner Device Driver X.XX TWAIN KV-S7075C TWAIN Driver Follow the instructions on the screen.

  • Page 16: Viewing Electronic Documentation

    • If you have a feature called "Autorun" activated, On the [Start] menu, point to [All Programs], then the installation process will start automatically. [Panasonic], and select [Scanner Manuals]. • The setup window will appear. • If you are using Windows 2000, point to [Program] instead of [All Programs].

  • Page 17: Appendix

    Appendix Troubleshooting If a problem occurs while the unit is being used, check the following items and check the unit status with the User Utility. For other problems, refer to "Troubleshooting" in the Operating Manual. If the unit still malfunctions, turn it OFF, unplug the power cord and call for service. Symptom Possible Cause Remedy...
  • Page 18 Notes Installation Manual...
  • Page 19 Notes Installation Manual...
  • Page 20 For your future reference Date of purchase Model number Serial number Dealer’s name and address Dealer’s telephone number For users in Turkey EEE Complies with Directive of Turkey. (For EU only) Web Site: http://www.panasonic.net/ © Panasonic System Networks Co., Ltd. 2008 PNQX5674ZA DD0812YM0...
