Caution!
Permanent hearing loss may be caused by exposure to extremely high noise levels. The U.S.
Occupational Safety and Health Administration (OSHA) has specified permissible exposures to
certain noise levels. According to OSHA, exposure to high sound pressure levels (SPL) in excess of
these limits may result in hearing loss. When using equipment capable of generating high SPL, use
hearing protection while such equipment is under operation.

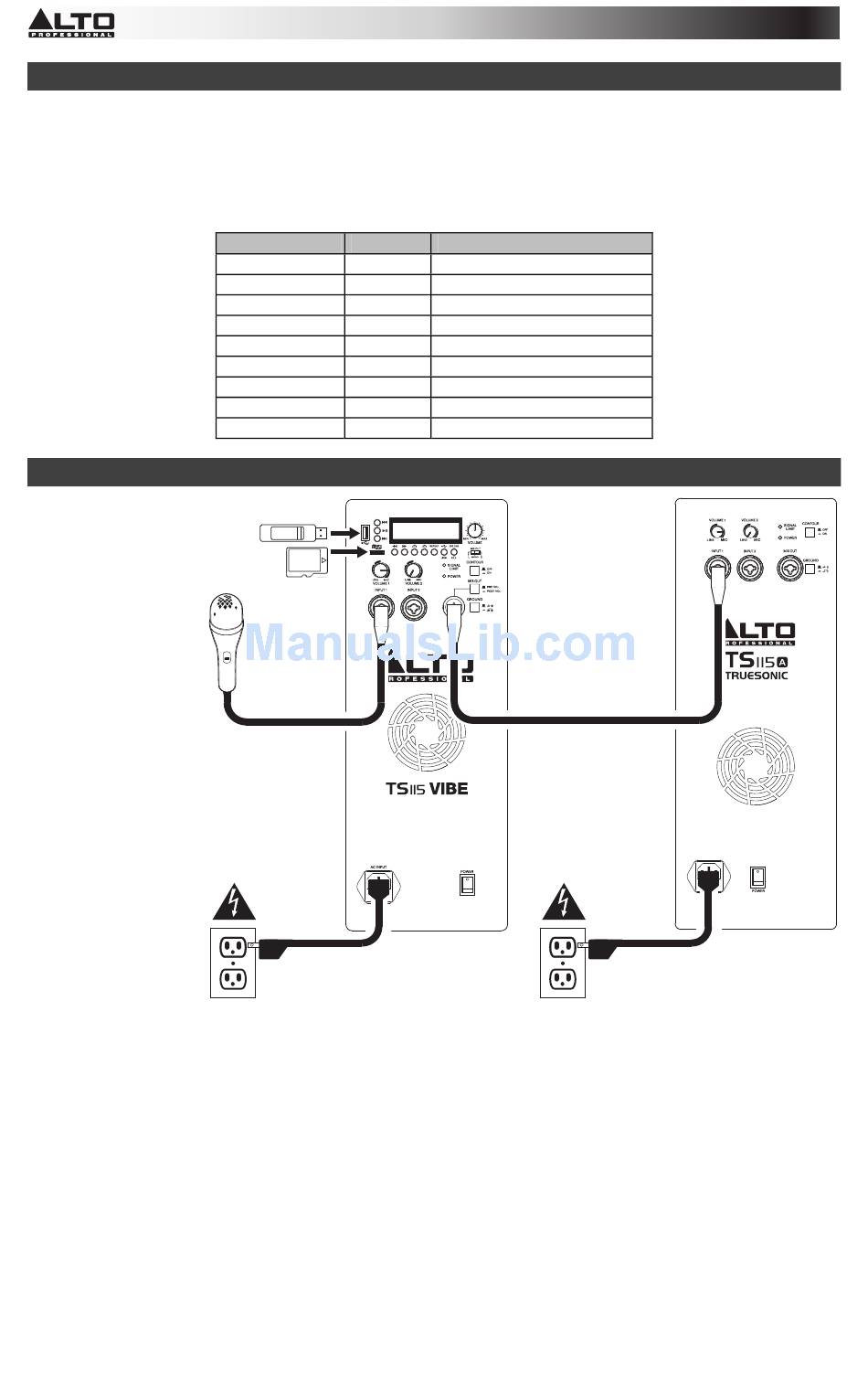

Quick Start / Connection Diagram

USB drive*
and/or
microSD card*
Microphone*
* not included
To use a single TS115 Vibe loudspeaker as your entire setup:
• Connect a USB drive or microSD card to the USB port or microSD card slot.
• Connect a microphone to an input, and adjust its volume with the Input Volume knob above it.
• Adjust the main Volume knob to set the loudspeaker's overall volume.
To use a TS115 Vibe loudspeaker in a conventional stereo PA system setup:
• Set up your TS115 Vibe as described above.
• Connect the Mix Out to the input of your second loudspeaker.
• Set your TS115 Vibe's Mix Out Channel Selector to the desired setting: Left, Right, or Mono.
(This determines the channels of the media player's output only.)
If you want to use an external mixer (for your microphones or other audio sources), connect the
mixer's outputs to an input of each loudspeaker. Just remember that TS115 Vibe's media player is
sent out of its Mix Out, so leave the Mix Out connected to the other loudspeaker's input to hear the
media player in stereo.
Hours per day SPL (dB) Example
8
6
4
3
2
1.5
1
.50
.25 or less
0dB
Power
90 Small gig
92 Train
95 Subway train
97 High level desktop monitors
100 Classical music concert
102 Riveting machine
105 Machine factory
110 Airport
115 Rock concert
0dB
4
Power*
