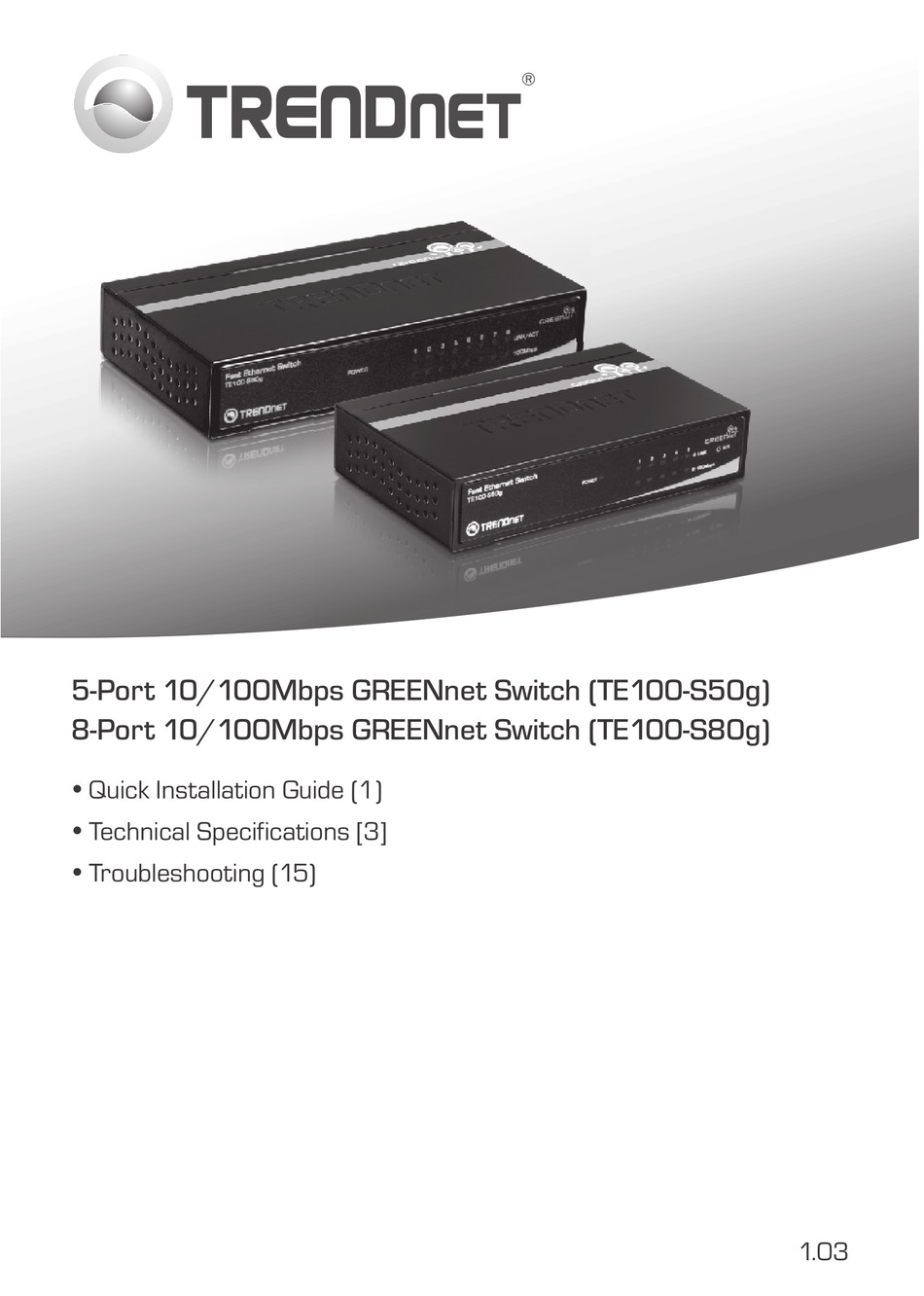

5-Port 10/100Mbps GREENnet Switch (TE100-S50g)
8-Port 10/100Mbps GREENnet Switch (TE100-S80g)
Ÿ Quick Installation Guide (1)
Ÿ Technical Specifications [3]
Ÿ Troubleshooting (15)
1.03

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TE100-S50g

Summary of Contents for TRENDnet TE100-S50g

  • Page 1 5-Port 10/100Mbps GREENnet Switch (TE100-S50g) 8-Port 10/100Mbps GREENnet Switch (TE100-S80g) Ÿ Quick Installation Guide (1) Ÿ Technical Specifications [3] Ÿ Troubleshooting (15) 1.03...

  • Page 2: Package Contents

    Do not place heavy objects on the switch 2. Hardware Installation 1. Connect the Power Adapter to the TE100-S50g/TE100-S80g and then to a power outlet. 2. Connect a CAT-5, CAT-5e or CAT-6 RJ-45 network cable from the computer to an available Ethernet port on the TE100-S50g/ TE100-S80g.
  • Page 3 Ÿ Not Illuminated: Connection for the port is 10/20 (Half/Full) or nothing is detected on the port. Your configuration is complete For detailed information regarding the TE100-S50g/TE100-S80g’s configuration and advanced settings, please refer to the Troubleshooting section, or TRENDnet's website at http://www.trendnet.com.

  • Page 4: Technical Specifications

    Power Adapter 7.5V DC, 1A External Power Adapter Dimensions Ÿ TE100-S50g: 116 x 25 x 70 mm (4.57 x .98 x 2.76 in.) Ÿ TE100-S80g: 136 x 25 x 70 mm (5.35 x .98 x 2.76 in.) Weight Ÿ TE100-S50g: 225g Ÿ...

  • Page 5: Troubleshooting

    5. Where is the uplink port located on the switch? Since all the ports on the switch are Auto-MDIX, any of the ports can be used as an uplink port. If you still encounter problems or have any questions regarding the TE100-S50g/TE100-S80g please contact TRENDnet's Technical Support Department.
  • Page 7 TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
  • Page 8 ("LGPL"). Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for specific terms of...
  • Page 9 TRENDnet 20675 Manhattan Place Torrance, CA 90501. USA Copyright ©2011. All Rights Reserved. TRENDnet.

This manual is also suitable for:

Te100-s80g

Table of Contents
