  • Page 1 TE100-S16R 16-Port 10/100Mbps NWay Ethernet Switch User’s Guide...

  • Page 3: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 UL Warning a) Elevated Operating Ambient Temperature-If installed in a closed or multi - unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (Tmra).

  • Page 5: Table Of Contents

    ABLE OF ONTENTS ABOUT THIS GUIDE ............III URPOSE ....................ERMS SAGE ..................’ VERVIEW OF THIS UIDE..........INTRODUCTION .................1 THERNET ECHNOLOGY ............1 WITCHING ECHNOLOGY ..............2 EATURES ....................3 UNPACKING AND INSTALLATION ....5 NPACKING....................5 NSTALLATION ..................5 OUNTING..................6 IDENTIFYING EXTERNAL COMPONENTS ...........................7 RONT ANEL..................7 ANEL....................8 LED I...
  • Page 6 CONNECTING THE SWITCH ........15 WITCH..................15 UB TO WITCH ...................15 A. 10BASE-T Hub ................16 B. 100BASE-TX Hub ................ 16 (MDI-II) UB WITHOUT PLINK PORT ........16 A. Using straight cable ..............16 B. Using crossover cable ..............16 WITCH TO WITCH OTHER DEVICES ........17...

  • Page 7: About This Guide

    BOUT UIDE Congratulations on your purchase of the 16-Port 10/100Mbps NWay Ethernet Switch. This device integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible package. Purpose This guide discusses how to install your 16-Port 10/100Mbps NWay Ethernet Switch.

  • Page 9: Introduction

    NTRODUCTION This chapter describes the features of the Switch and some background information about Ethernet/Fast Ethernet switching technology. Fast Ethernet Technology The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance networks.

  • Page 10: Switching Technology

    Switching Technology Another approach to pushing beyond the limits of Ethernet technology is the development of switching technology. A switch bridges and transmits Ethernet packets at the MAC address level of the Ethernet protocol, among connected Ethernet or Fast Ethernet LAN segments. Switching is a cost-effective way of increasing the total network capacity available to users on a local area network.

  • Page 11: Features

    maintenance intensive, these make i t relatively impractical for the network. Switch, on the other hand, is less expensive, easier to setup, and practically maintenance free, which make it an ideal solution to today’s local area network congestion problems. Features This high performance Switch was designed for a network environment where traffic and the number of users increase continuously.
  • Page 12 This Switch is an unmanaged 10/100Mbps Fast Ethernet Switch that offers solutions to increase Ethernet workgroup bandwidth. Other key features are as followed: ? ?Uplink/MDI-II (media dependent interface) port for uplink to another switch or hub. ? ?Store and forward switching scheme. As the result of complete frame checking and error frame filtering, this scheme prevents error packages from transmitting among segments.

  • Page 13: Unpacking And Installation

    NPACKING AND NSTALLATION This chapter provides unpacking and setup information for the Switch. Unpacking Open the shipping cartons and carefully unpacks its contents. The carton should contain the following items: ?? One the 16-Port 10/100Mbps NWay Ethernet Switch ?? One AC power cord; suitable for your area’s electrical power connections ?? Four rubber feet to be used for shock cushioning ?? Screws and two mounting brackets...

  • Page 14: Rack Mounting

    ? ? Install the Switch on a sturdy, level surface that can support its weight, or on a 19” EIA standard-size equipment rack. For information on rack installation, please see the next section, Rack Mounting. ? ? When installing the Switch on a level surface, attach the rubber feet on the corners at the bottom of the Switch.

  • Page 15: Identifying External Components

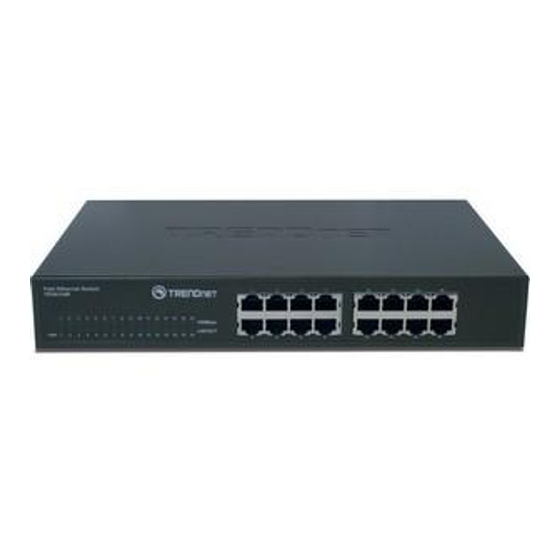

    DENTIFYING XTERNAL OMPONENTS This section identifies all the major external components of the switch. Both the front and rear panel is shown, followed by a description of each panel’s feature. The LED indicator panel is described in detail in the next chapter. Front Panel The figure below shows the front panels of the switch.

  • Page 16: Rear Panel

    Port 8 and the Uplink port is really the same port, except that their pin-outs are different. Do not use both Port 8 and the Uplink port at the same time. Rear Panel Trunking setting DIP switch: By using the trunking DIP switches, you can set the trunking function. For detail information on how to configure trunking, please refer to the Trunking Setting in the next section.

  • Page 17: Led Indicators

    LED Indicators Power (Power Indicator) This indicator lights green when the hub is receiving power. This LED is off indicating no power. 10/100M FDX and 10/100M COL (10/100Mbps Full-Duplex and 10/100Mbps Collision Indicator) This LED indicator lights green when the respective port is in full- duplex (FDX) mode.
  • Page 18 Switches via both trunking groups with 800Mbps bandwidth between the Switches. Please see the table and diagrams below for more information. Trunking Group A 0 Disable 0 Port 1 & 9 (400Mbps) 1 Port 1, 2 & 9 (600Mbps) 1 Port 1, 2, 9 & 10 (800Mbps) Trunking Group B 0 Disable 0 Port 8, 16 (400Mbps)
  • Page 19 Cascade two switches with UpLink port Cascade two switches with Trunking ports Cascade three switches with trunking ports...

  • Page 20: Qos (Quality Of Service) Setting

    QoS (Quality of Service) setting Quality of Service (QoS) is a networking term that specifies a guaranteed throughput level. When data packets with QoS priority information pass through QoS supported device, these packets will be handled with priority. Without certain level of QoS, multimedia applications such as Streaming Video and Network Conference can be sluggish or stopped due to network congestions.
  • Page 21 Port-Based QoS: There are eight ports on this Switch that can be set for Port-Based QoS. The QoS DIP Switches 1~8 represent port number 3~6 and 11~14. After setting the selected port’s DIP Switch to “Enable”, all incoming packets to these ports will be handled with priority. IP Header QoS: The QoS DIP Switch 9 enables/disables IP header QoS feature.

  • Page 23: Connecting The Switch

    ONNECTING WITCH This chapter describes how to connect the Switch to your Fast Ethernet network. PC to Switch A PC can be connected to the Switch via a two-pair Category 3, 4, 5 UTP/STP straight cables. The PC (equipped with a RJ-45 10/100Mbps phone jack) should be connected to any of the 16 ports (1x - 16x) Note: Use CAT5 (or better) cable for 100Mbps connection.

  • Page 24: 10Base-T Hub

    A. 10BASE-T Hub For a 10BASE-T hub, the Switch LED indicators should light up as the following: “FDX/COL” LED indicator is OFF. “LINK/ACT” LED indicator lights amber. B. 100BASE-TX Hub When connecting to a 100BASE-TX hub, the Switch LED indicator should light up as the following: “FDX/COL”...

  • Page 25: Switch To Switch (Other Devices)

    Switch to Switch (other devices) The Switch can be connected to another switch or other devices (routers, bridges, etc.) via a two-pair Category 3, 4, 5 UTP/STP straight or crossover cable. Note: Use CAT5 (or better) cable for 100Mbps connection. A.

  • Page 27: Technical Specifications

    ECHNICAL PECIFICATIONS General IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100 Base-TX Fast Ethernet Standards ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x flow control Protocol CSMA/CD Data Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Transfer Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Rate Topology Star...

  • Page 28: Physical And Environmental

    Physical and Environmental AC inputs 100 to 240 VAC, 50 or 60 Hz internal universal power supply Power 20 watts. (Max.) Consumption Temperature Operating: 0 ~ 50 C, Storage: -10 ~ 70 C Humidity Operating: 10% ~ 90%, Storage: 5% ~ 90% Dimensions 440 x 140 x 44 mm (W x H x D) EMI:...
