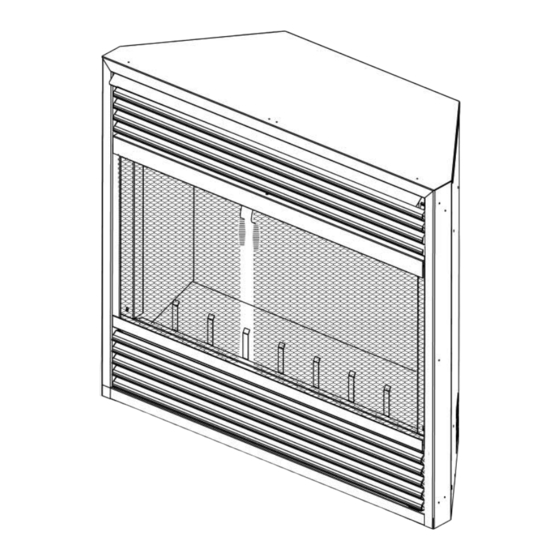

Summary of Contents for Napoleon EF36H
- Page 1 W415-0544 / 10.31.05 W415-0544 / 10.31.05...
-
Page 2: Table Of Contents
TABLE of CONTENTS PG 2-4 INTRODUCTION Warranty Important Instructions Locating Your Fireplace Dimensions OPERATION Remote Control Flame Effect Maintenance FINISHING Mantel Installation Clearance to Combustibles Framing and Finishing Hearth Cold Climate Installation Log Installation Louvres Screen Cover Removal PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE •... -
Page 3: Warranty
NAPOLEON electric fi replaces are manufactured under the strict Standard of the world recognized ISO 9001:2000 Quality Assurance Certifi cate. NAPOLEON products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. Once assembled the complete fi replace is thoroughly inspected by a qualifi ed technician before packaging to ensure that you, the customer, receive the quality product that you expect from NAPOLEON. -
Page 4: Important Instructions
IMPORTANT INSTRUCTIONS 1. READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. THIS APPLIANCE IS HOT WHEN USED. 2. To avoid burns, DO NOT let bare skin touch hot surfaces. The trim around the heat outlet becomes hot during fi replace operation. Keep combustible material; such as furniture, pillows, bedding, paper, clothes and draperies at least 3 feet from the front of the unit. -
Page 5: Operation
REMOTE CONTROL This fi replace is supplied with a radio frequency remote control. This remote will function up to 20 feet away from the fi replace. The heater may emit a slight, harmless odour when fi rst used. This odour is a normal condition caused by initial heating of internal heater parts. -
Page 6: Finishing
MANTEL The minimum distance from the top of the unit that the mantel can be installed is 0", at any depth. When using paint or lacquer to finish the mantel, such paint or lacquer must be heat resistant to prevent discolouration. 10"... - Page 7 EF36 Corner Installation Top View Front View Note: In order to avoid the possibility of exposed insulation or vapour barrier coming in contact with the fi replace body, it is recommended that the walls of the fi replace enclosure be “fi nished” (ie: drywall/sheetrock), as you would fi nish any other outside wall of a home.
-
Page 8: Hearth
HEARTH A hearth is NOT necessary but is recommended for aesthetic purposes. COLD CLIMATE INSTALLATION WARNING: It is MANDATORY to have an insulated wall behind the fireplace, when the fireplace is being installed on an outside wall or chase. LOG INSTALLATION LOG BASE LOG BASE 1. - Page 9 ELECTRICAL CONNECTION This fireplace requires a 15 amp, 120 volt and 60 hz circuit. The fireplace should be on its own circuit. If there are other appliances on the same circuit, this may cause the circuit breaker or fuse to blow when the fireplace heater is in operation.
- Page 10 NSTALLATION DATE OF FIREPLACE 3. P UMBER 4. D ESCRIPTION OF PART 5. F INISH IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED A PHOTOCOPY FOR FURTHER INFORMATION EF36 ACCESSORIES EF36H models. HOIBG-2 DOIK-1 DOIG-1 DOIKG-1 DOIBC-1 DOIBG-1 GOIK-1 GOIG-1 GOIKG-1 GOIBC-1...
- Page 11 W415-0544 / 10.31.05...
- Page 12 TROUBLE SHOOTING GUIDE SYMPTOM PROBLEM No Flame Light but - Light bulbs have burned out. everything else is working properly. Flame light, but no - Flame generator motor has burned out. movement in the fl ame - Flame generator has come loose. Remote control - Dead batteries.
