• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B TABLE OF CONTENTS FBQ-B8V1_FBQ-B8V3B Features ............. 5 Specifications . -
Page 5: Features

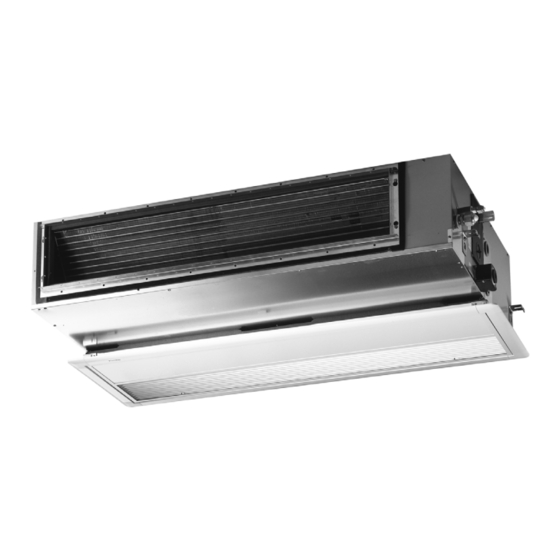

• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Features F B Q U n i V 1 _ o o r - B 8 1 0 a I n d F B Q R - 4 • Lightweight and compact • The position of individual air discharge grilles can be altered, enabling efficient temperature distribution, even in irregularly shaped •... -
Page 6: Specifications
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Specifications 2-1 FOR INDOOR UNITS ONLY FBQ35B8V1 FBQ50B8V1 FBQ60B8V1 FBQ71B8V3B FBQ100B8V3B FBQ125B8V3B FBQ140B8V3B Nominal input Cooling 0.065 0.085 0.125 (Indoor only) Heating 0.065 0.085 0.125 2-2 TECHNICAL SPECIFICATIONS FBQ35B8V1 FBQ50B8V1 FBQ60B8V1 FBQ71B8V3B FBQ100B8V3B... -
Page 7: Electrical Specifications
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Specifications 2-2 TECHNICAL SPECIFICATIONS FBQ35B8V1 FBQ50B8V1 FBQ60B8V1 FBQ71B8V3B FBQ100B8V3B FBQ125B8V3B FBQ140B8V3B Decoration Model BYBS125DJW BYBS125DJW BYBS125DJW BYBS45D BYBS45D BYBS71D BYBS71DJW1 Panel Colour White Dimensions 1100 1100 1500 1500 1500 Weight Air Filter Resin net with mold resistance... -
Page 8: Safety Device Settings
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Safety device settings Model Safety devices 45 - 50 − − − − Fuse 5A/250V 5A/250V 5A/250V FBQ∼B Fan motor thermal fuse (°C) 152±2 152±2 152±2 152±2 152±2 152±2 152±2 − − − −... -
Page 9: Options
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Options FBQ-B Item FBQ35,50 FBQ60,71 FBQ100,125,140 Decoration panel BYBS45D BYBS71D BYBS125D Panel related Service access panel KTBJ25K56W KTBJ25K80W KTBJ25K160W High-efficiency filter 65% (colorimetric method) *1 KAFJ252L56 KAFJ252L80 KAFJ252L160 High-efficiency filter 90% (colorimetric method) *1 KAFJ253L56 KAFJ253L80 KAFJ253L160... -
Page 10: Control Systems
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Control systems BRC1D52 5 x 10 (Round end slit) 6.5 x 9 (Round end slit) HoleJ5 5 x 7 (Round end slit) Cover closed 3TW23651-2 Cover open • Split Sky Air • Indoor Units... -
Page 11: Dimensional Drawing & Centre Of Gravity
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Dimensional drawing & centre of gravity 6 - 1 Dimensional drawing FBQ35-50B 750 (Suspension position) view B view A Fresh air intake position 595 (Air suction panel center) Suspension bolt (Knock out hole) (On circumference) 300 mm or more view C... - Page 12 • Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Dimensional drawing & centre of gravity 6 - 1 Dimensional drawing FBQ100-125-140B 1450 (Suspension position) view B view A Fresh air intake position 595 (Air suction panel center) Suspension bolt (Knock out hole) (On circumference) 300 mm or more (Service space)
- Page 13 • Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Dimensional drawing & centre of gravity 6 - 1 Dimensional drawing FBQ60-71B With canvas 1050 (Suspension position) view A Fresh air intake position 595 (Air suction panel center) Suspension bolt (Knock out hole) (On circumference) 300 mm or more (Service space)
-
Page 14: Centre Of Gravity
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Dimensional drawing & centre of gravity 6 - 2 Centre of gravity FBQ-B Model FBQ35,50 FBQ60 1000 FBQ71 1000 FBQ100,125,140 1400 4TW20169-2G • Split Sky Air • Indoor Units... -
Page 15: Piping Diagram
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Piping diagram Refrigerant flow FBQ-B Cooling Heating Refrigerant pipe connection port diameters Model Liquid FBQ35B J9.52 J6.35 FBQ50-60B J12.70 J6.35 Heat exchanger FBQ71-100-125-140B J15.90 J9.52 Liquid pipe connection port Filter Gas pipe connection port Check valve Flare connection Screw connection... -
Page 16: Wiring Diagram
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Wiring diagram 8 - 1 Wiring diagram FBQ35-60B Indoor Outdoor Notes Wired remote control 1. When using the central remote control, see manual for connection to the unit. 2. The infrared remote control model varies according to the combination system. - Page 17 • Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Wiring diagram 8 - 1 Wiring diagram FBQ100-125-140B Indoor Outdoor Notes Wired remote control 1. When using the central remote control, see manual for connection to the unit. 2. The infrared remote control model varies according to the combination system.
-
Page 18: Sound Data
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Sound data 9 - 1 Sound pressure spectrum FBQ35-50B FBQ60-71B 3TW22047-1 Octave band center frequency (Hz) 3TW22067-1 Octave band center frequency (Hz) NOTES NOTES Data is valid at free field condition Data is valid at free field condition Data is valid at nominal operation condition 230V Data is valid at nominal operation condition 230V dB(A) = A-weighted sound pressure level (A-scale according to IEC) -
Page 19: Fan Characteristics
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Fan characteristics FBQ50B FBQ35B High (high ESP) High (high ESP) High (standard ESP) High (standard ESP) High (low ESP) High (low ESP) Decoration panel Suction panel Long-life filter Suction panel Internal static Long-life filter pressure Internal static Air flow (m... - Page 20 • Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Fan characteristics FBQ125-140B High (high ESP) A = Upper limit of external static pressure (standard ESP) High (standard ESP) B = Lower limit of external static pressure (standard ESP) Suction panel Internal static Long-life filter pressure Air flow (m...
-
Page 21: Installation
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Installation 11 - 1 Installation method Bottom suction Rear suction Ceiling return Ceiling return Direct installation of inlet panel Installation with duct Installation with canvas and inlet panel Installation with high efficiency filter Installation with canvas and high efficiency filter Wide variety of installation methods Number... - Page 22 • Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Installation 11 - 1 Installation method Drain pump up height From the outside of the switch box: remove the switch box cover Easy access to the switch box Easy modification from rear to bottom suction 3TW22043-4A •...
-
Page 23: Filter Installation Method
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Installation 11 - 2 Filter installation method FBQ-B Service space Suspension bolt pitch Number Description Unit Indoor unit FBQ35,50 Pipe connections FBQ60 1000 1050 Suspension bolt pitch (4x) FBQ71 1000 1050 Suspension bolt pitch distance FBQ100,125,140 1400 1450... - Page 24 • Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Installation 11 - 2 Filter installation method FBQ-B 45 (or less) Installation without duct Installation with duct NOTES Number Description When installing the unit with rear suction, a service opening is False ceiling necessary for the maintenance of the air filters.
-
Page 25: Switch Box Connection
• Indoor Units • R-410A • FBQ-B8V1_FBQ-B8V3B Installation 11 - 3 Switch box connection FBQ-B 3TW22043-5B • Split Sky Air • Indoor Units...
