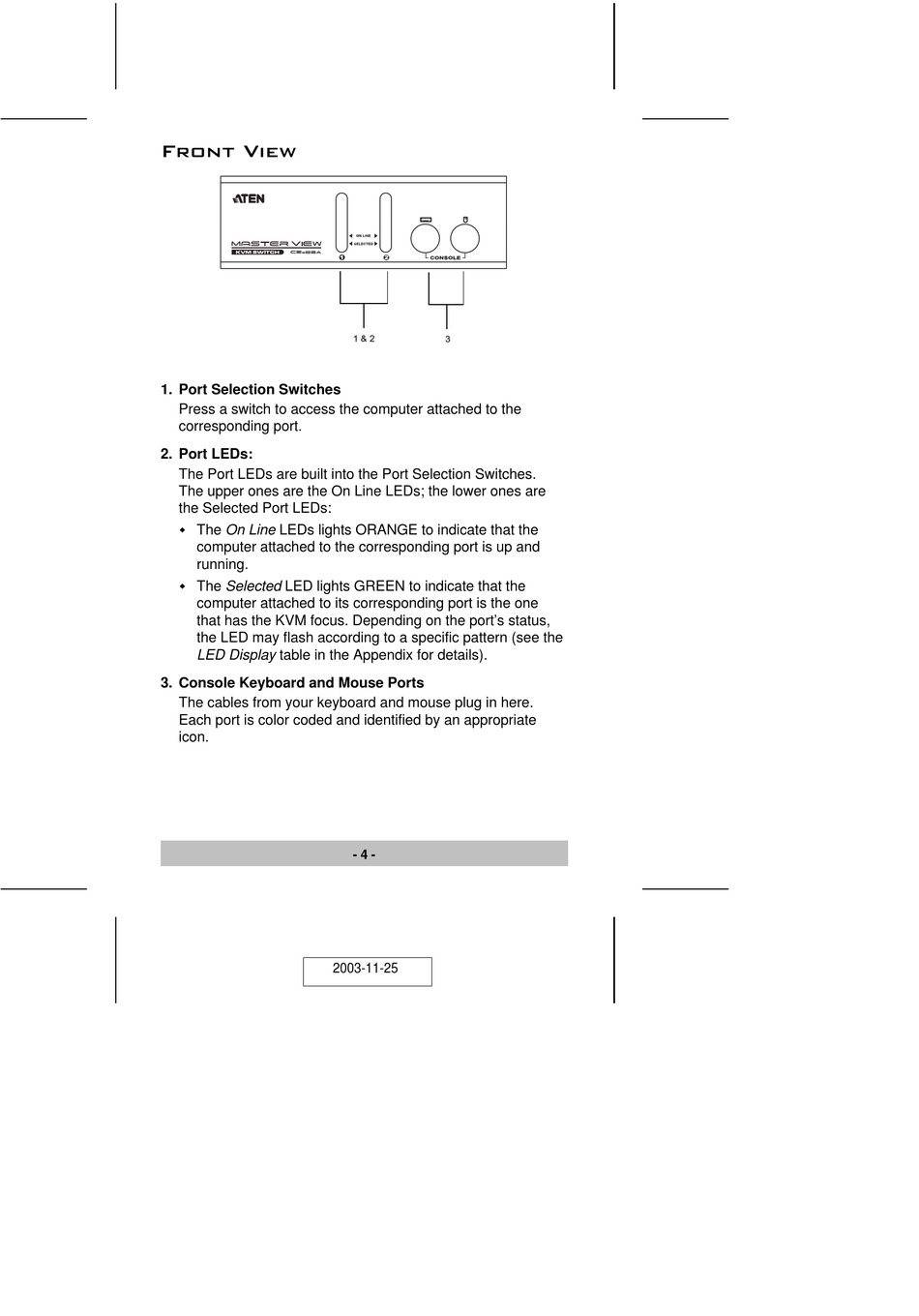

Front View

1. Port Selection Switches
Press a switch to access the computer attached to the
corresponding port.
2. Port LEDs:
The Port LEDs are built into the Port Selection Switches.
The upper ones are the On Line LEDs; the lower ones are
the Selected Port LEDs:
M
The On Line LEDs lights ORANGE to indicate that the
computer attached to the corresponding port is up and
running.
M
The Selected LED lights GREEN to indicate that the
computer attached to its corresponding port is the one
that has the KVM focus. Depending on the port's status,
the LED may flash according to a specific pattern (see the
LED Display table in the Appendix for details).
3. Console Keyboard and Mouse Ports
The cables from your keyboard and mouse plug in here.
Each port is color coded and identified by an appropriate
icon.
2003-11-25
1 & 2
3
- 4 -
