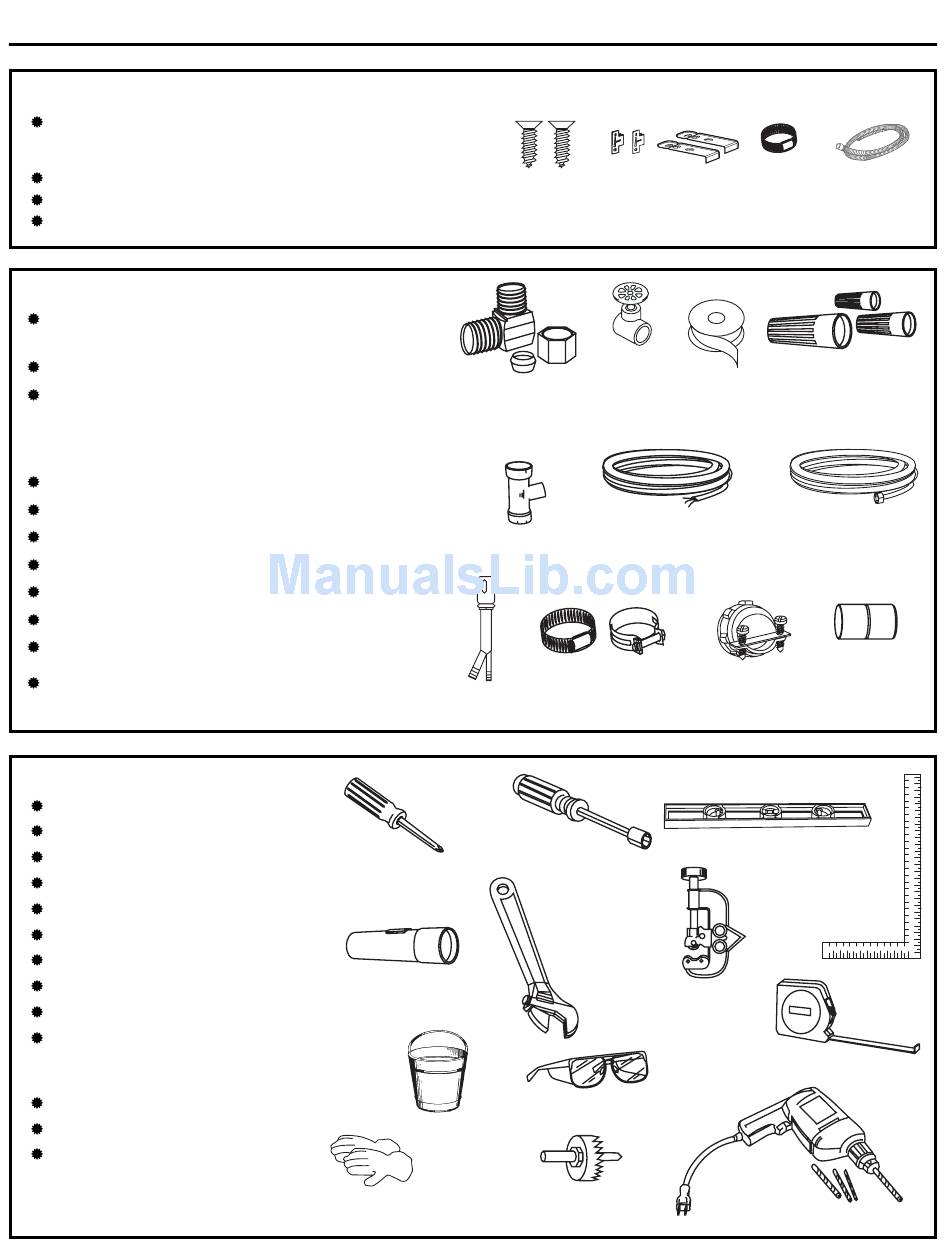

PARTS SUPPLIED:

Four flat head wood screws
dishwasher to underside of countertop
(in literature package).
Screw type hose clamps and one drain hose.
@ 2 side mounting clips.
2 top mounting cl\ i ps.

MATERIALS YOU WILL NEED :

Ferrule, compression nut and 90° Elbow (3/8"NPT external
thread on one end, opposite end sized to fi t water supply)
Thread seal tape
UL Listed wire nuts (3)
Materials For New Installations Only:
Air gap for drain hose, if required
Waste tee for house plumbing, if applicable
Electrical cable or power cord, if applicable
Screw type hose clamps
Strain relief for electrical connection.
Hand shut-off valve
Water line 3/8" min. copper
Coupler for extending drain line, if applicable

TOOLS YOU WILL NEED:

Phillips head screwdriver
5/16" and 1/4" nutdriver
6" Adjustable wrench
Level
Carpenters square
Measuring tape
Safety glasses
Flashlight
Bucket to catch water when fl ushing the line
Gloves
For New Installations Only:
Tubing cutter
Drill and appropriate bits
Hole saw set

Installation Preparation

to secure
Phillips
Head
Screwdriver
Flashlight
Bucket
Gloves
2 Side
4 Wood Screws
Mounting Clips
Hand
Shut-Off
90° Elbow,
Valve
Ferrule and
Compression Nut
Electrical Cable
(or Power Cord, if applicable)
Waste Tee
Screw Type
Hose Clamps
Air Gap
1/4"
and 5/16" Nut-
driver
6" Adjustable
Wrench
Safety Glasses
Hole Saw Set
2
Screw Type
2 Top
Hose Clamp
Mounting Clips
Wire Nuts (3)
Thread
Seal Tape
Hot Water line
Strain Relief
Level
Carpenters
Square
Tubing Cutter
Measuring Tape
Drill and Bits
Drain Hose
Coupler

Advertisement

Table of Contents
loading

Related Manuals for Crosley ZDM6502AS

Summary of Contents for Crosley ZDM6502AS

  • Page 1: Installation Preparation

    Installation Preparation PARTS SUPPLIED: Four flat head wood screws to secure dishwasher to underside of countertop (in literature package). Screw Type 2 Top 2 Side Screw type hose clamps and one drain hose. 4 Wood Screws Drain Hose Hose Clamp Mounting Clips Mounting Clips @ 2 side mounting clips.

  • Page 2: Drain Requirements

    Installation Preparation • The dishwasher must be installed so that drain hose is no more than 10 feet in length for proper drainage. • The dishwasher must be fully enclosed on the top, sides and back, and must not support any part of the enclosure.

  • Page 3: Prepare Electrical Wiring

    Installation Preparation PREPARE ELECTRICAL WIRING WARNING FOR PERSONAL SAFETY: Remove house fuse or open circuit breaker before beginning installation. Do not use an 1-1/2" Dia. extension cord or adapter plug with this Hole (Max.) appliance. 2½~3½ in. (65 ~ 90mm) Electrical Requirements from •...

  • Page 4: Before You Begin

    Installation Instructions PREPARE HOT WATER LINE CAUTION: • The line may enter from either side, rear or fl oor Opening the door will cause the dishwasher within the shaded area shown in Figure F. to tip forward. Do not open the door until you are ready •...

  • Page 5: Step 2 Adjust Leveling Legs

    Installation Instructions STEP 4 INSTALL POWER CORD STEP 2 ADJUST LEVELING LEGS Skip this step if dishwasher will be direct wired. Use • Move the dishwasher close to the installation loca- power cord provided. The power cord and tion and lay it on its back. connections must comply with local codes and ordinances.

  • Page 6: Step 6 Install Drain Hose

    Installation Instructions STEP 6 INSTALL DRAIN HOSE STEP 8 SLIDE DISHWASHER PARTIALLY INTO CABINET • Install the screw type hose clamps to the drain hose. DO NOT PUSH AGAINST FRONT PANEL WITH KNEES. • Install the drain hose to the drain hose installation DAMAGE WILL OCCUR.

  • Page 7: Step 9 Position Dishwasher Under Countertop

    Installation Instructions STEP 9 POSITION DISHWASHER UNDER COUNTERTOP Reposition Dishwasher • Check to be sure that wires are secure under the by Grasping Both dishwasher and not pinched or in contact with door Sides With Hands springs or other dishwasher components. TIP: Check tub insulation blanket, if equipped.

  • Page 8: Step 11 Secure Dishwasher To The Countertop

    Installation Instructions Open the door remove the tub cap on both sides of STEP 11 SECURE DISHWASHER the tub. Install screw through the dishwasher side TO THE COUNTERTOP hole to the wall of cabinet. Reinstall tub cap. For countertops made of wood or that will not be damaged by drilling,use Method 1.

  • Page 9: Step 13 Connect Drain Line

    Installation Instructions STEP 13 CONNECT DRAIN LINE DRAIN LINE INSTALLATION • Connect drain line to air gap, waste tee or disposer FOLLOW ALL LOCAL CODES AND ORDINANCES. using either previously determined method. The drain hose molded end will fi t 5/8", 3/4" or 1" Method 1 –...

  • Page 10: Step 14 Connect Power Supply

    Installation Instructions STEP 14 CONNECT POWER STEP 15 PRE-TEST CHECKLIST SUPPLY Review this list after installing your dishwasher to avoid charges for a service call that is not covered Skip this step if equipped with power cord. by your warranty. Verify that power is turned off at the source.

  • Page 11: Step 16 Dishwasher Wet Test

    Installation Instructions STEP 16 DISHWASHER WET TEST STEP 17 REPLACE TOEKICK Turn on power supply (or plug power cord into outlet, if equipped). Turn on your dishwasher (please refer to the Owner's Manual for instructions). Close door, select RINSE ONLY cycle and press START/CANCEL.
