EN | 18
Caution

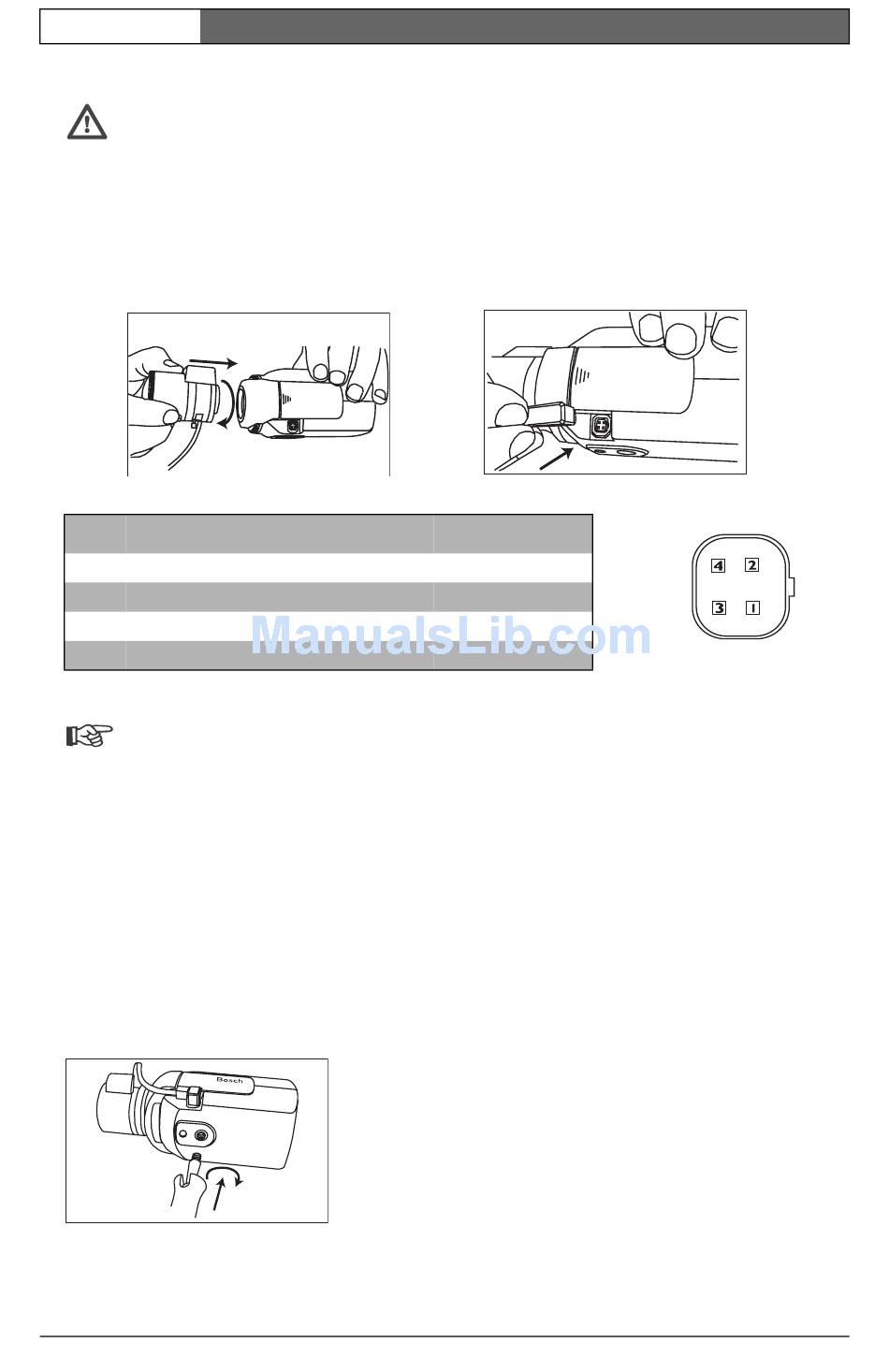

To avoid damaging the CCD sensor when using a C-mount lens, make
sure the supplied lens adapter ring is mounted onto the camera before
mounting the lens.
Lenses weighing more than 0.5 kg (1.1lbs) must be separately supported.
Pin Video iris lens
1 Supply (11.5V ±0.5, 50mA max.)
2
3 Video signal 1Vpp 1kOhm
4
Note
If a short circuit is detected on the lens connector, the on-screen display
(OSD) failure message LENS SHORT CIRCUIT is shown. The lens circuit
is automatically disabled to avoid internal damage. Remove the lens
connector and check the pin connections.

Mounting the camera

The camera can be mounted from the top or bottom. The bottom mounting is
isolated from ground. With outdoor scenes, a DC-iris lens is recommended.
Bosch
Not used
Ground
Dinion IP
DC iris lens
Damp -
Damp +
Drive +
Drive -
Bosch Security Systems | 2006-05 | V2.0
| Installation Manual
